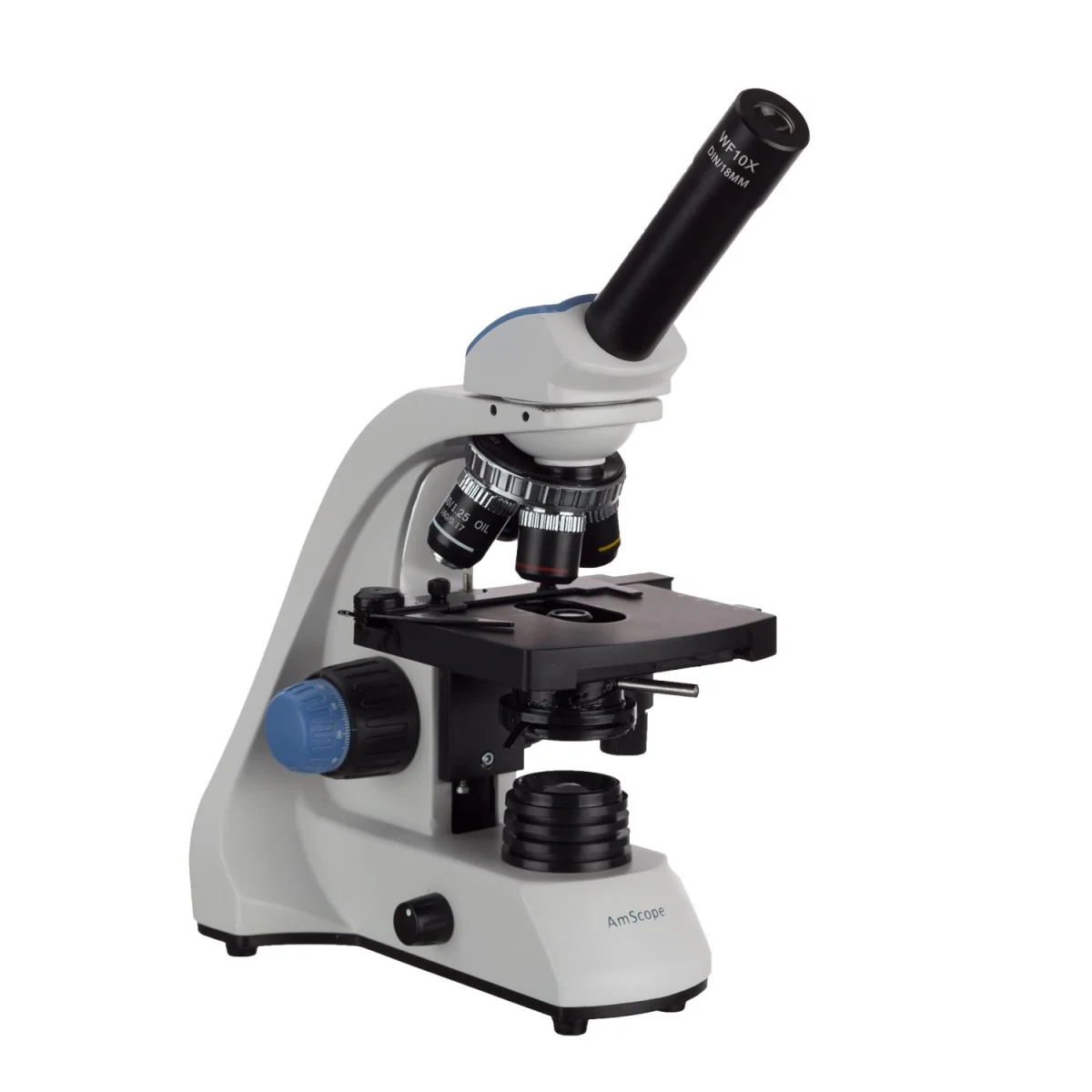

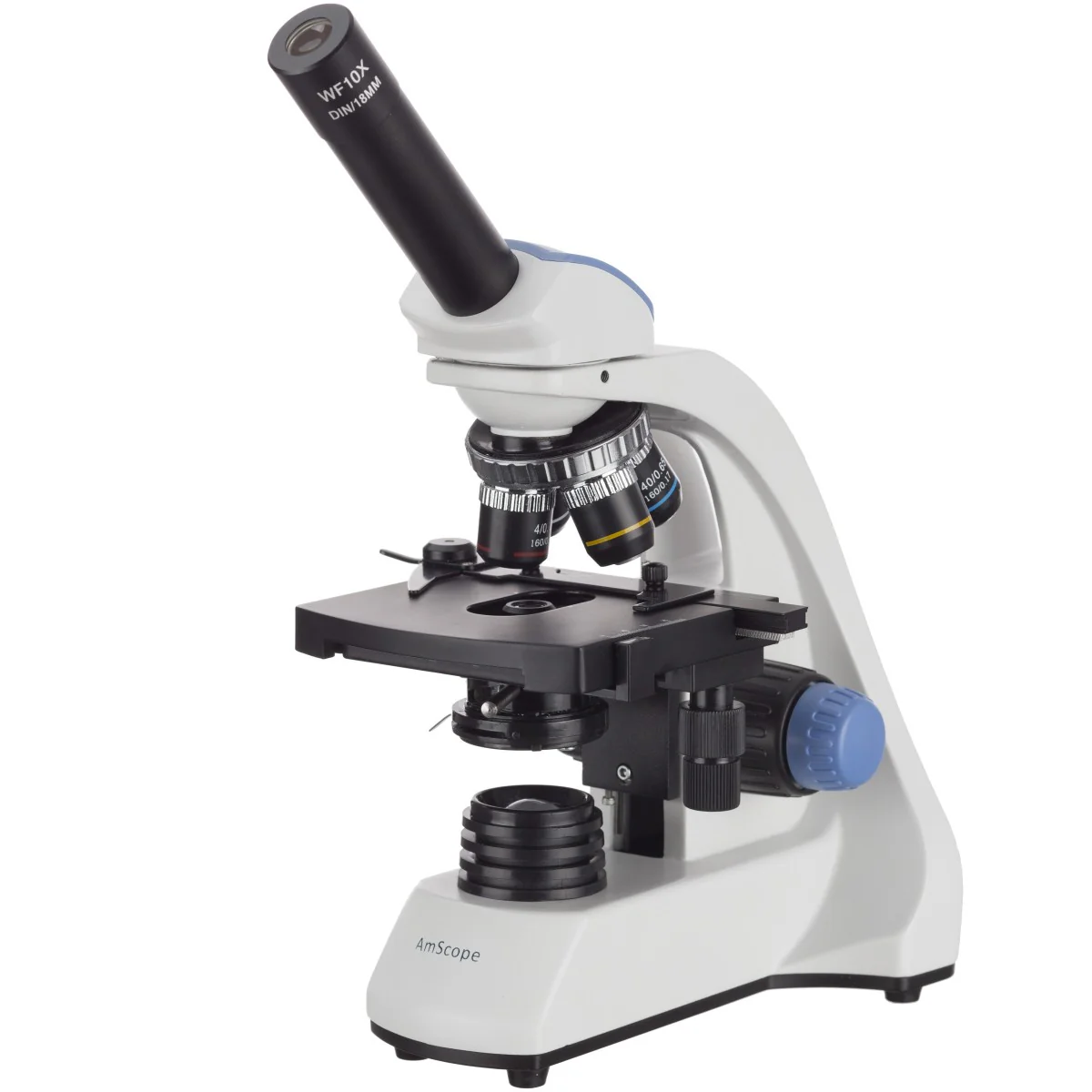

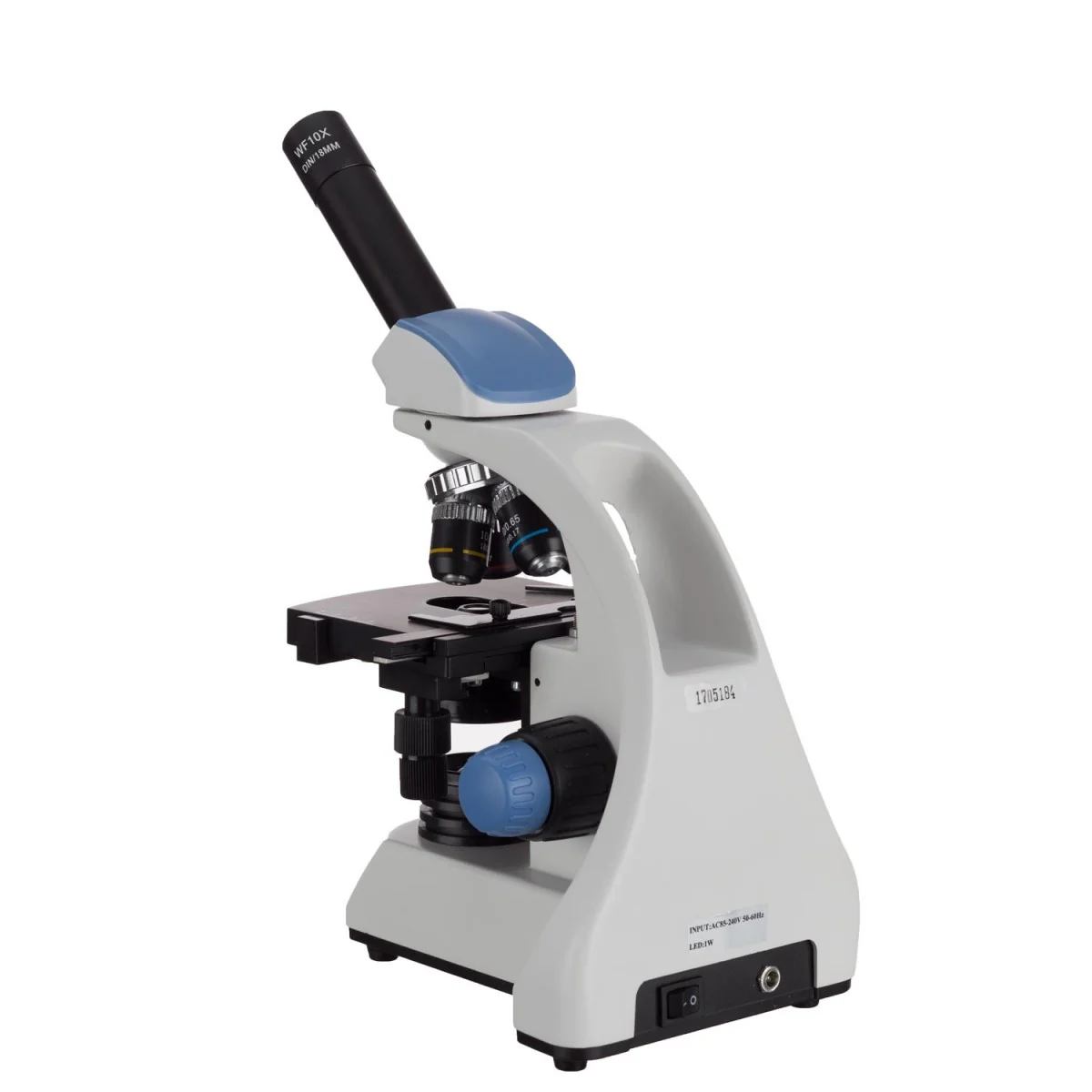

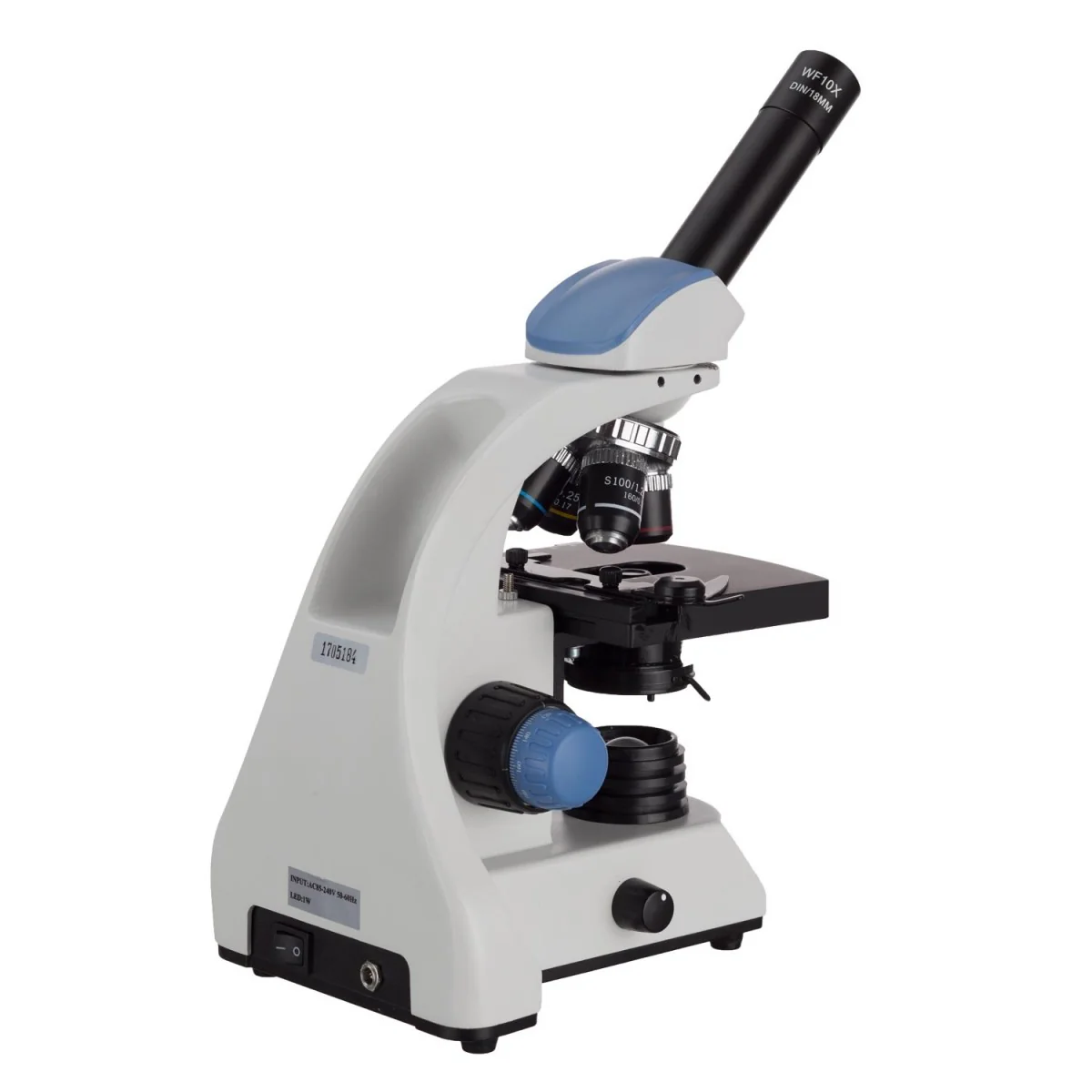

40X-2000X LED Monocular Compound Microscope w 3D Two-Layer Mechanical Stage

Our new monocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a swiveling monocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, & 2000X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :



30 degree inclined 360 degree swiveling monocular head

High quality precise optical glass elements

Easy to attach a microscope camera or digital imager

Eight magnification settings, 40X, 80X, 100X, 200X, 400X, 800X, 1000X, & 2000X

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

Adjustable interpupillary distance

Adjustable ocular diopter

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Focusing knobs are on both sides

Stage upward moving lock protects objectives and slides

Stain-resistant double layer mechanical stage

NA1.25 Abbe Condenser with iris diaphragm & filters

Rack and pinion adjustment condenser



Specifications :



Eyepieces: widefield, WF10X, WF20X

Objective: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30 degree inclined 360 degree swiveling monocular

Interpupillary distance: 1-4/5" - 2-9/10" (48mm - 75mm)

Adjustable ocular diopter

Nosepiece: revolving quadruple

Mechanical Stage: 3-D double layer

- Size: 4-5/8" x 5" (118mm x 127mm)

- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

Condenser: NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included. AAA Batteries (3, included)



Packing List :



One Siedentopf monocular Microscope Head

One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination

Four DIN Standard Objectives, 4X, 10X, 40X and 100X

One Pair of Widefield 10X Eyepieces

One Pair of Widefield 20X Eyepieces

Sample Immersion Oil

AAA Batteries (3)

Blue Color Filter

User's Manual

Net weight: 11 lbs

Shipping weight: 13 lbs
