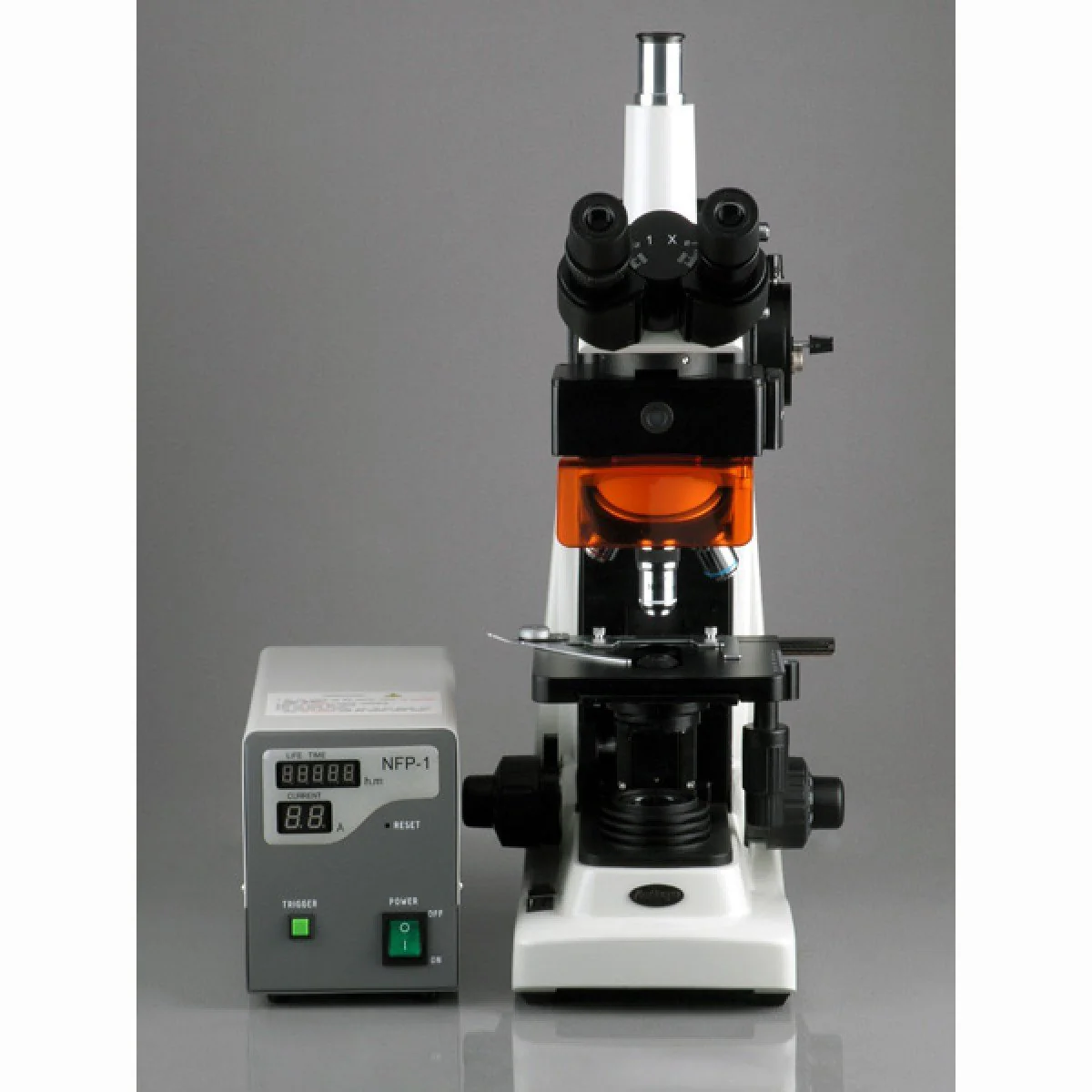

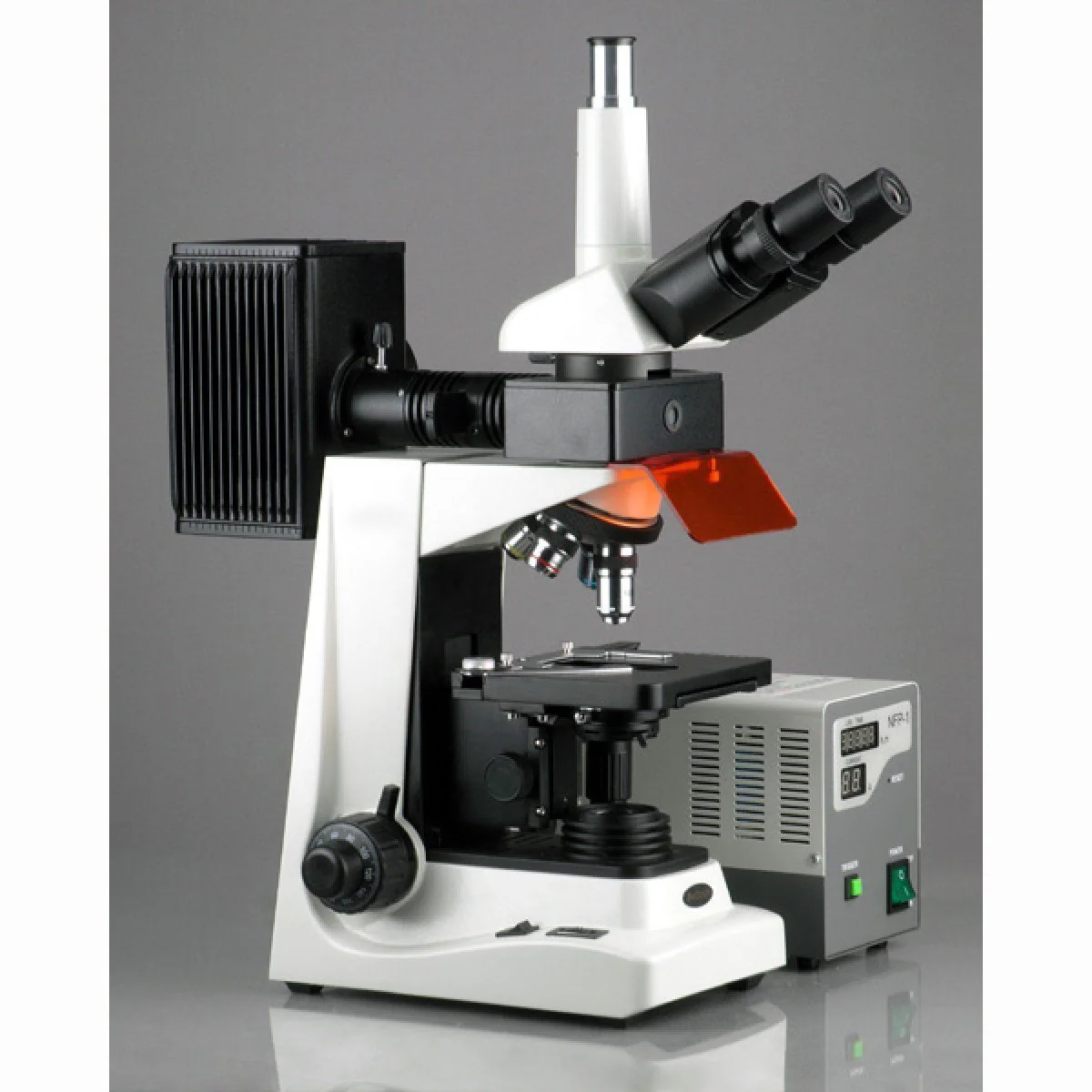

AmScope 40X-1600X Trinocular EPI Fluorescence Microscope - FM320TA
This 40X-1600X professional EPI-fluorescence microscope is designed for fluorescent microscopy applications. It offers research grade performance and advanced features. The microscope comes with four high quality fluorescent Plan Achromatic objectives (FLUOR 4X, 10X, 40X & 100X) and four Achromatic objectives. It provides both fluorescent and bright field microscopy features. This fluorescence microscope is an ideal instrument for advanced research in biology, cytology, oncology, hematology, genetics, immunology, microchemistry and environmental protection. It is also a perfect tool for sedimentary rock analysis and for the inspection of impurities in semiconductor industries.
Nosepiece: ball bearing quadruple
Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
Mechanical Tube Length: 6-5/16" (160mm)
Head: trinocular anti-mould viewing head inclined at 45 degree
Wide Field Eyepiece: WF10X (18mm Field of View), P16X
Fluorescence Objectives: FLUOR 4X (0.10 NA), 10X (0.25 NA), 40X (0.65 NA, Spring) & 100X (1.25 NA, Spring, Oil)
Achromatic Objectives: 4X (0.1 NA), 10X (0.25 NA), 40X (0.65 NA, Spring), 100X (1.25 NA, Spring, Oil)
Fluorescence Filters: blue, green
Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
Focusing Range: 1-3/16" (30mm)
Division of Fine Focusing: 0.0000787" (0.002mm)
Abbe Condenser: NA=1.25 with rack and pinion focusing control
Illumination: halogen bulb, 6V/20W
Power Supply: 110V and 220V, CE certified
Shipping Weight: 45 lbs
Packages: 2
One Trinocular Compensation-Free Head
One Microscope Body with Frame and Base
Four Achromatic DIN Objectives, 4X, 10X, 40X and 100X
Four Fluorescence DIN Objectives, FLUOR 4X, 10X, 40X and 100X
One Complete Set of Fluorescence Kit
Color Filters
One Microscope Spare Bulb
Immersion Oil
Dust Cover
User's Manual
Features :
- A Great EPI-Fluorescent and Transmitted Bright-Field Microscope
- Crystal Clear Sharp Images
- Four High Quality Fluorescent Plan DIN Objectives: FLUOR 4X, 10X, 40X & 100X
- Four High Quality Achromatic Objectives: 4X, 10X, 40X & 100X
- Eight Magnification Levels: 40X-64X-100X-160X-400X-640X-1000X-1600X
- 100W Fluorescent Light Source
- 100W HBO Ultra Hi-Voltage Spherical Mercury Lamp
- High Contrast EPI-Fluorescent Images
- Blue and Green Exciting Light and Ordinary Light Filter System
- Three-Position Fluorescent Filter Slider Assembly for Blue, Green, and Brightfield Microscopy
- 220V/110V (Interchangeable) External DIGITAL Power Supply (100W DC)
- Easy Control Design for Centering Arc of the Mercury Lamp
- Fluorescent Light Condenser with Moving-Control Knob
- Fluorescent Light Field Diaphragm with Centering Control Adjustment
- Three-Setting Fluorescence Excitation Light Path Control Dial: No Light, Partial Light, Full Light
- Ultraviolet-Light-Free Front Light Baffle
- Kohler Illumination System with Field Diaphragm for Lighting Control
- Intensity-Variable Transmitted Halogen Lighting System
- Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
- Two Color Filters Included
- Rack and Pinion Adjustment for Condenser
- Large 3-D Double Layer Mechanical Stage
- Low Position Coaxial Stage Movement Control Knobs
- Dual Side Coaxial Coarse and Fine Focusing Control
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish
- Four Plan Achromatic DIN Objectives
- Two Sets of Wide Field Eyepiece: Wide Field 10X (18mm Field of View) and P16X
- 30 Degree Inclined, 360 Degree Swiveling Compensation Free Trinocular Head
- Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
- Large Double Layer Mechanical Stage with Stain Resistant Finish
- Coaxial Coarse & Fine Focusing with CA Knob Tension Control
- Upward Stage Stopper to Protect Objectives and Slides
- Abbe Condenser with Iris Diaphragm & Swing-in Color Filters
- Built-In Variable Halogen Illumination System with Intensity Control
- A Wide Range of Accessories Available Including Phase Contrast and Darkfield Condensers
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Factory Warranty
- Unbeatable Lowest Price Guaranteed or the Difference Back!
- Satisfaction Guaranteed or Money Back!
Specifications :
Packing List :
