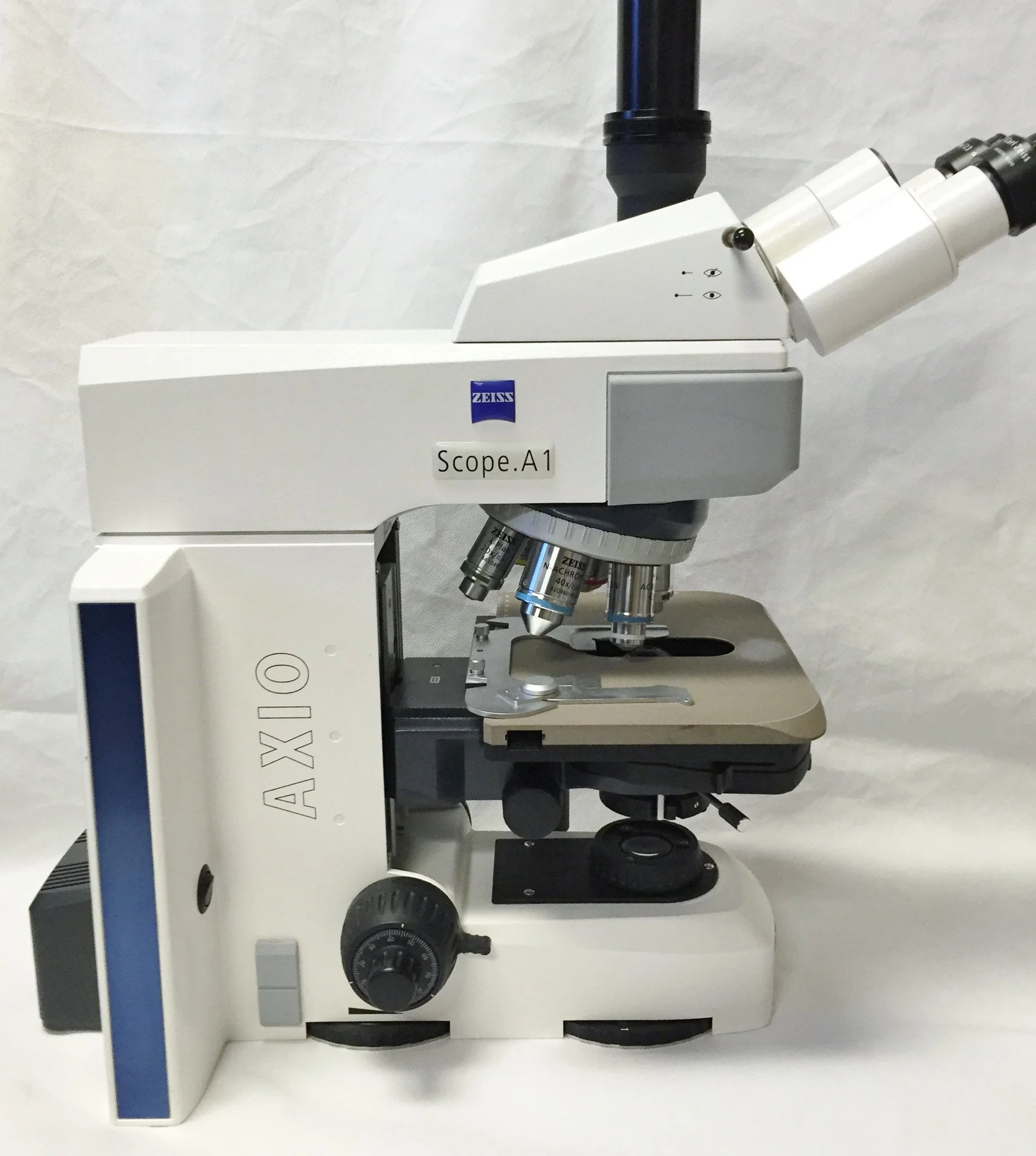

Zeiss AXIO Scope.A1 Trinocular Pathology Microscope w/ 2.5x Objective
This Zeiss Axio Scope A.1 microscope is ideal for pathology applications. It comes with a trinocular viewing head so you can add a camera at anytime! It includes 2.5x, 5x, 10x, 20x, 40x, and 63x objectives. Fully serviced and ready to go! We can customize this further to meet your needs!
| Zeiss AXIO Scope A1 Specifications | |
|---|---|
| Head: | Trinocular - with Optem 0.67x C-Mount coupler |
| Eyepiece: | Pl 10x/23mm Eyepieces - Both focusing - 444036-9000 |
| Nosepiece | Reverse Six position nosepiece |
| Focusing: | Coaxial coarse & fine adjustment |
| Stage: | Mechanical XY Stage - with slide holder |
| Objectives: |
A-Plan 2.5x/0.06 A-Plan 20x/0.45 R N-Achroplan 5x/0.13 N-Achroplan 40x/0.65 R EC Epiplan 10x/0.25 Achroplan 63x/0.80 R |

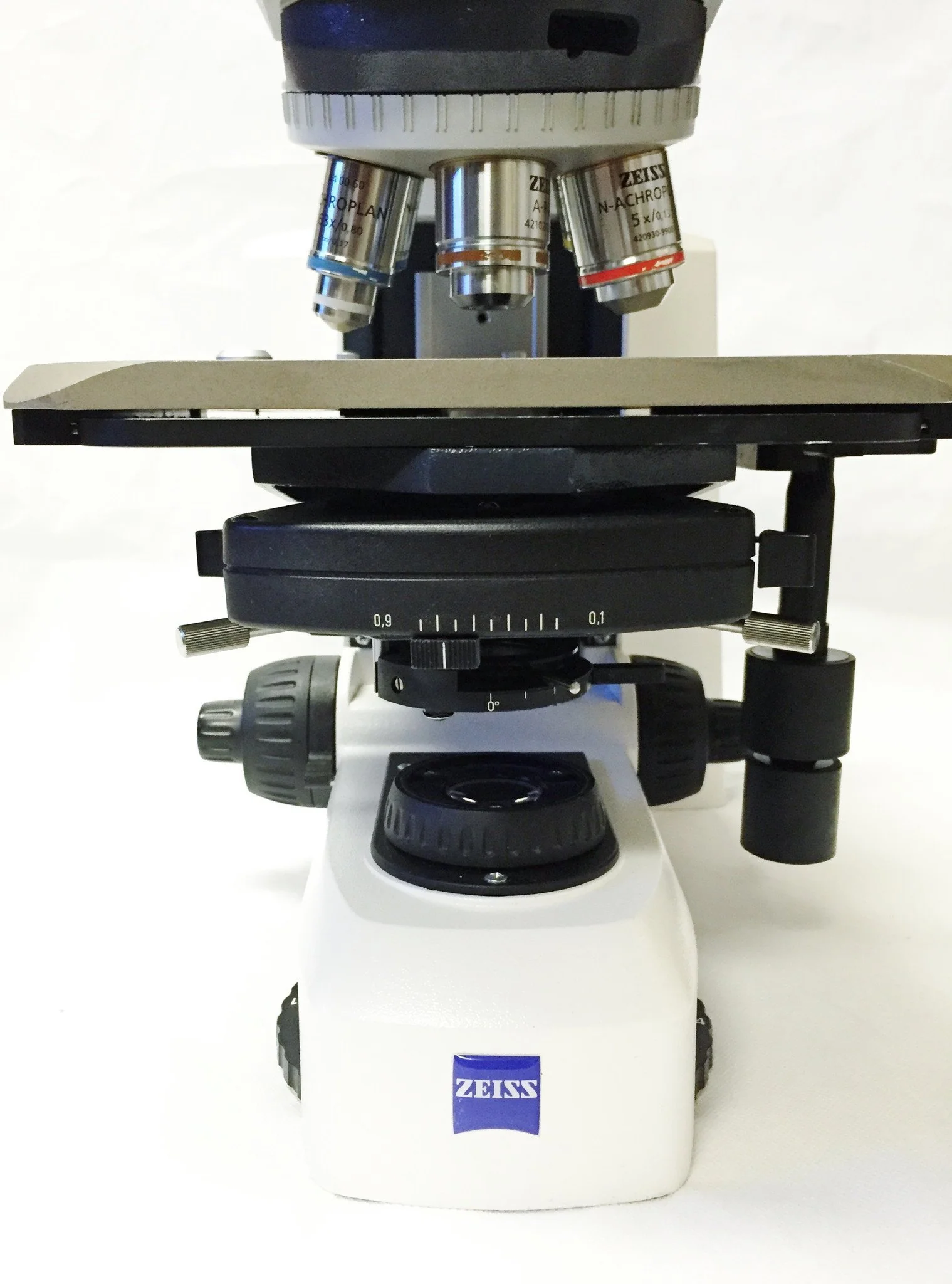

| Substage: | 0.9 NA height adjustable condenser with Flip top lens for 2.5x objective - with diaphragm |
| Light Source: | 12V 50W Halogen light with Kohler illumination |
| Warranty: | One Year |
Original: $4,800.00
-70%$4,800.00
$1,440.00
Description
This Zeiss Axio Scope A.1 microscope is ideal for pathology applications. It comes with a trinocular viewing head so you can add a camera at anytime! It includes 2.5x, 5x, 10x, 20x, 40x, and 63x objectives. Fully serviced and ready to go! We can customize this further to meet your needs!
| Zeiss AXIO Scope A1 Specifications | |
|---|---|
| Head: | Trinocular - with Optem 0.67x C-Mount coupler |
| Eyepiece: | Pl 10x/23mm Eyepieces - Both focusing - 444036-9000 |
| Nosepiece | Reverse Six position nosepiece |
| Focusing: | Coaxial coarse & fine adjustment |
| Stage: | Mechanical XY Stage - with slide holder |
| Objectives: |
A-Plan 2.5x/0.06 A-Plan 20x/0.45 R N-Achroplan 5x/0.13 N-Achroplan 40x/0.65 R EC Epiplan 10x/0.25 Achroplan 63x/0.80 R |
| Substage: | 0.9 NA height adjustable condenser with Flip top lens for 2.5x objective - with diaphragm |
| Light Source: | 12V 50W Halogen light with Kohler illumination |
| Warranty: | One Year |
