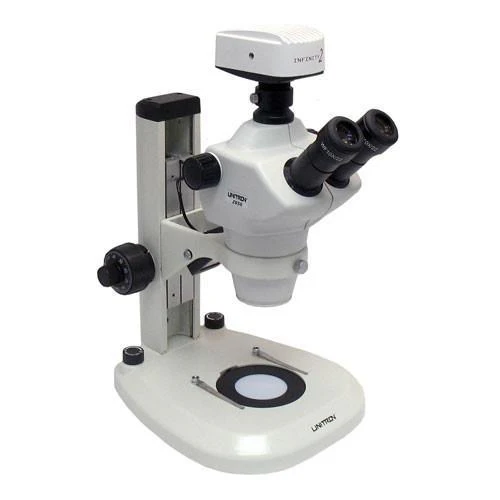

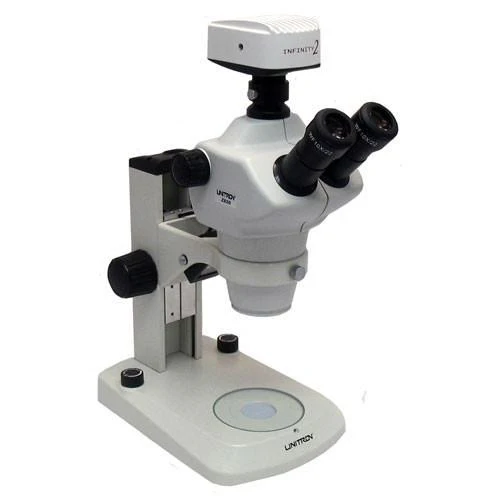

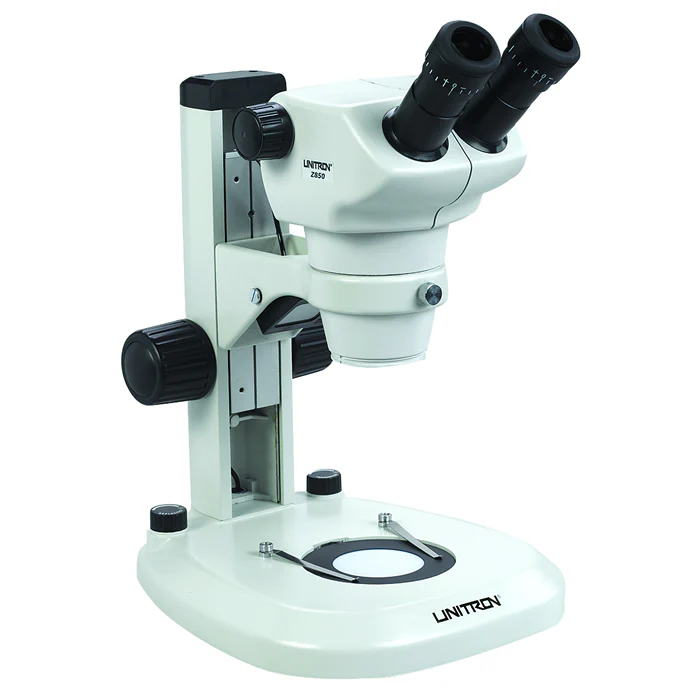

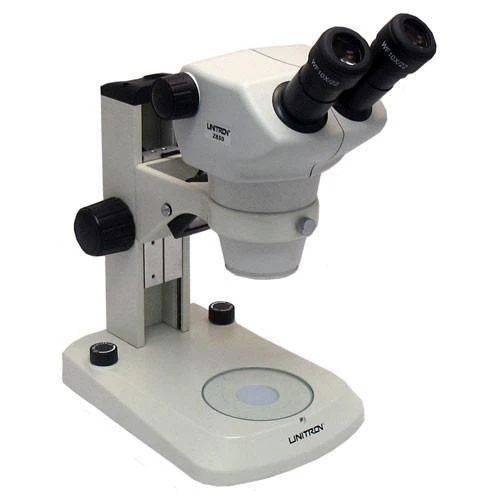

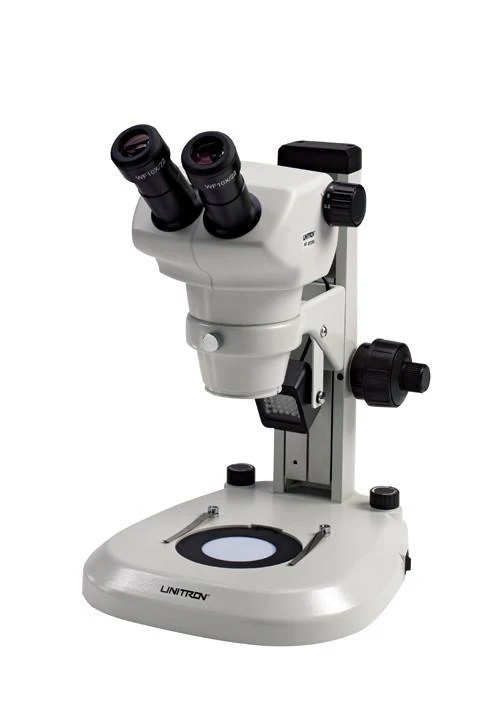

Unitron Z850 Zoom Stereo Microscope Series
The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.
The Unitron Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular 50/50 Split viewing head - 0.8x to 5.0x zoom range, inclined at 45°, 115 mm working distance, interpupillary distance adj. 52-75mm, glass lens shield - Camera pictured is not included. |
| Eyepieces: | Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view |
| Zoom Range: | 0.8x-5x (8x-50x) |
| Objectives: |
Optional Objectives: 0.5x, 0.7x, 2.0x |
| Stands: |
Plain Focusing Stand - 125mm black and white stage plate Pole Stand - Rack and pinion focusing arm with 125mm black and white stage plate Coaxial Coarse and Fine LED Stand - Variable LED incident (12v/2w) and transmitted (12v4w) coaxial coarse & fine focusing stand with stage clips, universal power supply. Frosted, clear glass, black & white stage plates LED Stand - Variable LED incident (12v/2w) and transmitted (12v4w) focusing stand with stage clips, universal power supply. Frosted, clear glass, black & white stage plates E-LED Stand - Variable LED incident and transmitted focusing stand with stage clips, universal power supply Diascopic Stand - Diascopic focusing stand with rear mount to accept halogen illuminator. 6v15w external variable halogen illuminator Diascopic Stand w/Fiber Optic - Diascopic focusing stand with rear mount and adapter to accept 1/2" light guide. Dolan Jenner MI-150 150w fiber optic illuminator with 15" light guide Boom Stand - Bonder arm focusing mount, boom stand Ball Bearing Boom Stand - Bonder arm focusing mount, ball bearing boom stand Flex Arm Stand - Bonder arm focusing mount, flexible articulating arm stand with c-clamp mount |
| Accessories: | Dust cover and instruction manual included |
| Warranty: | 5 year warranty for parts and labor |
Accessories
Please Contact Us for all additional parts and accessories
Brochure
Unitron Z850 BrochureOriginal: $1,276.00
-70%$1,276.00
$382.80
Description
The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.
The Unitron Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.
| Specifications | |
|---|---|
| Head: | Binocular OR Trinocular 50/50 Split viewing head - 0.8x to 5.0x zoom range, inclined at 45°, 115 mm working distance, interpupillary distance adj. 52-75mm, glass lens shield - Camera pictured is not included. |
| Eyepieces: | Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view |
| Zoom Range: | 0.8x-5x (8x-50x) |
| Objectives: |
Optional Objectives: 0.5x, 0.7x, 2.0x |
| Stands: |
Plain Focusing Stand - 125mm black and white stage plate Pole Stand - Rack and pinion focusing arm with 125mm black and white stage plate Coaxial Coarse and Fine LED Stand - Variable LED incident (12v/2w) and transmitted (12v4w) coaxial coarse & fine focusing stand with stage clips, universal power supply. Frosted, clear glass, black & white stage plates LED Stand - Variable LED incident (12v/2w) and transmitted (12v4w) focusing stand with stage clips, universal power supply. Frosted, clear glass, black & white stage plates E-LED Stand - Variable LED incident and transmitted focusing stand with stage clips, universal power supply Diascopic Stand - Diascopic focusing stand with rear mount to accept halogen illuminator. 6v15w external variable halogen illuminator Diascopic Stand w/Fiber Optic - Diascopic focusing stand with rear mount and adapter to accept 1/2" light guide. Dolan Jenner MI-150 150w fiber optic illuminator with 15" light guide Boom Stand - Bonder arm focusing mount, boom stand Ball Bearing Boom Stand - Bonder arm focusing mount, ball bearing boom stand Flex Arm Stand - Bonder arm focusing mount, flexible articulating arm stand with c-clamp mount |
| Accessories: | Dust cover and instruction manual included |
| Warranty: | 5 year warranty for parts and labor |
Accessories
Please Contact Us for all additional parts and accessories
