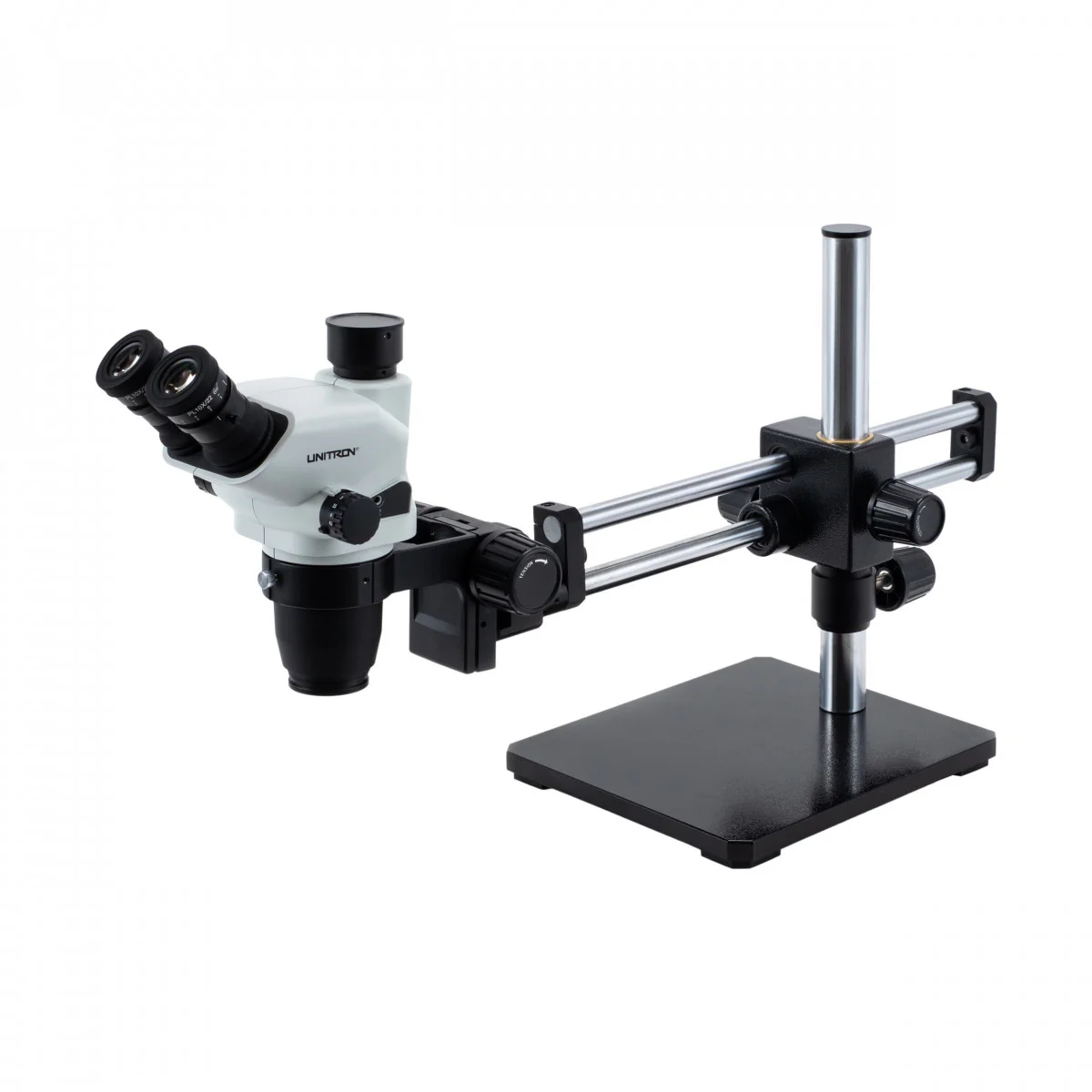

Unitron Z645 Stereo Microscope on Ball Bearing Boom Stand 6.7x - 45x
The Unitron Z645 high resolution stereo microscope on ball bearing boom stand is suitable for inspection, dissection, re-work, education and more with its 110mm working distance. The microscope has a 0.67x - 4.5x zoom rang which provides a total magnification of 6.7x - 45x with the standard include 10x eyepieces. Optional auxiliary lenses and eyepieces allow you to increase, or decrease the total magnification and working distance. The click stops allow for repeatability and accuracy. The optional trinocular viewing head allows for a permeant 50:50 light split allowing you to view through both eyepieces while displaying an image with a camera. The ball bearing boom stand makes it easy to move the microscope position and is ideal for inspection or re-work appliactions. You can add a ring light or gooseneck illuminator as needed
| Specifications | |
|---|---|
| Head: |
Binocular OR Trinocular (50/50 Split) viewing head, inclined 45°, rotatable 360° Click Stops - 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 |
| Eyepieces: | WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards |
| Magnification: | 0.67x to 4.5x zoom range (6.7x -45x with 10x eyepieces) |
| Working Distance: | 110mm |
| Auxiliary Lens: | 1x glass shield (included); Optional: 0.3x, 0.5x, 0.75x, 1.5x, 2.0x |
| Stand: | Ball Bearing Boom Stand w/ Focus Mount |
| Warranty: | 5 Year Mechanical |
Accessories
Brochure
Unitron Z645 Brochure
Description
The Unitron Z645 high resolution stereo microscope on ball bearing boom stand is suitable for inspection, dissection, re-work, education and more with its 110mm working distance. The microscope has a 0.67x - 4.5x zoom rang which provides a total magnification of 6.7x - 45x with the standard include 10x eyepieces. Optional auxiliary lenses and eyepieces allow you to increase, or decrease the total magnification and working distance. The click stops allow for repeatability and accuracy. The optional trinocular viewing head allows for a permeant 50:50 light split allowing you to view through both eyepieces while displaying an image with a camera. The ball bearing boom stand makes it easy to move the microscope position and is ideal for inspection or re-work appliactions. You can add a ring light or gooseneck illuminator as needed
| Specifications | |
|---|---|
| Head: |
Binocular OR Trinocular (50/50 Split) viewing head, inclined 45°, rotatable 360° Click Stops - 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 |
| Eyepieces: | WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards |
| Magnification: | 0.67x to 4.5x zoom range (6.7x -45x with 10x eyepieces) |
| Working Distance: | 110mm |
| Auxiliary Lens: | 1x glass shield (included); Optional: 0.3x, 0.5x, 0.75x, 1.5x, 2.0x |
| Stand: | Ball Bearing Boom Stand w/ Focus Mount |
| Warranty: | 5 Year Mechanical |
