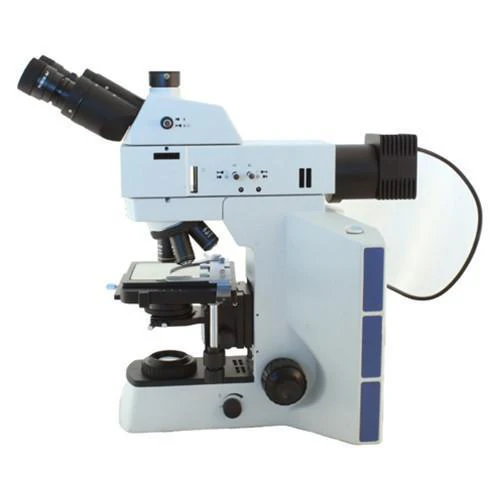

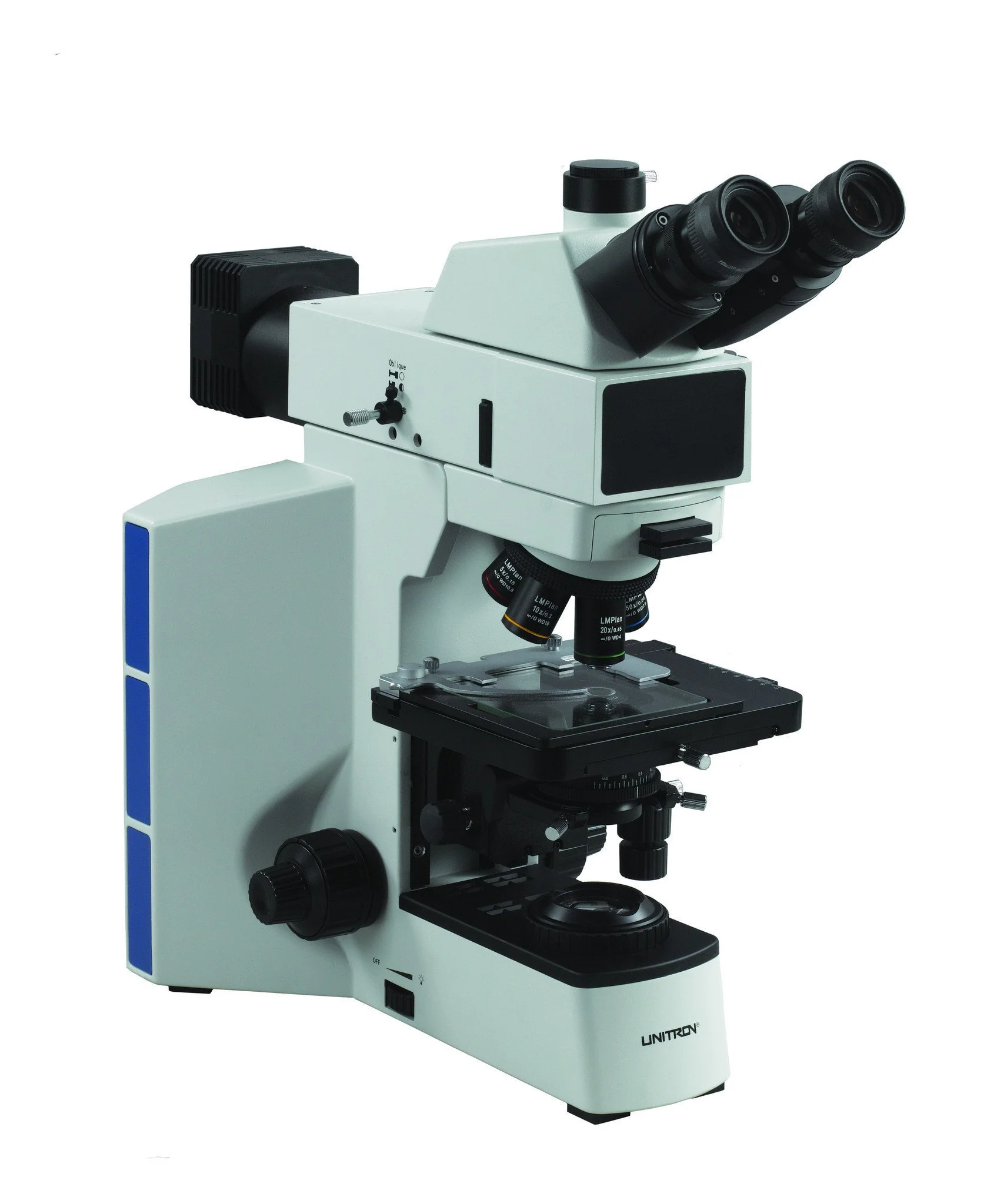

Unitron Examet-5 Digital Metallurgical Microscope Package
The Unitron Examet-5 Digital Metallurgical microscope is high performance materials microscope complete with your choice of camera. It is offered in reflected or reflected & transmitted illumination. This upright metallurgical microscope can accommodate samples with a height of up to 50mm. The microscope comes with Plan Achromat 5x, 10x, 20x, and 50x Semi-Plan Apochromat objectives. The HD multi output camera allows for live HD display or USB to your computer.
This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and display a live image on a HD monitor to capture images/videos to the removable SD card.
Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS). The AU-600 camera options is a more advanced camera that allows for measurements in HDMI standalone mode.
| Specifications | |
|---|---|
| Head: | Trinocular viewing head with a 20/80 split (light distribution 100% binocular, binocular/trinocular 20%/80%); inclined 30⁰ and rotatable 360⁰ |
| Eyepieces: | W.F. 10x/23mm with eyeguards |
| Nosepiece: | Reversed quintuple |
| Objectives: | Long working distance M infinity plan achromat 5x, 10x, 20x, & Semi-Plan Apo 50x |
| Stage: |
Mechanical stage 175mm x 145mm with a 76mm(X) x 43mm(Y) movement range Adjustable to accommodate specimens with a height up to 50mm |
| Illumination: |
5 watt variable LED reflected illuminator with field and aperture diaphragm - universal power supply OR 5 watt variable LED reflected & transmitted illuminator with field and aperture diaphragm - universal power supply |
| Focusing: | Low position coaxial Coarse & fine focusing system with tension adjustment |
| Accessories: | Dust Cover, Power Cord |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
| AU-300-HD / AU-300-HDS Specifications | |
|---|---|
| Screen: | Optional 13.3" Screen - AU-300-HDS Option |
| Resolution (Live): | 1920X1080 - Captured 5 M.P. |
| Sensor: |
1/2.8 (0.35x C-mount recommended); SONY Starvis IMX335LQN-C |
| Frame Rate: |
HDMI (30fps) USB 2.0 (15fps) |
| Image Capture: |
High Speed SD Card (8GB) Accepts Class 10 SD Card, 32GB Max |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 1ms - 2sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision+v3.0 Imaging Software (for PC/Windows and Mac OS) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge; Image Types: JPG, PNG, TIF and DICOM |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: |
Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher
|
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-600-HD / AU-600-HDS Specifications | |
|---|---|
| Screen: | Optional 11.3" Screen - AU-600-HDS Option |
| Resolution (Live): | 3264 x 1836 6 M.P. |
| Sensor: | 1/2.8 (0.35x C-mount recommended); SONY IMX236 |
| Frame Rate: | HDMI (25ps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) Accepts Class 10 SD Card, 35 GB Max |
| Video Capture: | HDMI: 1080p, 25fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Exposure, Gain, Gamma, Saturation, Brightness, Noise Reduction, Whate Balance |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision+ Imaging Software (for PC/Windows and Mac OS) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge; Image Types: JPG, PNG, TIF and DICOM (available for Mac OS with CaptaVision+ v3.0) |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Requirements: |
Intel Core i5 processor (Quad Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
