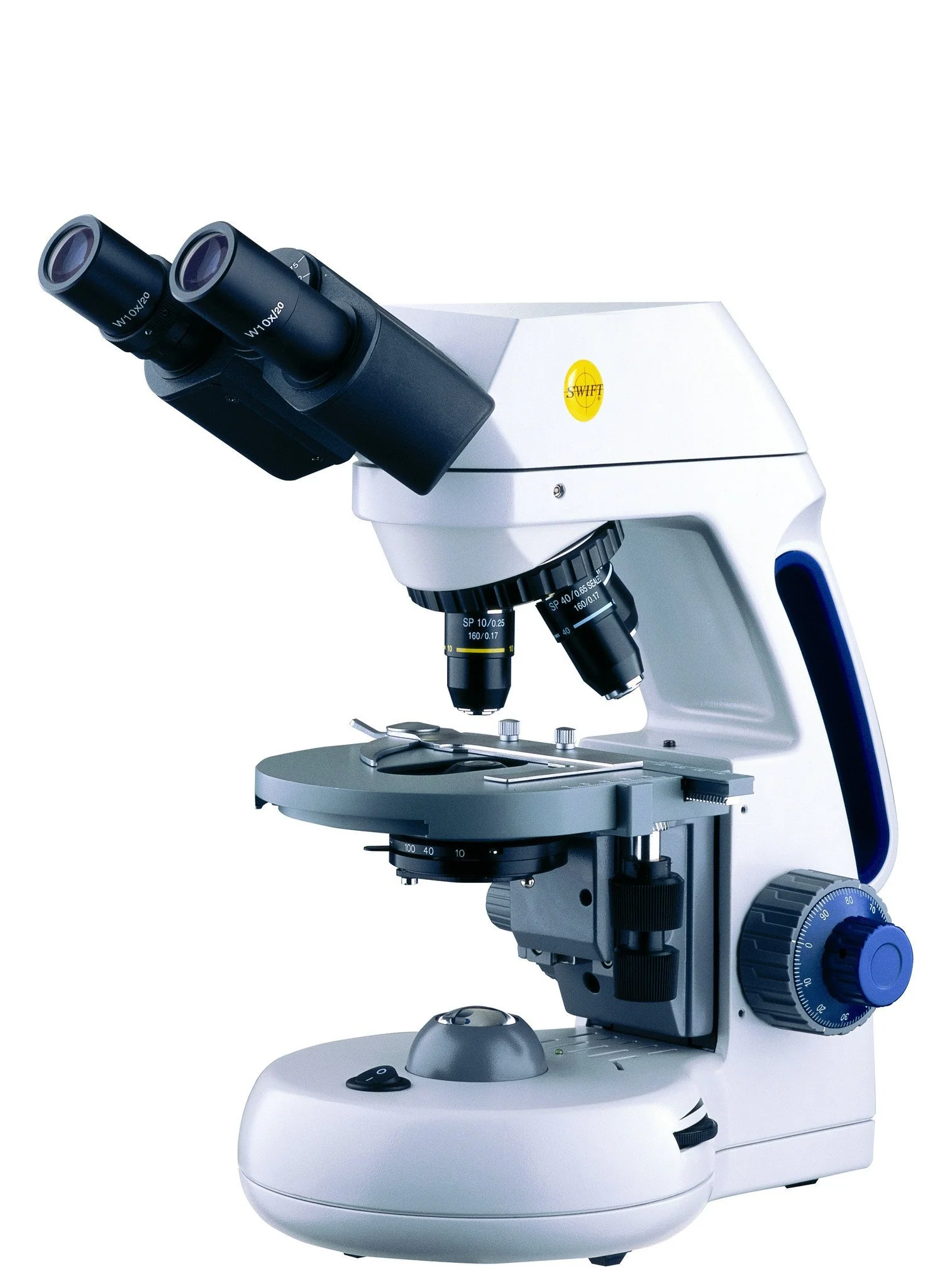

Swift M15 Infinity Corrected Microscope Series
|
The M15 compound microscope series features infinity corrected optics, ideal for college laboratories, veterinary and medical applications. Available with either binocular or trinocular heads, this research level microscope also incorporates a very bright 6v 20W halogen illumination system and wide field 20mm eyepieces for a very crisp image.
|
|
Binocular OR Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm. Rotates 360° |
|
Widefield 10XD/20mm Eyepieces
|
| Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives |
| Coaxial coarse and fine focusing controls |
| Includes built-in mechanical stage with smooth-moving, low-drive, coaxial controls for ease of use |
|
1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm
|
| 6V 20 watt halogen with variable rheostat control with ON/OFF switch. Cord holder included |
|
Lifetime limited warranty excluding bulb, cord, and fuse
|
| All additional parts and accessories are available. Please contact us if interested |
Select Model
From $980.00
Swift M15 Infinity Corrected Microscope Series—
$980.00
Description
|
The M15 compound microscope series features infinity corrected optics, ideal for college laboratories, veterinary and medical applications. Available with either binocular or trinocular heads, this research level microscope also incorporates a very bright 6v 20W halogen illumination system and wide field 20mm eyepieces for a very crisp image.
|
|
Binocular OR Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm. Rotates 360° |
|
Widefield 10XD/20mm Eyepieces
|
| Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives |
| Coaxial coarse and fine focusing controls |
| Includes built-in mechanical stage with smooth-moving, low-drive, coaxial controls for ease of use |
|
1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm
|
| 6V 20 watt halogen with variable rheostat control with ON/OFF switch. Cord holder included |
|
Lifetime limited warranty excluding bulb, cord, and fuse
|
| All additional parts and accessories are available. Please contact us if interested |
