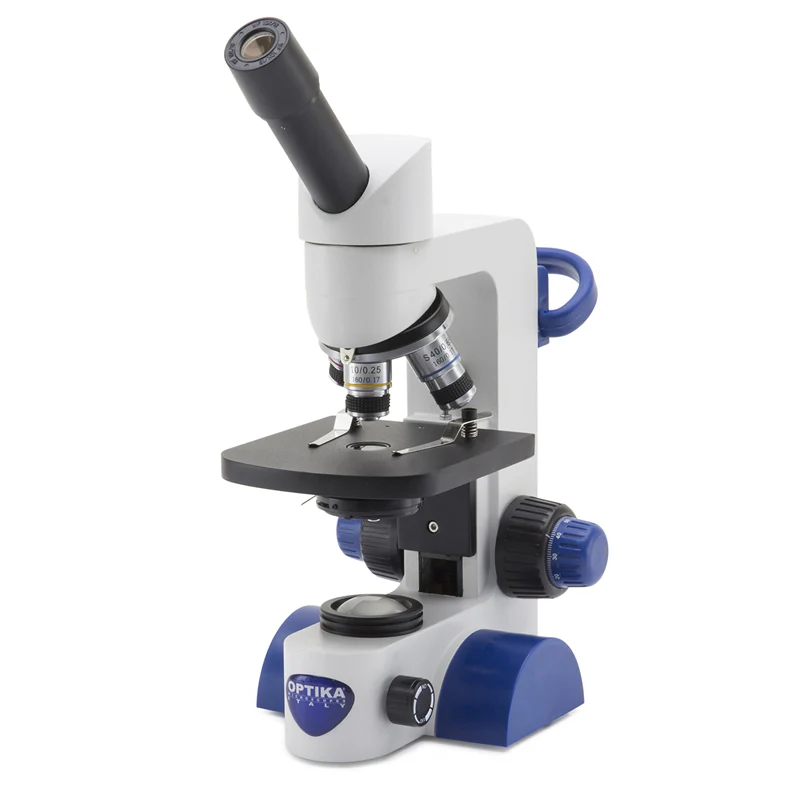

Optika B-61 Monocular Microscope - Plain Stage
The Optika B-60 monocular series microscope is ideal for education at the middle-high school or college level. This microscope is designed to be easy to handle and operate. It is compact, piratical, and intuitive to use. The microscope comes with a monocular head with 10x/18mm eyepieces which lock in to prevent tampering. The head can rotate 360 degrees making it ideal for storage. The microscope has a built in carry handle for safe transportation by students.It comes with achromatic 4x, 10x, 40x objectives. The flat top stage features StagErase which is coated with a special painting to reduce accidental scratches! The blue rounded fins on the side of the microscope serve as an arm/wrist rest for support while operating the microscope to prevent fatigue. The 1 Watt LED illumintor has brightness control and comes with rechargeable batteries for portable use!
| Specifications | |
|---|---|
| Head: | Monocular, 30° inclined; 360° rotating. |
| Eyepiece: | WF10x/18 mm, secured by screw |
| Nosepiece: | Quadruple ball bearings revolving nosepiece, reversed |
| Objectives: | Achromatic 4x, 10x, 40x with anti-fungus treatment |
| Stage: | StagErase™ eraseable fixed stage, 120 x 110 mm, with sample clips. |
| Condenser: | N.A. 0.65 with iris diaphragm. |
| Focusing: | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
| Illumination: |
1 W LED, with brightness control, rechargeable batteries. 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply. |
| Warranty: | 10 Year Mechanical & 2 Year Electrical |
Brochure
Original: $335.00
-70%$335.00
$100.50
Description
The Optika B-60 monocular series microscope is ideal for education at the middle-high school or college level. This microscope is designed to be easy to handle and operate. It is compact, piratical, and intuitive to use. The microscope comes with a monocular head with 10x/18mm eyepieces which lock in to prevent tampering. The head can rotate 360 degrees making it ideal for storage. The microscope has a built in carry handle for safe transportation by students.It comes with achromatic 4x, 10x, 40x objectives. The flat top stage features StagErase which is coated with a special painting to reduce accidental scratches! The blue rounded fins on the side of the microscope serve as an arm/wrist rest for support while operating the microscope to prevent fatigue. The 1 Watt LED illumintor has brightness control and comes with rechargeable batteries for portable use!
| Specifications | |
|---|---|
| Head: | Monocular, 30° inclined; 360° rotating. |
| Eyepiece: | WF10x/18 mm, secured by screw |
| Nosepiece: | Quadruple ball bearings revolving nosepiece, reversed |
| Objectives: | Achromatic 4x, 10x, 40x with anti-fungus treatment |
| Stage: | StagErase™ eraseable fixed stage, 120 x 110 mm, with sample clips. |
| Condenser: | N.A. 0.65 with iris diaphragm. |
| Focusing: | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
| Illumination: |
1 W LED, with brightness control, rechargeable batteries. 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply. |
| Warranty: | 10 Year Mechanical & 2 Year Electrical |
