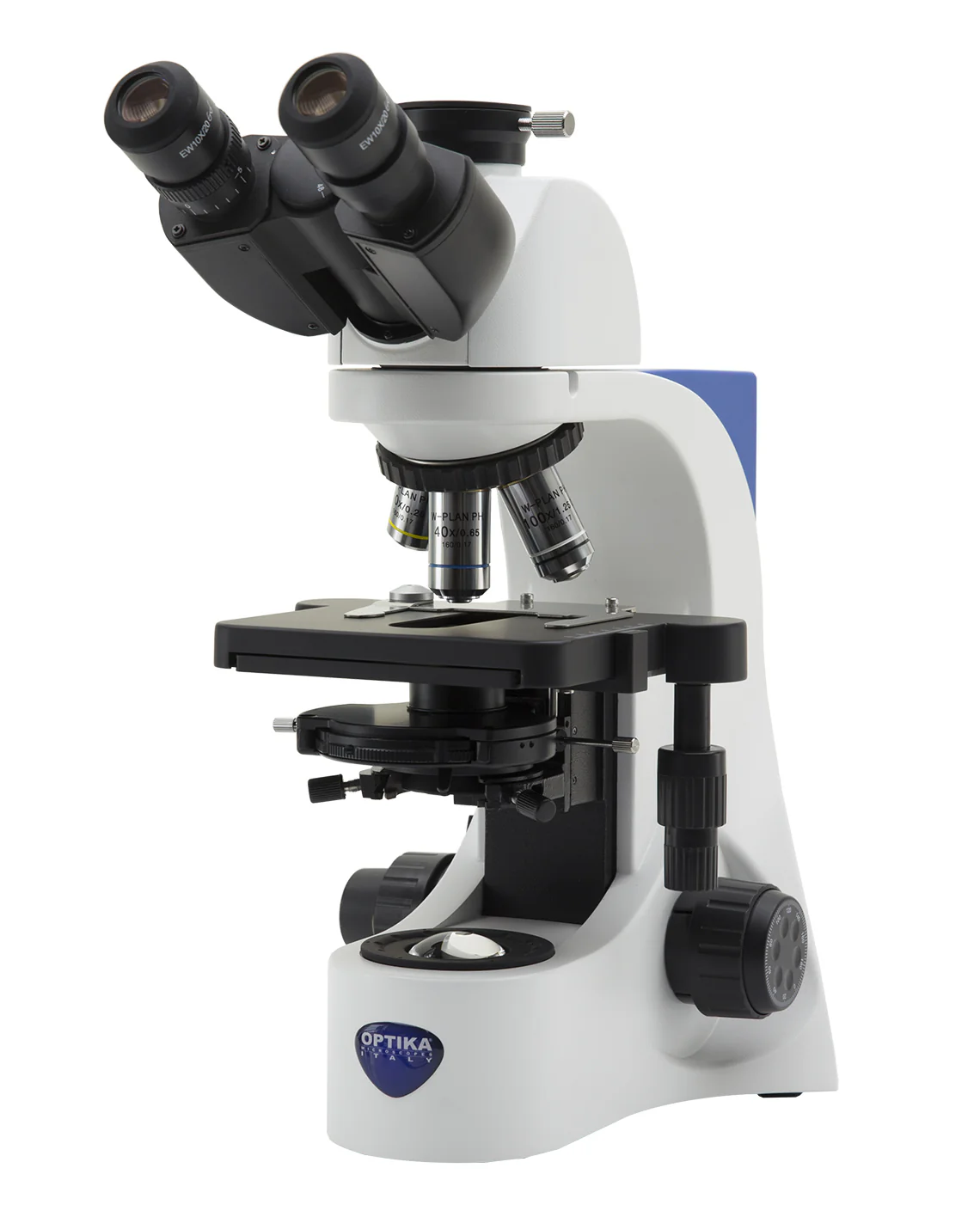

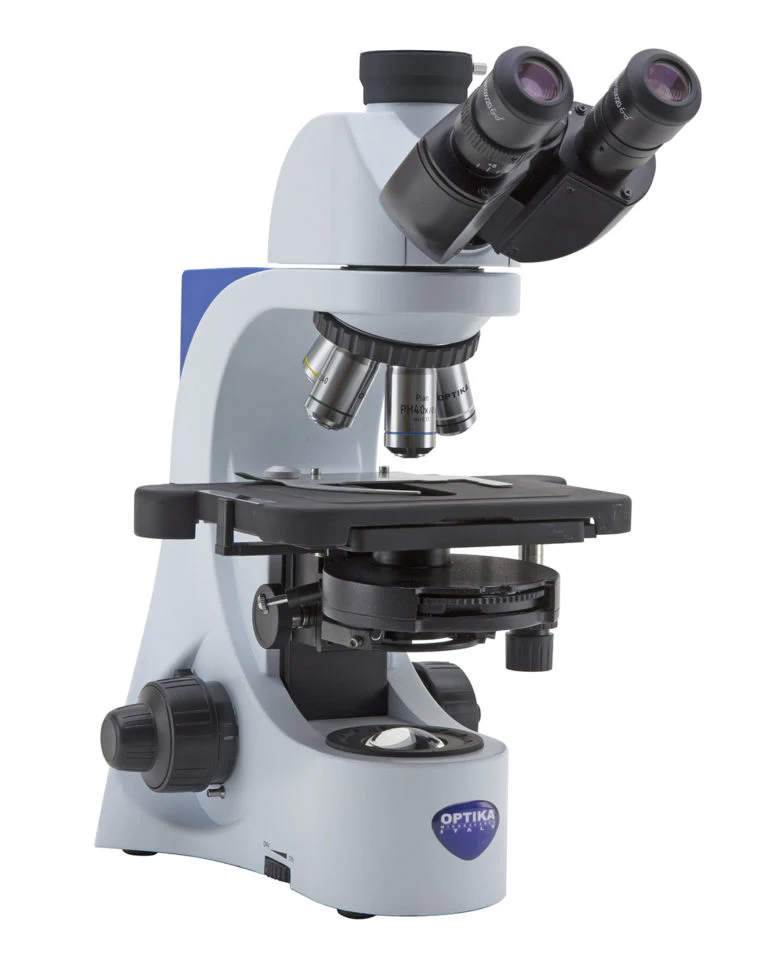

Optika B-380 Trinocular Phase Contrast Microscope
The Optika B-380 phase contrast microscope series is a high quality phase contrast microscope with intelligent illumination. The microscope comes with a trinocular viewing head with a pair of 10x eyepieces that provide a large 20mm field of view. The nosepiece is a reversed quintuple nosepiece. The microscope comes with your choice of N-Plan 4x, Phase 10x, 40x, and 100x (oil or water), or IOS N-Plan Infinity Phase 10x, 20x, 40x, 100x oil objectives. The mechanical XY stage is rackless and below the stage is the 5 position phase turret condenser. The condenser has brightfield, phase, and darkfield settings. The X-LED3 illumination system offers constant pure-white color temperature at all intensity levels and unmatched color fidelity, uniformity, and brightness.
| Specifications | |
|---|---|
| Head: | Trinocular, 30° inclined, 360° rotating (when ALC cable is unplugged). |
| Eyepieces: |
WF10x/20 mm, high eye-point and secured by screw |
| Nosepiece: | Reversed, Quintuple |
| Objectives: |
N-Plan 4x, Ph 10x, Ph 40x, Ph 100x (Water or Oil) - B-383PH-Model or IOS N-Plan Infinity Ph10x, Ph20x, Ph40x, Ph100x Oil - B-383PHi Model |
| Condenser: | Phase Turret - Brightfield, Phase, Darkfield - 1.25 N.A. |
| Stage: | Rackless mechanical XY |
| Focusing: | Coxial coarse & fine focus |
| Illumination: | X-LED3 LED illumination |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 10 Year Mechanical & 2 Year Electrical |
Brochure
Optika B-383PH BrochureOriginal: $3,177.00
-70%$3,177.00
$953.10
Description
The Optika B-380 phase contrast microscope series is a high quality phase contrast microscope with intelligent illumination. The microscope comes with a trinocular viewing head with a pair of 10x eyepieces that provide a large 20mm field of view. The nosepiece is a reversed quintuple nosepiece. The microscope comes with your choice of N-Plan 4x, Phase 10x, 40x, and 100x (oil or water), or IOS N-Plan Infinity Phase 10x, 20x, 40x, 100x oil objectives. The mechanical XY stage is rackless and below the stage is the 5 position phase turret condenser. The condenser has brightfield, phase, and darkfield settings. The X-LED3 illumination system offers constant pure-white color temperature at all intensity levels and unmatched color fidelity, uniformity, and brightness.
| Specifications | |
|---|---|
| Head: | Trinocular, 30° inclined, 360° rotating (when ALC cable is unplugged). |
| Eyepieces: |
WF10x/20 mm, high eye-point and secured by screw |
| Nosepiece: | Reversed, Quintuple |
| Objectives: |
N-Plan 4x, Ph 10x, Ph 40x, Ph 100x (Water or Oil) - B-383PH-Model or IOS N-Plan Infinity Ph10x, Ph20x, Ph40x, Ph100x Oil - B-383PHi Model |
| Condenser: | Phase Turret - Brightfield, Phase, Darkfield - 1.25 N.A. |
| Stage: | Rackless mechanical XY |
| Focusing: | Coxial coarse & fine focus |
| Illumination: | X-LED3 LED illumination |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 10 Year Mechanical & 2 Year Electrical |
