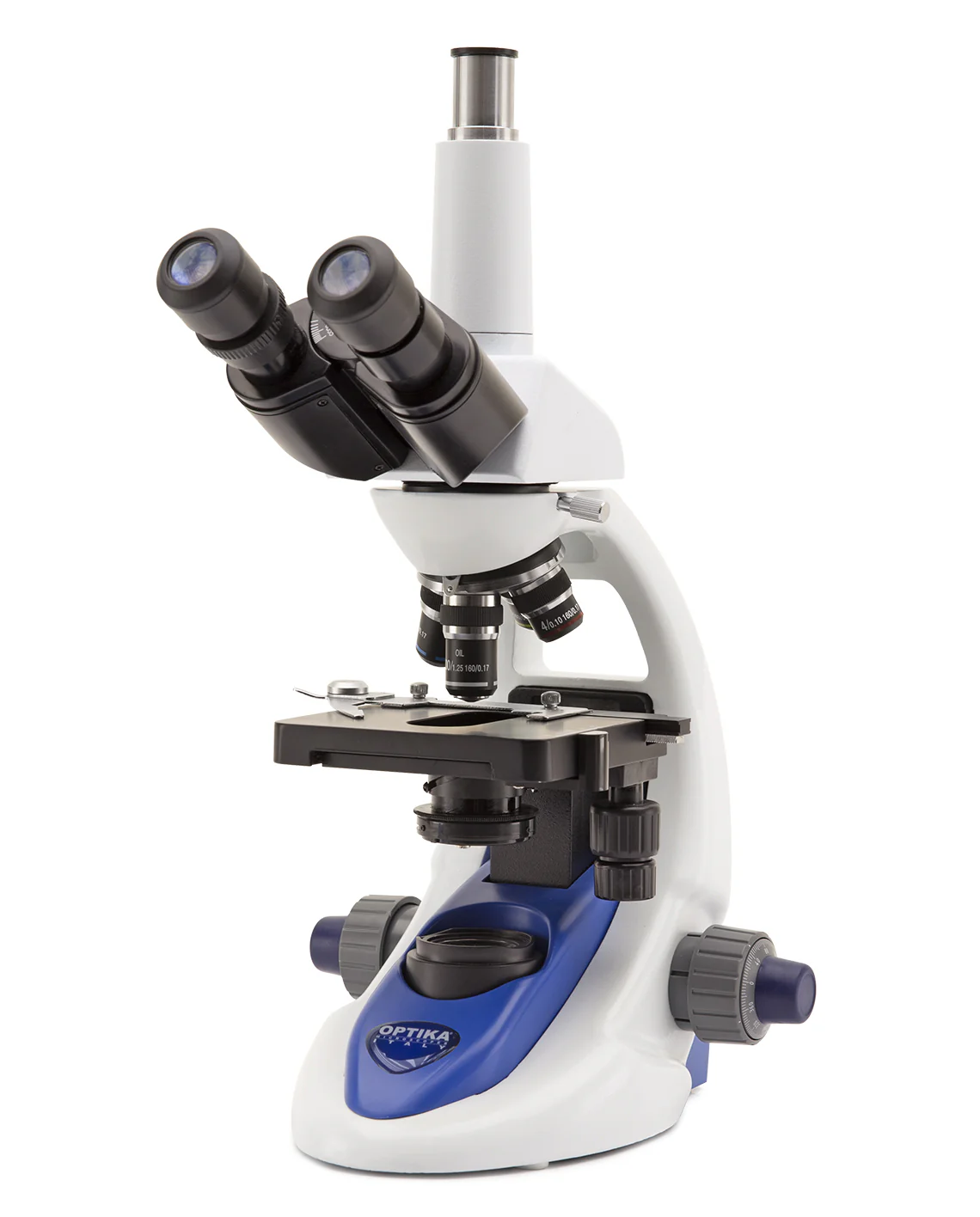

Optika B-190 Trinocular Microscope

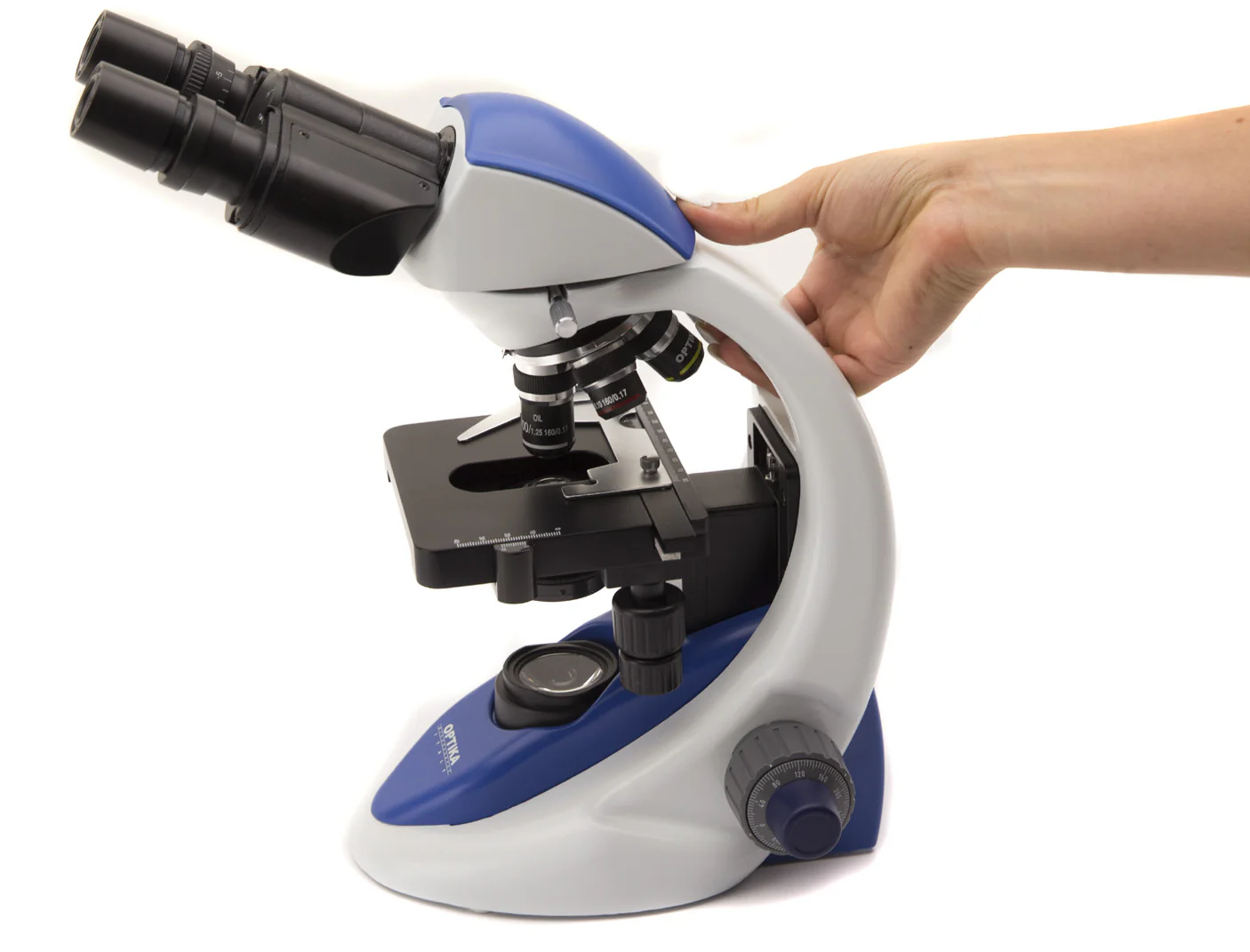

The Optika B-190 trinocular microscope series is a high quality, durable monocular microscope. It comes loaded with features and is extremely reliable and suitable for educational use. This student friendly microscope has a carry handle making it ideal for transpiration. Featuring a trinocular head it comes with a pair of 10x eyepieces which lock in with a screw to prevent tampering. This microscope comes high contrast achromatic 4x, 10x, 40x, 100x oil objectives. It comes standard with an XY mechanical stage so you can easily position your specimen. The 1.25 N.A. condenser is a spiral mount adjustable condenser with iris diaphragm. The X-LED² illumination system provides high light intensity with low power consumption. You can purchase the optional solar charger accessory to turn this into a portable rechargeable microscope.
| Specifications | |
|---|---|
| Head: | Trinocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. |
| Eyepieces: | WF10x/18 mm, secured by screw |
| Nosepiece: | Quadruple ball bearings revolving nosepiece, reversed |
| Objectives: | 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.2 |

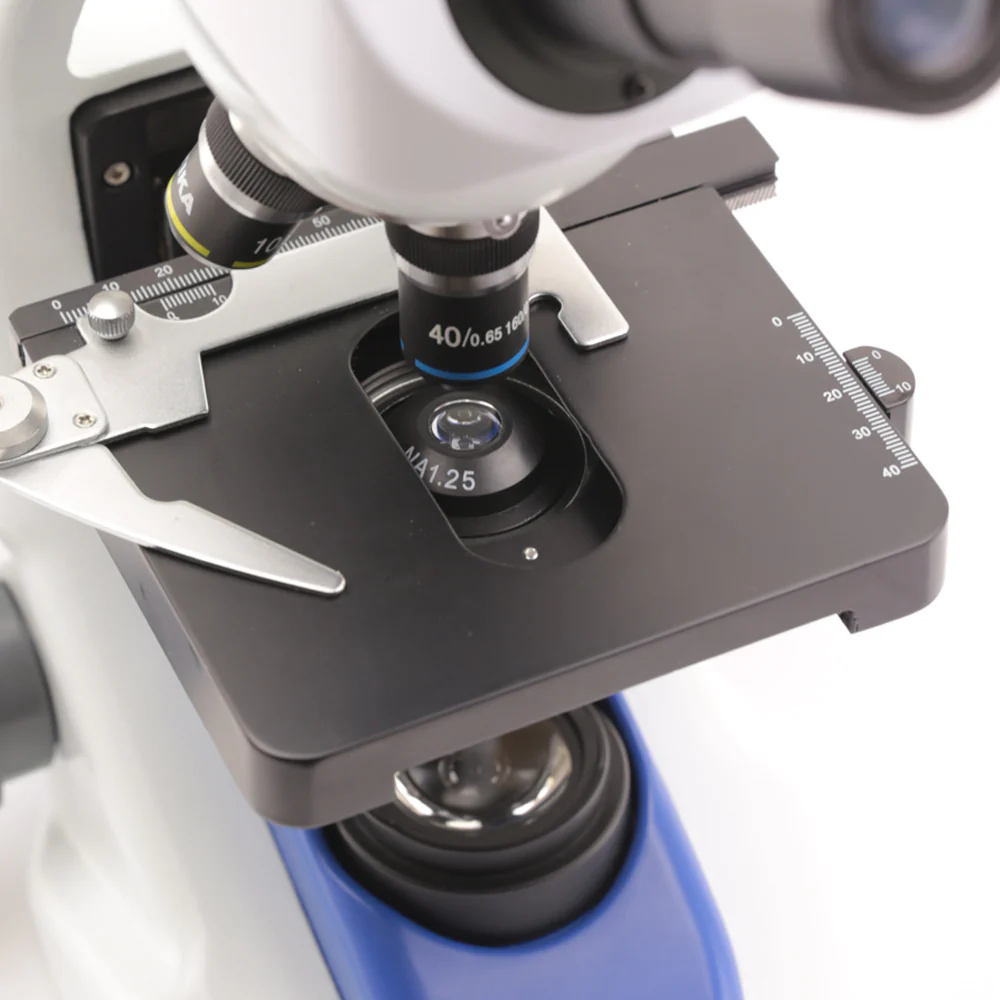

| Stage: | Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm. |
| Condenser: | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. |
| Focusing: | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |

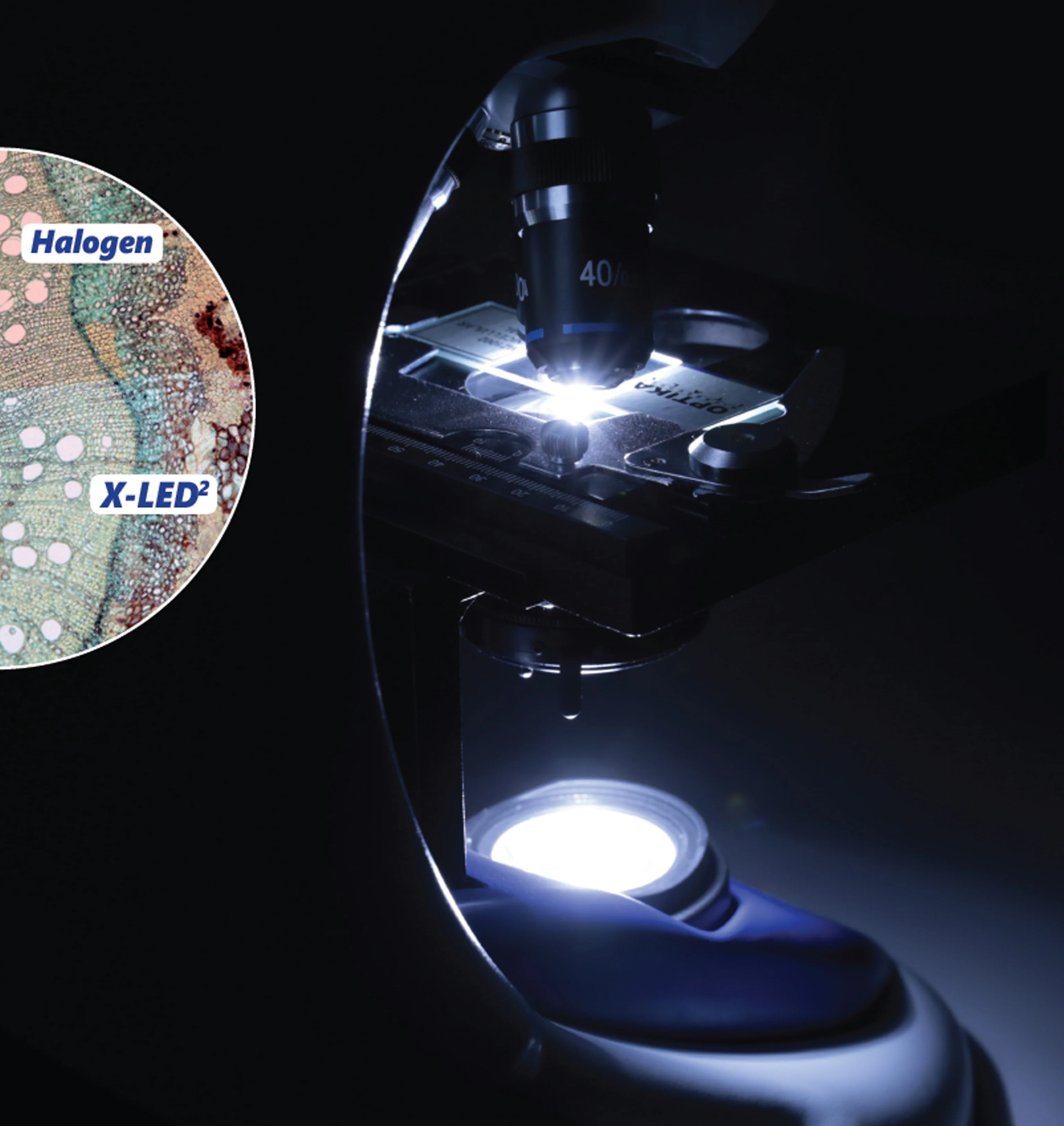

| Illumination: |
X-LED² with white 3 W LED and light intensity control 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply. |
| Warranty: | 10 Year Mechanical & 2 Year Electrical |
Accessories
Brochure
Optika B-190 BrochureOriginal: $1,160.00
-70%$1,160.00
$348.00
Description
The Optika B-190 trinocular microscope series is a high quality, durable monocular microscope. It comes loaded with features and is extremely reliable and suitable for educational use. This student friendly microscope has a carry handle making it ideal for transpiration. Featuring a trinocular head it comes with a pair of 10x eyepieces which lock in with a screw to prevent tampering. This microscope comes high contrast achromatic 4x, 10x, 40x, 100x oil objectives. It comes standard with an XY mechanical stage so you can easily position your specimen. The 1.25 N.A. condenser is a spiral mount adjustable condenser with iris diaphragm. The X-LED² illumination system provides high light intensity with low power consumption. You can purchase the optional solar charger accessory to turn this into a portable rechargeable microscope.
| Specifications | |
|---|---|
| Head: | Trinocular, 360° rotating and 30° inclined. Interpupillary distance from 48 to 75 mm; dioptric adjuctment on left eyepiece. |
| Eyepieces: | WF10x/18 mm, secured by screw |
| Nosepiece: | Quadruple ball bearings revolving nosepiece, reversed |
| Objectives: | 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.2 |
| Stage: | Double layer mechanical sliding stage, 125×115 mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm. |
| Condenser: | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. |
| Focusing: | Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. |
| Illumination: |
X-LED² with white 3 W LED and light intensity control 6,300 K. Multi-plug 100-240Vac/5Vdc external power supply. |
| Warranty: | 10 Year Mechanical & 2 Year Electrical |
