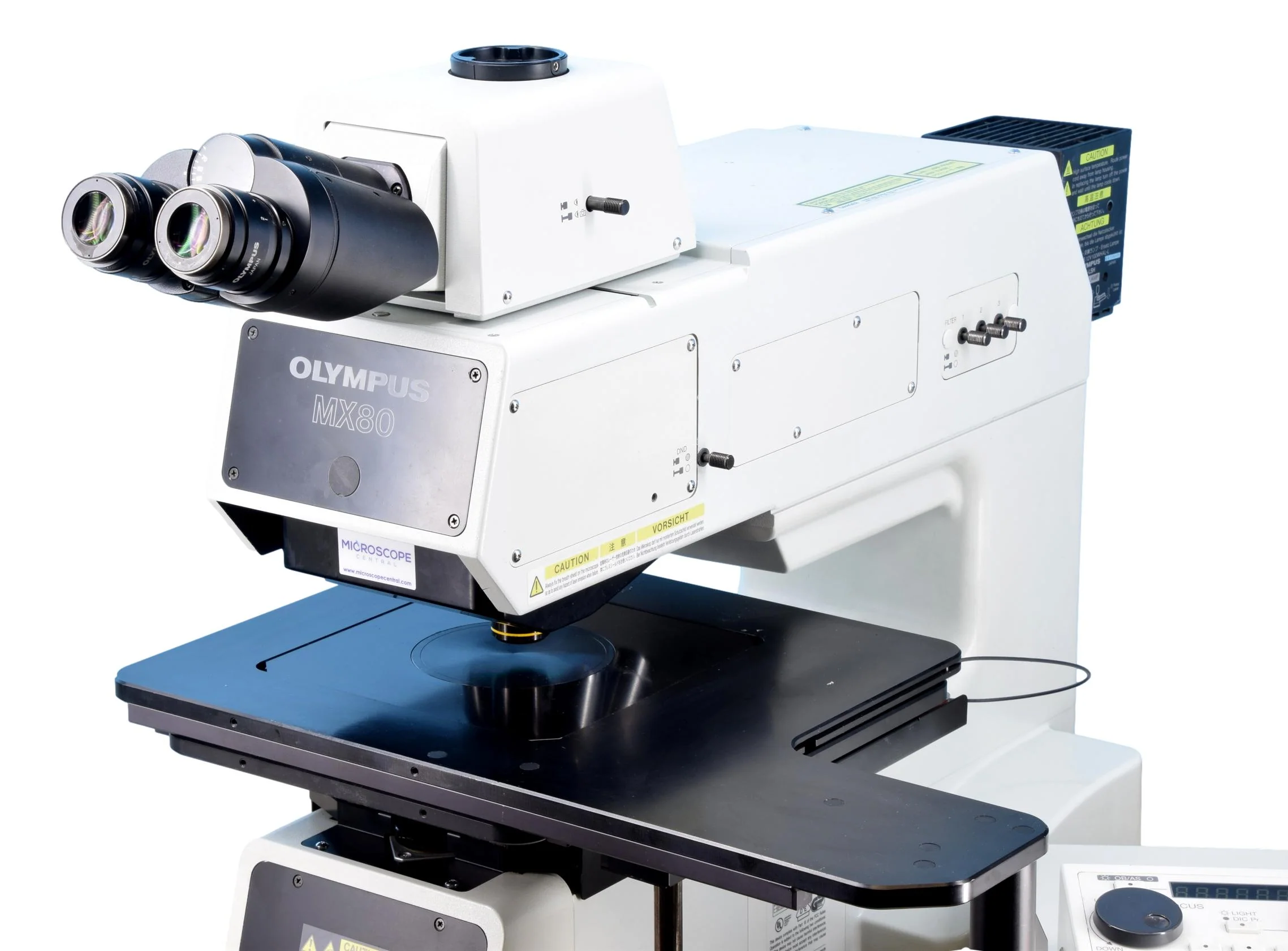

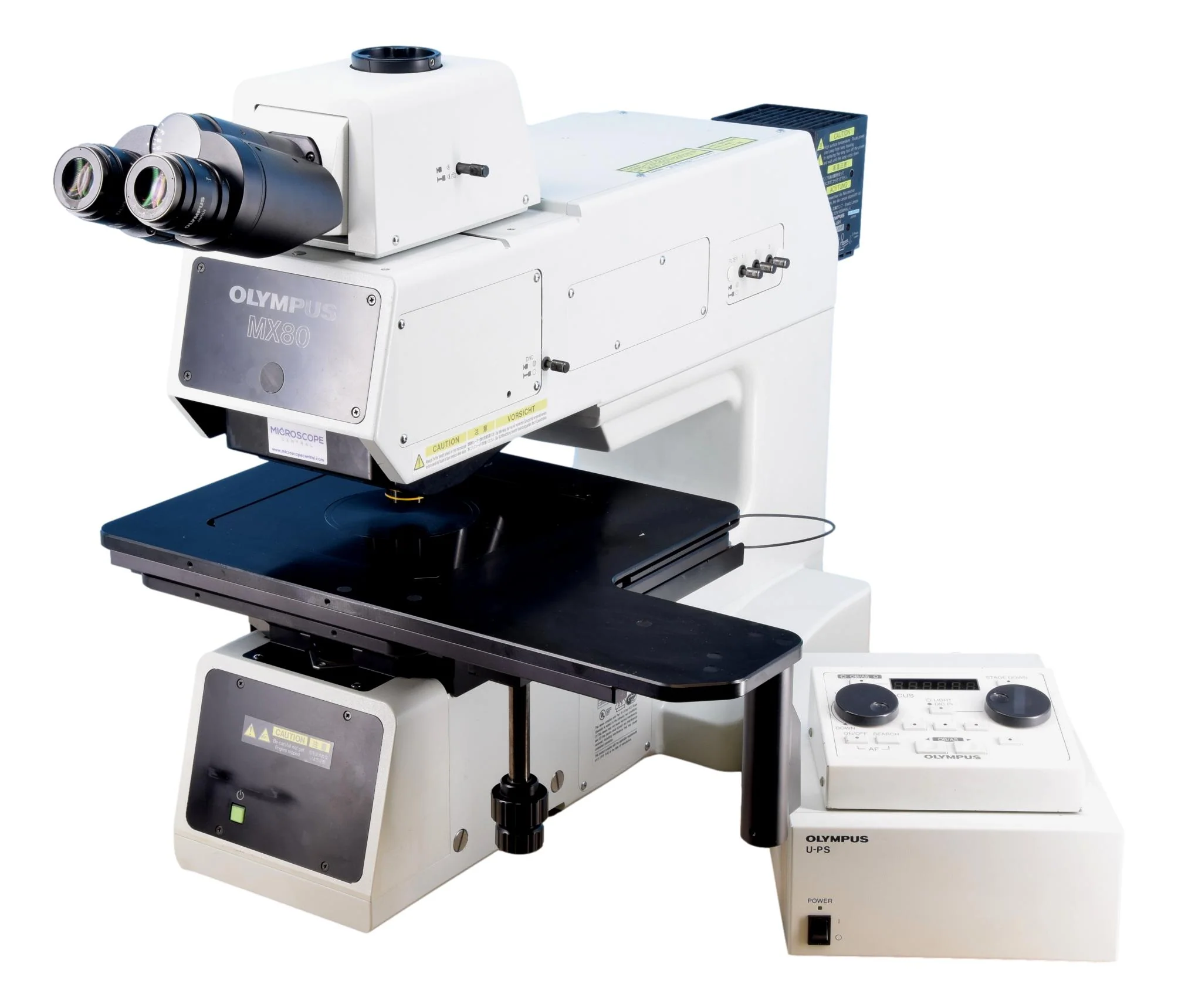

Olympus MX80 Automated Metallurgical Microscope
The Olympus MX80 is a fully motorized inspection microscope. The nosepiece, focus, and illumination / contrast techines are all controlled by the included control box. The microscope comes with an ergo tilting erect image head and 10x eypieces. This microscope is capable of brightfield, darkfield, and DIC. It includes UmPlanFL BD 5x, 10x, 20x, 50x, and 100x objectives. We can upgrade this to long working distance objectives if needed. This used microscope has been fully tested and is working as expected.
| Olympus MX80 Specifications | |
|---|---|
| Viewing Head: | Ergonomic Tilting Trinocular Erect Image Head |
| Eyepieces: | 10x/26.5mm eyepieces both focusing |
| Reflected Light: |
Reflected Light Illuminator w/ Halogen Lamphouse Brightfield, Darkfield, DIC Polarizer & Analyzer |
| Nosepiece: | Motorized Nosepiece |
| Objectives: | UMPlanFL BD 5x, 10x, 20x, 50x, 100x |
| Stage: | Large Stage w/ Clutch |
| Illumination: | 12v 100w Halogen |
| Warranty: | 6 Month Mechanical |
Description
The Olympus MX80 is a fully motorized inspection microscope. The nosepiece, focus, and illumination / contrast techines are all controlled by the included control box. The microscope comes with an ergo tilting erect image head and 10x eypieces. This microscope is capable of brightfield, darkfield, and DIC. It includes UmPlanFL BD 5x, 10x, 20x, 50x, and 100x objectives. We can upgrade this to long working distance objectives if needed. This used microscope has been fully tested and is working as expected.
| Olympus MX80 Specifications | |
|---|---|
| Viewing Head: | Ergonomic Tilting Trinocular Erect Image Head |
| Eyepieces: | 10x/26.5mm eyepieces both focusing |
| Reflected Light: |
Reflected Light Illuminator w/ Halogen Lamphouse Brightfield, Darkfield, DIC Polarizer & Analyzer |
| Nosepiece: | Motorized Nosepiece |
| Objectives: | UMPlanFL BD 5x, 10x, 20x, 50x, 100x |
| Stage: | Large Stage w/ Clutch |
| Illumination: | 12v 100w Halogen |
| Warranty: | 6 Month Mechanical |
