Olympus IX70 Inverted Phase Contrast DIC Fluorescence Microscope

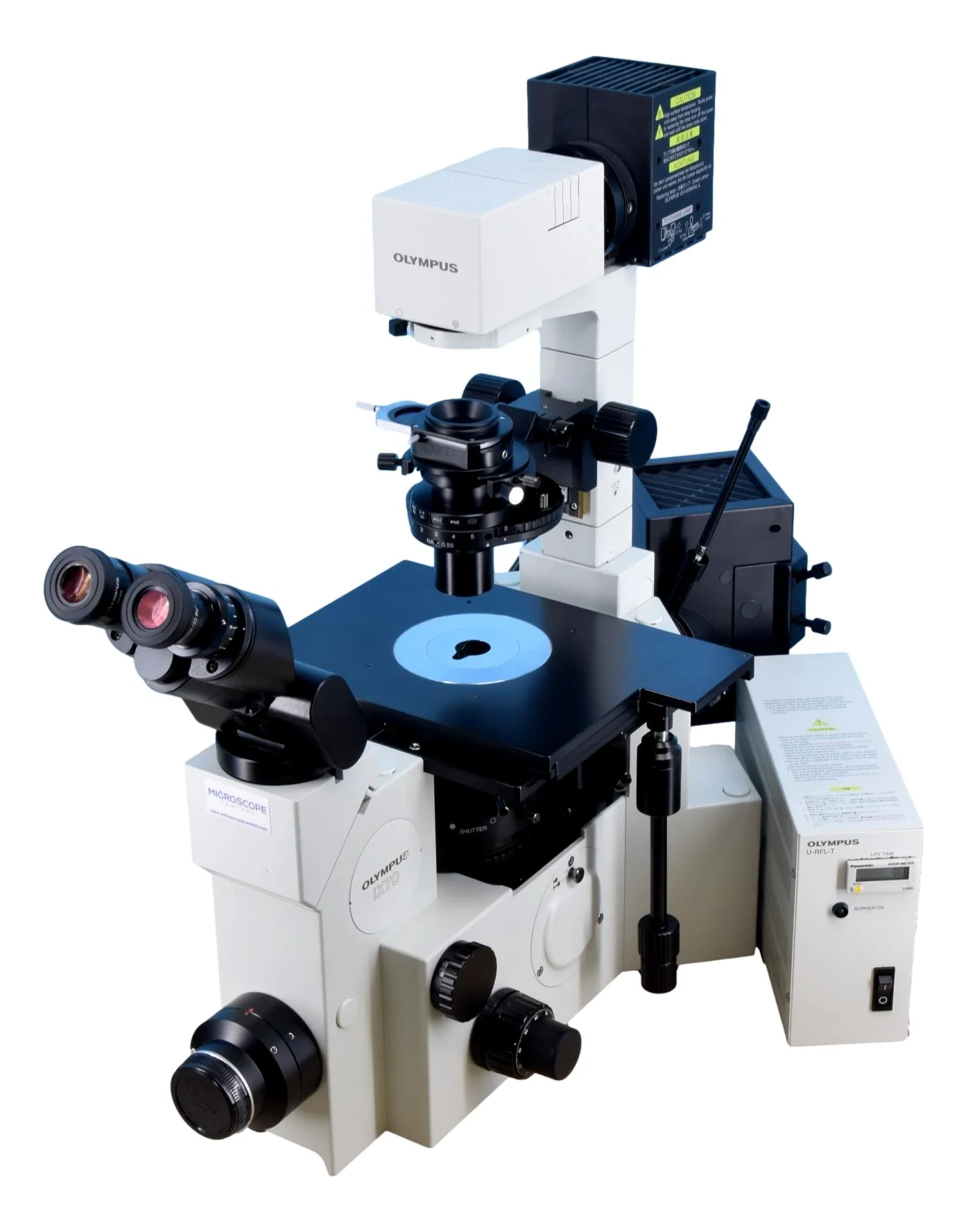

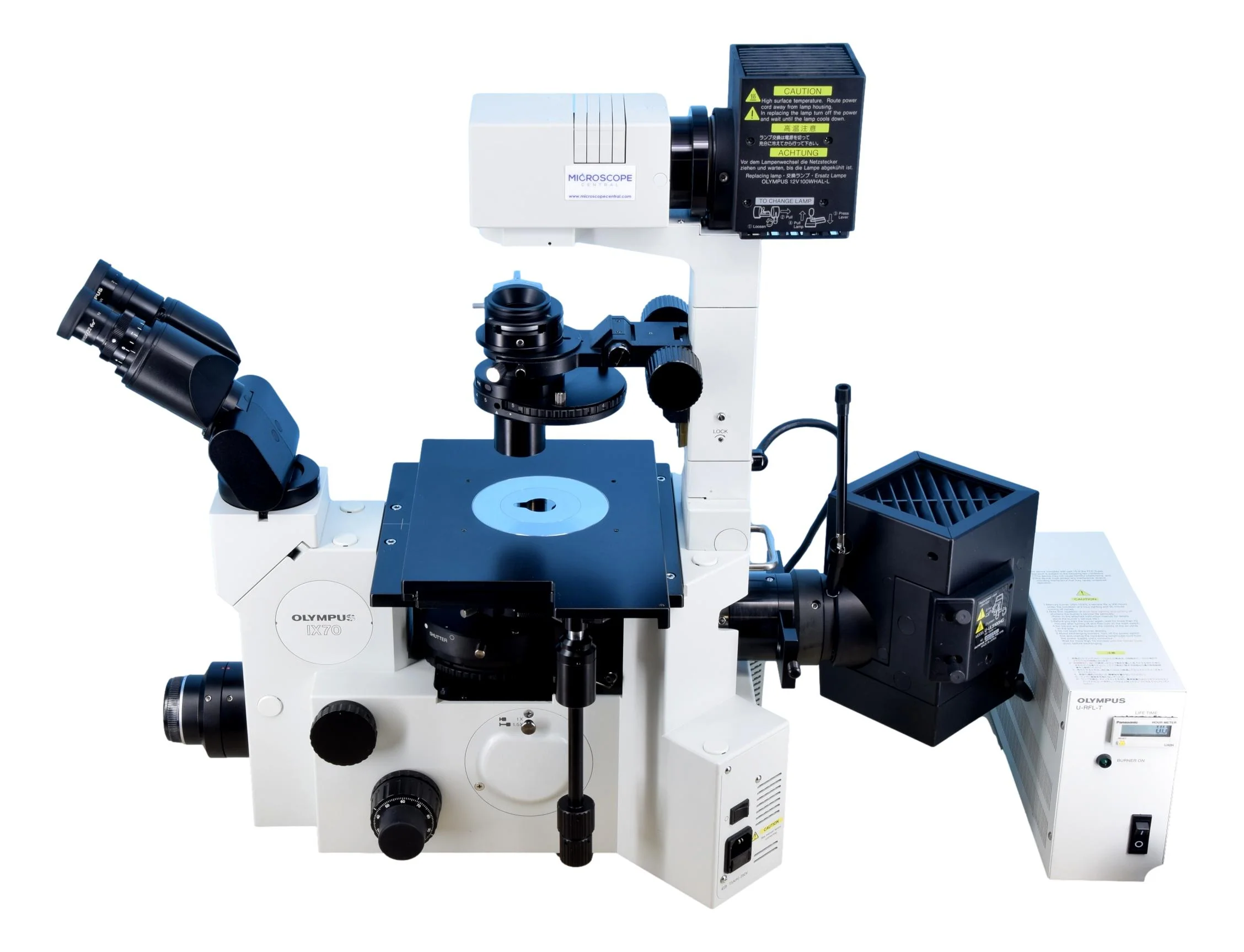

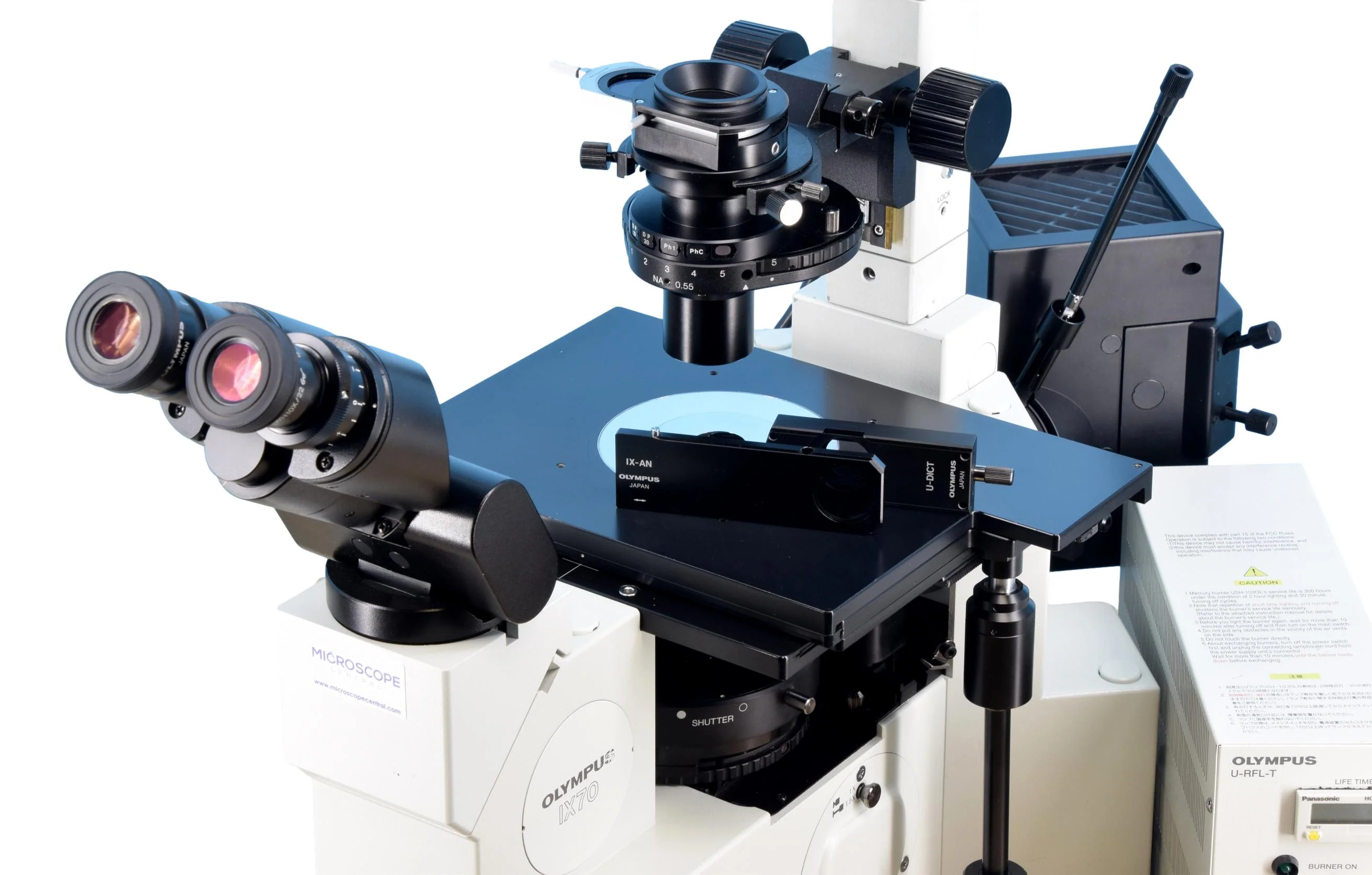

This Olympus IX70 microscope is capable of phase contrast, DIC, and fluorescence. It comes with an ergonomic tilting binocular head with 10x eyepieces. The microscope has a front and side photo port for adding a camera. The 0.5 N.A. condenser has DP10 and DP20 DIC prisms and Ph1, PhC phase annuli installed with the IX-LWPO polarizer. The 6 position nosepiece has UPlanFLN 4x PhL, UPlanFL 10x, CPlan 10x PhC, LCPlanFL 20x Ph1 w/ CAP P 1.1, and LCPlanFL 20x w/ CAP P 1.1.. The 5 position fluorescence turret contains WIBA, and NU fluorescence filters. Also included is the IX-AN analyzer and U-DICT DIC prism. The microscope has a built in 1.0x / 1.5x mag changer. This refurbished microscope can be fully customized and comes fully serviced with a warranty.
| Specifications | |
|---|---|
| Head: |
Ergo Tilting Binocular Front & Side Photo Port |
| Eyepieces: | 10x Eyepieces |
| Nosepiece: | 6 Position |
| Objectives: |
UPlanFLN 4x PhL UPlanFL 10x CPlan 10x PhC LCPlanFL 20x Ph1 - CAP-P 1.1 LCPlanFL 20x - CAP-P 1.1 |
| Stage: | XY Mechanical |
| Condenser: |
0.55 N.A. w/ IX-LWPO DP10, DP20, Ph1, Phc |
| Fluorescence |
Mercury Lamphouse & Power Supply 5 Position Fluorescence Turret WIBA, NU Filters |
| Focusing | Coarse & Fine |
| Light Source: | Halogen |
| Warranty: | One Year Mechanical |
Original: $14,750.00
-70%$14,750.00
$4,425.00


Description
This Olympus IX70 microscope is capable of phase contrast, DIC, and fluorescence. It comes with an ergonomic tilting binocular head with 10x eyepieces. The microscope has a front and side photo port for adding a camera. The 0.5 N.A. condenser has DP10 and DP20 DIC prisms and Ph1, PhC phase annuli installed with the IX-LWPO polarizer. The 6 position nosepiece has UPlanFLN 4x PhL, UPlanFL 10x, CPlan 10x PhC, LCPlanFL 20x Ph1 w/ CAP P 1.1, and LCPlanFL 20x w/ CAP P 1.1.. The 5 position fluorescence turret contains WIBA, and NU fluorescence filters. Also included is the IX-AN analyzer and U-DICT DIC prism. The microscope has a built in 1.0x / 1.5x mag changer. This refurbished microscope can be fully customized and comes fully serviced with a warranty.
| Specifications | |
|---|---|
| Head: |
Ergo Tilting Binocular Front & Side Photo Port |
| Eyepieces: | 10x Eyepieces |
| Nosepiece: | 6 Position |
| Objectives: |
UPlanFLN 4x PhL UPlanFL 10x CPlan 10x PhC LCPlanFL 20x Ph1 - CAP-P 1.1 LCPlanFL 20x - CAP-P 1.1 |
| Stage: | XY Mechanical |
| Condenser: |
0.55 N.A. w/ IX-LWPO DP10, DP20, Ph1, Phc |
| Fluorescence |
Mercury Lamphouse & Power Supply 5 Position Fluorescence Turret WIBA, NU Filters |
| Focusing | Coarse & Fine |
| Light Source: | Halogen |
| Warranty: | One Year Mechanical |
