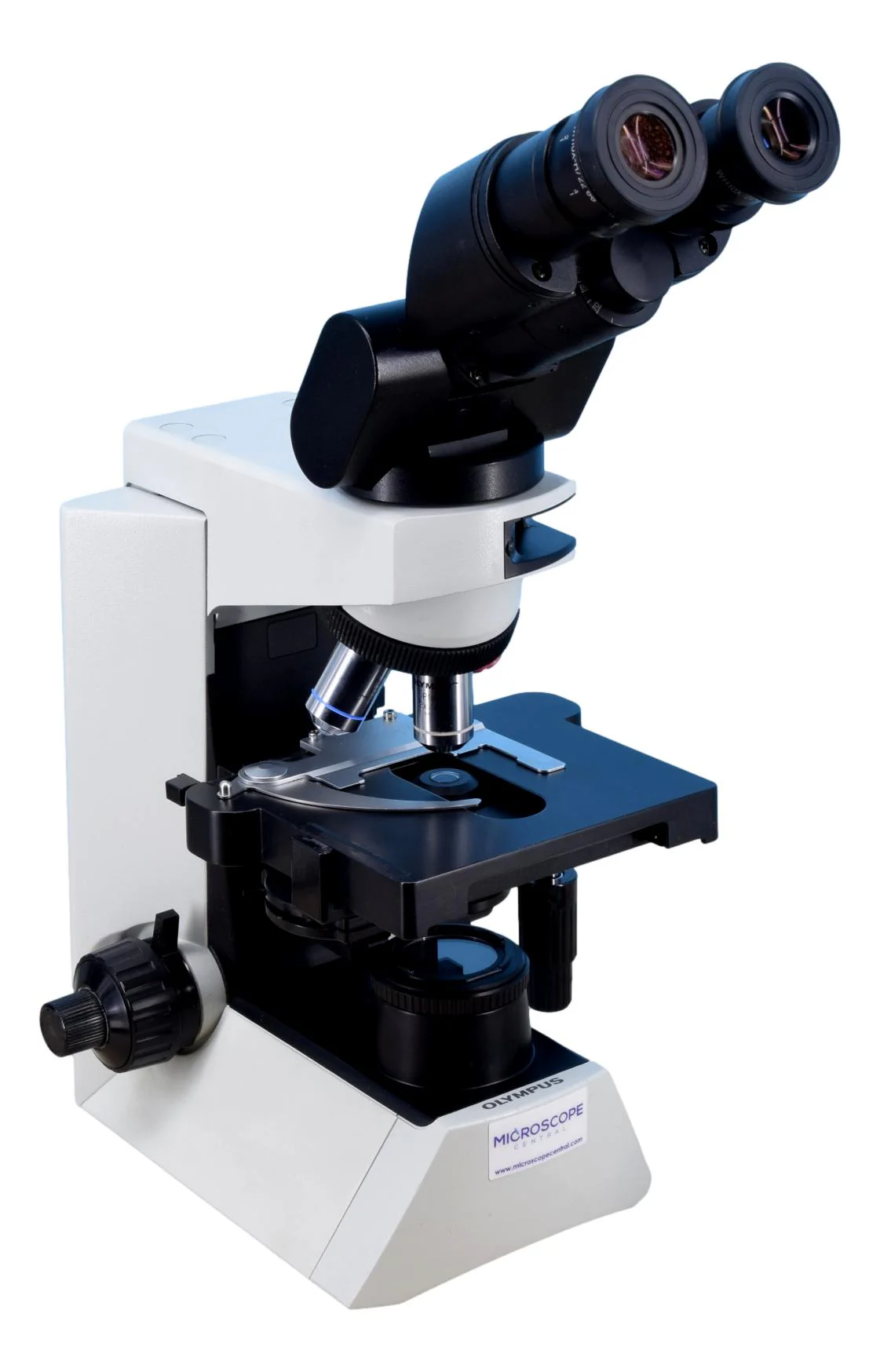

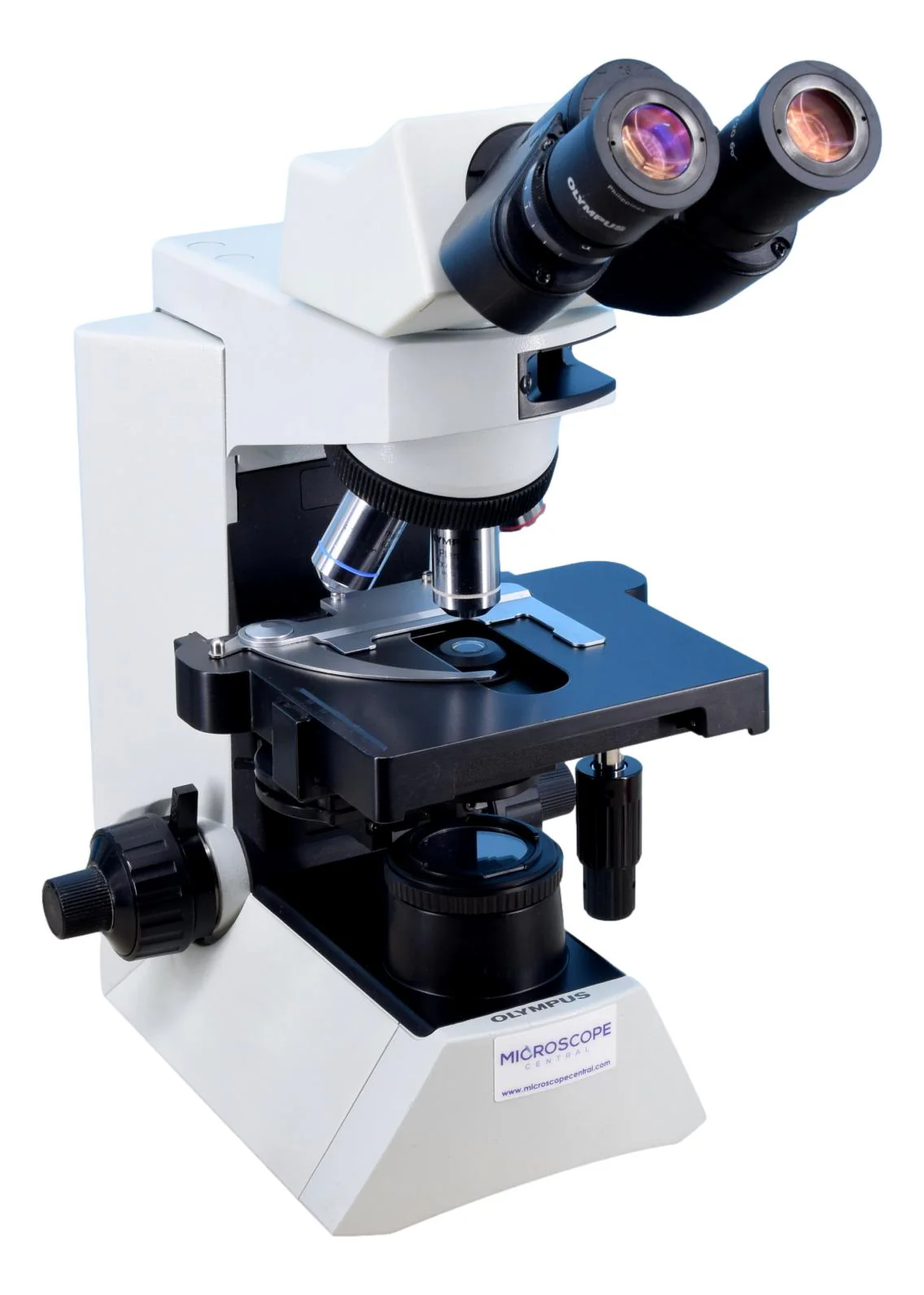

Olympus CX41 Pathology Microscope
This Olympus CX41 microscope is configured for Pathology / MOHS applications. You can choose between a standard binocular head, or ergo tilting binocular head complete with a pair of WHB 10x-20mm FOV eyepieces. The microscope has a 5 position nosepiece and comes equipped with Plan 2x and Plan C N 4x, 10, 20x, and 40x objective lenses. The mechanical stage comes with a stage holder which can be removed for freehand slide movement. The condenser has the CX-LA attachment for use with the low mag objective lens. This microscope has variable Koehler halogen illumination. This refurbished microscope comes fully serviced with a a warranty and can be further customized if needed.
| Specifications | |
|---|---|
| Style: | Binocular or Ergo Tilting Binocular |
| Eyepiece: | WHB 10x -20mm |
| Nosepiece: | 5 Position |
| Objectives: | Plan 2x, Plan C N 4x, 10x, 20x, 40x |
| Stage: | Mechanical XY w/ Slide Holder |
| Condenser: | Abbe Condenser w/ CX-LA Low Mag Attachment |
| Focusing: | Coarse & Fine Focus |
| Illumination: | Kohler Illumination 6v 30w Halogen with variable intensity |
| Warranty: | One Year Mechanical, Six Month Electrical |
Description
This Olympus CX41 microscope is configured for Pathology / MOHS applications. You can choose between a standard binocular head, or ergo tilting binocular head complete with a pair of WHB 10x-20mm FOV eyepieces. The microscope has a 5 position nosepiece and comes equipped with Plan 2x and Plan C N 4x, 10, 20x, and 40x objective lenses. The mechanical stage comes with a stage holder which can be removed for freehand slide movement. The condenser has the CX-LA attachment for use with the low mag objective lens. This microscope has variable Koehler halogen illumination. This refurbished microscope comes fully serviced with a a warranty and can be further customized if needed.
| Specifications | |
|---|---|
| Style: | Binocular or Ergo Tilting Binocular |
| Eyepiece: | WHB 10x -20mm |
| Nosepiece: | 5 Position |
| Objectives: | Plan 2x, Plan C N 4x, 10x, 20x, 40x |
| Stage: | Mechanical XY w/ Slide Holder |
| Condenser: | Abbe Condenser w/ CX-LA Low Mag Attachment |
| Focusing: | Coarse & Fine Focus |
| Illumination: | Kohler Illumination 6v 30w Halogen with variable intensity |
| Warranty: | One Year Mechanical, Six Month Electrical |
