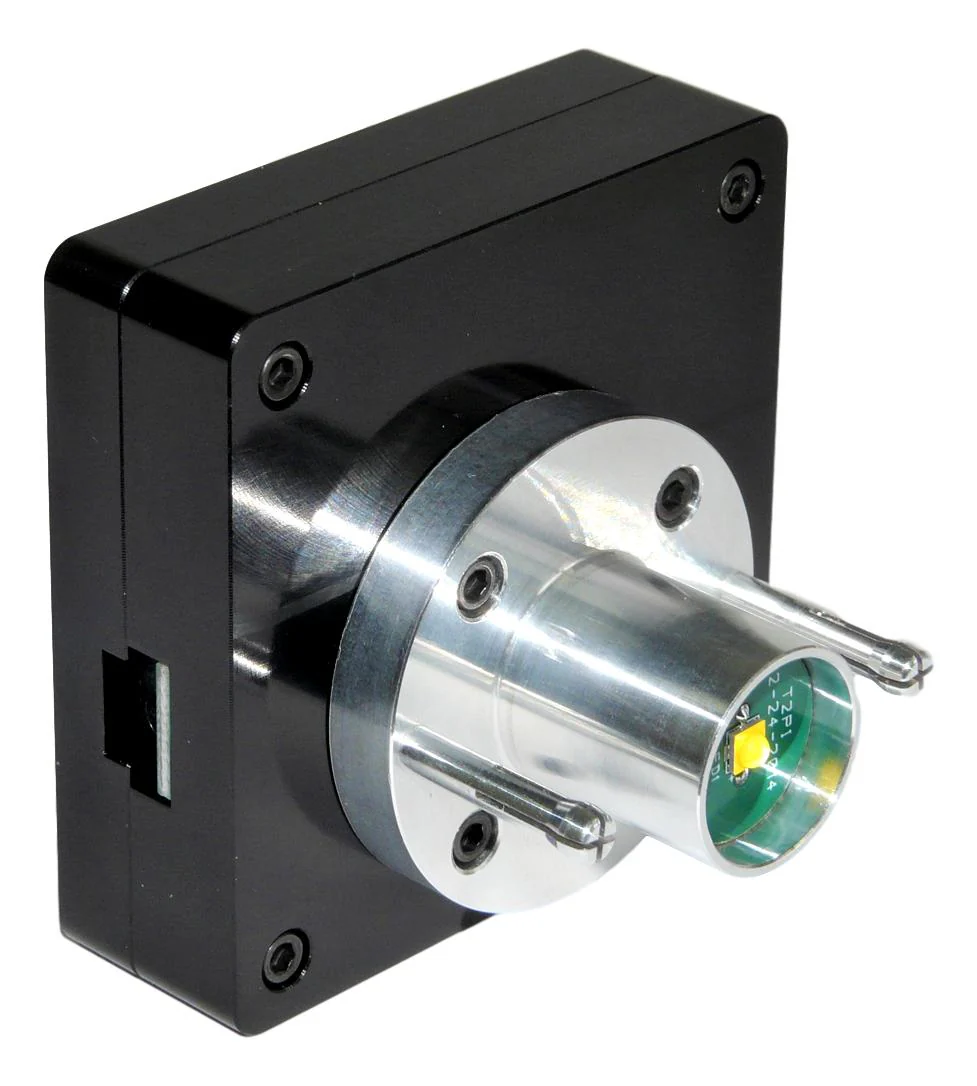

Olympus CK2 Illuminator LED Upgrade Kit

This LED illuminator is designed specifically for the Olympus CK2 microscope, and replaces all existing electronics. If you have a CK2 with failed circuit board, rheostat, or socket this is the perfect solution It provides brighter illumination while being more energy  efficient. You can install this yourself, or we can install this into your microscope for an additional cost.

• Custom-designed to fit the form factor of the Olympus CK2.
• The CK2 OEM lamp house has two pins on either sides of the bulb (similar to BX40). However, the pin spacing (center to center) is 36mm (1.42 in) which is the spacing for the BH-2 and few more of that type including SZX-ILLK. While the BX40/41, CK40 and CKX41 use the same pins but has a spacing of 37mm (1.457 in).
• Remote adjustment on an existing control on the microscope is standard. Brightness control potentiometer on the new illuminator available on request.
• Most tools provided.
• All illuminator systems are backed by our 3-year warranty.

• Illuminator Dimensions: 2.45 x 2.45 x 2.36 inch
• Power Requirements: 5 to 24V/3.5W
• Brightness: 410 lm
• LED Expected Lifetime: 80% of original brightness at 88,500 hours
• Material: Anodized 6061 T6 Aluminum
• Customer will need to assemble, some models have instructions upon request, please check prior to ordering.
• Made to order, lead times can vary.
