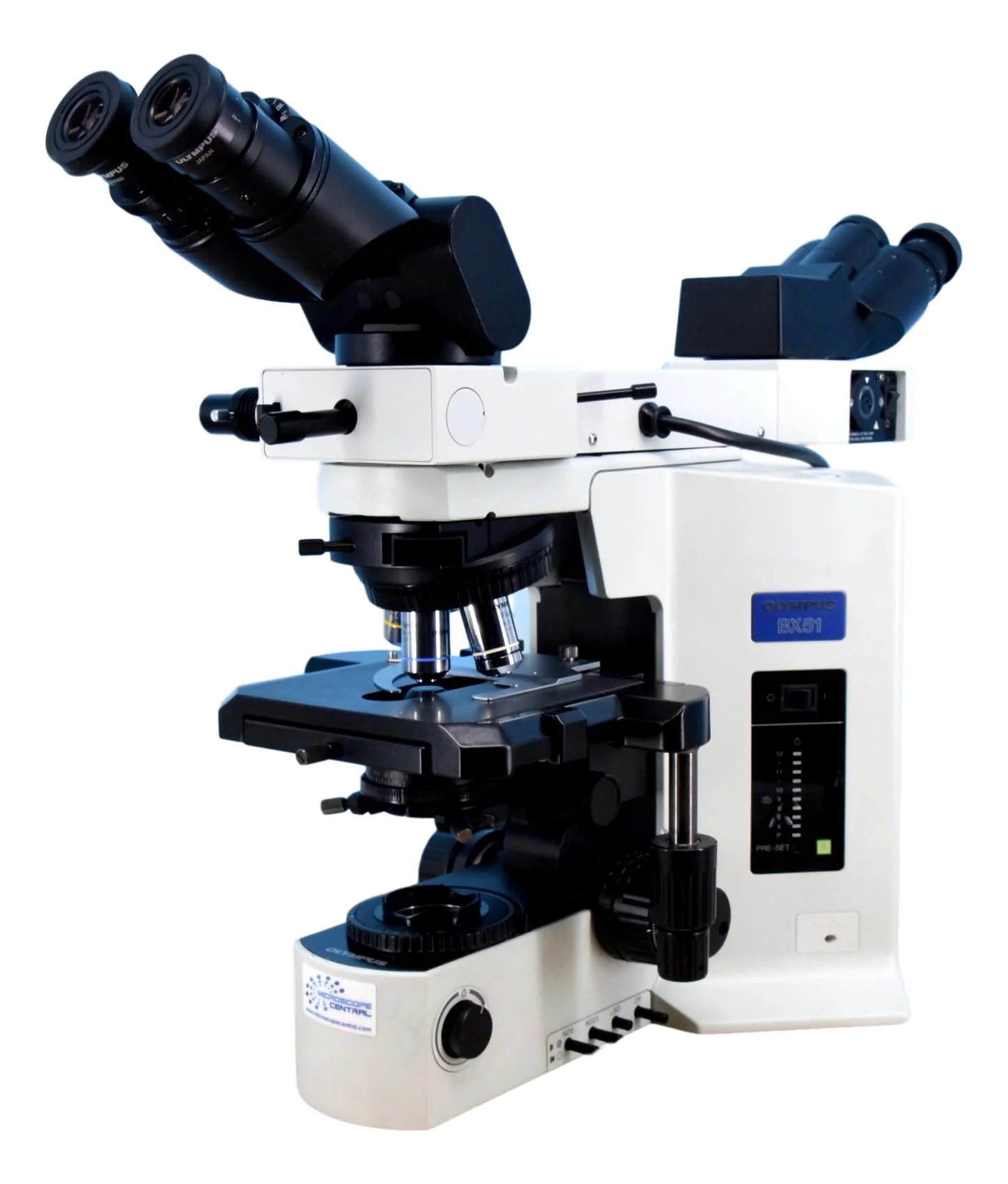

Olympus BX51 Dual Viewing Face-To-Face Microscope
This Olympus BX51 is configured with a face to face dual viewing bridge with color changing pointer unit. For the primary viewing head you can select from - Binocular, Trinocular, or Ergo Binocular. The secondary binocular viewing head can be upgraded to and ergonomic binocular. Two pairs of 10x eyepieces provide both users a 22mm field of view.
The 6 position nosepiece has a slot to accept an an optional analyzer, or gout kit. You can choose between Plan or UPlanFL 2x, 4x, 10x, 20x, and 40x, objectives. Olympus UPlanAPO objectives are available as a further upgrade, or additional lower / higher magnifications.
This comes with a right handed XY mechanical stage with slide holder. We have optional left handed XY mechanical stages, or plain fixed stages. The flip out condenser has an adjustable iris diaphragm.
The microscope comes with a 12v 100w halogen illumination system with a spare bulb. We can install an optional powerful LED light source before shipping.
This microscope can be further configured with additional parts / components to meet your requirements. We can add a 4K HD Multi-Output camera to this, or any microscope system.
This microscope will be professionally serviced, cleaned, bagged, and packaged to be delivered to your lab safely. We make assembly quick and easy with a custom assembly video. Location depending we might recommend a local service company that can help assemble your microscope.
| Specifications | |
|---|---|
| Heads: |
Main Viewing Head: Binocular, Ergo Binocular, or Trinocular Secondary Viewing Head: Binocular |
| Eyepieces: | 10x / 22mm FOV (x4) |
| Dual Bridge: | Face-To-Face Dual Viewing Bridge w/ Pointer |
| Nosepiece: | 6 Position |
| Objectives: |
Plan 2x, 4x, 10x, 20x, 40x Or UPlanFL 2x, 4x, 10x, 20x, 40x |
| Stage: |
Right Handed XY Mechanical with Slide Holder (Optional Left Handed or Plain Fixed Stage At Same Cost) |
| Condenser: | Flip Out Condenser with Iris Diaphragm |
| Light Source: |
Halogen Illumination With Variable Intensity Adjustment & Pre-Set *Optional LED Upgrade |
| Misc.: | Spare Bulb & Power Cord |
| Warranty: |
One Year Mechanical & Electrical *Electrical LED Upgrade Extends To 3 Year Electrical Warranty |
Accessories
These are just some of our listed accessories, we have many more just ask!
Description
This Olympus BX51 is configured with a face to face dual viewing bridge with color changing pointer unit. For the primary viewing head you can select from - Binocular, Trinocular, or Ergo Binocular. The secondary binocular viewing head can be upgraded to and ergonomic binocular. Two pairs of 10x eyepieces provide both users a 22mm field of view.
The 6 position nosepiece has a slot to accept an an optional analyzer, or gout kit. You can choose between Plan or UPlanFL 2x, 4x, 10x, 20x, and 40x, objectives. Olympus UPlanAPO objectives are available as a further upgrade, or additional lower / higher magnifications.
This comes with a right handed XY mechanical stage with slide holder. We have optional left handed XY mechanical stages, or plain fixed stages. The flip out condenser has an adjustable iris diaphragm.
The microscope comes with a 12v 100w halogen illumination system with a spare bulb. We can install an optional powerful LED light source before shipping.
This microscope can be further configured with additional parts / components to meet your requirements. We can add a 4K HD Multi-Output camera to this, or any microscope system.
This microscope will be professionally serviced, cleaned, bagged, and packaged to be delivered to your lab safely. We make assembly quick and easy with a custom assembly video. Location depending we might recommend a local service company that can help assemble your microscope.
| Specifications | |
|---|---|
| Heads: |
Main Viewing Head: Binocular, Ergo Binocular, or Trinocular Secondary Viewing Head: Binocular |
| Eyepieces: | 10x / 22mm FOV (x4) |
| Dual Bridge: | Face-To-Face Dual Viewing Bridge w/ Pointer |
| Nosepiece: | 6 Position |
| Objectives: |
Plan 2x, 4x, 10x, 20x, 40x Or UPlanFL 2x, 4x, 10x, 20x, 40x |
| Stage: |
Right Handed XY Mechanical with Slide Holder (Optional Left Handed or Plain Fixed Stage At Same Cost) |
| Condenser: | Flip Out Condenser with Iris Diaphragm |
| Light Source: |
Halogen Illumination With Variable Intensity Adjustment & Pre-Set *Optional LED Upgrade |
| Misc.: | Spare Bulb & Power Cord |
| Warranty: |
One Year Mechanical & Electrical *Electrical LED Upgrade Extends To 3 Year Electrical Warranty |
