Olympus BX50 Polarized Light Microscope

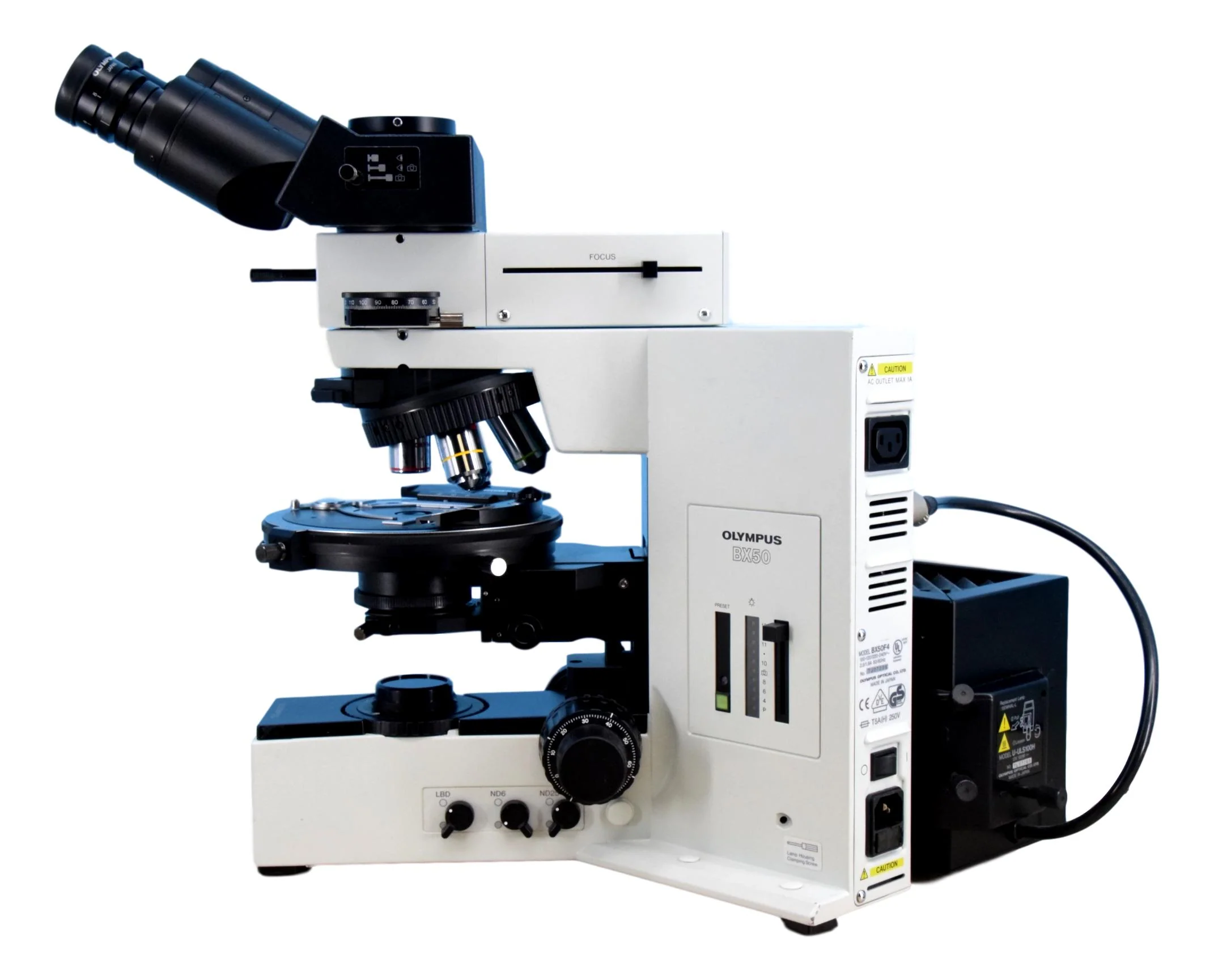

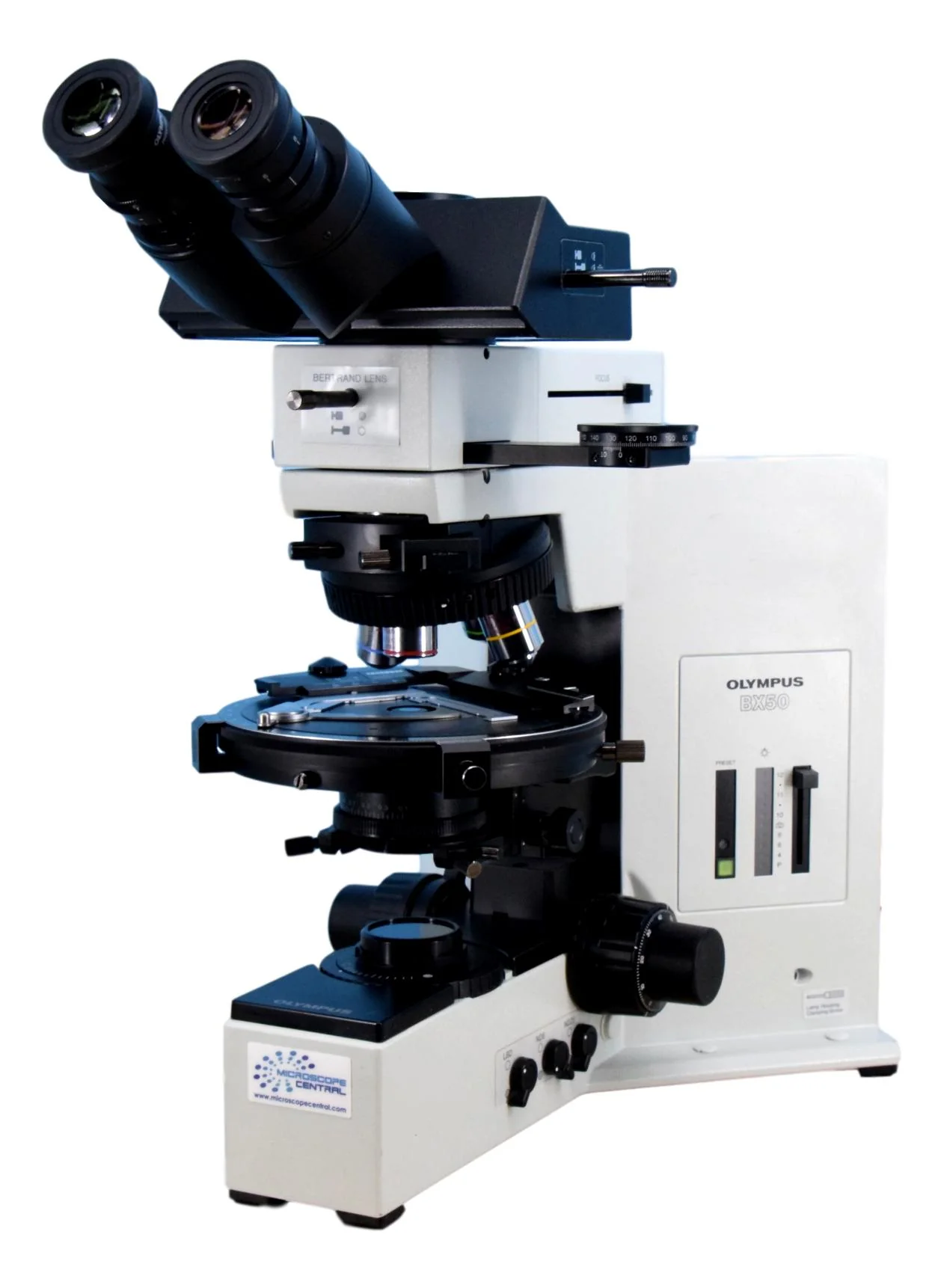

This Olympus BX50 microscope is configured for Polarized Light Microscopy. It comes with a trinocular viewing head and a pair of 10x eyepieces. The U-PA POL attachment contains the bertand lens and rotatable analyzer. This has a 4 position centerable nosepiece with strain free Ach 4x, 10x, 20x, and 40x objectives. The 360 degree rotating stage can come with or without the mechanical XY slide holder. The polarizer is an over the lamphouse rotating polarizer. This used microscope can be fully customized for you and comes serviced with a warranty.
| SPECIFICATIONS | |
|---|---|
| Head: | Trinocular |
| Eyepiece: | 10X/22 w crosshair reticle |
| Bertrand Lens Module: |
Bertrand Lens & Rotatable Analyzer 1st Order Red Slider |
| Nosepiece: | Quadruple Centerable |
| Objectives: | Strain Free Ach Pol 4x, 10x, 20x, 40x |
| Stage: | 360 Degree Rotating w/ Stage Clips or Mechanical Stage |
| Condenser: | 1.1 N.A. |
| Polarizer: | Polarizer |
| Light Source: | Halogen |
| Warranty: | 2 Years |
Description
This Olympus BX50 microscope is configured for Polarized Light Microscopy. It comes with a trinocular viewing head and a pair of 10x eyepieces. The U-PA POL attachment contains the bertand lens and rotatable analyzer. This has a 4 position centerable nosepiece with strain free Ach 4x, 10x, 20x, and 40x objectives. The 360 degree rotating stage can come with or without the mechanical XY slide holder. The polarizer is an over the lamphouse rotating polarizer. This used microscope can be fully customized for you and comes serviced with a warranty.
| SPECIFICATIONS | |
|---|---|
| Head: | Trinocular |
| Eyepiece: | 10X/22 w crosshair reticle |
| Bertrand Lens Module: |
Bertrand Lens & Rotatable Analyzer 1st Order Red Slider |
| Nosepiece: | Quadruple Centerable |
| Objectives: | Strain Free Ach Pol 4x, 10x, 20x, 40x |
| Stage: | 360 Degree Rotating w/ Stage Clips or Mechanical Stage |
| Condenser: | 1.1 N.A. |
| Polarizer: | Polarizer |
| Light Source: | Halogen |
| Warranty: | 2 Years |
