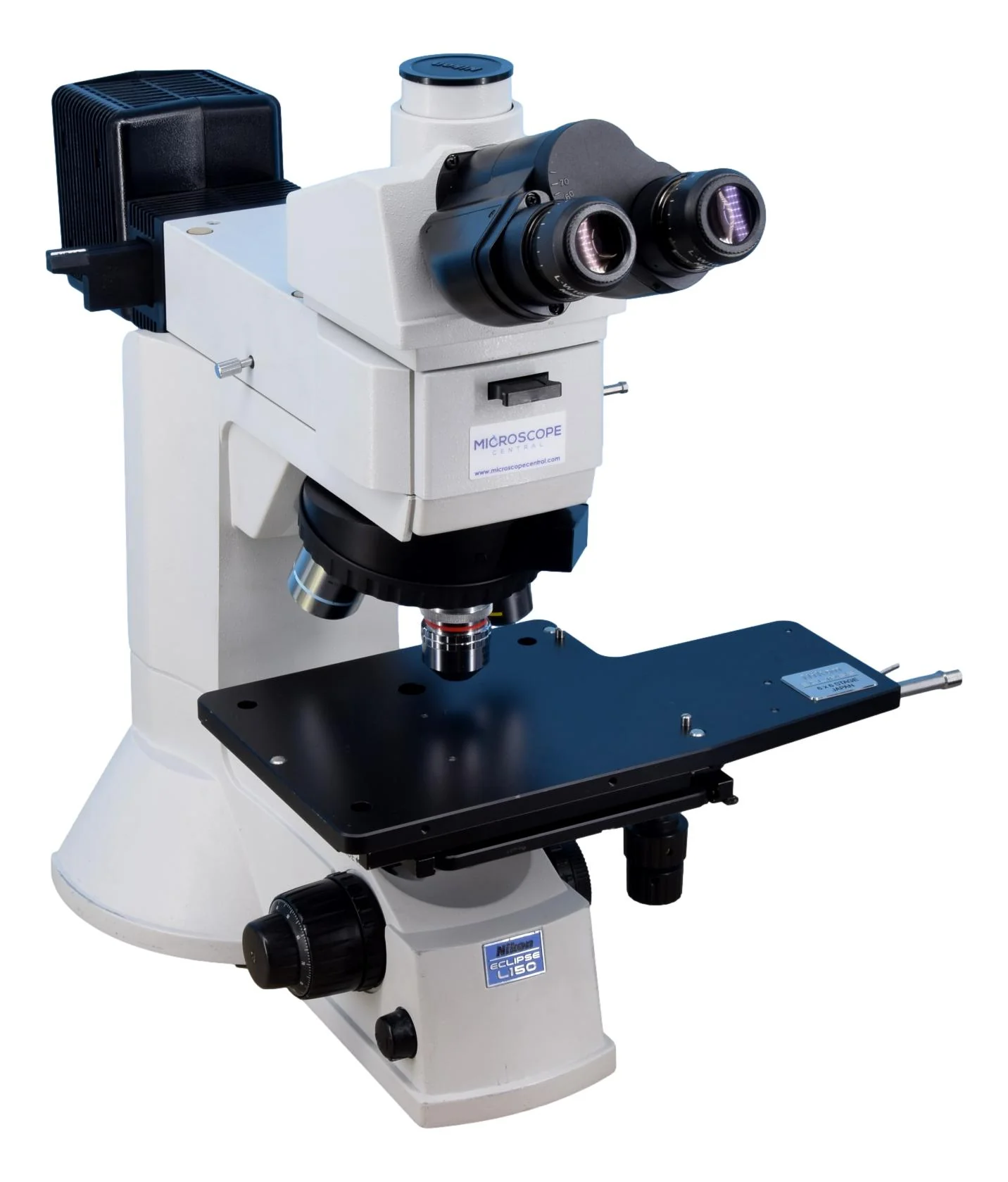

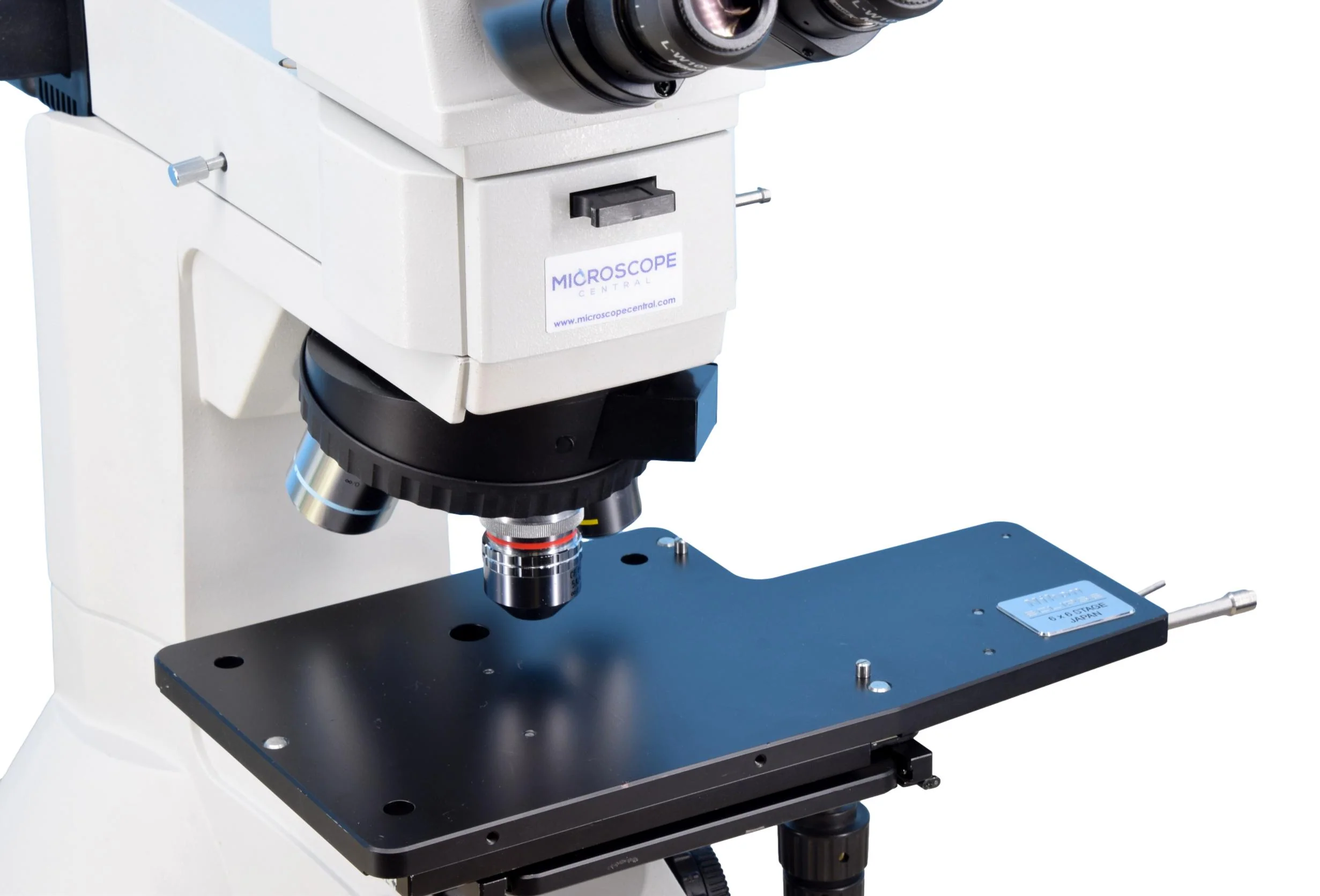

Nikon L150 Reflected Light Brightfield & Darkfield Microscope
The Nikon L150 microscope is a materials / metallurgical microscope designed for a wide range of applications such as inspecting semiconductors, materials, metallic parts / components, and more. This microscope has brightfield & darkfield capabilities. The trinocular head allows for the addition of a camera. The L-W10x eyepieces have a 22mm field of view. This comes with NCB11, ND4, and ND16 filters. The reflected light illuminator provides brightfield and darkfield illumination. The 5 position B.F. / D.F. nosepiece comes with the following objective lenses - CF Plan BD 5x, LU Plan BD 10x, CF Plan BF 20x, and LU Plan Fluor 50x BD. The 20x objective is brightfield only. The microscope has a large 6 x 6 stage. This used microscope can be fully customized to meet your specific needs. It comes fully serviced and with a warranty.
| Nikon L150 Specifications | |
|---|---|
| Head: | Trinocular 0/100 light split |
| Eyepieces: | 10x/22mm FOV |
| Reflected Light: | Reflected light module w/ Brightfield & Darkfield - NCB11, ND4, ND16 Filters |
| Nosepiece | Quintuple |
| Objectives: |
CF Plan BD 5x LU Plan BD 10x CF Plan BF 20x LU Plan Fluor 50x BD |
| Stage: | 6 x 6 Stage |
| Light Source: | Halogen Reflected 12v 100 w |
| Warranty: | 1 Year Mechanical |
Original: $8,900.00
-70%$8,900.00
$2,670.00
Description
The Nikon L150 microscope is a materials / metallurgical microscope designed for a wide range of applications such as inspecting semiconductors, materials, metallic parts / components, and more. This microscope has brightfield & darkfield capabilities. The trinocular head allows for the addition of a camera. The L-W10x eyepieces have a 22mm field of view. This comes with NCB11, ND4, and ND16 filters. The reflected light illuminator provides brightfield and darkfield illumination. The 5 position B.F. / D.F. nosepiece comes with the following objective lenses - CF Plan BD 5x, LU Plan BD 10x, CF Plan BF 20x, and LU Plan Fluor 50x BD. The 20x objective is brightfield only. The microscope has a large 6 x 6 stage. This used microscope can be fully customized to meet your specific needs. It comes fully serviced and with a warranty.
| Nikon L150 Specifications | |
|---|---|
| Head: | Trinocular 0/100 light split |
| Eyepieces: | 10x/22mm FOV |
| Reflected Light: | Reflected light module w/ Brightfield & Darkfield - NCB11, ND4, ND16 Filters |
| Nosepiece | Quintuple |
| Objectives: |
CF Plan BD 5x LU Plan BD 10x CF Plan BF 20x LU Plan Fluor 50x BD |
| Stage: | 6 x 6 Stage |
| Light Source: | Halogen Reflected 12v 100 w |
| Warranty: | 1 Year Mechanical |
