Nikon E200 POL Polarized Light Microscope

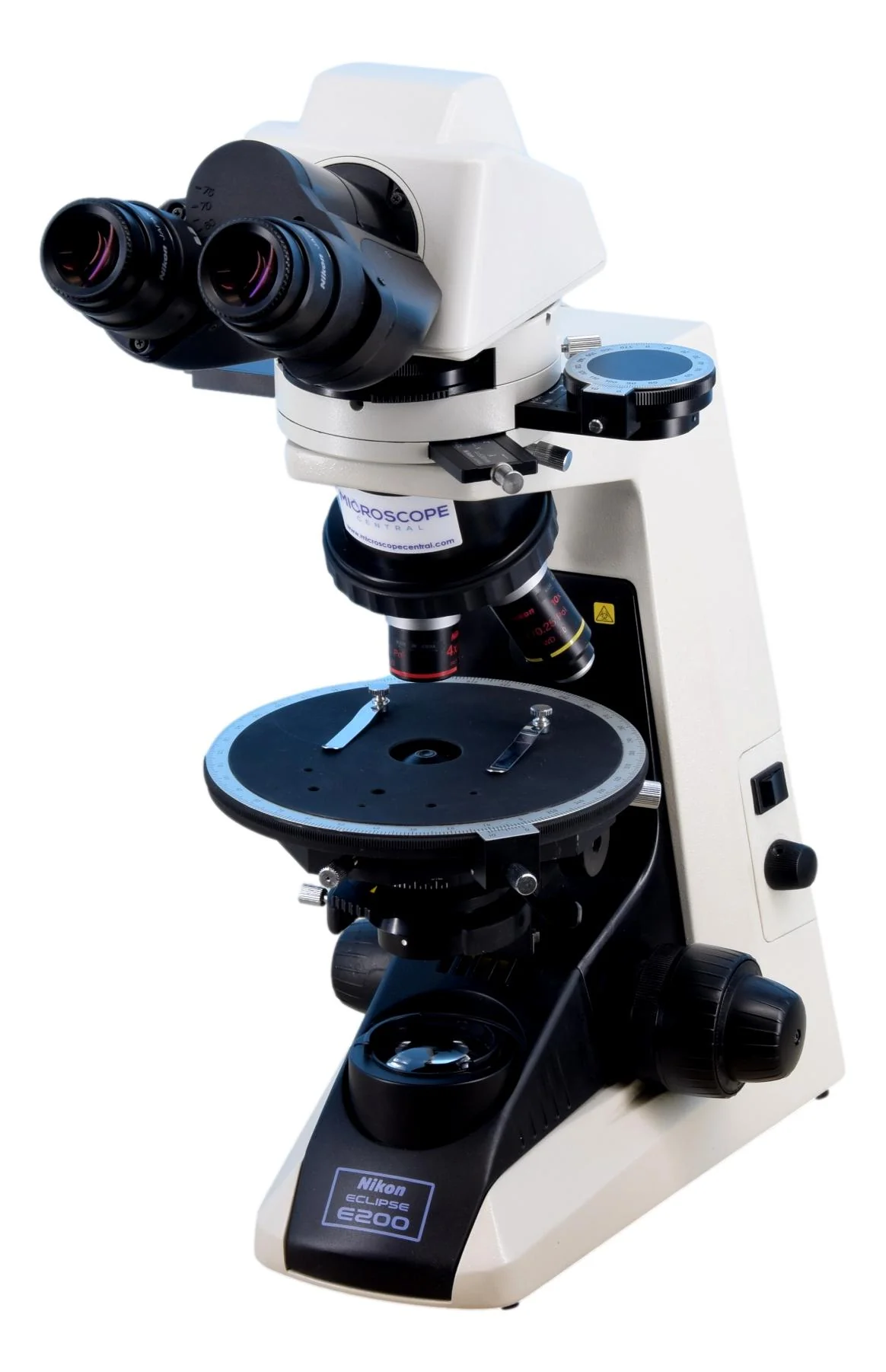

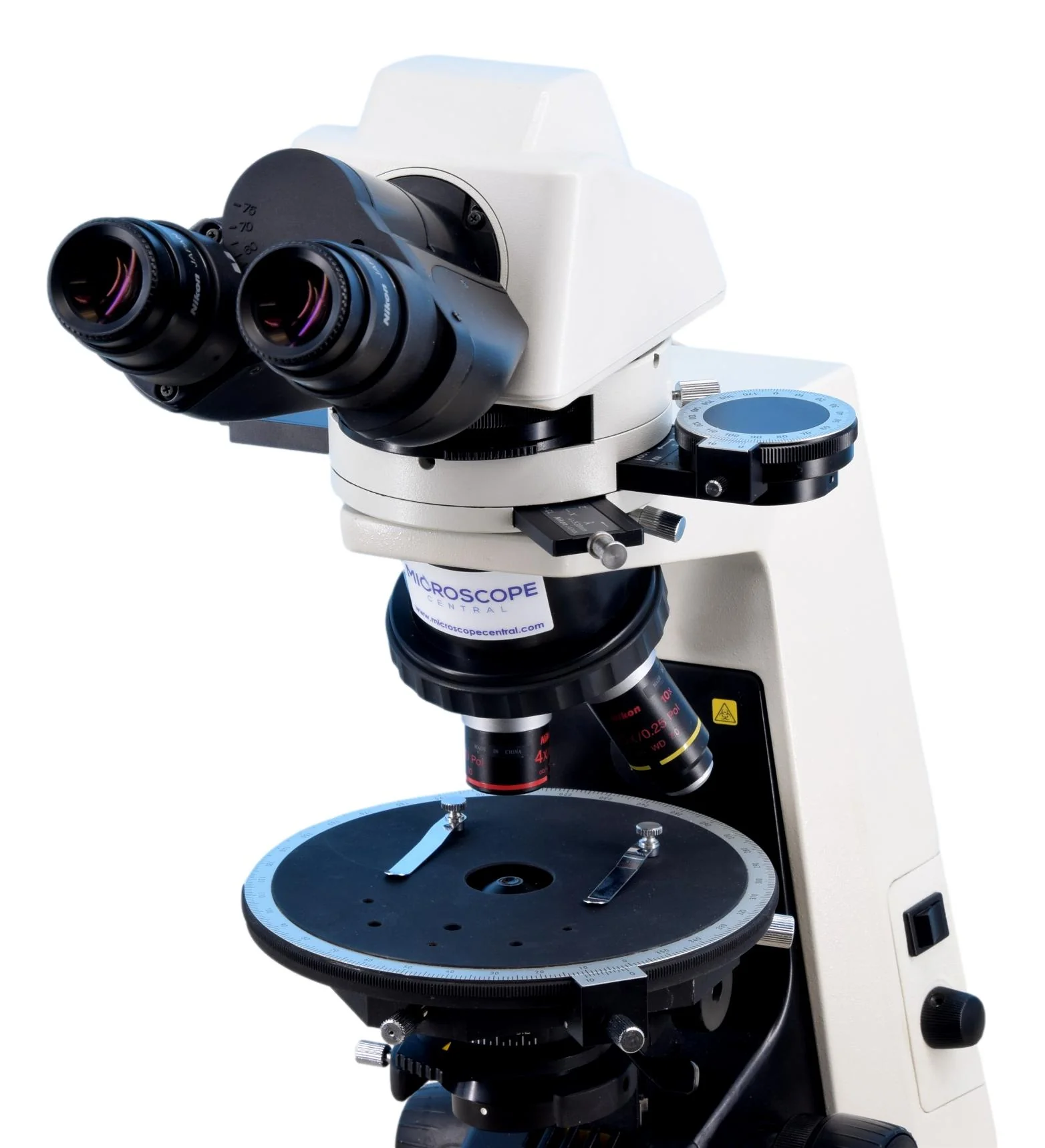

This Nikon E200 POL microscope is ready to examine your thin sections. The binocular head contains a pair of 10x eyepieces, one containing a cross-hair reticle. The intermediate tube contains the built-in focusable Bertrand lens, rotating analyzer, and slider with both first order and 1/4 wave plates. The four position nosepiece is fixed, and has 4x, 10x, and 40x strain free objective lenses. The 360 degree rotating stage comes with a pair of stage clips. The strain free flip out condenser comes with an attachable bottom mounted polarizer. This used microscope comes fully serviced and working like new with a warranty.
| Nikon E200 POL Specifications | |
|---|---|
| Head: | Binocular Head |
| Eyepieces: | CFI 10x/20mm, 1 w/ cross-hair reticle |
| Intermediate Module: |
Focusable Bertrand Lens 360 Degree Rotating Analyzer 1st Order Red & 1/4 Wave Plate |
| Nosepiece | Quadruple |
| Objectives: | E Plan POL Strain Free 4x, 10x ,40x |
| Stage: | Circular 360 Degree Rotating w/ Stage Clips |
| Condenser: | Strain Free Flip Out Condenser w/ Bottom Mounted Polarizer |
| Light Source: | Variable 6v 30w |
| Warranty: | 1 Year Mechanical |


Description
This Nikon E200 POL microscope is ready to examine your thin sections. The binocular head contains a pair of 10x eyepieces, one containing a cross-hair reticle. The intermediate tube contains the built-in focusable Bertrand lens, rotating analyzer, and slider with both first order and 1/4 wave plates. The four position nosepiece is fixed, and has 4x, 10x, and 40x strain free objective lenses. The 360 degree rotating stage comes with a pair of stage clips. The strain free flip out condenser comes with an attachable bottom mounted polarizer. This used microscope comes fully serviced and working like new with a warranty.
| Nikon E200 POL Specifications | |
|---|---|
| Head: | Binocular Head |
| Eyepieces: | CFI 10x/20mm, 1 w/ cross-hair reticle |
| Intermediate Module: |
Focusable Bertrand Lens 360 Degree Rotating Analyzer 1st Order Red & 1/4 Wave Plate |
| Nosepiece | Quadruple |
| Objectives: | E Plan POL Strain Free 4x, 10x ,40x |
| Stage: | Circular 360 Degree Rotating w/ Stage Clips |
| Condenser: | Strain Free Flip Out Condenser w/ Bottom Mounted Polarizer |
| Light Source: | Variable 6v 30w |
| Warranty: | 1 Year Mechanical |
