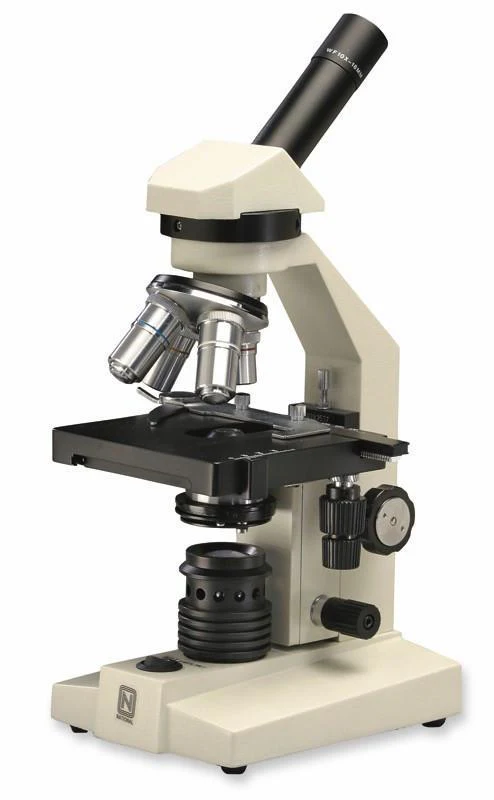

National 131-SPMS Monocular Microscope
The microscope model that sets the standard for high school instruction. Includes all the most commonly specified features. Rugged metal construction, locked-on parts. Superior DIN optical system and precision mechanical components assure parfocalled and parcentered optical alignment for sharp, unsurpassed viewing. Recommended for instruction through grade 12.
OPTICAL SYSTEM
Lifetime limited warranty, excluding bulb, cord, and accessory mechanical stage
OPTICAL SYSTEM
- Widefield 10x eyepiece with revolving pointer. Accepts optional #965-160 eyepiece reticle.
- Monocular 45° inclined viewing head rotates 360° for easy repositioning of eyepiece and sharing by more than one student.
- DIN 4x, 10x, 40xR and 100xR objectives are achromatic, parfocalled, parcentered, color coded.
- 4-hole nosepiece is ball-bearing mounted for more precise alignment, has positive click stops.
- 115v 20-watt tungsten illumination, condenser and blue filter, base-mounted on/off switch, heavy duty 3-wire cord.
- Low position coarse and fine focusing controls.
- Stage moves up or down, eyepiece and body remain fixed.
- Slip clutch prevents damage to focusing system.
- Tension adjustment eliminates stage drift.
- Safety rack stop prevents damage to slides and objective lenses.
- Large 120mm x 120mm (4-3/4 in. x 4-3/4 in.) stage, with professional quality, low profile mechanical specimen holder with low-position coaxial x-y controls.
- Built-in 1.25 N.A. Abbe condenser with iris diaphragm.
- Rugged cast metal, gray enamel finish.
- Base dimensions: 133mm x 175mm (5-1/4 in. x 7 in.)
- Height: 360mm (14-1/8 in.) Net wt. 3.5 kgs (7.8 lbs)
Lifetime limited warranty, excluding bulb, cord, and accessory mechanical stage
$395.00
National 131-SPMS Monocular Microscope—
$395.00
Description
The microscope model that sets the standard for high school instruction. Includes all the most commonly specified features. Rugged metal construction, locked-on parts. Superior DIN optical system and precision mechanical components assure parfocalled and parcentered optical alignment for sharp, unsurpassed viewing. Recommended for instruction through grade 12.
OPTICAL SYSTEM
Lifetime limited warranty, excluding bulb, cord, and accessory mechanical stage
OPTICAL SYSTEM
- Widefield 10x eyepiece with revolving pointer. Accepts optional #965-160 eyepiece reticle.
- Monocular 45° inclined viewing head rotates 360° for easy repositioning of eyepiece and sharing by more than one student.
- DIN 4x, 10x, 40xR and 100xR objectives are achromatic, parfocalled, parcentered, color coded.
- 4-hole nosepiece is ball-bearing mounted for more precise alignment, has positive click stops.
- 115v 20-watt tungsten illumination, condenser and blue filter, base-mounted on/off switch, heavy duty 3-wire cord.
- Low position coarse and fine focusing controls.
- Stage moves up or down, eyepiece and body remain fixed.
- Slip clutch prevents damage to focusing system.
- Tension adjustment eliminates stage drift.
- Safety rack stop prevents damage to slides and objective lenses.
- Large 120mm x 120mm (4-3/4 in. x 4-3/4 in.) stage, with professional quality, low profile mechanical specimen holder with low-position coaxial x-y controls.
- Built-in 1.25 N.A. Abbe condenser with iris diaphragm.
- Rugged cast metal, gray enamel finish.
- Base dimensions: 133mm x 175mm (5-1/4 in. x 7 in.)
- Height: 360mm (14-1/8 in.) Net wt. 3.5 kgs (7.8 lbs)
Lifetime limited warranty, excluding bulb, cord, and accessory mechanical stage
