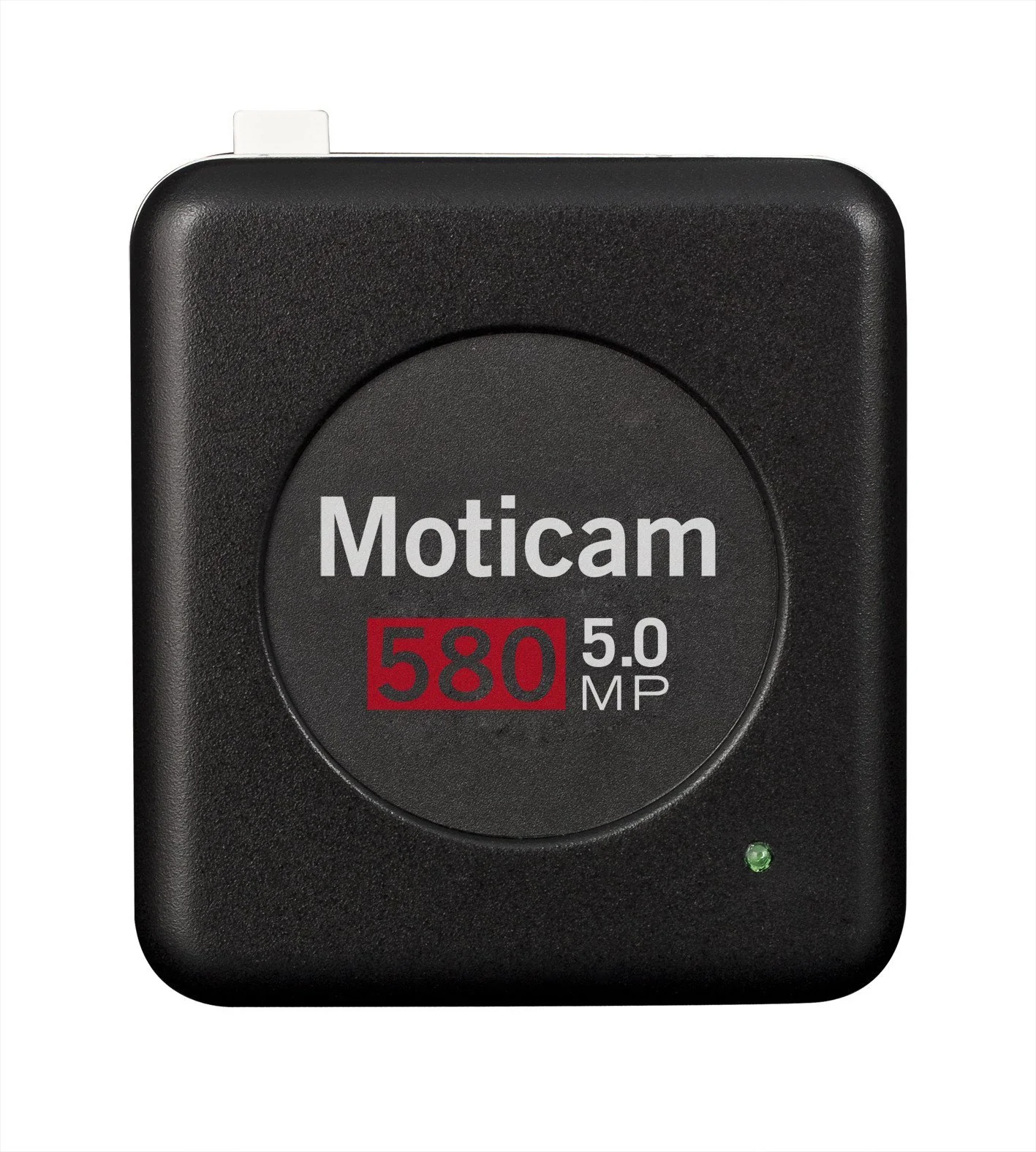

Moticam 580 HD Digital Microscope Camera

The Moticam 580 HD is a multi output HD microscope camera. This camera outputs either via HDMI cable to an HD monitor or USB to a computer. The HD output method provides high resolution 1080i resolution and captures 5.0 M.P. images to an SD card. The remote allows you to capture image/videos and play them back, all without a computer. Take advantage of the free Motic software by using the USB output method.



Includes:

• Focusable Lens
• Remote Control
• CS Ring Adapter
• Motic 4-dot Calibration Slide
• USB Cable
• HDMI Cable
• Power Supply
• Two Eyepieces adaptors to fit eyepiece O.D.’s of 30mm - 38mm.
• Macro Tube
• Motic Image Plus 2.0 for PC and MAC
• TWAIN and Direct Show Compatible
• SD slot for standard SD cards (card not included)

Specification Details:

Sensor
Type	CMOS
Optical Calculation	1/2.5"
Still Total Pixels	2592 X 1944 (Capture)
Resolution
Active Resolution (HDMI)	1080i (HD)
Active Resolution (USB)	800 X 600 pixels
Features
Capture format on SD card	5.0MP (2592 X 1944)
Video Capture	1080p (Full HD)
Focusable lens	12mm
Output	USB HDMI (1080P) RCA
Compatible OS	Windows XP and higher, Mac OSX
Accessories
Attachable	Attachable HDMI C-mount camera 2 variable diameter eyepiece adapters Macro tube for specimens observation
Software Included	Motic Image Plus 2.0 for PC and Mac
Slides	Motic 4-dot calibration slide
Others	Remote control
