Motic Panthera E2 Microscope Series

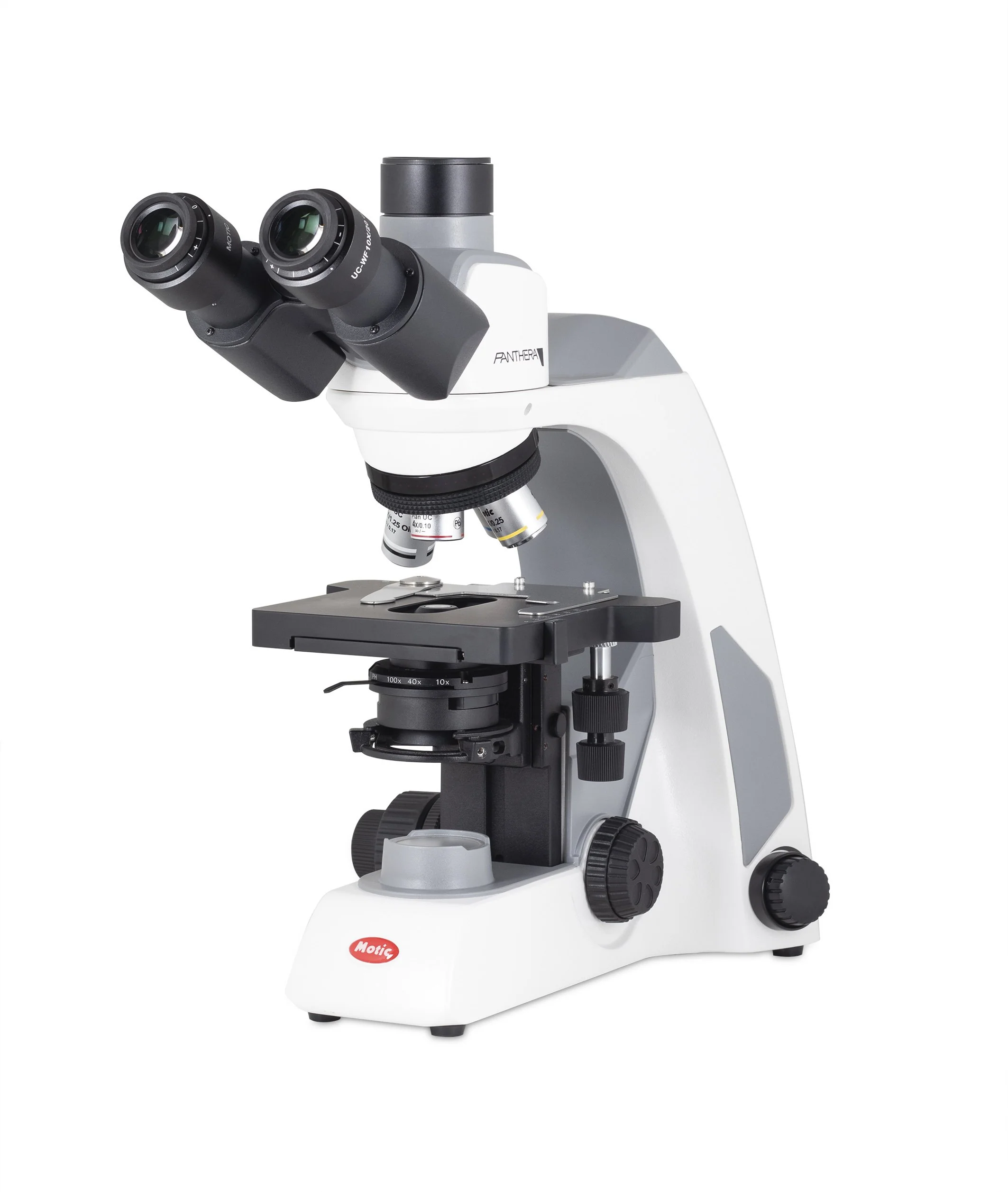

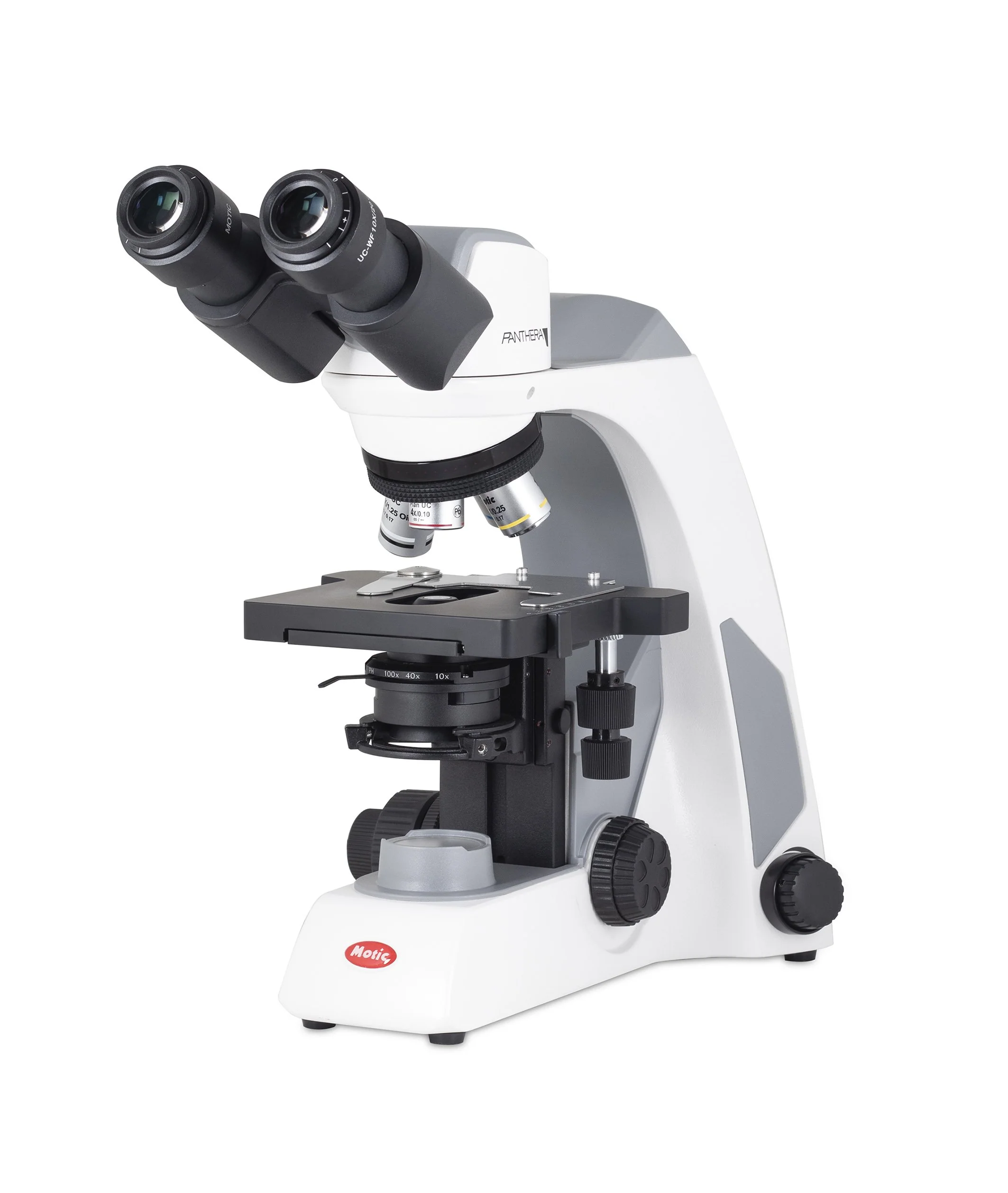

The Motic Panthera E2 microscope series is available in binocular or trinocular configurations. This microscope is designed for a wide range of applications and is suitable for educational and routine biological work. The microscope comes with a pair of Motic widefield UC-WF 10x/20mm focusing eyepieces The quadruple nosepiece has an LED light indicator on it which allows the user to see the light intensity that the microscope is set to. A convenient USB output jack is located in the rear of the microscope which can power optional cameras for an all-in-one solution. The Panthera E2 comes with CCIS UC Plan Achromat 4x, 10x, 40x, and optional 100x oil objectives which provide clear and high resolution images. A smooth worry free rackless XY mechanical stage comes standard on this model. The condenser is fully focusable and has slots for phase or darkfield sliders. The microscope features a 1 watt fixed koehler illuminator.
| Specifications | |
|---|---|
| Head: | Binocular or Trinocular (50/50 light split) head Siedentopf type 25° inclined, 360° rotating |
| Eyepieces: | UC Widefield high eyepoint eyepiece UC-WF10X/20mm |
| Nosepiece: |
Reversed quadruple revolving nosepiece Indication light on nosepiece for light intensity |
| Objectives: |
CCIS Plan UC objectives 4X, 10X, 40X S, 100X S-oil Can choose with or without 100x Oil |
| Stage: | Built in low position coaxial rackless stage with right hand control |
| Condenser: | Focusable Abbe condenser N.A.0.90 with iris diaphragm and slot |
| Focusing: | Coaxial coarse and fine focusing adjustment with tension adjustment |
| Illumination: |
LED illumination 1W with intensity control Power supply 100-240V, UL / CE |
| Accessories: | Power cord, Allen hexagonal key, Vinyl dust cover, Instruction manual |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
Brochure
Motic Panthera Microscope BrochureOriginal: $1,338.30
-70%$1,338.30
$401.49
Description
The Motic Panthera E2 microscope series is available in binocular or trinocular configurations. This microscope is designed for a wide range of applications and is suitable for educational and routine biological work. The microscope comes with a pair of Motic widefield UC-WF 10x/20mm focusing eyepieces The quadruple nosepiece has an LED light indicator on it which allows the user to see the light intensity that the microscope is set to. A convenient USB output jack is located in the rear of the microscope which can power optional cameras for an all-in-one solution. The Panthera E2 comes with CCIS UC Plan Achromat 4x, 10x, 40x, and optional 100x oil objectives which provide clear and high resolution images. A smooth worry free rackless XY mechanical stage comes standard on this model. The condenser is fully focusable and has slots for phase or darkfield sliders. The microscope features a 1 watt fixed koehler illuminator.
| Specifications | |
|---|---|
| Head: | Binocular or Trinocular (50/50 light split) head Siedentopf type 25° inclined, 360° rotating |
| Eyepieces: | UC Widefield high eyepoint eyepiece UC-WF10X/20mm |
| Nosepiece: |
Reversed quadruple revolving nosepiece Indication light on nosepiece for light intensity |
| Objectives: |
CCIS Plan UC objectives 4X, 10X, 40X S, 100X S-oil Can choose with or without 100x Oil |
| Stage: | Built in low position coaxial rackless stage with right hand control |
| Condenser: | Focusable Abbe condenser N.A.0.90 with iris diaphragm and slot |
| Focusing: | Coaxial coarse and fine focusing adjustment with tension adjustment |
| Illumination: |
LED illumination 1W with intensity control Power supply 100-240V, UL / CE |
| Accessories: | Power cord, Allen hexagonal key, Vinyl dust cover, Instruction manual |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
