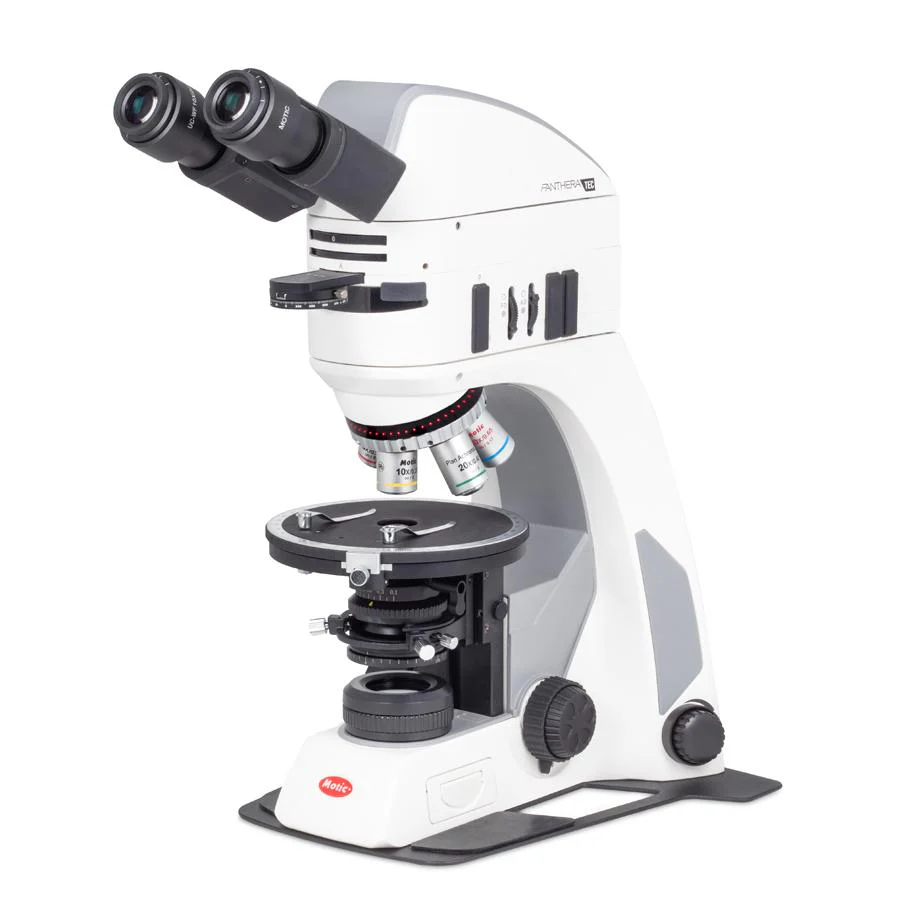

Motic Pantera TEC-EpiPOL Reflected & Transmitted Polarizing Microscope
The Panthera TEC-EpiPOL polarizing light microscope is designed for material sciences and provides both transmitted and reflected light illumination. The microscope is offered with a binocular or trinocular viewing head. The 22mm field of view 10x eyepieces provide a large field of view. One eyepiece will have a cross hair reticle installed. The integrated bertrand lens is focuable and houses the 360 degree rotatable analyzer, with slots for compensators. The reflected light illuminator features LED illumination. A 5 position encoded nosepiece memorizes the light intensity for each objective position to replicate the illumination once the objective is swung in again. The UC Plan Achromat objectives are strain-free to provide maximum darkness of the image background. It comes standard with 5x, 10x, 20x, 40x objectives. The 360 degree rotating stage provides smooth movement and comes standard with specimen clips. The microscope features a 3 Watt LED illumination system which can be changed to different color temperatures.
| Specifications | |
|---|---|
| Head: | Binocular head Siedentopf type 25° inclined or Trinocular (Light Split 50/50) |
| Eyepieces: | Widefield high eyepoint eyepiece N-WF PL10X/22mm with diopter adjustment on both eyepieces, cross hair on one eyepiece |
| Bertand Lens: |
Intermediate Tube with Rotatable Analyzer and Bertrand Lens 360 Degree rotating analyzer |
| Plates: | Empty Inseration Plate |
| Nosepiece: | 5 Position coded intelligent |
| Objectives: | CCIS UC Plan Strain-free Objectives: 5X, 10X, 20x, 40X(S) |
| Stage: | 360º Circular Rotating Stage |
| Condenser: |
Achromat Swing-out Condenser, N.A.0.9/0.13 (strain-free) Rotatable Polarizer |
| Focusing: | Coarse & Fine |
| Illumination: |
3W LED Epi- Illumination with slots for polarizer and analyzer Koehler illumination quartz halogen 6V/30W with intensity control Universal Power Supply 100-240V |
| Accessories: | Blue filter, power cord, allen hexagonal key, vinyl dust cover |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
Brochure
Original: $6,351.30
-70%$6,351.30
$1,905.39
Description
The Panthera TEC-EpiPOL polarizing light microscope is designed for material sciences and provides both transmitted and reflected light illumination. The microscope is offered with a binocular or trinocular viewing head. The 22mm field of view 10x eyepieces provide a large field of view. One eyepiece will have a cross hair reticle installed. The integrated bertrand lens is focuable and houses the 360 degree rotatable analyzer, with slots for compensators. The reflected light illuminator features LED illumination. A 5 position encoded nosepiece memorizes the light intensity for each objective position to replicate the illumination once the objective is swung in again. The UC Plan Achromat objectives are strain-free to provide maximum darkness of the image background. It comes standard with 5x, 10x, 20x, 40x objectives. The 360 degree rotating stage provides smooth movement and comes standard with specimen clips. The microscope features a 3 Watt LED illumination system which can be changed to different color temperatures.
| Specifications | |
|---|---|
| Head: | Binocular head Siedentopf type 25° inclined or Trinocular (Light Split 50/50) |
| Eyepieces: | Widefield high eyepoint eyepiece N-WF PL10X/22mm with diopter adjustment on both eyepieces, cross hair on one eyepiece |
| Bertand Lens: |
Intermediate Tube with Rotatable Analyzer and Bertrand Lens 360 Degree rotating analyzer |
| Plates: | Empty Inseration Plate |
| Nosepiece: | 5 Position coded intelligent |
| Objectives: | CCIS UC Plan Strain-free Objectives: 5X, 10X, 20x, 40X(S) |
| Stage: | 360º Circular Rotating Stage |
| Condenser: |
Achromat Swing-out Condenser, N.A.0.9/0.13 (strain-free) Rotatable Polarizer |
| Focusing: | Coarse & Fine |
| Illumination: |
3W LED Epi- Illumination with slots for polarizer and analyzer Koehler illumination quartz halogen 6V/30W with intensity control Universal Power Supply 100-240V |
| Accessories: | Blue filter, power cord, allen hexagonal key, vinyl dust cover |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
