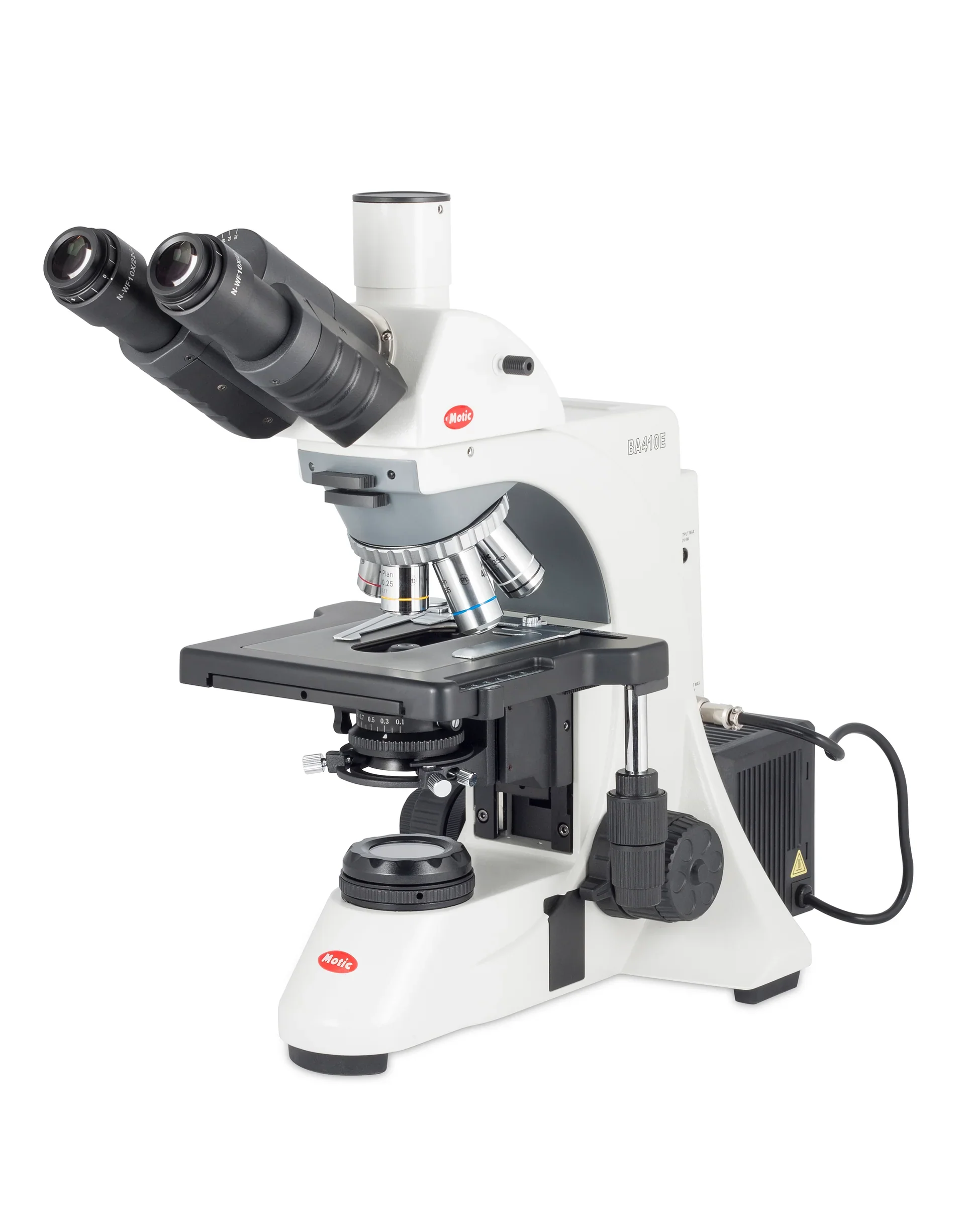

Motic BA410E Phase Contrast Microscope
The BA410E Phase package comes with a turret condenser and other phase equipment allowing users to view their samples using phase contrast.
The BA410E is Motic's flagship model, and it displays the highest level of optical performance. With a complete set of EC-H Plan Apochromatic lenses, it allows maximum clarity in color reproduction and resolution. The BA410E also allows a profound diagnosis for those in pathology, hematology, and cytology who require the best color fidelity. Increased numerical apertures provide an expanded resolution power for a more detailed specimen evaluation.
| Specifications | |
|---|---|
| Head: | Trinocular head Siedentopf type 30° inclined, 360° rotating (light split 20/80) |
| Eyepieces: | Wide field high eyepoint eyepiece WFPL 10X / 22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) |
| Nosepiece: | Reversed sextuple nosepiece |
| Objectives: |
CCIS Plan Achromat objectives EC-H PL4X CCIS UC Plan Phase 10x, 40x, 100x Oil Objectives |
| Condenser: | Phase contrast 5 posisition (BF, DF, PH1, PH2, PH3) turret condenser |
| Stage: | Built in low position rackless stage with right hand control |
| Illumination: |
Koehler illumination 3Watt LED with external lamphouse and intensity control Universal power supply 110-220v |
| Focusing: | Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment |
| Accessories: | Immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
Accessories
Please Contact Us for all additional parts and accessories
Original: $4,839.30
-70%$4,839.30
$1,451.79
