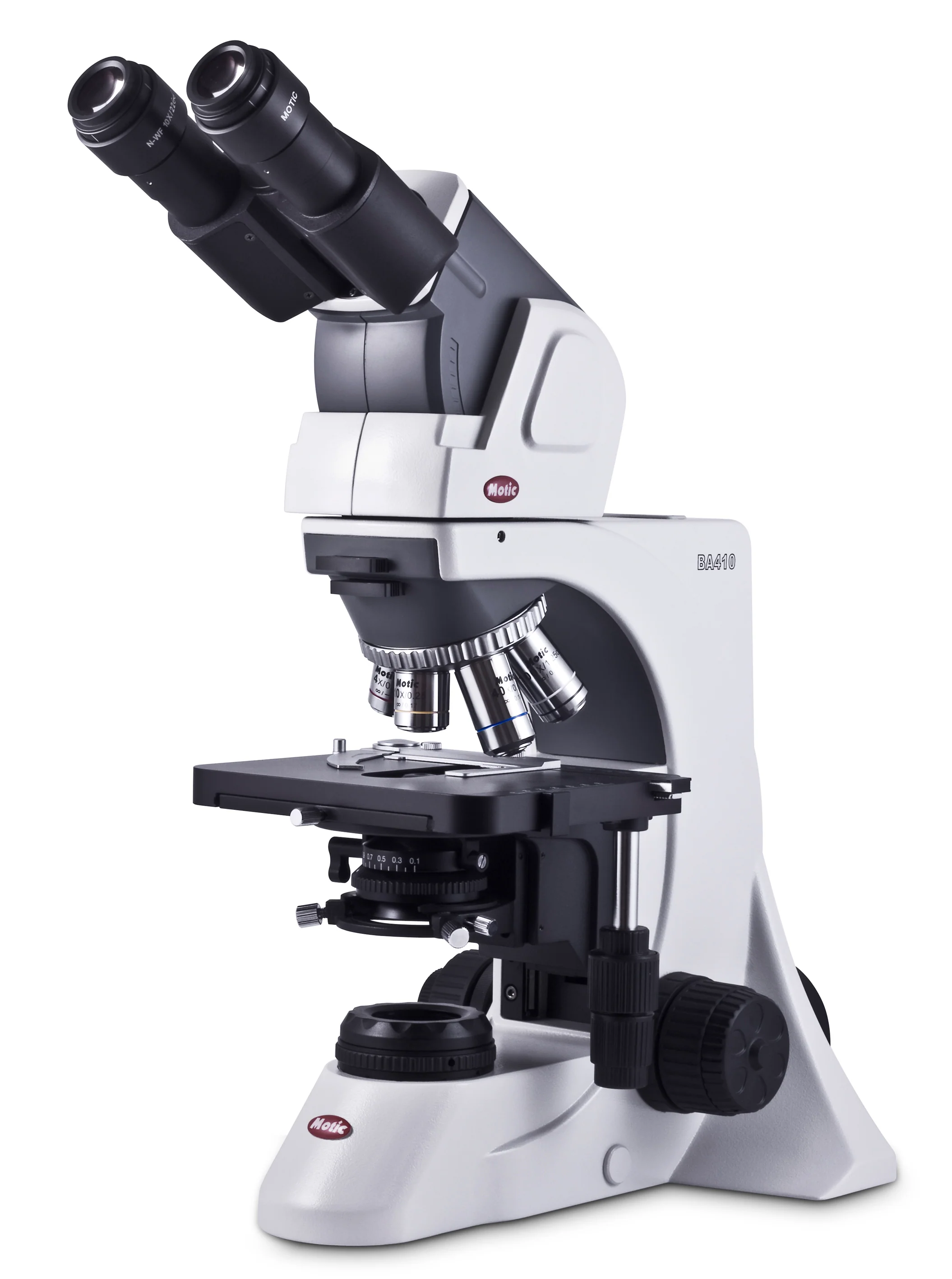

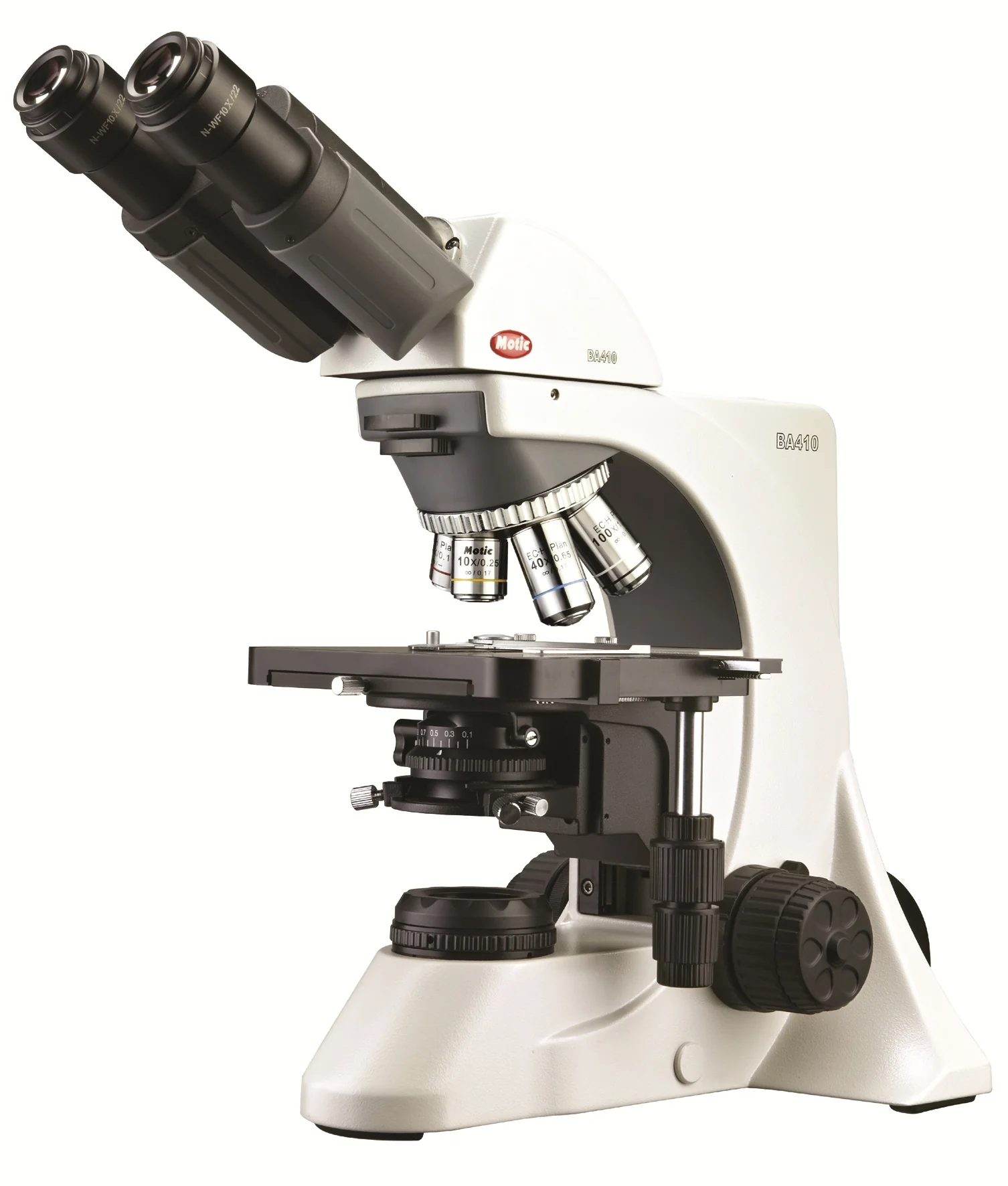

Motic BA410 Pathology Microscope
The Motic BA410 Pathology microscope can come with your choice of head. You can choose from a binocular, trinocular, or ergonomic tilting binocular head. This full size clinical grade microscope includes a powerful 50 watt kohler illumination system. The plan acromat 2x, 4x, 10x, and 20x objectives provide clear, sharp resolution. The mechanical stage can hold up to two slides.
| Specifications | |
|---|---|
| Head: | Binocular, Trinocular, or Ergonomic Tilting Binocular |
| Eyepieces: | Wide field high eyepoint eyepiece N-WF10X / 22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) |
| Nosepiece: | Reversed sextuple nosepiece |
| Objectives: | Plan Achromat 2x, 4x, 10x, 20x |
| Condenser: | Focusable and centrable Achromat swing-out condenser N.A. 0.90 with iris diaphragm |
| Stage: | Large 175mm X 145mm mechanical stage with low-position coaxial controls. Travel range 80 X 53mm. Sample holder can hold up to 2 slides |
| Illumination: |
Koehler illumination quartz Halogen 6V/30W with external lamphouse and intensity control Universal power supply 110-220v |
| Focusing: | Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment |
| Accessories: | 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
Accessories
Original: $4,381.20
-70%$4,381.20
$1,314.36
Description
The Motic BA410 Pathology microscope can come with your choice of head. You can choose from a binocular, trinocular, or ergonomic tilting binocular head. This full size clinical grade microscope includes a powerful 50 watt kohler illumination system. The plan acromat 2x, 4x, 10x, and 20x objectives provide clear, sharp resolution. The mechanical stage can hold up to two slides.
| Specifications | |
|---|---|
| Head: | Binocular, Trinocular, or Ergonomic Tilting Binocular |
| Eyepieces: | Wide field high eyepoint eyepiece N-WF10X / 22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) |
| Nosepiece: | Reversed sextuple nosepiece |
| Objectives: | Plan Achromat 2x, 4x, 10x, 20x |
| Condenser: | Focusable and centrable Achromat swing-out condenser N.A. 0.90 with iris diaphragm |
| Stage: | Large 175mm X 145mm mechanical stage with low-position coaxial controls. Travel range 80 X 53mm. Sample holder can hold up to 2 slides |
| Illumination: |
Koehler illumination quartz Halogen 6V/30W with external lamphouse and intensity control Universal power supply 110-220v |
| Focusing: | Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment |
| Accessories: | 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
