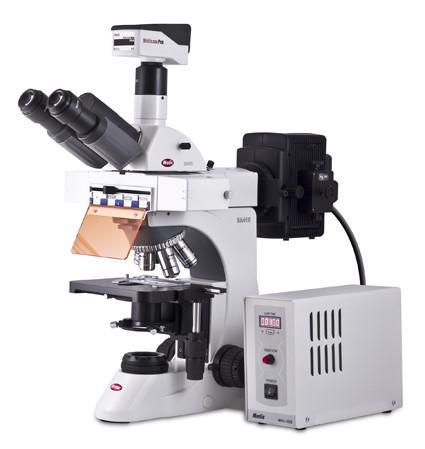

Motic BA410 Fluorescence Upright Microscope
The Motic BA410 Elite is a high quality laboratory grade microscope. This microscope is outfitted for fluorescence microscopy. We can customize this to your specifications.
| Motic Fluorescence Microscope Specifications | |
|---|---|
| Head: |
Binocular head Siedentopf type 30°, inclined, 360° rotating Trinocular 3 step light split (100:0/20:80/0:100) |
| Eyepieces: | Wide field high eyepoint eyepiece N-WF10X / 22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) |
| Nosepiece: | Reversed quintuple nosepiece with click stops for precise magnification changes |
| Objectives: |
CCIS Plan Achromat EC-H PL 4X, 10X, 40X S, 100X Oil OR Plan Fluar 4x, 10x, 40x, 100x Oil |
| Fluorescence: |
EF-INV EPI-Fluorescence Attachment: Epi-Fluorescence attachment with filter cassette Mercury lamp 100w Lamphouse HBO 100W, collector lens, and mercury lamp socket for HBO 100W Starter unit for HBO 100W Lamp centering tool & power cord DAPI, FITC, & TRITC Filter Cubes Standard - Optional Filter Cubes Below |
| Condenser: | Focusable and centrable Achromat swing-out condenser N.A. 0.90 with iris diaphragm |
| Stage: | Large 175mm X 145mm mechanical stage with low-position coaxial controls. Travel range 80 X 53mm. Sample holder can hold up to 2 slides |
| Illumination: |
Koehler illumination quartz Halogen 6V/30W with external lamphouse and intensity control Universal power supply 110-220v |
| Focusing: | Coaxial coarse and fine focusing system with 1 micron minimum increment with tension adjustment |
| Accessories: | 45mm blue filter, immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
Standard filter cubes are DAPI, FITC, & TRITC. You can choose any three filter cubes from the list below in replacement of these for the same cost. Please specify which filter cubes you would like in the checkout comment box.
| DAPI & Hoechst |
Exciter D350/50x Dichroic 400DCLP Emitter D460/50m |
| FITC FITC/RSGFP/FLuo 3/DiO Acardine Orange |
Exciter D480/30x Dichroic 505DCLP Emitter D535/40m
|
| MB-1 |
Exciter D470/40x Dichroic 495DCLP Emitter E515lpv2 |
| TRITC (Rhodamine)/DiI/Cy3 Set |
Exciter D540/25x Dichroic 565DCLP Emitter D605/55m |
| Texas Red / Cy3.5 Set |
Exciter D560/40x Dichroic 595DCLP Emitter D630/60m |
| Cy5, Alexa Fluor 633, Alexa Fluor 647 Set |
Exciter HQ620/60x Dichroic Q660LP Emitter HQ700/75m
|
| Endow GFP Bandpass Emission Set |
Exciter HQ470/40x Dichroic Q495LP Emitter HQ525/50m |
| Yellow GFP BP (10C/Topaz) Set |
Exciter HQ500/20x Dichroic Q515LP Emitter HQ535/30m |
Accessories
Please Contact Us for all additional parts and accessoriesOriginal: $11,146.50
-70%$11,146.50
$3,343.95
