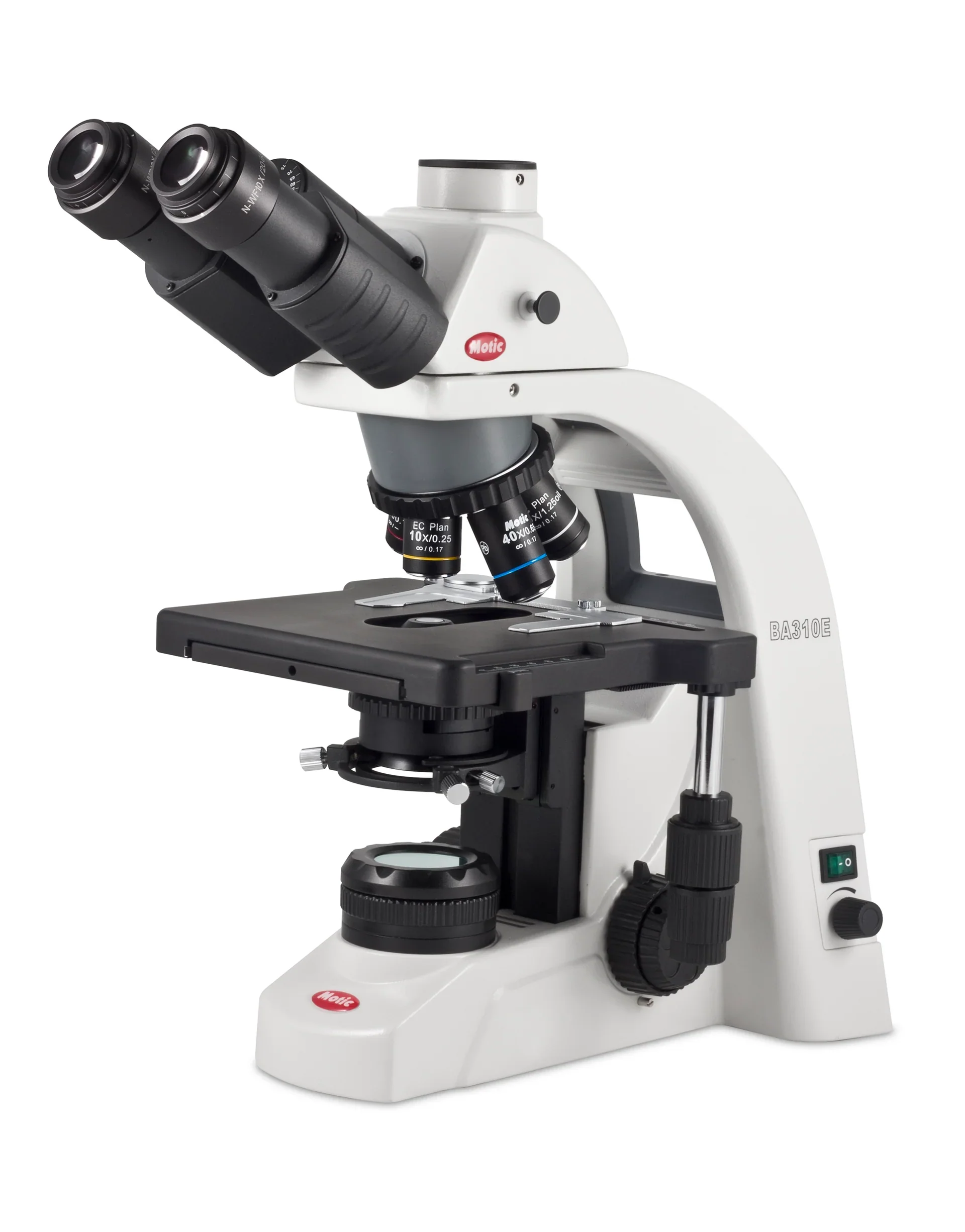

Motic BA310E Phase Contrast Microscope
This Motic BA310E Phase Contrast microscope comes standard with a trinocular viewing head allowing you to add a camera at anytime. The microscope comes with a pair of N-WF 10x eyepieces that provide a 20mm field of view. The 5 position nosepiece comes with a plan achromat brightfield 4x objective and plan achromat phase contrast 10x, 40x, 100x oil objectives. The ergonomic low position coaxial mechanical stage is rackless allowing for smooth and precise movement. The phase turret condenser makes it easy to match your objective for phase and has brightfield, darkfield, and phase settings for all objectives. The microscope comes with a halogen, and LED bulb.
| Specifications | |
|---|---|
| Head: | Trinocular (Light Split 100:0/20:80) head Siedentopf type 30° inclined, 360 ° rotating |
| Eyepieces: | Wide field high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired) |
| Nosepiece: | Reversed quintuple nosepiece |
| Objectives: |
CCIS EC Plan Achromat EC PL 4x - Brightfield CCIS UC Plan Achromat 10x, 40x, 100x Oil - Phase Contrast |
| Condenser: | Phase contrast 5 posisition (BF, DF, PH1, PH2, PH3) turret condenser |
| Stage: | Built in low position coaxial rackless stage (Right-hand control) |
| Illumination: | 6V 30W halogen and 3WLED module for BA210E/BA310E |
| Focusing: | Coaxial coarse and fine focusing adjustment with tension adjustment |
| Accessories: | Phase centering telescope, 45mm blue filter,immersion oil (5ml), power cord, allen hexagonal key, vinyl dust cover |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
Accessories
Please Contact Us for all additional parts and accessories
Brochure
Motic BA310 Brochure
Original: $3,380.40
-70%$3,380.40
$1,014.12
