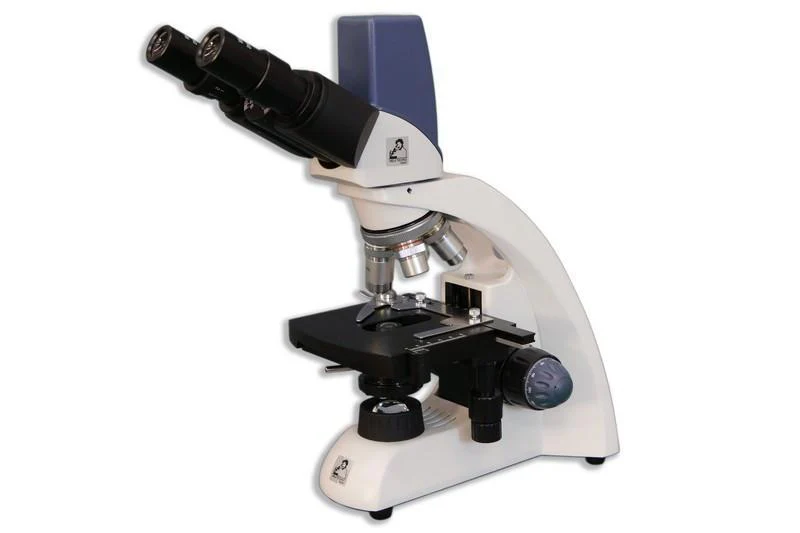

Meiji MT-31 Binocular Digital Rechargeable Microscope
The Meiji MT-31 is a digital rechargeable microscope ideal for educational purposes. The microscope has a digital binocular viewing head with an integrated 1.3 M.P. camera. It comes with a pair of 10x/18mm FOV eyepieces. The revolving quadruple nosepiece has 4x, 10x, 40x, and 100x oil achromatic objective lenses. The XY mechanical stage has a 1.25 N.A. sub-condenser with iris diaphragm. The 1 watt variable intensity illuminator is LED rechargeable. This microscope is manufactured in Holland and comes with a 2 year warranty.
| Specifications | |
|---|---|
| Viewing Head: | Binocular 30° inclined tube with a 1.3 Mpixel 1/2 inch CMOS Color USB2 camera @ 1280 x 1024 pixels |
| Eyepieces: | Paired DIN WF 10x/18mm |
| Objectives: | Achromatic 4x, 10x, 40x, 100x Oil |
| Nosepiece: | Revolving quadruple reversed nosepiece on ball-bearings. |
| Stage: | 130 mm x 130 mm stage with integrated mechanical stage. |
| Condenser: | Abbe condenser, N.A. 1.25 with iris diaphragm and lever for height adjustment. |
| Focusing Adjustment: | Coaxial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment. |
| Illumination: | 1 W intensity adjustable LED illumination with internal power supply / charger and 3 NiMH AA batteries. |
| Software: | ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bit platforms. |
Brochure
Meiji MT-31 Brochure
