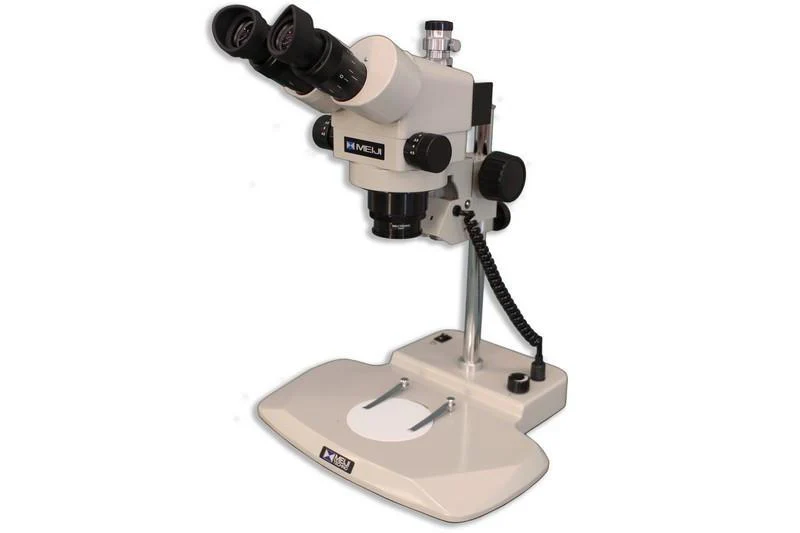

Meiji EMZ-200TR Trinocular Microsurgical Stereo Zoom Microscope
Meiji Techno offers an economically priced training EMZ-200TR Trinocular zoom stereo system for Microvascular Anastomosis for practicing microsurgical training procedures to suture and repair blood vessels in place of a costly surgical microscope. EMZ-200TR body has a long 200mm working length, increase focal depth and a wide field number. The zoom body offers direct light to all three viewing ports simultaneously. Featuring Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The EMZ-200TR offers a high intensity, inclinable oblique LED illumination with up to 20,000 hour bulb life on a low profile ergonomically designed compact stand that offers superior performance at low cost.
Includes:
• Stereo Microscope Body (Special Trinocular Zoom Stereo Microscope with 30° eyetube inclination)
• 12.5X Eyepieces (Paired)
• Stand (Ergonomic slim pole stand with built in inclineable oblique LED illumination and extended 12.4mm pole)
• Black and White Reversible stage plate (MA569)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• 0.45X Auxiliary Lens - Working Distance 200mm (MA793)
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty
| Specifications | |
|---|---|
| Body: | Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction |
| Zoom Ratio: | 6.5:1 |
| Zoom Range: | 3.06x – 19.7x with .45X Auxilliary lens and 12.5x eyepieces |
| Zoom Knobs Markings: | 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 |
| Zoom Control: | Dual, graduated, bilateral |
| Magnification: | 3.06x - 19.7x (12.5x eyepieces) |
| Objective Lens: | Brass Construction |
| Field of View: | 81.6mm - 12.7mm |
| Working distance: | 250mm |
| Eyetube Inclination: | 30° |
| Eyepieces: | 12.5x |
| Interpupillary Distance: | 54mm - 75mm |
| Dioptric Adjustment: | Dual (+/- 5 diopters) |
| Extended Mag Range: | 3.06x - 84.37x (With auxiliary lenses and eyepieces) |
| Extended Working Distances: | 57mm - 250mm (With auxiliary lenses and eyepieces) |
| Auxiliary Lenses: | 0.45x |
| Mounting: | Fits 84.5mm Diameter Focus Holders |
| Manufacturer: | MADE IN JAPAN |
| Warranty: | LIMITED LIFETIME WARRANTY |
Original: $3,690.00
-70%$3,690.00
$1,107.00
Description
Meiji Techno offers an economically priced training EMZ-200TR Trinocular zoom stereo system for Microvascular Anastomosis for practicing microsurgical training procedures to suture and repair blood vessels in place of a costly surgical microscope. EMZ-200TR body has a long 200mm working length, increase focal depth and a wide field number. The zoom body offers direct light to all three viewing ports simultaneously. Featuring Greenough optics for enhance image flatness and contrast. As a result, views of three dimensional surfaces are sharp with excellent depth characteristic. The EMZ-200TR offers a high intensity, inclinable oblique LED illumination with up to 20,000 hour bulb life on a low profile ergonomically designed compact stand that offers superior performance at low cost.
Includes:
• Stereo Microscope Body (Special Trinocular Zoom Stereo Microscope with 30° eyetube inclination)
• 12.5X Eyepieces (Paired)
• Stand (Ergonomic slim pole stand with built in inclineable oblique LED illumination and extended 12.4mm pole)
• Black and White Reversible stage plate (MA569)
• Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
• 0.45X Auxiliary Lens - Working Distance 200mm (MA793)
• Meiji Techno Dust Cover (MA703)
• Rubber Eyeguards/Eyeshields (Paired) (MA600)
• EMZ Meiji Techno Instruction Manual
• Limited Lifetime Warranty
| Specifications | |
|---|---|
| Body: | Trinocular, Rotatable 360°, Cast Aluminum Alloy Construction |
| Zoom Ratio: | 6.5:1 |
| Zoom Range: | 3.06x – 19.7x with .45X Auxilliary lens and 12.5x eyepieces |
| Zoom Knobs Markings: | 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5 |
| Zoom Control: | Dual, graduated, bilateral |
| Magnification: | 3.06x - 19.7x (12.5x eyepieces) |
| Objective Lens: | Brass Construction |
| Field of View: | 81.6mm - 12.7mm |
| Working distance: | 250mm |
| Eyetube Inclination: | 30° |
| Eyepieces: | 12.5x |
| Interpupillary Distance: | 54mm - 75mm |
| Dioptric Adjustment: | Dual (+/- 5 diopters) |
| Extended Mag Range: | 3.06x - 84.37x (With auxiliary lenses and eyepieces) |
| Extended Working Distances: | 57mm - 250mm (With auxiliary lenses and eyepieces) |
| Auxiliary Lenses: | 0.45x |
| Mounting: | Fits 84.5mm Diameter Focus Holders |
| Manufacturer: | MADE IN JAPAN |
| Warranty: | LIMITED LIFETIME WARRANTY |
