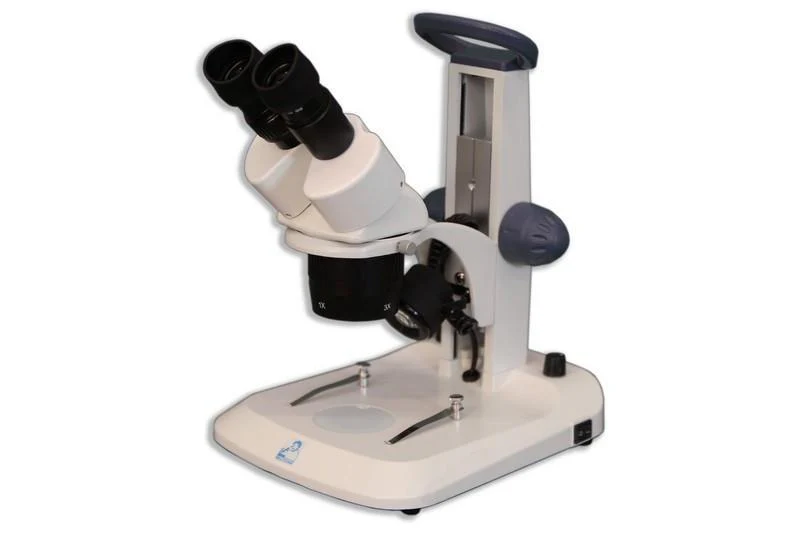

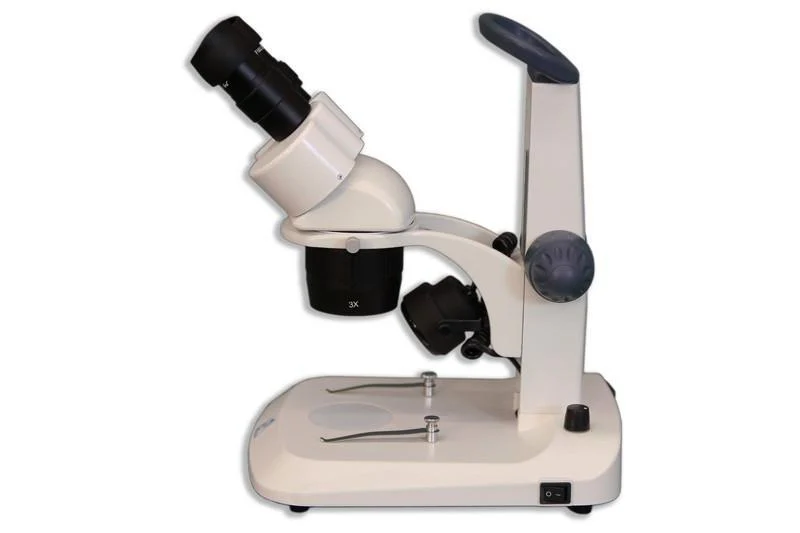

Meiji EM-30 Dual Magnification Stereo Microscope Series
The Meiji EM-30 dual magnification series microscope offers the same quality images and stand as the EM-30 zoom microscope series. This series offers a dual turret magnification system with two magnification choices 1x & 3x or 2x & 4x. With standard 10x eyepiece you have a total magnification of 10x & 30x or 20x & 40x. This microscope stand features LED top and bottom illumination with separate intensity controls. The stand also makes transporting the microscope easy with a built in handle. This microscope is perfect for use in a classroom stetting or for a hobbyist!
Key Features:
- Ergonomically designed stands
- 3 W LED illuminators
- Ergonomic carrying handle
- Variable intensity controls for both top and bottom illuminators
| Specifications | |
|---|---|
| Viewing Head | Binocular 45° inclined tubes, Two diopter adjustments, Interpupillary distance adjustable between 55 mm and 75 mm |
| Eyepieces | Paired WF 10x/20mm eyepieces |
| Magnification | 1x & 3x (Model: EM-30) 2x & 4x (Model: EM-31) |
| Field of View | 20 mm/6.6 mm (Model: EM-30) 10 mm/5.0 mm (Model: EM-31) |
| Working Distance | 100 mm |
| Stand | Rack and pinion design. Ergonomically designed base with 2 object clamps. Alloy metal cast, hardened off-white coated. |
| Focus Adjustment | Coarse adjustment with tension control. |
| Illumination | The 3 W transmitted and incident LED illuminators can be used simultaneously. Both light intensities can be adjusted separately. |
| Accessories | Rubber eyeguards, glass stage plate, AC adapter, dust cover, 2 year warranty |
Brochure
Meiji EM-30 Brochure
