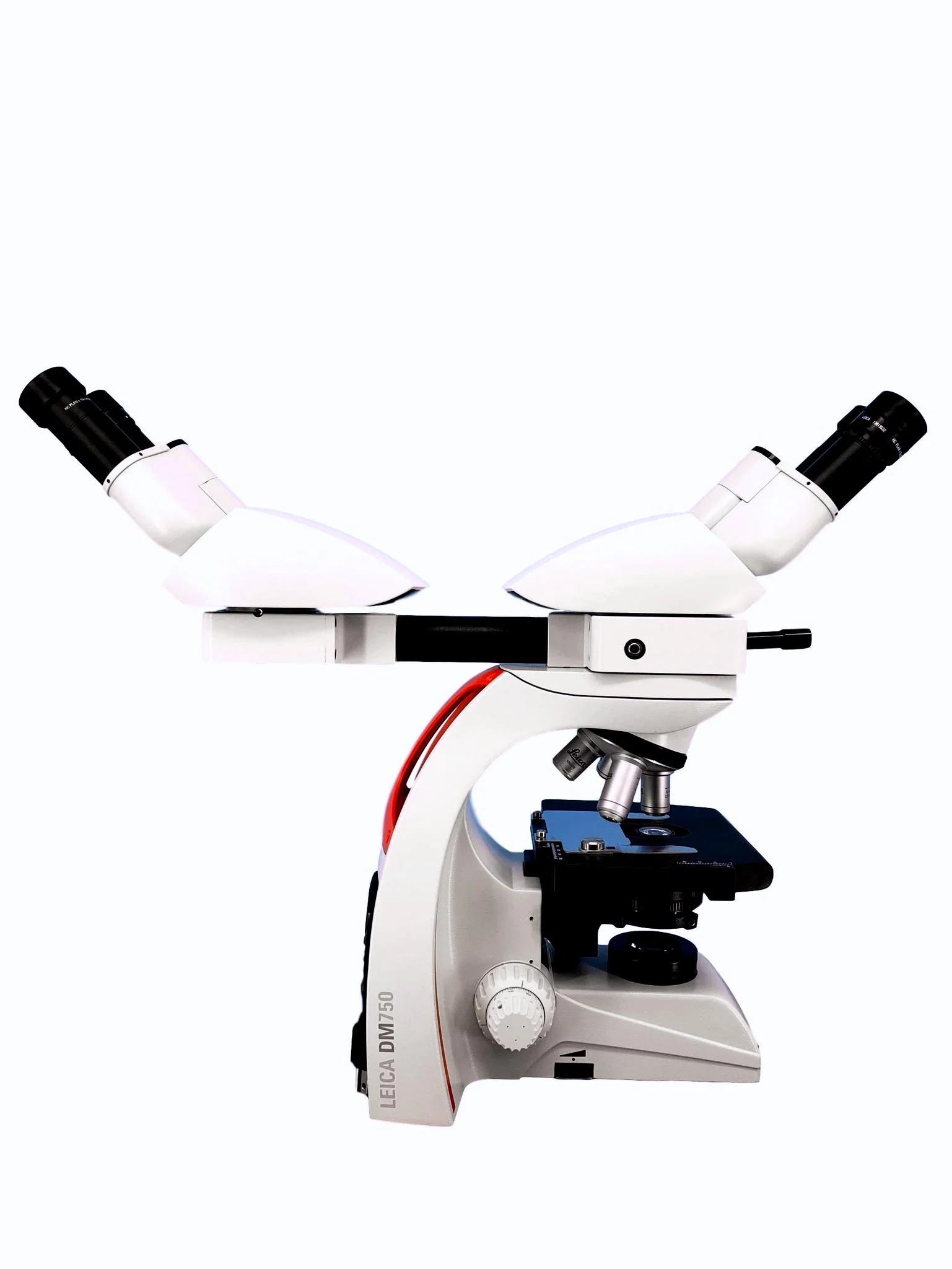

Leica DM750 Dual Viewing Pathology Microscope
Our Leica DM750 dual viewing microscope allows for two users to view through the microscope at the same time. The dual bridge allows for a face-to-face position and has a built in LED pointer assembly. You can choose between a binocular or ergonomic binocular tilting main head and a binocular head is provided for the secondary head. The included 10x eyepieces provide you with a 20mm field of view. The microscope comes with N Plan 2.5x, and Hi Plan 4x, 10x, and 40x objective lenses. The 1.25 N.A. condenser is fully focusable and comes with a diffusion slider to be used with the 2.5x objective lens. The microscope has bright LED illumination which eliminates the need for any bulb changes. The Leica ICC50 W camera can be added to his microscope and features USB, WiFi, HDMI output methods.
| Leica DM750 Dual Viewing Specifications: | |
|---|---|
| Head: |
Binocular or Ergo Binocular Main Binocular Secondary Head |
| Eyepieces: | 10x/20mm FOV (x4) |
| Dual Bridge: | Face-To-Face w/ LED pointer |
| Nosepiece: | Reversed, quadruple |
| Objectives: | N Plan 2.5x, Hi Plan 4x, 10x, 40x |
| Condenser: | N.A. 1.25 Abbe condenser with diffusion slider |
| Stage: | XY mechanical w/ slide holder |
| Focusing: | Coarse & Fine Focus |
| Illumination: | LED |
| Accessories: | Dust cover, power cord |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
Original: $10,387.00
-70%$10,387.00
$3,116.10
Description
Our Leica DM750 dual viewing microscope allows for two users to view through the microscope at the same time. The dual bridge allows for a face-to-face position and has a built in LED pointer assembly. You can choose between a binocular or ergonomic binocular tilting main head and a binocular head is provided for the secondary head. The included 10x eyepieces provide you with a 20mm field of view. The microscope comes with N Plan 2.5x, and Hi Plan 4x, 10x, and 40x objective lenses. The 1.25 N.A. condenser is fully focusable and comes with a diffusion slider to be used with the 2.5x objective lens. The microscope has bright LED illumination which eliminates the need for any bulb changes. The Leica ICC50 W camera can be added to his microscope and features USB, WiFi, HDMI output methods.
| Leica DM750 Dual Viewing Specifications: | |
|---|---|
| Head: |
Binocular or Ergo Binocular Main Binocular Secondary Head |
| Eyepieces: | 10x/20mm FOV (x4) |
| Dual Bridge: | Face-To-Face w/ LED pointer |
| Nosepiece: | Reversed, quadruple |
| Objectives: | N Plan 2.5x, Hi Plan 4x, 10x, 40x |
| Condenser: | N.A. 1.25 Abbe condenser with diffusion slider |
| Stage: | XY mechanical w/ slide holder |
| Focusing: | Coarse & Fine Focus |
| Illumination: | LED |
| Accessories: | Dust cover, power cord |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
