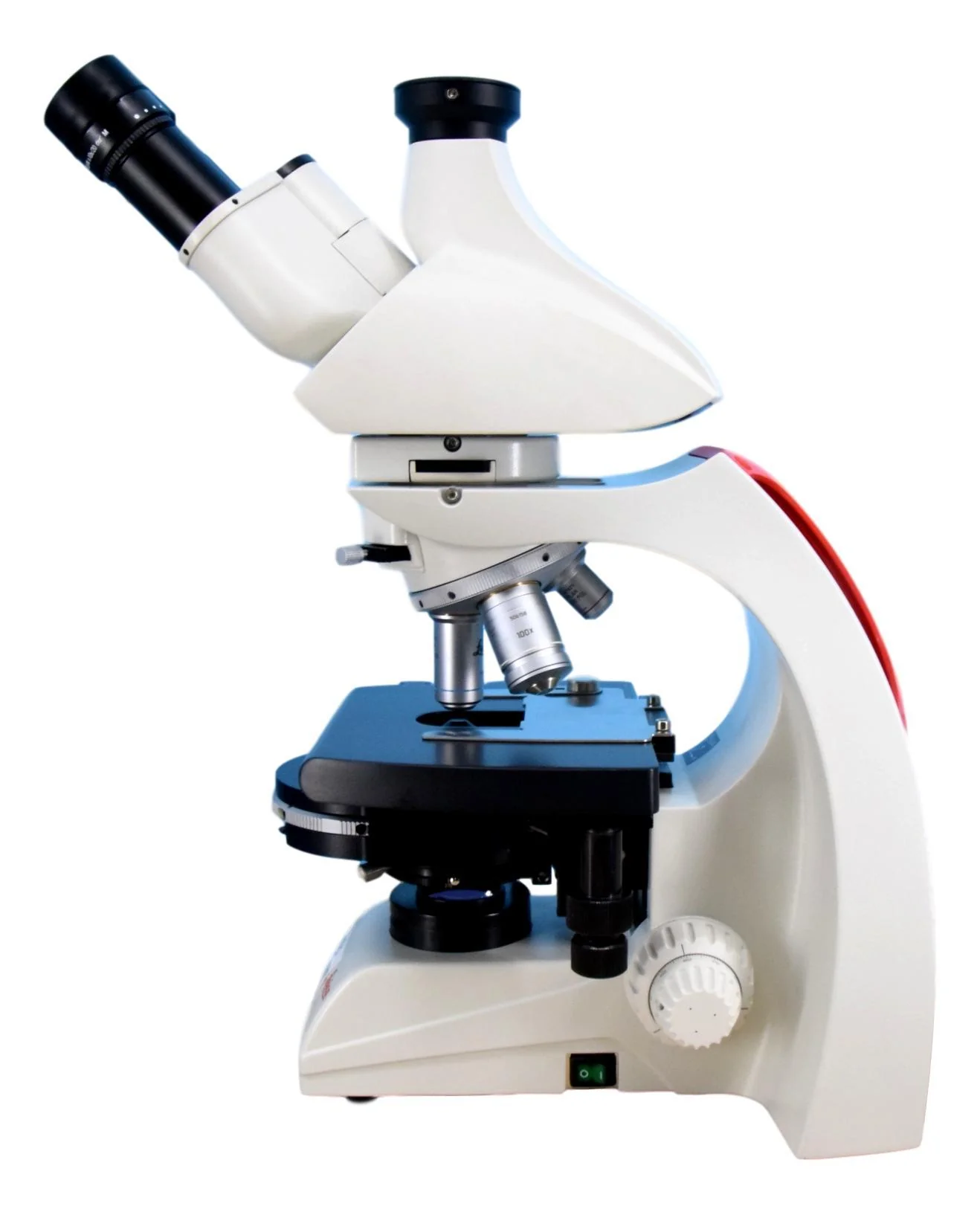

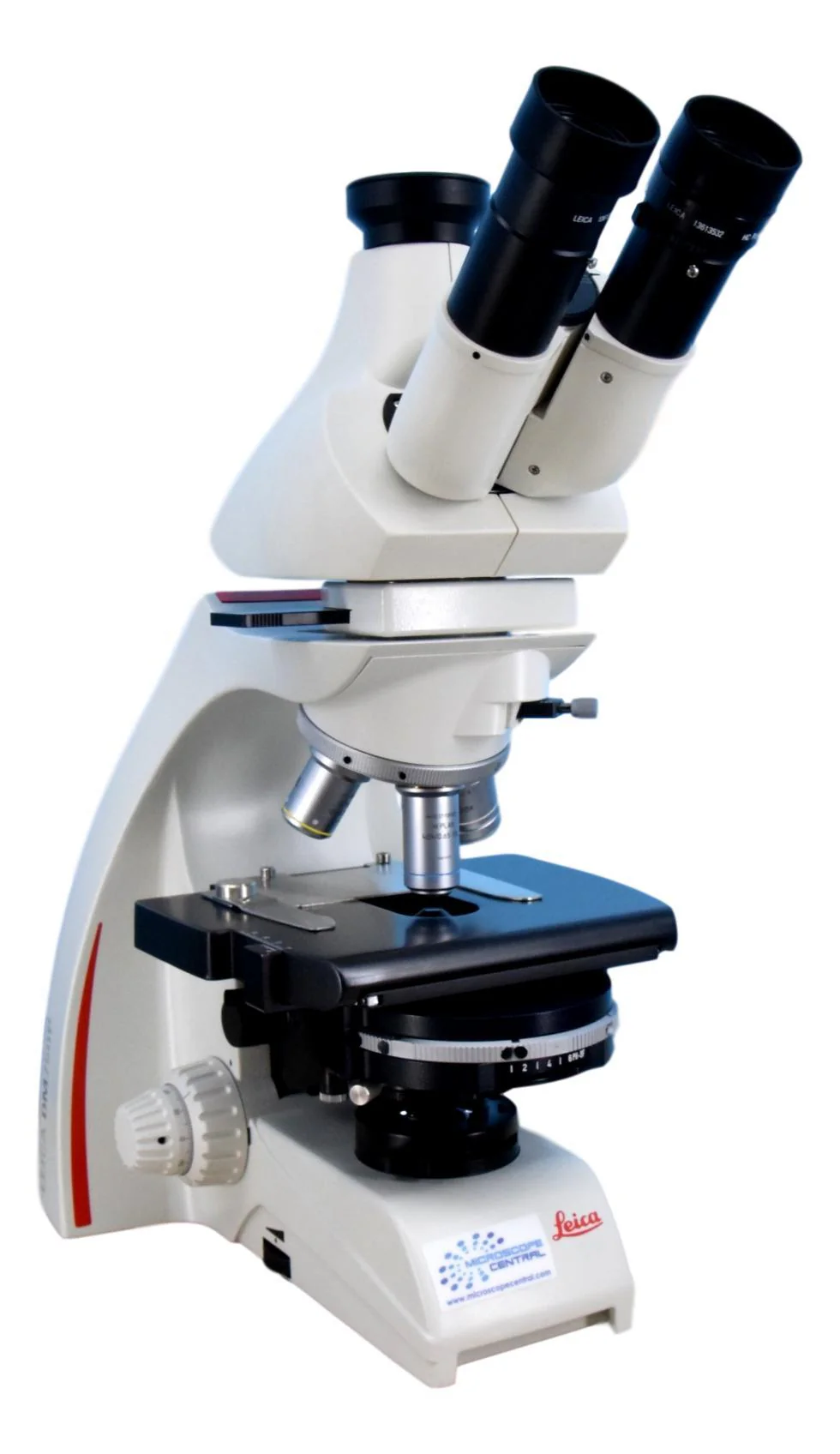

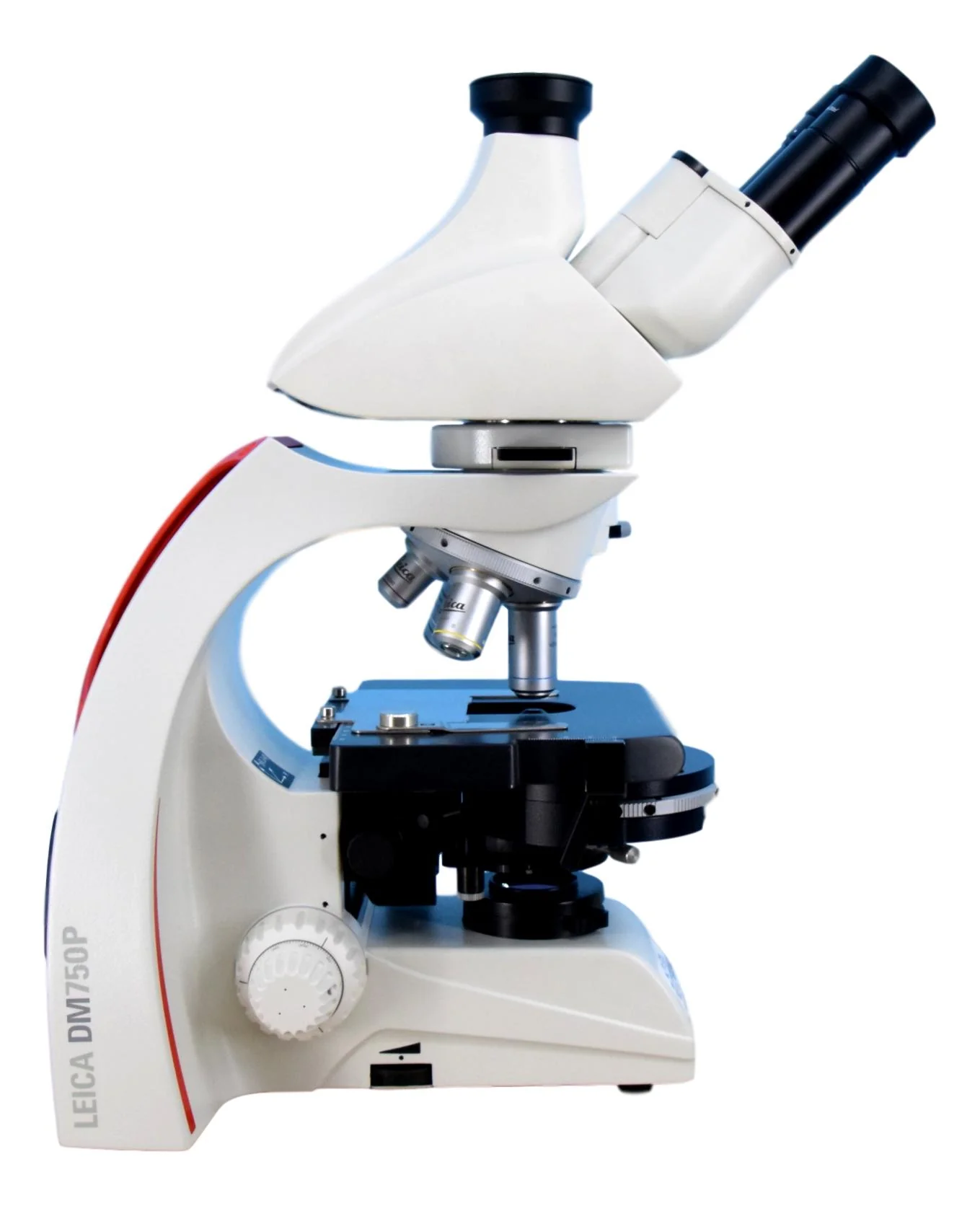

Leica DM750 DIC Microscope

This Leica DM750 microscope is configured for DIC and brightfield applications. It comes with a trinocular viewing head so that you can add a camera to this system at anytime. The 10x eyepieces provide a wide 20mm field of view. The nosepiece can accept four objectives and it comes with Hi Plan 4x, 10x, 40x and N Plan 100x Oil objectives. This package is configured for DIC with only the 100x objective, we can add DIC to the other objectives, or phase contrast if needed. The XY mechanical stage is rackless and provides smooth and precise movements. The universal condenser will have a 100x DIC prism installed and has a flip out condenser head. The coarse and fine focus knobs of this microscope are brass filled so it provides a smooth and precise feel in your hands. The LED illumination provides bright and even heat free illumination.



Leica DM750 DIC Microscope Specifications
Head:	Trinocular viewing head
Eyepieces:	10×/20mm high eyepoint eyepieces
DIC Components:	Polarizer, analyzer, condenser prism K, and prism D for 100x objective
Objectives:	Hi Plan 4x, 10x, 40x, N Plan 100x
Stage:	Mechanical XY
Condenser:	Universal condenser w/ flip top lens
Focus:	Coaxial coarse & fine focus
Illumination:	Variable LED
Warranty:	5 Year Mechanical 1 Year Electrical
Misc:	Dust cover, power cord, manual
