Leica DM1000 Phase Contrast & Darkfield Microscope

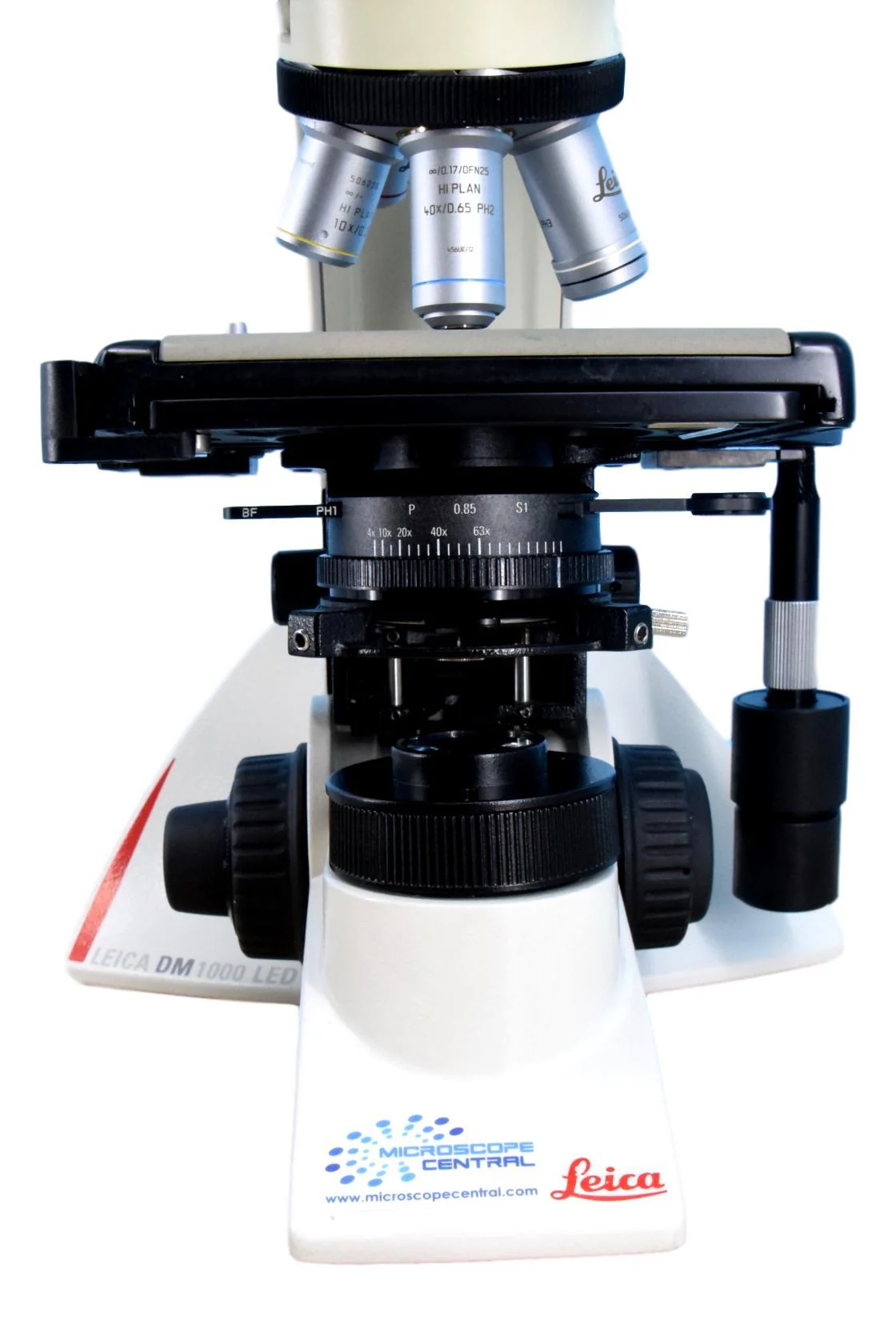

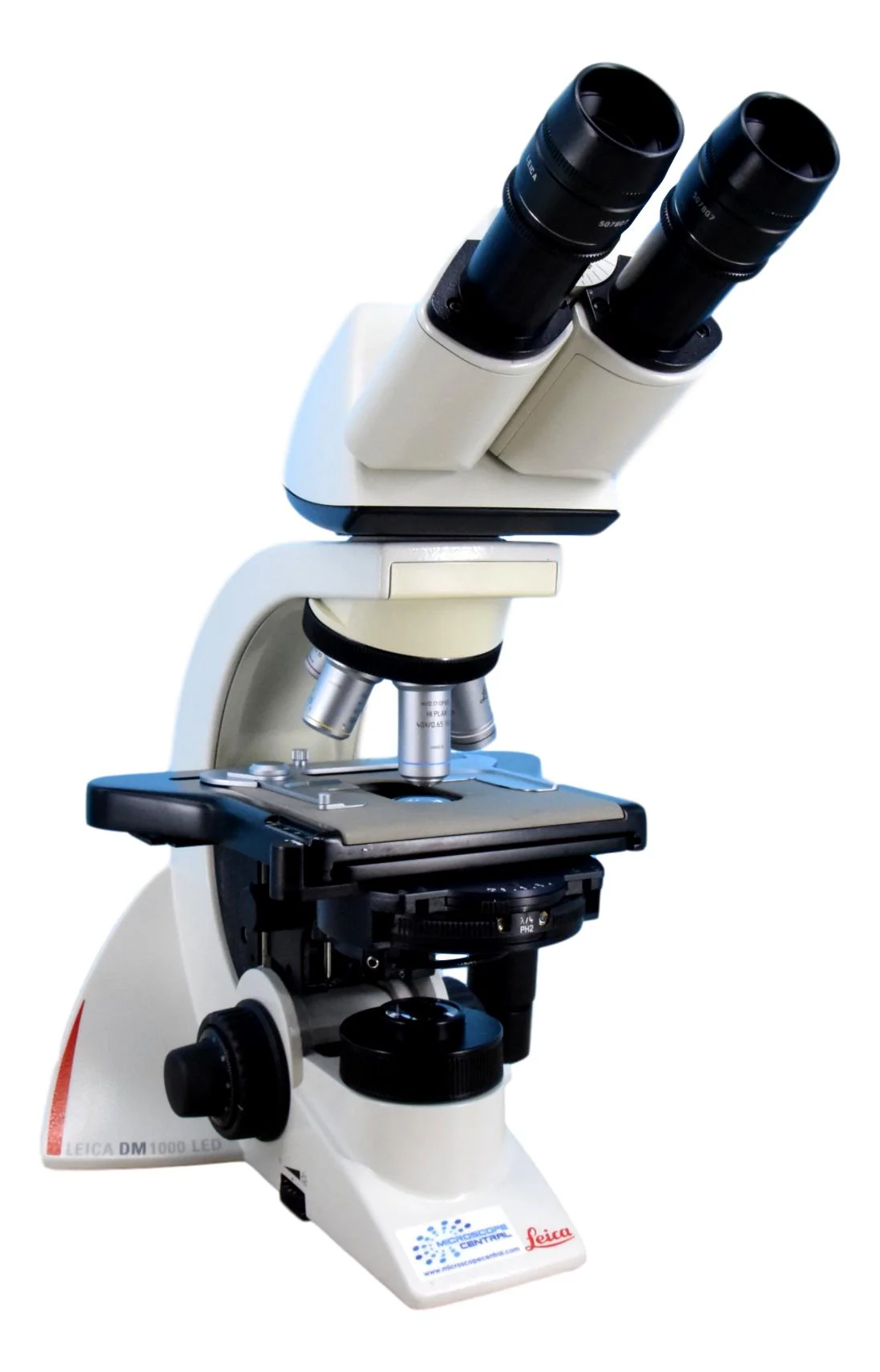

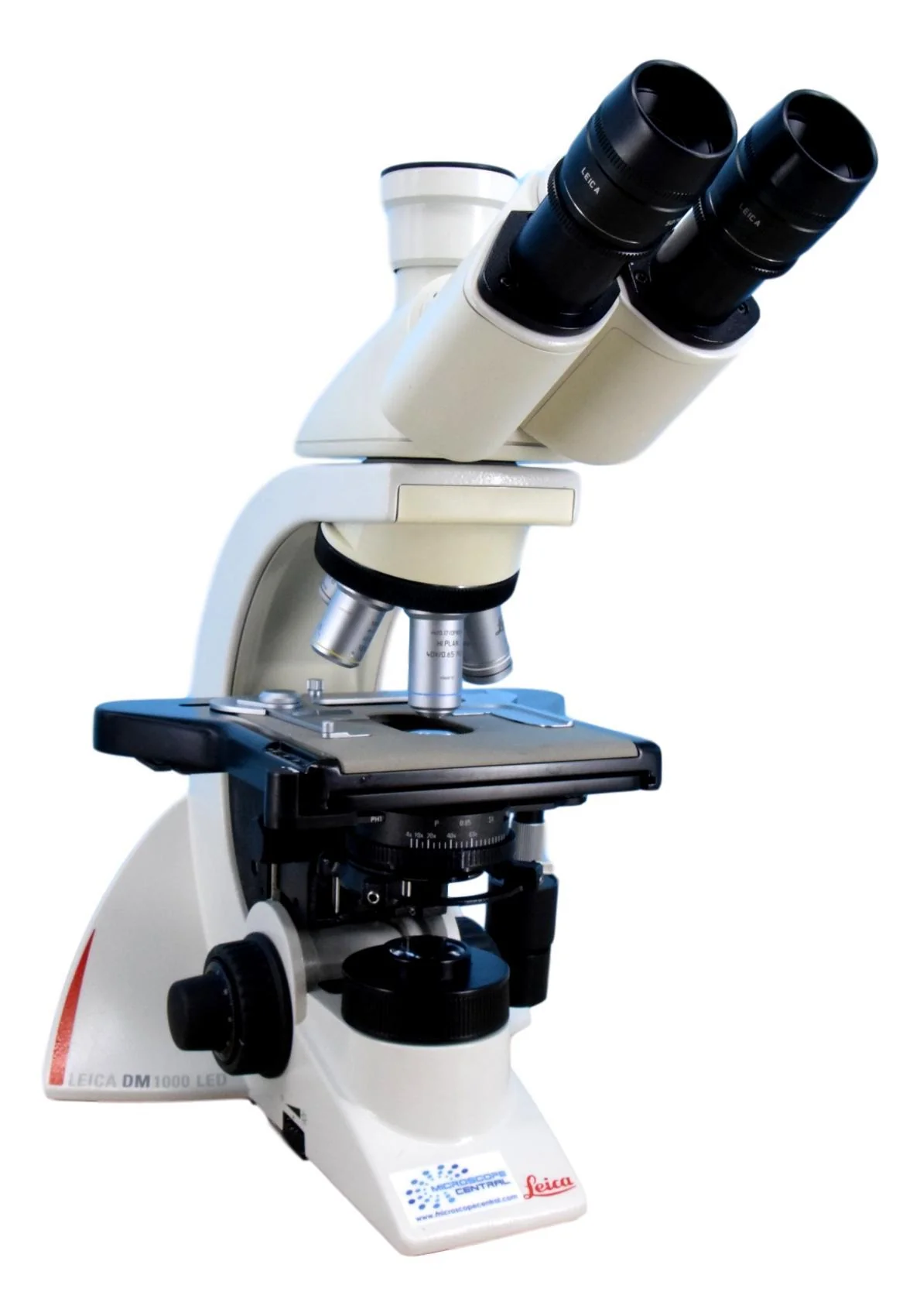

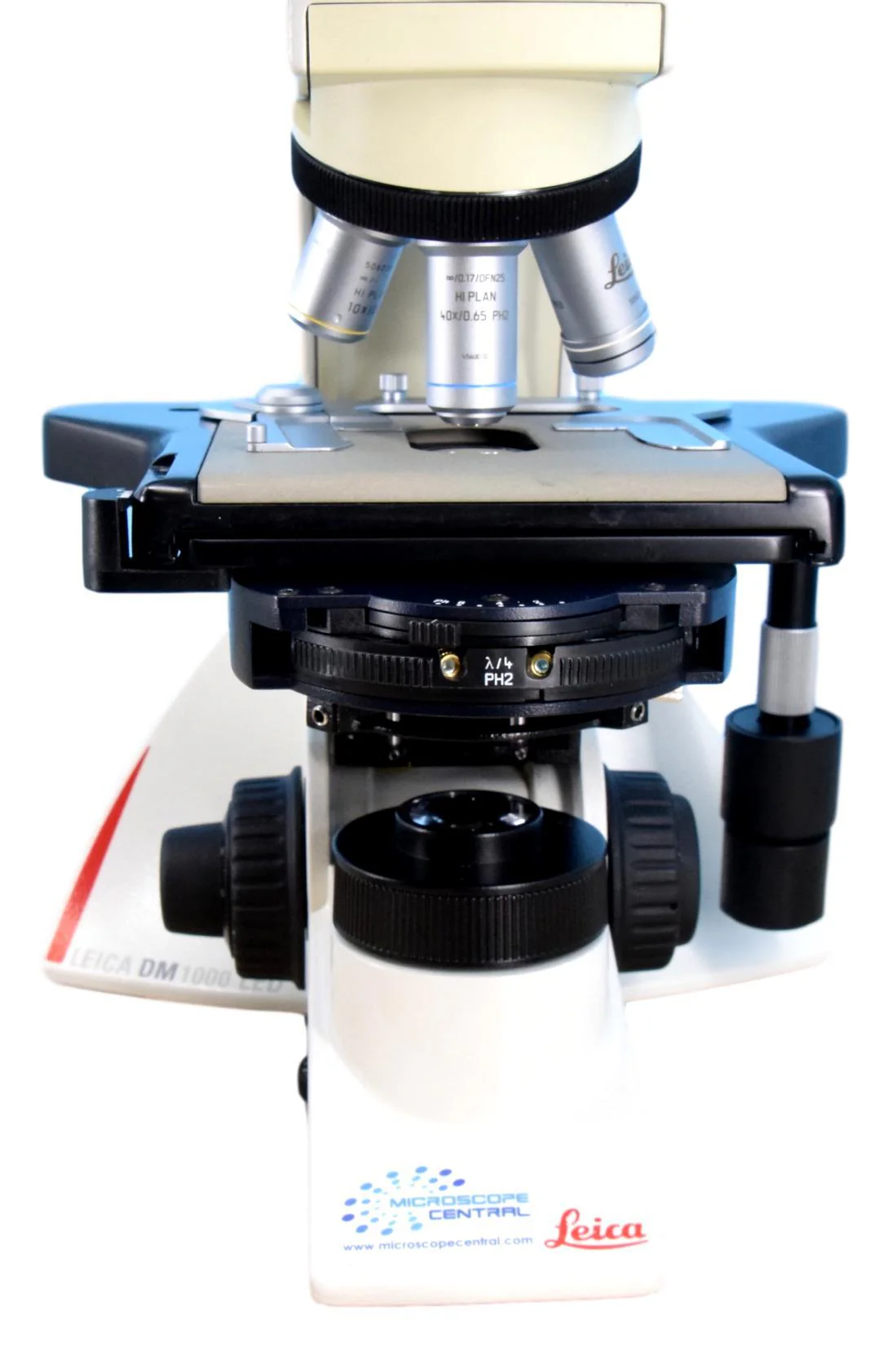

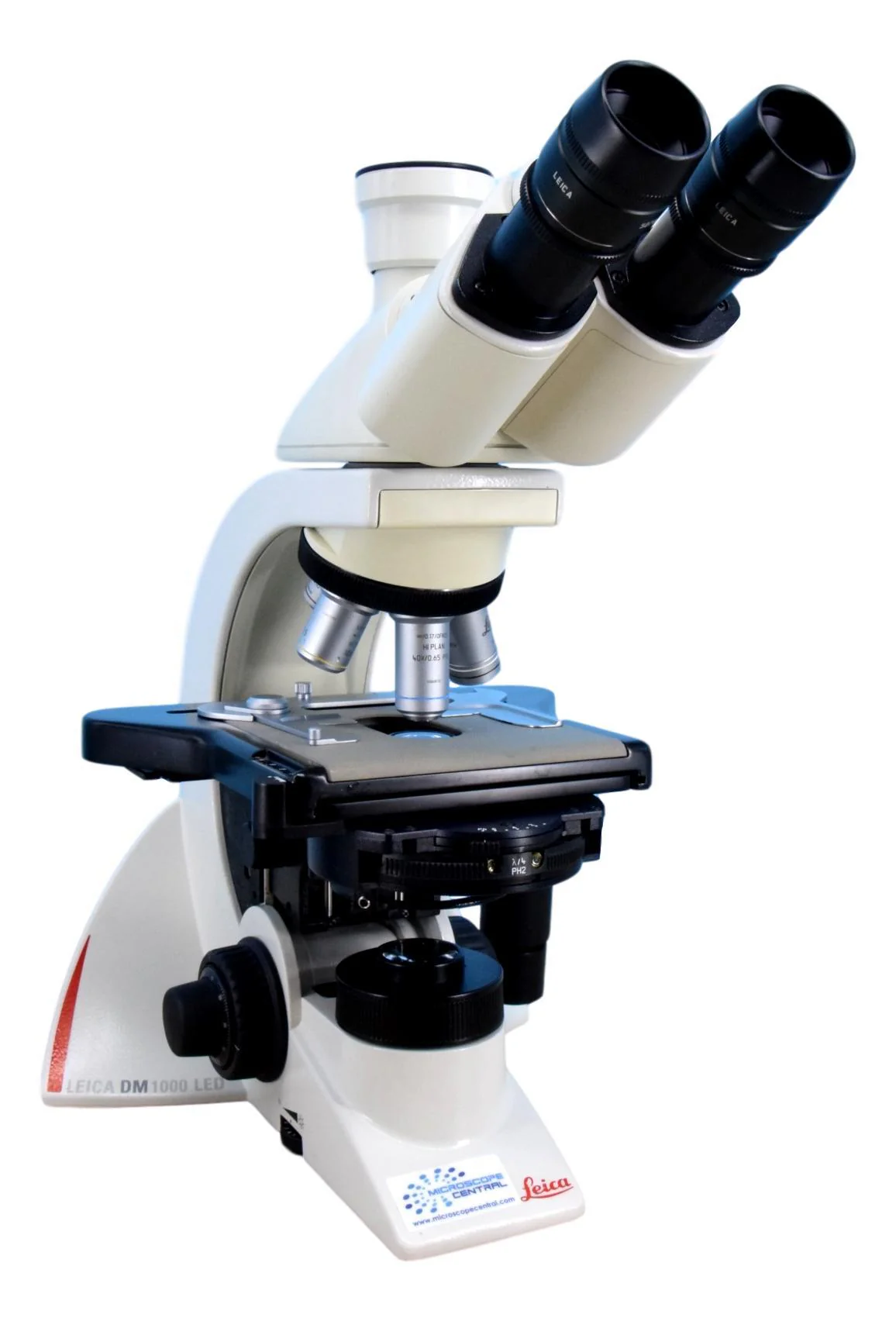

This Leica DM1000 LED microscope is configured for phase contrast and darkfield. You can choose between a binocular or trinocular viewing head. All options will come with a pair of 10x/22mm FOV eyepieces. There are two options for the phase condenser, either a phase slider which has brightfield and phase settings, or a phase turret which has brightfield, phase, and darkfield settings. This will come with a set of Hi / C Plan phase contrast 4x, 10x, 40x, and 100x oil objectives. We can add other objectives to this if you need. This used microscope comes fully serviced with a warranty.
| Leica DM1000 Phase Specifications | |
|---|---|
| Head: | Binocular or Trinocular |
| Eyepieces: | WF 10x/20mm |
| Nosepiece: | 5 Position |
| Objectives: | Hi or C Plan 4x Hi Plan Phase 10x, 40x, 100x Oil |
| Stage: | Right handed XY mechanical stage with slide holder |
| Condenser: |
Phase Slider - 1.25 N.A. Condenser with Phase & Brightfield, or: Phase Turret Condenser - Phase, Brightfield, Darkfield |
| Focusing: | Coaxial coarse & fine adjustment with focus stop to prevent damage |
| Illumination: | LED |
| Warranty: | 1 Year Mechanical, 6 Month Electrical |
Description
This Leica DM1000 LED microscope is configured for phase contrast and darkfield. You can choose between a binocular or trinocular viewing head. All options will come with a pair of 10x/22mm FOV eyepieces. There are two options for the phase condenser, either a phase slider which has brightfield and phase settings, or a phase turret which has brightfield, phase, and darkfield settings. This will come with a set of Hi / C Plan phase contrast 4x, 10x, 40x, and 100x oil objectives. We can add other objectives to this if you need. This used microscope comes fully serviced with a warranty.
| Leica DM1000 Phase Specifications | |
|---|---|
| Head: | Binocular or Trinocular |
| Eyepieces: | WF 10x/20mm |
| Nosepiece: | 5 Position |
| Objectives: | Hi or C Plan 4x Hi Plan Phase 10x, 40x, 100x Oil |
| Stage: | Right handed XY mechanical stage with slide holder |
| Condenser: |
Phase Slider - 1.25 N.A. Condenser with Phase & Brightfield, or: Phase Turret Condenser - Phase, Brightfield, Darkfield |
| Focusing: | Coaxial coarse & fine adjustment with focus stop to prevent damage |
| Illumination: | LED |
| Warranty: | 1 Year Mechanical, 6 Month Electrical |
