Leica DM1000 High Definition Digital Microscope

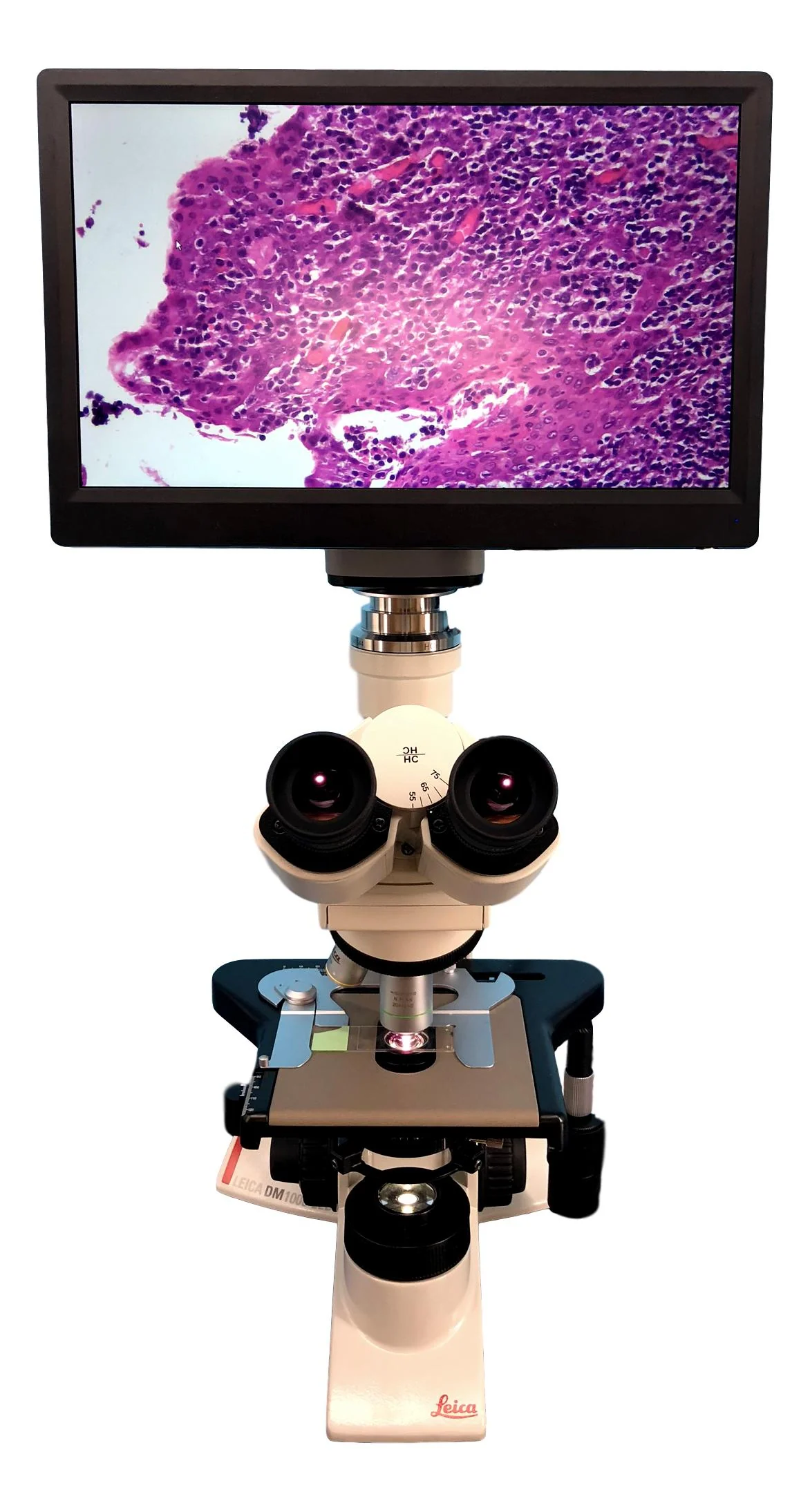

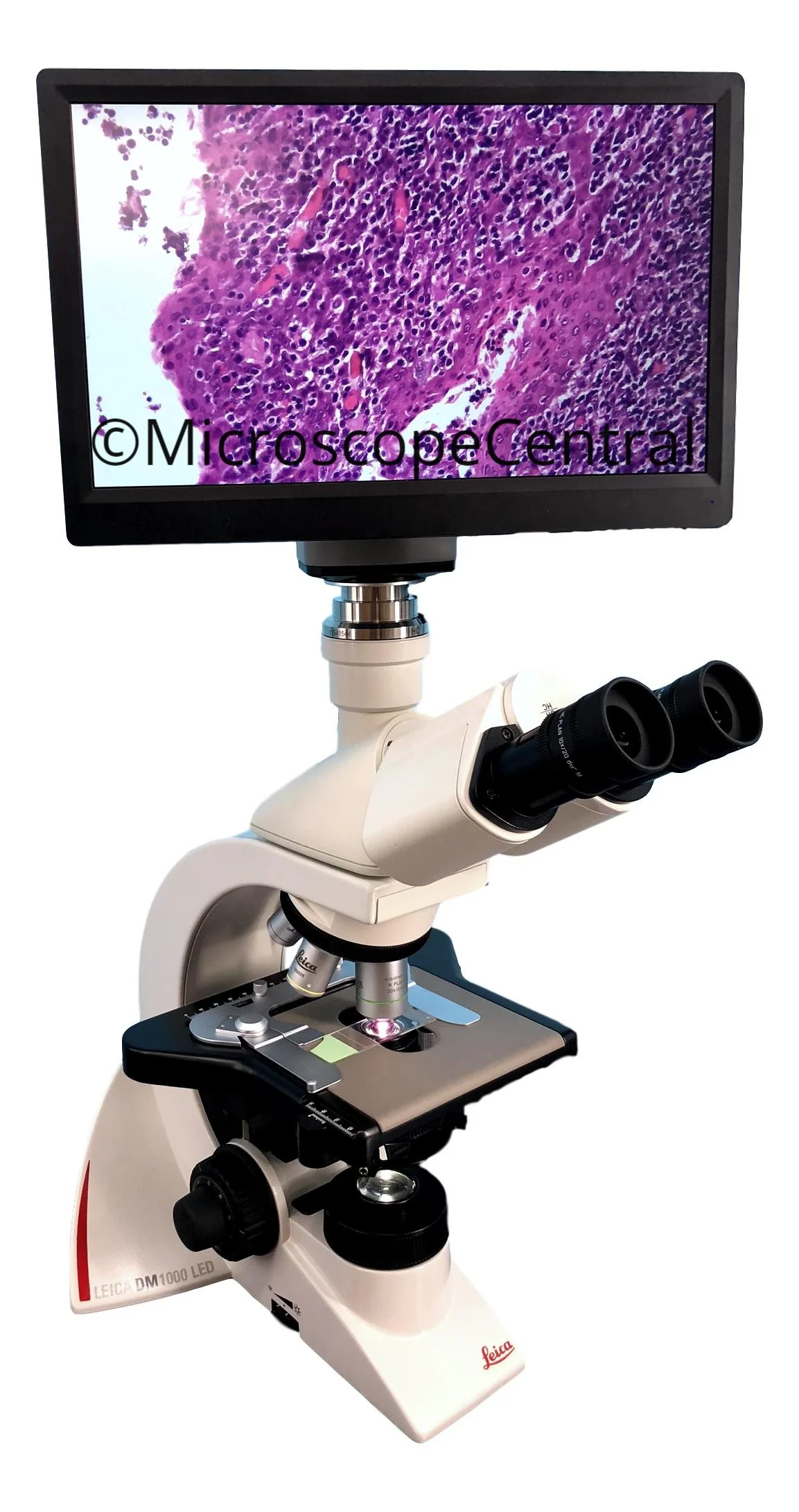

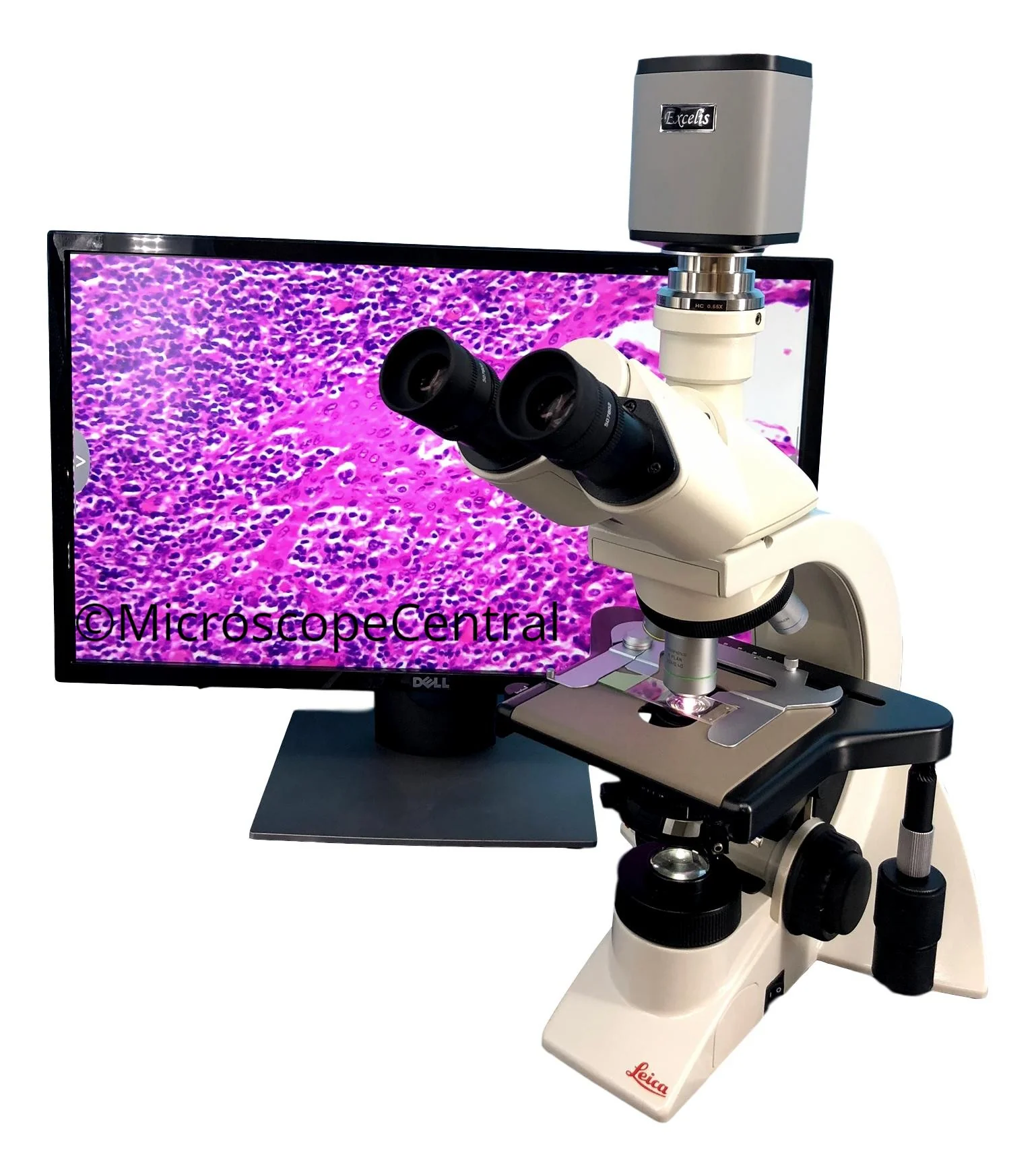

The Leica DM1000 LED high definition digital microscope package includes your choice of HDMI / USB output high definition microscope camera. The camera can come with or without an 11.6" retina display screen so you can see a live image right above the eyepieces. If you select this option you can still output HDMI to a larger screen, or USB to a computer. The screen simply provide an all-in-one streamlined solution. If you wish to output USB to a computer or HDMI to you own screen you can select "No Screen". The DM1000 is a highly customizable microscope but we offer this pre-configured with trinocular head, c-mount adapter and Hi Plan 4x, 10x, 40x, 100x objectives. Additional objectives can be added if needed. The XY stage provides smooth and precise movements. With its ceramic insert it is designed to hold up to heavy use. The microscope has koehler LED illumination so there is no need to change a bulb.
| Specifications | |
|---|---|
| Head: | Trinocular w/ C-Mount |
| Eyepieces: | HC Plan 10x/22 Br. M Eyepieces - 11507807 |
| Nosepiece: | Reversed, quintuple |
| Objectives: | Hi Plan 4x, 10x, 40x, 100x Oil |
| Stage: | Ergo Stage w/ ceramic plate, slide holder, xy stage control - 11888185, 11505196, & 11888153 |
| Condenser: | Condenser 1.25 N.A. with condenser lens - 11505197 & 11501231 |
| Focusing: | Coarse & fine focus knobs - 11888134 |
| Illumination: | Koehler LED Variable |
| Accessories: | Dust cover, instruction manual, power cord |
| Warranty: | 5 Year Mechanical & 1 Year Electrical |
| Camera Specifications | |
|---|---|
| Screen | Mountable 11.6" retina display screen (hardware included) |
| Resolution (Live): | 1920X1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
Brochure
Leica DM1000 Brochure
Select Camera
From $2,830.50
Original: $9,435.00
-70%Leica DM1000 High Definition Digital Microscope—
$9,435.00
$2,830.50
