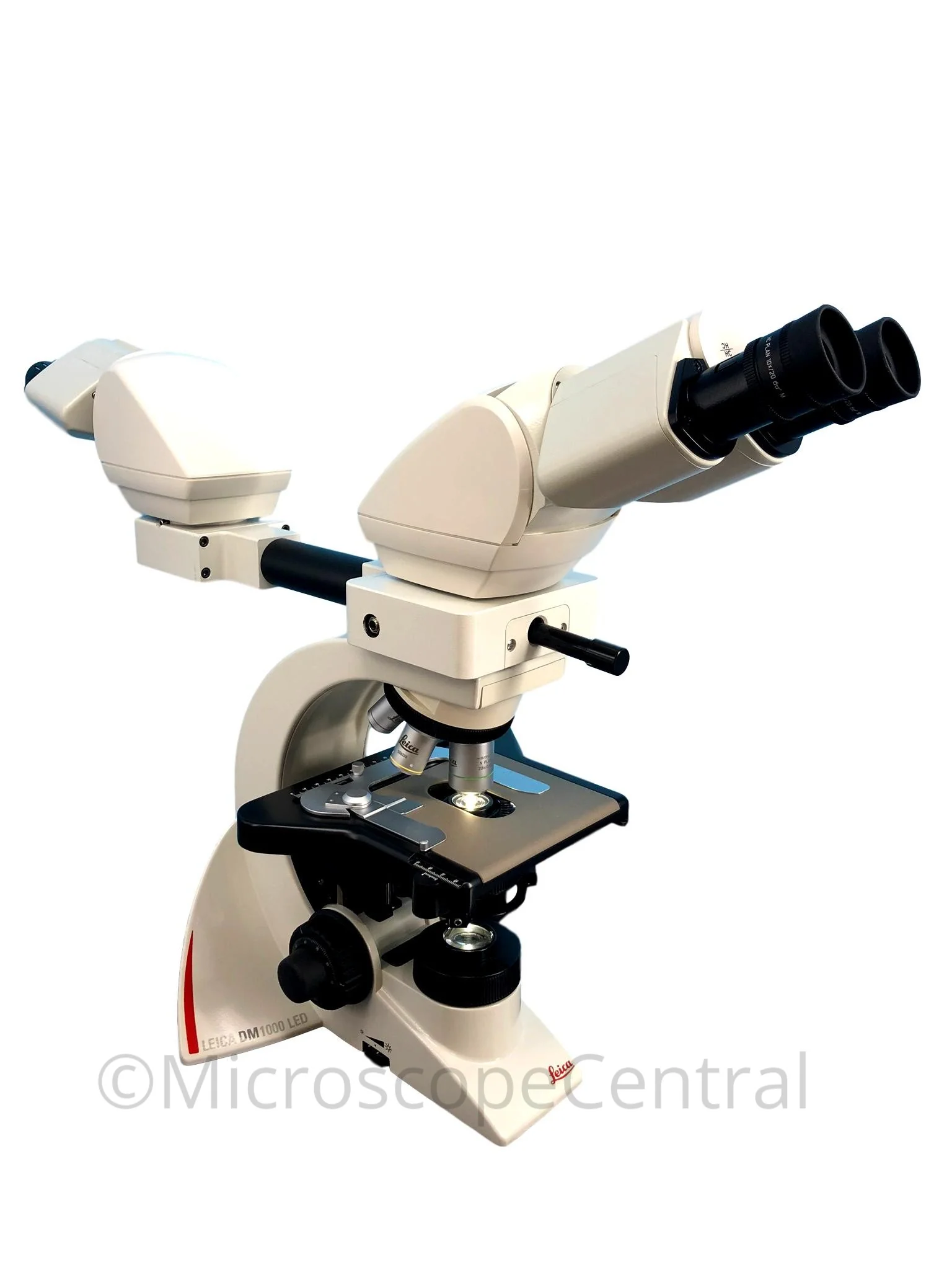

Leica DM1000 Dual Viewing Pathology Microscope - Face To Face

This Leica DM1000 Dual Viewing Pathology Microscope uses the face to face dual bridge. It allows a user sitting across from the main user to view through the microscope. We can fully customize this microscope to meet your specific needs. The dual viewing bridge had a built in LED pointer. You can choose between standard binocular, trinocular, or ergonomic tilting binocular heads. A pair of 10x/22mm FOV eyepieces is provided for the main head, and a pair of 10x/20mm FOV eyepieces is provided for the secondary head. The nosepiece is a 5 position nosepiece and this comes configured with your choice of Hi Plan or N Plan 2.5x, 4x,10x, 40x objectives. The condenser has a diffusion slider for the 2x objective, no need to remember to flip the condenser head in and out! We can add a 20x objective if desired. The rackless mechanical stage provides smooth and precise movements. The ceramic insert on the stage is designed to withstand years of use. The microscope features ergonomic and easy to use controls for the focus, stage, and head. With the kohler LED illumination you never have to worry about changing the bulb!



Specifications
Head:	Primary Head Options: Binocular, Ergonomic Tilting Binocular, Trinocular Secondary Head Options: Binocular, Ergonomic Tilting Binocular
Dual Bridge:	Face-To-Face w/ LED Pointer
Eyepieces:	HC Plan 10x/22 Br. M Eyepieces - Main Head HC Plan 10x/20 Eyepieces - Secondary Head
Nosepiece:	Reversed, quintuple
Objectives:	Hi Plan 2.5x, 4x, 10x, 40x Or N Plan 2.5x, 5x, 10x, 40x
Stage:	Ergo Stage w/ ceramic plate, slide holder, xy stage control
Condenser:	Condenser 1.25 N.A. with condenser lens & diffusion slider for 2x
Focusing:	Coarse & fine focus knobs
Illumination:	Koehler LED Variable
Accessories:	Dust cover, instruction manual, power cord
Warranty:	5 Year Mechanical & 1 Year Electrical
