Labomed Lx500 Microscope Objectives
Objectives For Labomed Lx500 Series Microscopes
| 9144002 | 2.5x objective, NA. 0.08/WD 20.0 mm (RP2 Infinity corrected DIN Plan Achromatic) |
| 9144005 | 4x objective, NA 0.10/WD 26.66mm (RP2 Infinity corrected DIN Plan Achromatic) |

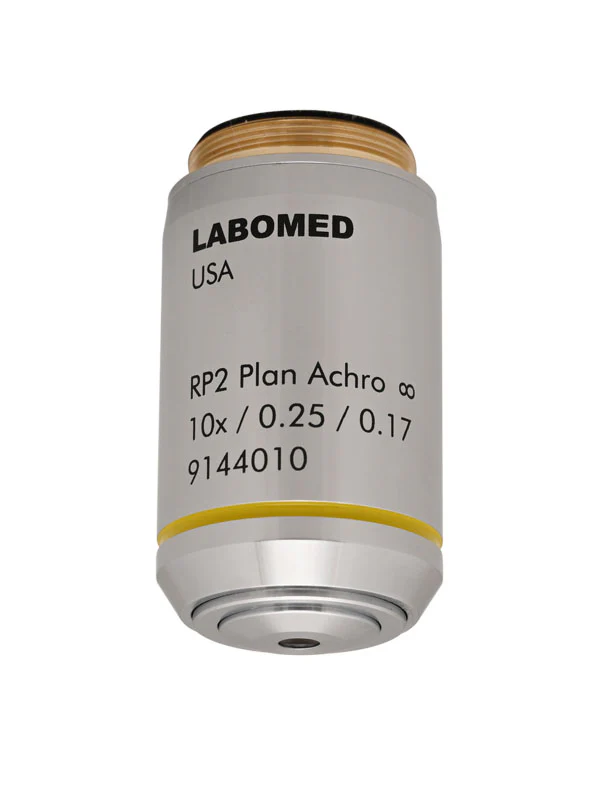

| 9144010 | 10x objective, NA 0.25/WD 4.34mm (RP2 Infinity corrected DIN Plan Achromatic) |
| 9144020 | 20x objective, NA 0.45/WD 1.10mm (RP Infinity corrected DIN Plan Achromatic) |
| 9144040 | 40x objective, spring, NA 0.65/WD 0.48mm (RP2 Infinity corrected DIN Plan Achromatic) |
| 9122050 | 50x objective, spring/oil, NA 0.95/ WD 0.20 mm (RP series Infinity DIN Plan Achromatic) |
| 9144060 | 60x objective, spring/dry, NA 0.85/WD 0.30mm (RP Infinity corrected DIN Plan Achromatic) |
| 9144100 | 100x objective, spring/oil, NA 1.25/WD 0.15mm (RP2 Infinity corrected DIN Plan Achromatic) |
Select Magnification
From $27.65
Original: $92.17
-70%Labomed Lx500 Microscope Objectives—
$92.17
$27.65
Description
Objectives For Labomed Lx500 Series Microscopes
| 9144002 | 2.5x objective, NA. 0.08/WD 20.0 mm (RP2 Infinity corrected DIN Plan Achromatic) |
| 9144005 | 4x objective, NA 0.10/WD 26.66mm (RP2 Infinity corrected DIN Plan Achromatic) |
| 9144010 | 10x objective, NA 0.25/WD 4.34mm (RP2 Infinity corrected DIN Plan Achromatic) |
| 9144020 | 20x objective, NA 0.45/WD 1.10mm (RP Infinity corrected DIN Plan Achromatic) |
| 9144040 | 40x objective, spring, NA 0.65/WD 0.48mm (RP2 Infinity corrected DIN Plan Achromatic) |
| 9122050 | 50x objective, spring/oil, NA 0.95/ WD 0.20 mm (RP series Infinity DIN Plan Achromatic) |
| 9144060 | 60x objective, spring/dry, NA 0.85/WD 0.30mm (RP Infinity corrected DIN Plan Achromatic) |
| 9144100 | 100x objective, spring/oil, NA 1.25/WD 0.15mm (RP2 Infinity corrected DIN Plan Achromatic) |
