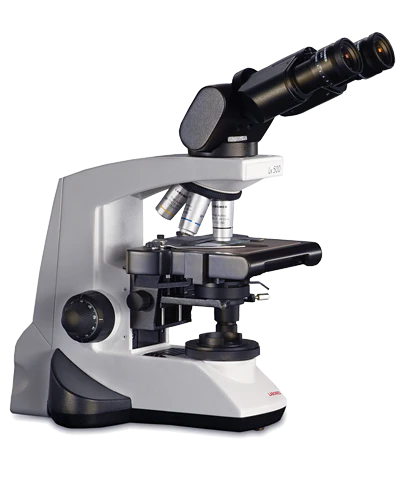

Labomed Lx500 Cytology Microscope
Configured for Cytology applications this Labomed Lx500 comes with Plan Achromat 4x, 10x, and 40x objective lenses. You can choose from a binocular, ergo binocular or trinocular viewing head. The 10x eyepieces provide a large 22mm FOV. This microscope features a rackless ceramic coated mechanical stage. The LED illumination provides even cool light.
| Specifications | |
|---|---|
| Stand: | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Viewing Head: | Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment |
| Eyepiece: | Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated |
| Nosepiece: | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives: | RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded) |
| Stage: | Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 50mm. Double specimen holder |
| Condenser: | Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides |
| Focusing: | Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation |
| Illumination: | LED Illumination Rechargeable |
| Electrical: | Universal input 100V - 240V AC, 50/60Hz |
| Accessories: | Immersion oil, dust cover, and cleaning cloth. |
| Warranty: | 5 Year mechanical, 1 year electrical |
Select Head Type
Select Illumination
From $564.30
Original: $1,881.00
-70%Labomed Lx500 Cytology Microscope—
$1,881.00
$564.30
Description
Configured for Cytology applications this Labomed Lx500 comes with Plan Achromat 4x, 10x, and 40x objective lenses. You can choose from a binocular, ergo binocular or trinocular viewing head. The 10x eyepieces provide a large 22mm FOV. This microscope features a rackless ceramic coated mechanical stage. The LED illumination provides even cool light.
| Specifications | |
|---|---|
| Stand: | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Viewing Head: | Binocular, Trinocular 30° OR Ergonomic Binocular 0° - 25° inclinable, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment |
| Eyepiece: | Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated |
| Nosepiece: | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives: | RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded) |
| Stage: | Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 50mm. Double specimen holder |
| Condenser: | Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides |
| Focusing: | Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation |
| Illumination: | LED Illumination Rechargeable |
| Electrical: | Universal input 100V - 240V AC, 50/60Hz |
| Accessories: | Immersion oil, dust cover, and cleaning cloth. |
| Warranty: | 5 Year mechanical, 1 year electrical |
