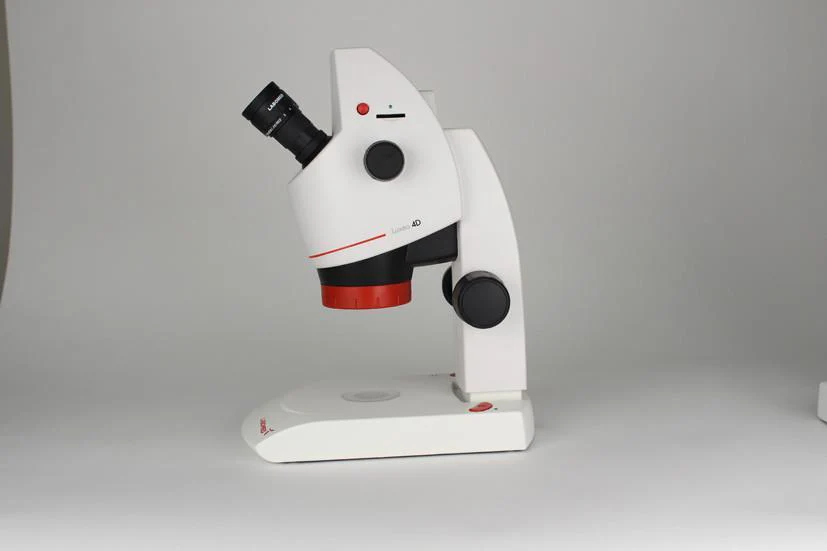

Labomed Luxeo 4D Digital Stereo Zoom Microscope 8x-35x - 5.0 Megapixel
The Labomed Luxeo 4D reflects high performance engineering in every detail, demonstrating yet again, Labomed's unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, and a superlative 5 Megapixel hi-definition built-in camera, virtually all educational, documentation, and even some industrial inspection requirements are met with the Luxeo 4D. As a stereo zoom microscope with a digital camera, the built-in 5 Megapixel camera offers hi-definition 1080p live video feed (HDMI), digital interface through computer (USB 2.0) with PixelPro capture analysis software, and an onboard secure digital (SD) card slot with capture button
| Specifications | |
|---|---|
| Head: | Binocular 45° inclined head |
| Optical System: | Greenough |
| Magnification: | 8x-35x Zoom Rage / 4.4:1 Zoom Ratio |
| Eyepieces: | WF 10x / 20 mm (with dioptric lock) |
| Working Distance: | 100 mm |
| Object Field Diameter: | 6.6 to 28.5 mm |
| Illumination: | LED transmitted and oblique incident illumination with four settings |
| Transmitted Light: | 3 LEDs super bright glow screen, low heat emission |
| Incident Light: | Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs) |
| LED Service Life: | Approx 25,000 hours |
| Power Supply: | Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer |
| Digital Camera: | 5.0 Mega Pixel, 1/2.5" CMOS Camera |
| Image Output: | Digital (USB 2.0/3.0), Analog (Video) |
| Integrated Slot: | Secure Digital (SD) Card |
| Recording: | Image capture toggle (on-board) |
| Software: | PixelPro (Windows XP/Vista/7) |
| Accessories: | Spare fuse, Dust cover, cleaning cloth |
Click here for additional Accessories
Description
The Labomed Luxeo 4D reflects high performance engineering in every detail, demonstrating yet again, Labomed's unwavering focus on delivering superb value. With a super bright and white light emitting diode (LED) illumination system, superb optics, and a single-cast durable construction, and a superlative 5 Megapixel hi-definition built-in camera, virtually all educational, documentation, and even some industrial inspection requirements are met with the Luxeo 4D. As a stereo zoom microscope with a digital camera, the built-in 5 Megapixel camera offers hi-definition 1080p live video feed (HDMI), digital interface through computer (USB 2.0) with PixelPro capture analysis software, and an onboard secure digital (SD) card slot with capture button
| Specifications | |
|---|---|
| Head: | Binocular 45° inclined head |
| Optical System: | Greenough |
| Magnification: | 8x-35x Zoom Rage / 4.4:1 Zoom Ratio |
| Eyepieces: | WF 10x / 20 mm (with dioptric lock) |
| Working Distance: | 100 mm |
| Object Field Diameter: | 6.6 to 28.5 mm |
| Illumination: | LED transmitted and oblique incident illumination with four settings |
| Transmitted Light: | 3 LEDs super bright glow screen, low heat emission |
| Incident Light: | Maximum intensity (10 LEDs), front angled incident light (5 LEDs), rear angled incident light 5 (LEDs) |
| LED Service Life: | Approx 25,000 hours |
| Power Supply: | Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer |
| Digital Camera: | 5.0 Mega Pixel, 1/2.5" CMOS Camera |
| Image Output: | Digital (USB 2.0/3.0), Analog (Video) |
| Integrated Slot: | Secure Digital (SD) Card |
| Recording: | Image capture toggle (on-board) |
| Software: | PixelPro (Windows XP/Vista/7) |
| Accessories: | Spare fuse, Dust cover, cleaning cloth |
