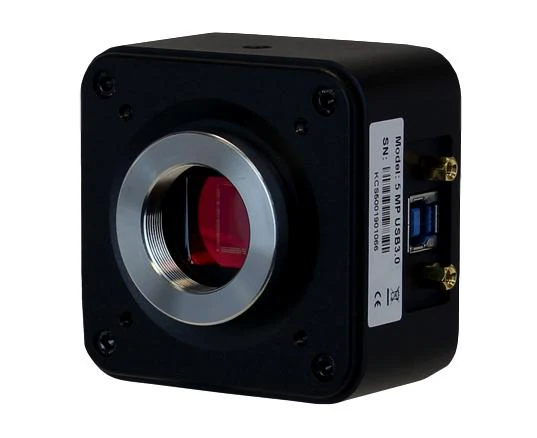

.Excelis MPX-5C Pro Digital Microscope Camera

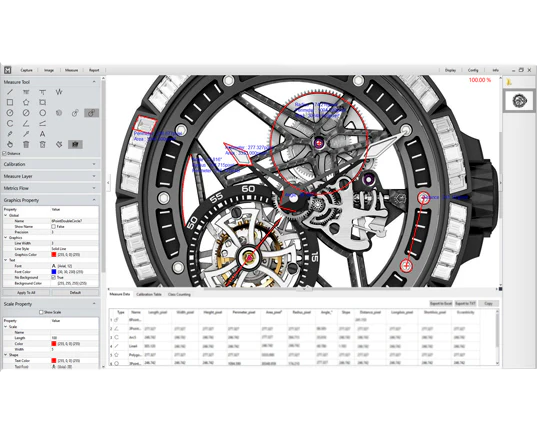

The Accu-Scope MPX-5C Pro camera combines a high performance camera in a low profile design. The included CaptaVision+ software offers countless features such as real time image stitching, real-time depth-of-field fusion, report generation & export, and of course measurement, annotations, and more!
The camera uses a Sony Pregius 5.0 M.P. 2/3" CMOS IMX264 sensor with 3.45 x 3.4µm pixels. Captured image resolution can reach up to 2448x2048 which will resolve fine details in your samples.
The MPX-5C Pro's core ISP color-interpolation algorithm simulates the human eye's sensitivity to color. The image colors are true to the color seen through the eyepiece. This camera is suitable for brightfield, or fluorescence imaging.
| Model | AU-5C-CMOS |
| Sensor / Model | CMOS / Sony IMX264LQR-C |
| Sensor Size | 2/3"; 0.65 C-mount (recommended) |
| Image Transmission | High-speed |
| Pixel Size | 3.45µm x 3.45µm |
| Resolution | 2448 (H) x 2048 (V) |
| Frame Rate | 35FPS (2448x2048) |
| Shutter Mode | Global |
| Exposure Time | 0.13ms-15s |
| Automatic Settings | Exposure, Color Scale, White Balance |
| Manual Settings | Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction |
| Color Temperature | 2000K-15000K |
| ADC Depth | 12Bit |
| Operating Temperature & Humidity |
0-60% |
| Camera Size & Weight | 68x68x46mm / 330g |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| PC Imaging Software |
CaptaVision+ Imaging Software for PC and Mac OS Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multicolor channel merge; HDR (High Dynamic Range) function Image Types: JPEG, PNG, TIFF and DICOM (DICOM not available for Mac) |
| System Software Compatibility | Windows XP, Vista, 7, 8, and 10 (32 or 64 bit); Mac OSX 10.4 and higher System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Warranty | 1 year |
Brochure
Original: $1,712.00
-70%$1,712.00
$513.60
Description
The Accu-Scope MPX-5C Pro camera combines a high performance camera in a low profile design. The included CaptaVision+ software offers countless features such as real time image stitching, real-time depth-of-field fusion, report generation & export, and of course measurement, annotations, and more!
The camera uses a Sony Pregius 5.0 M.P. 2/3" CMOS IMX264 sensor with 3.45 x 3.4µm pixels. Captured image resolution can reach up to 2448x2048 which will resolve fine details in your samples.
The MPX-5C Pro's core ISP color-interpolation algorithm simulates the human eye's sensitivity to color. The image colors are true to the color seen through the eyepiece. This camera is suitable for brightfield, or fluorescence imaging.
| Model | AU-5C-CMOS |
| Sensor / Model | CMOS / Sony IMX264LQR-C |
| Sensor Size | 2/3"; 0.65 C-mount (recommended) |
| Image Transmission | High-speed |
| Pixel Size | 3.45µm x 3.45µm |
| Resolution | 2448 (H) x 2048 (V) |
| Frame Rate | 35FPS (2448x2048) |
| Shutter Mode | Global |
| Exposure Time | 0.13ms-15s |
| Automatic Settings | Exposure, Color Scale, White Balance |
| Manual Settings | Exposure, Gain, Noise Reduction, Gamma, Flat Field Correction |
| Color Temperature | 2000K-15000K |
| ADC Depth | 12Bit |
| Operating Temperature & Humidity |
0-60% |
| Camera Size & Weight | 68x68x46mm / 330g |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| PC Imaging Software |
CaptaVision+ Imaging Software for PC and Mac OS Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multicolor channel merge; HDR (High Dynamic Range) function Image Types: JPEG, PNG, TIFF and DICOM (DICOM not available for Mac) |
| System Software Compatibility | Windows XP, Vista, 7, 8, and 10 (32 or 64 bit); Mac OSX 10.4 and higher System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Warranty | 1 year |
