.Excelis HD Microscope Camera w/ 13.3" Screen AU-600-HDS

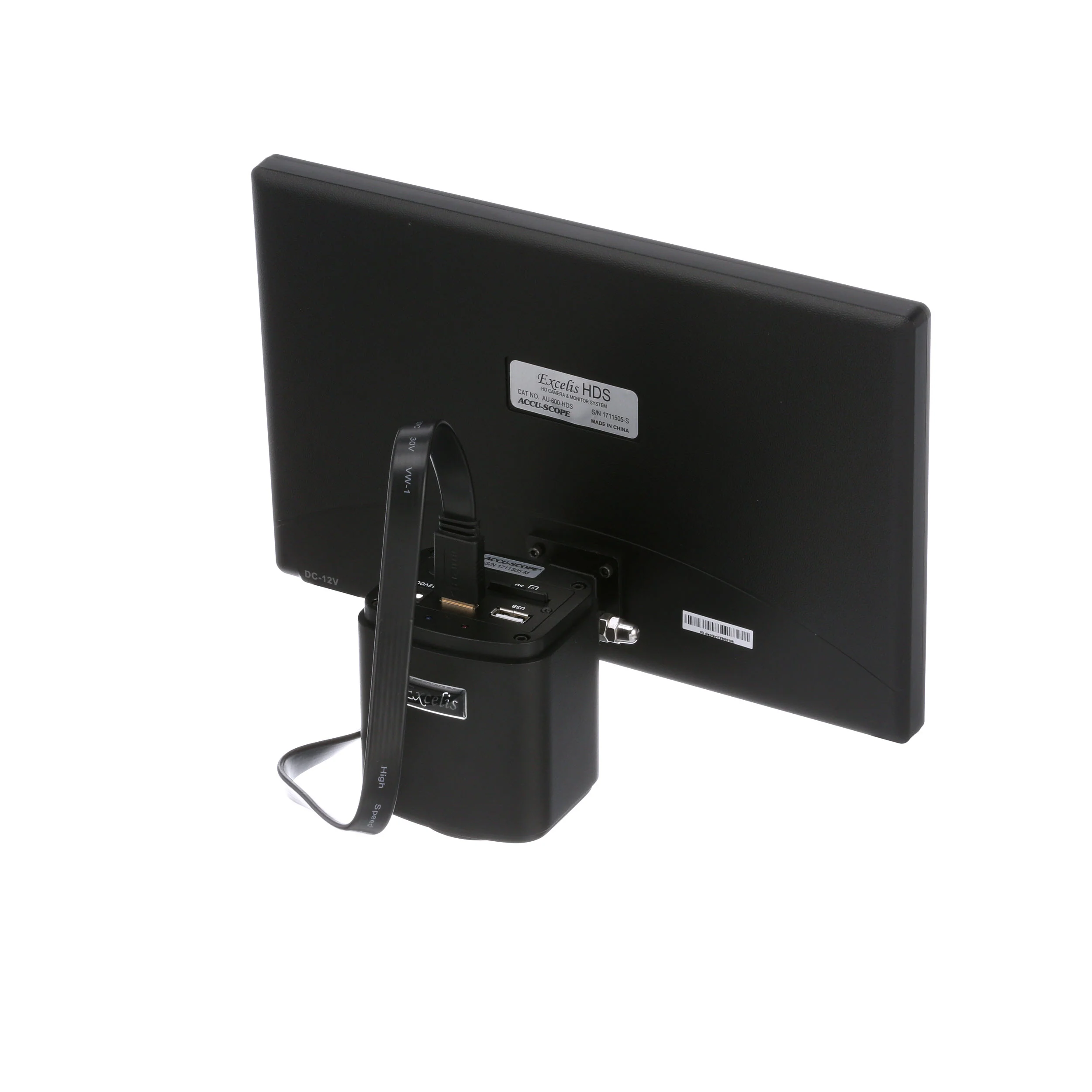

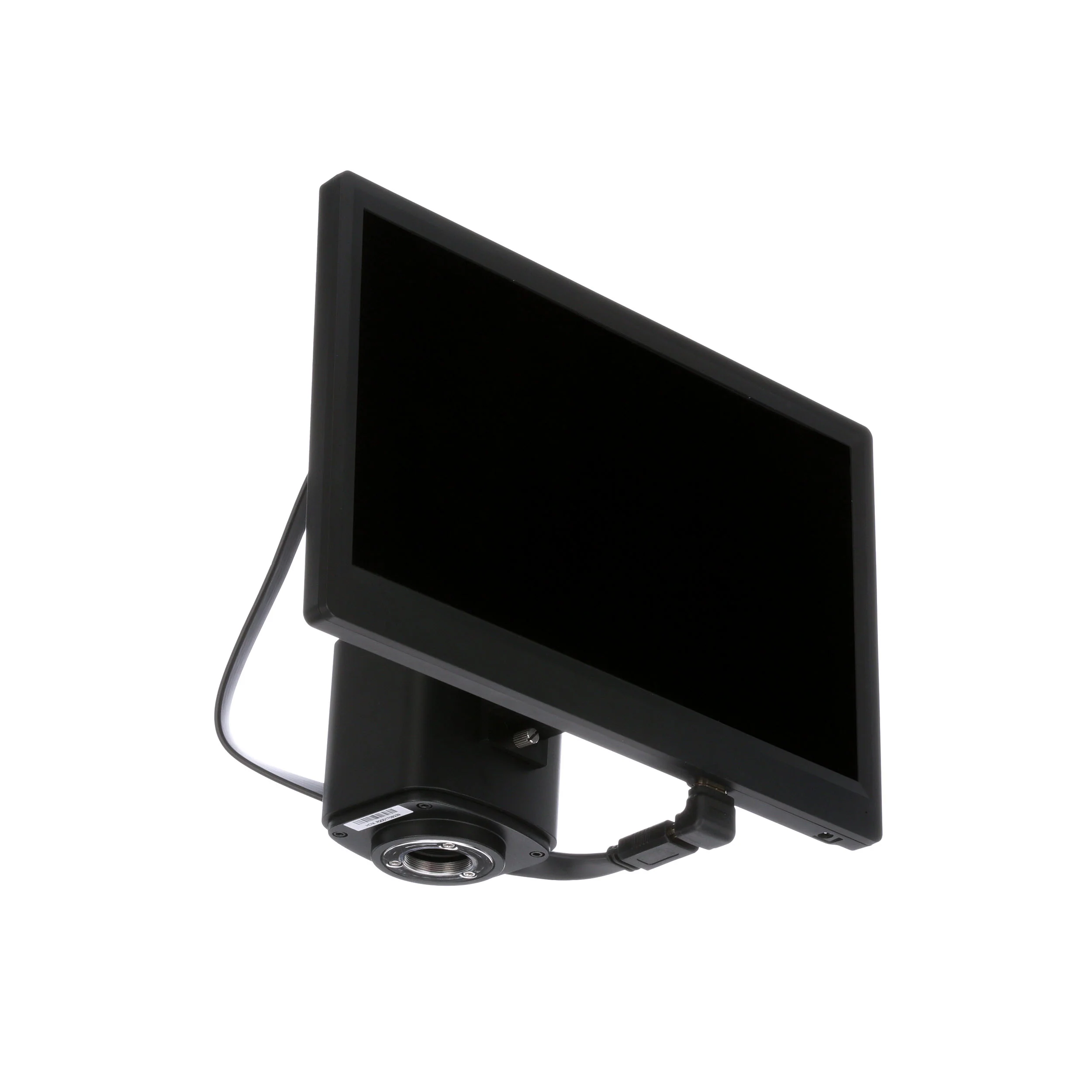

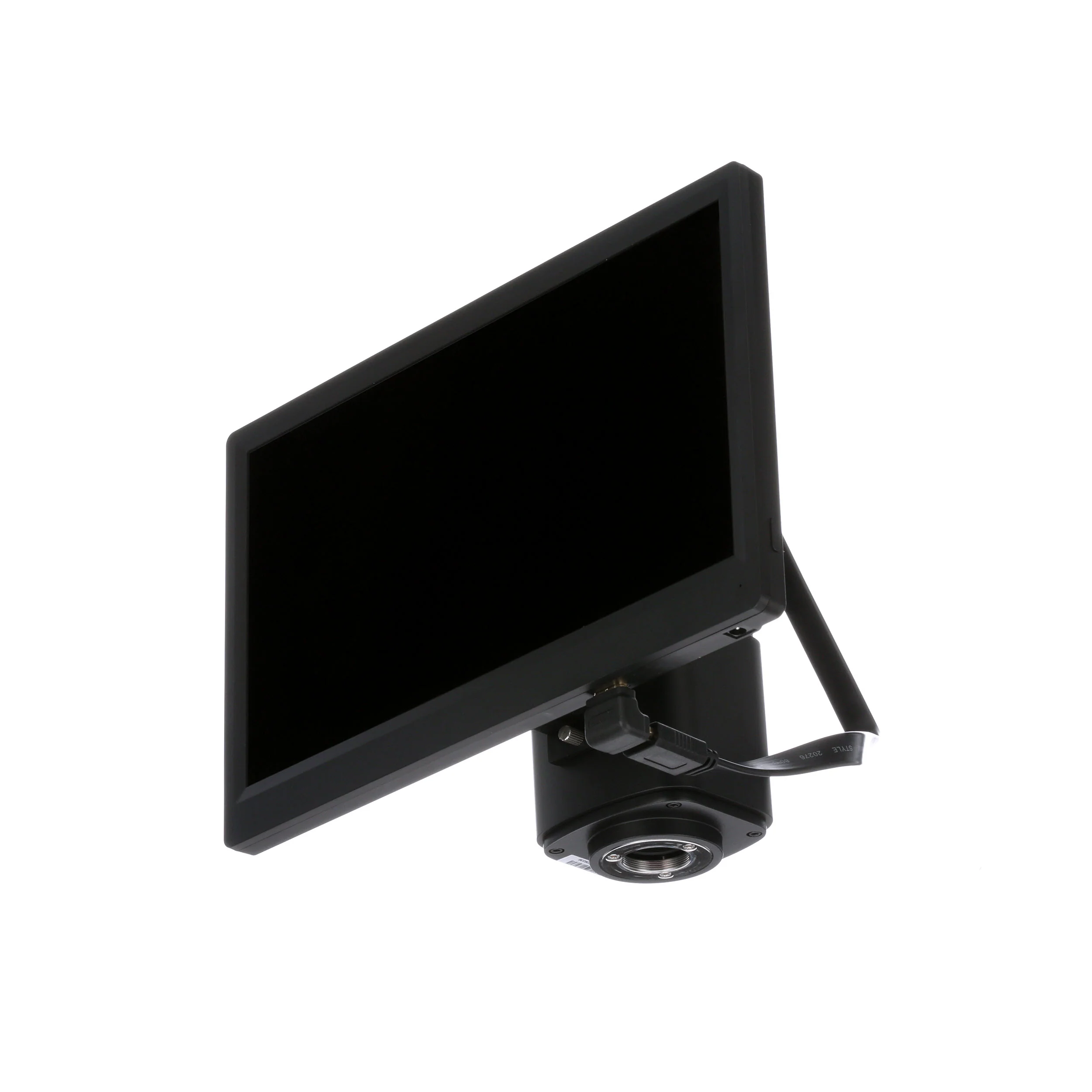

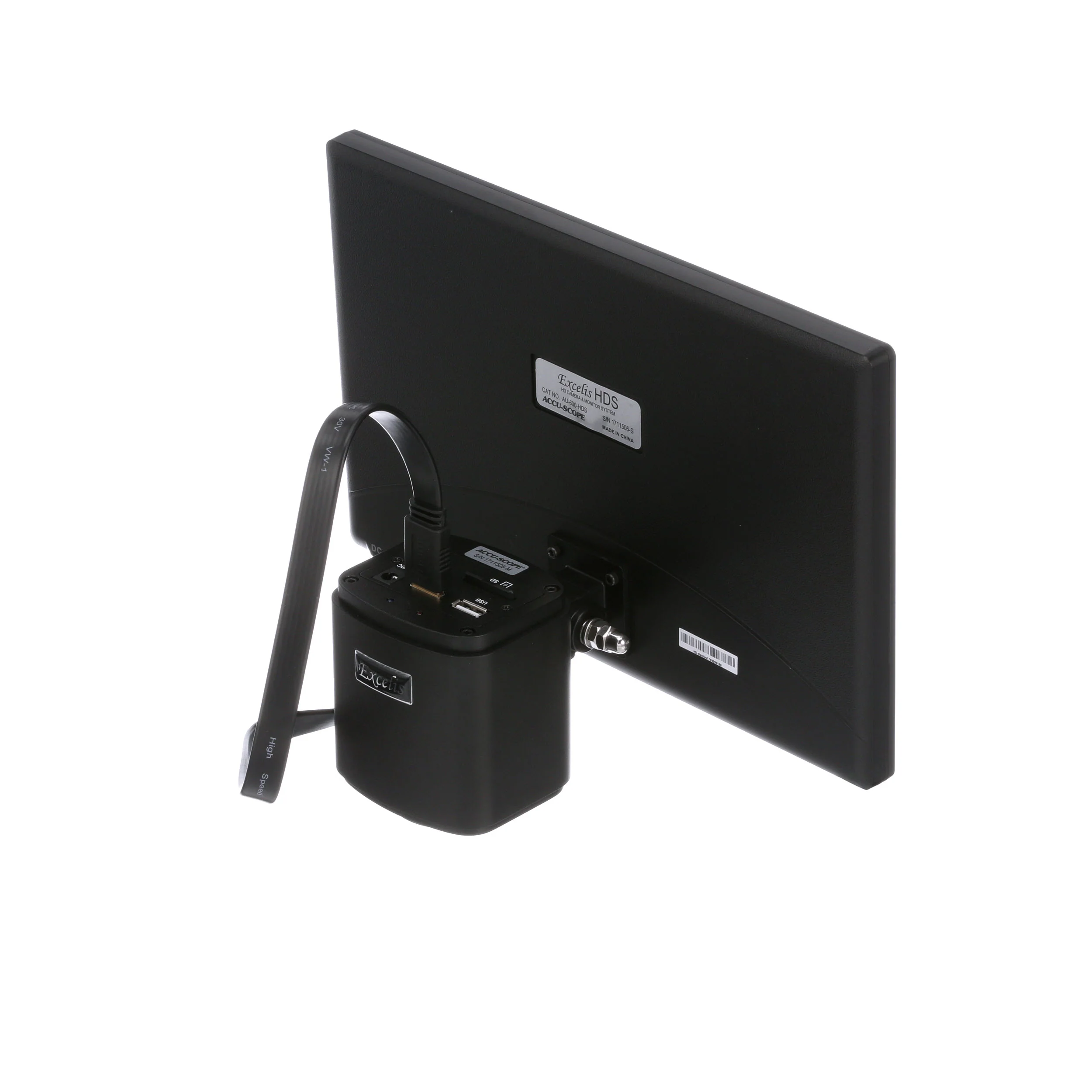

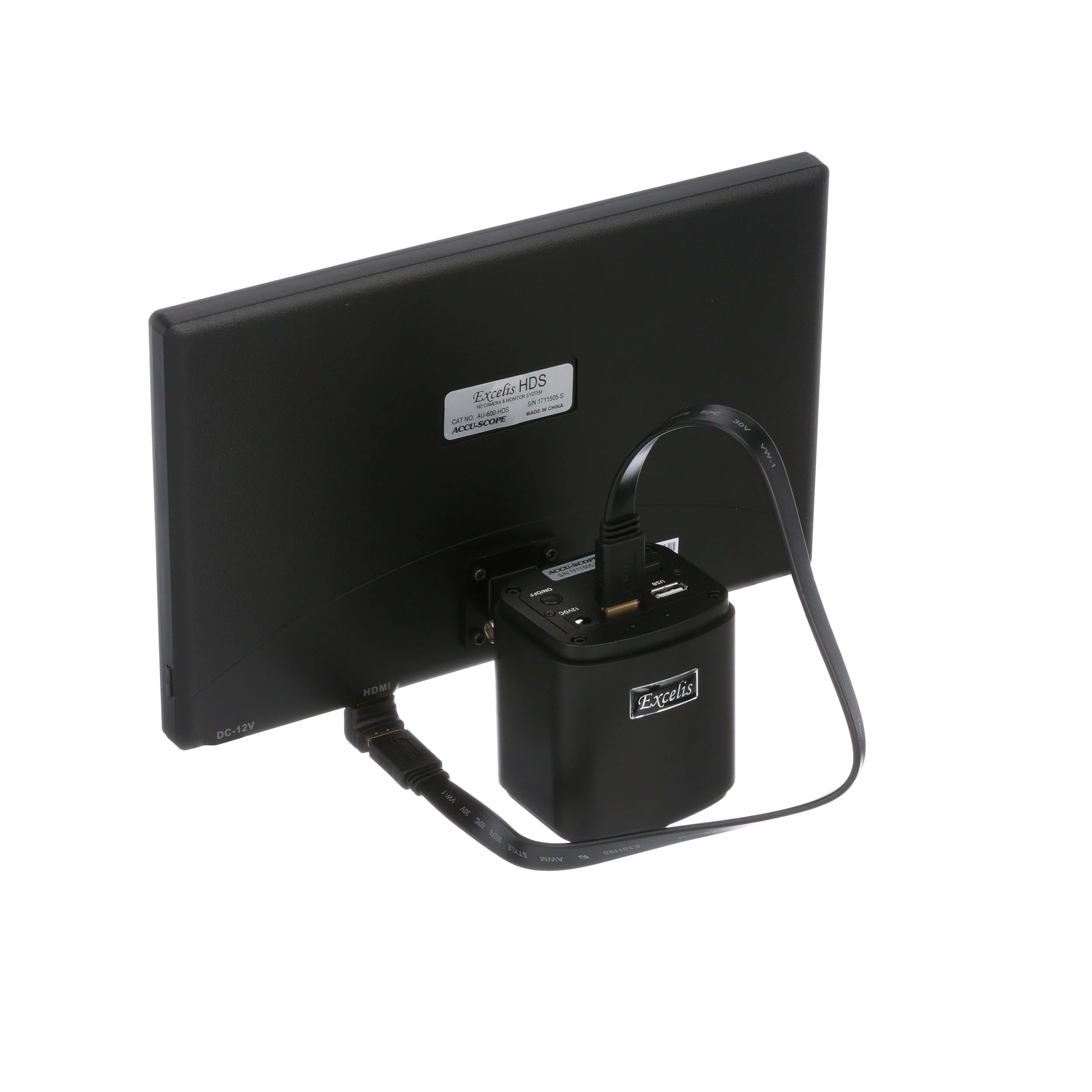

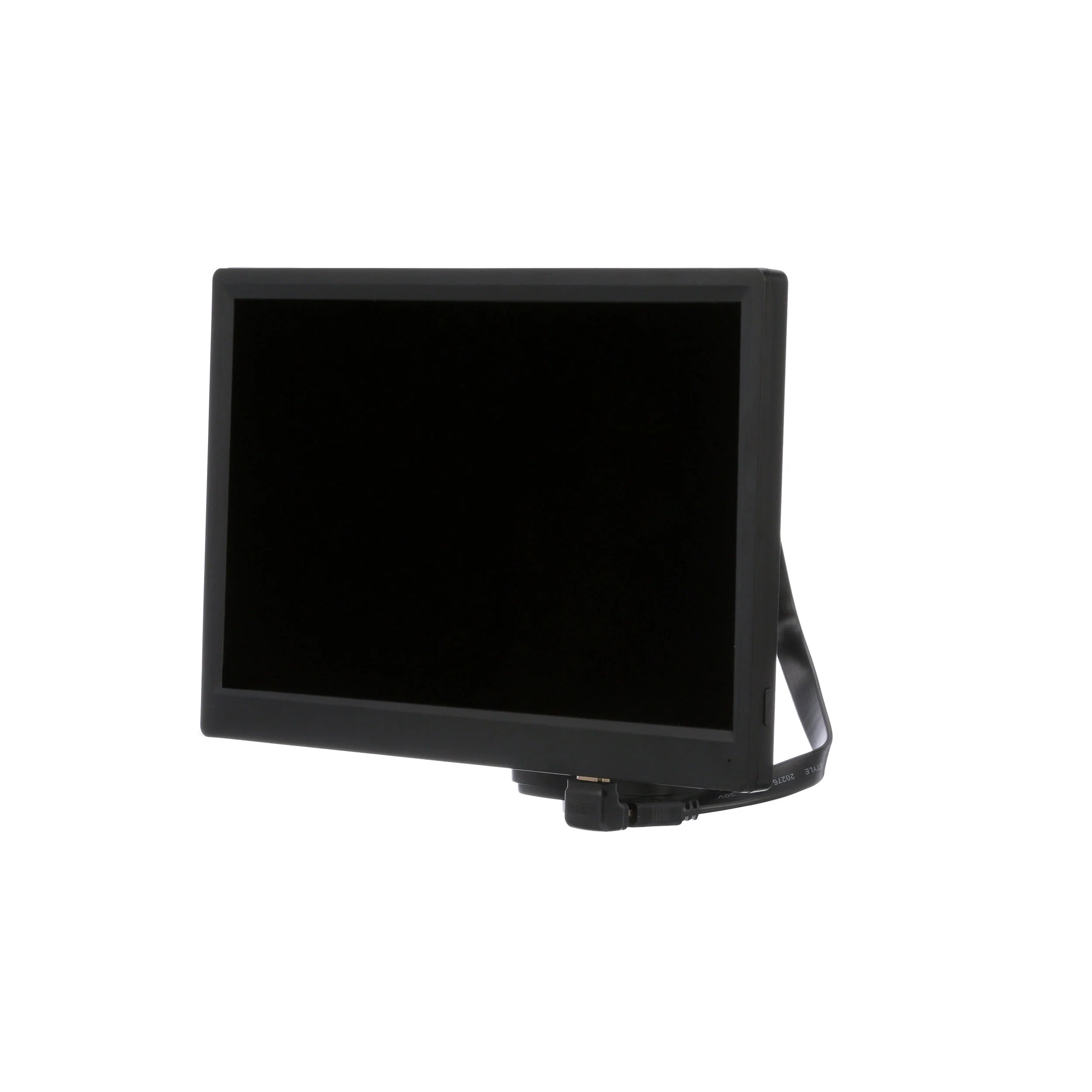

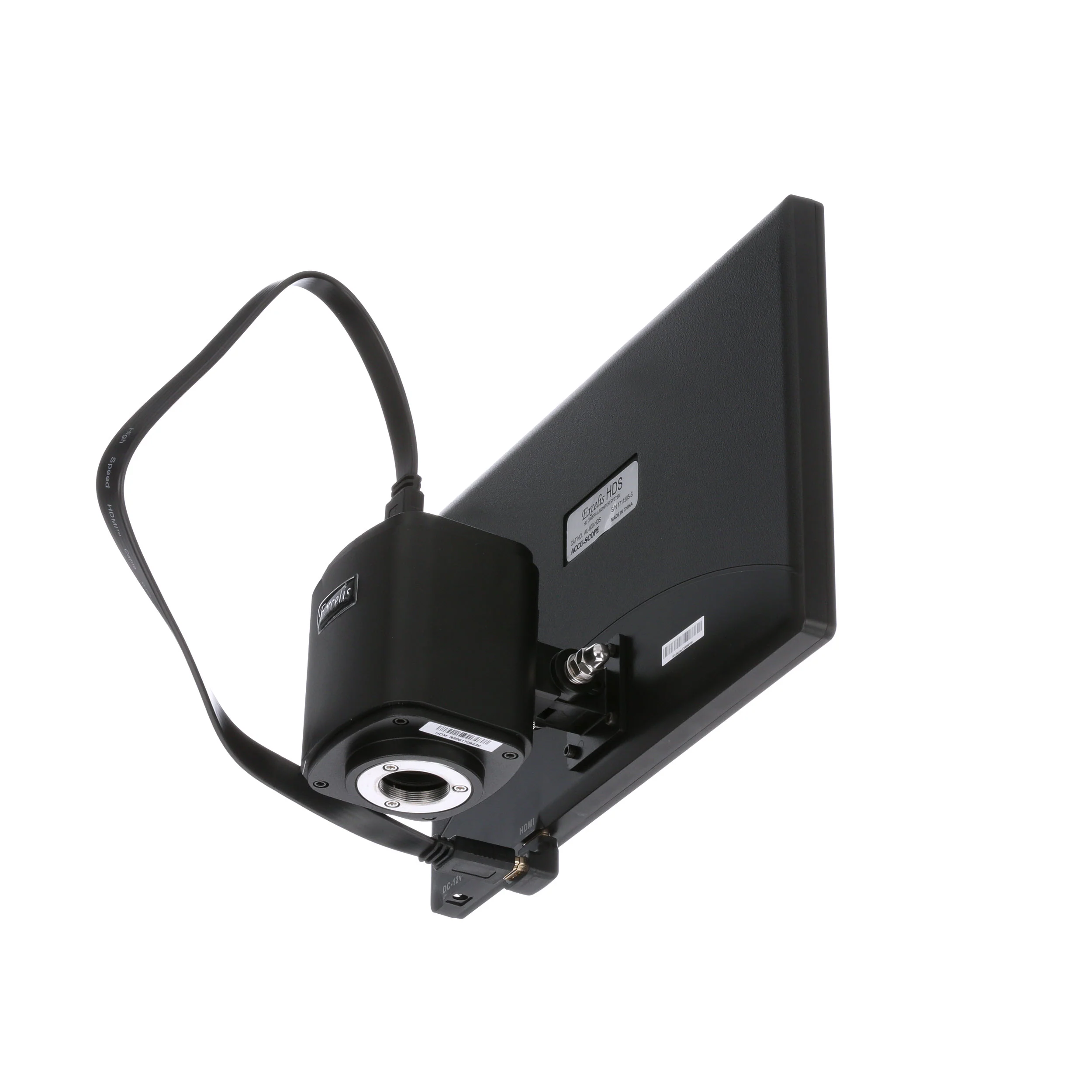

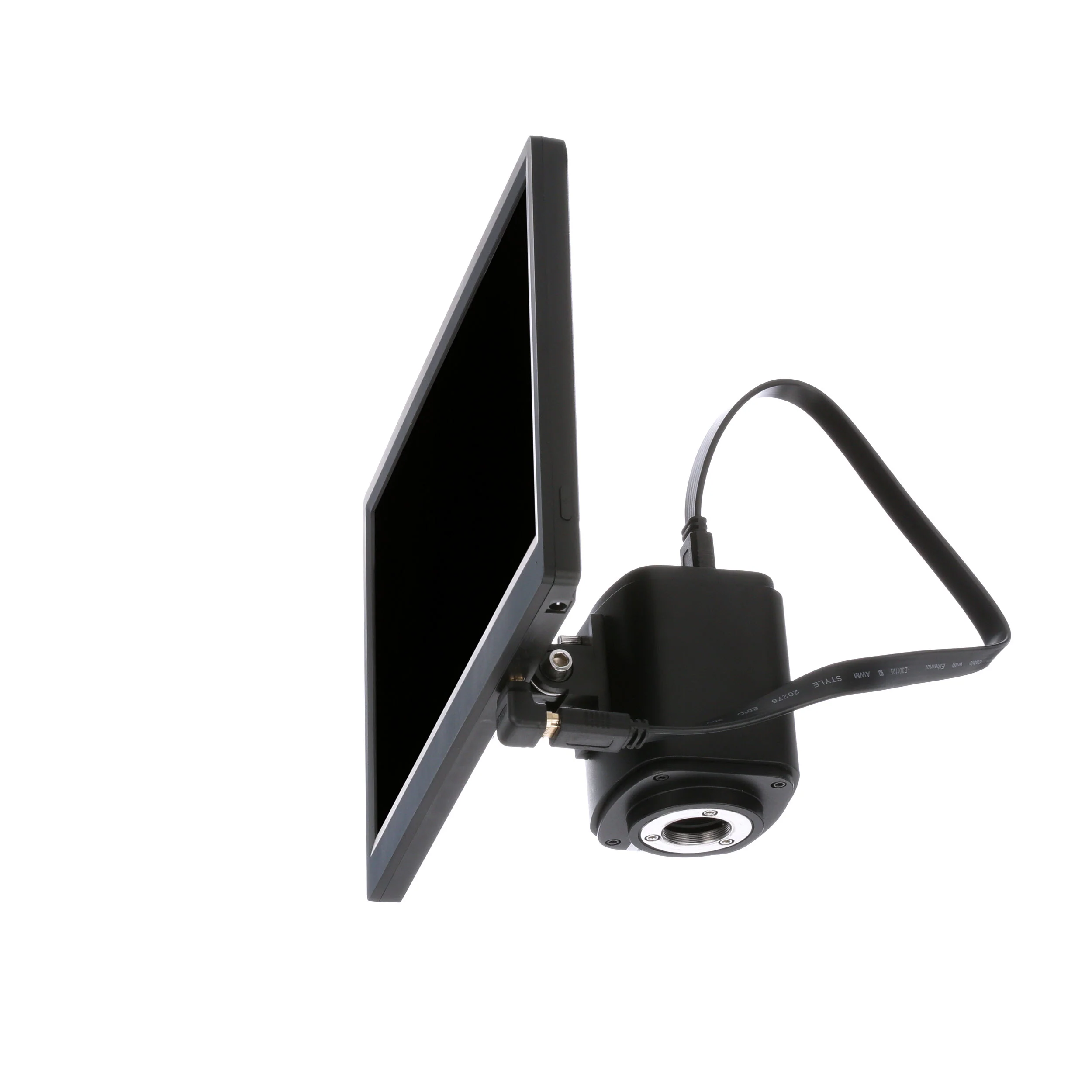

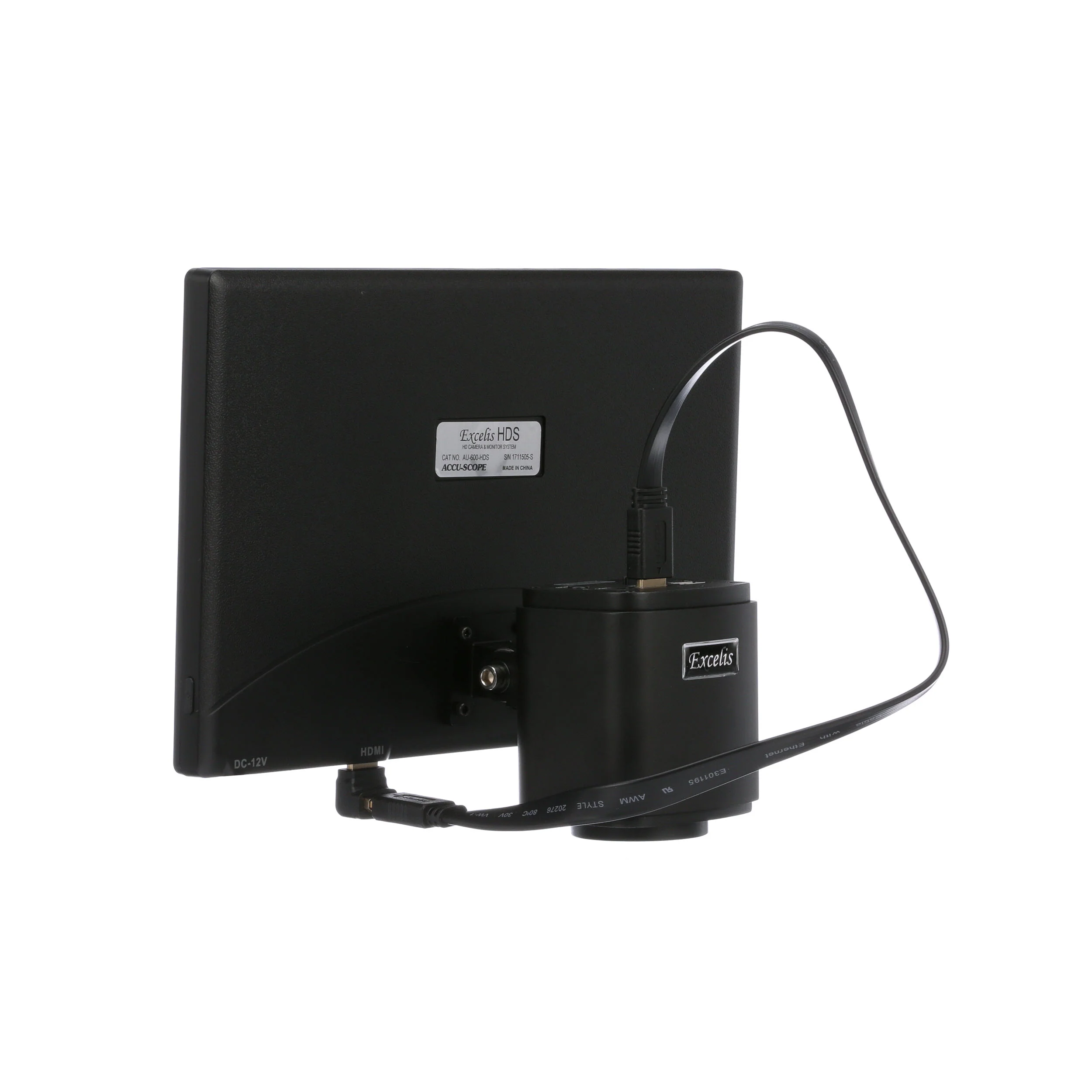

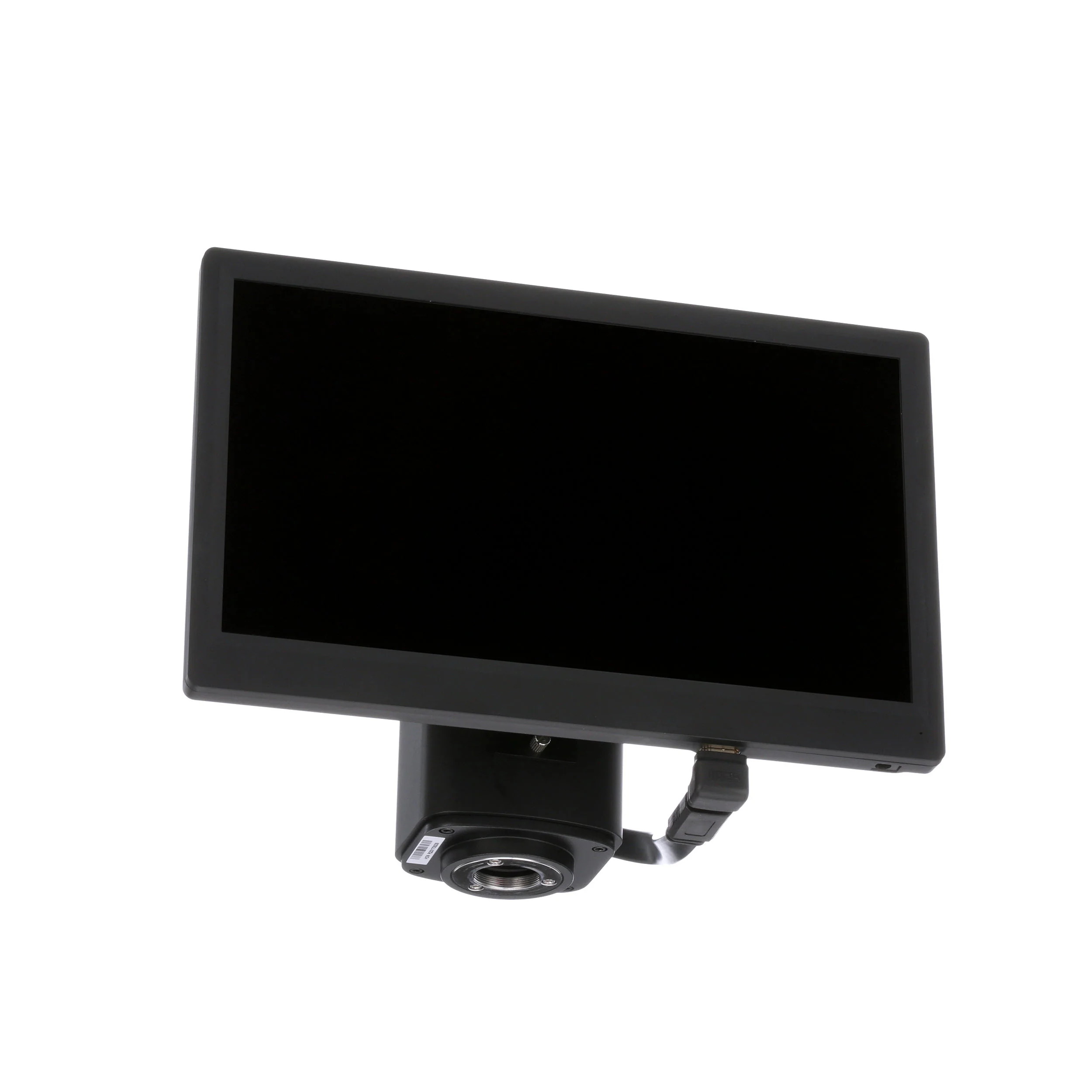

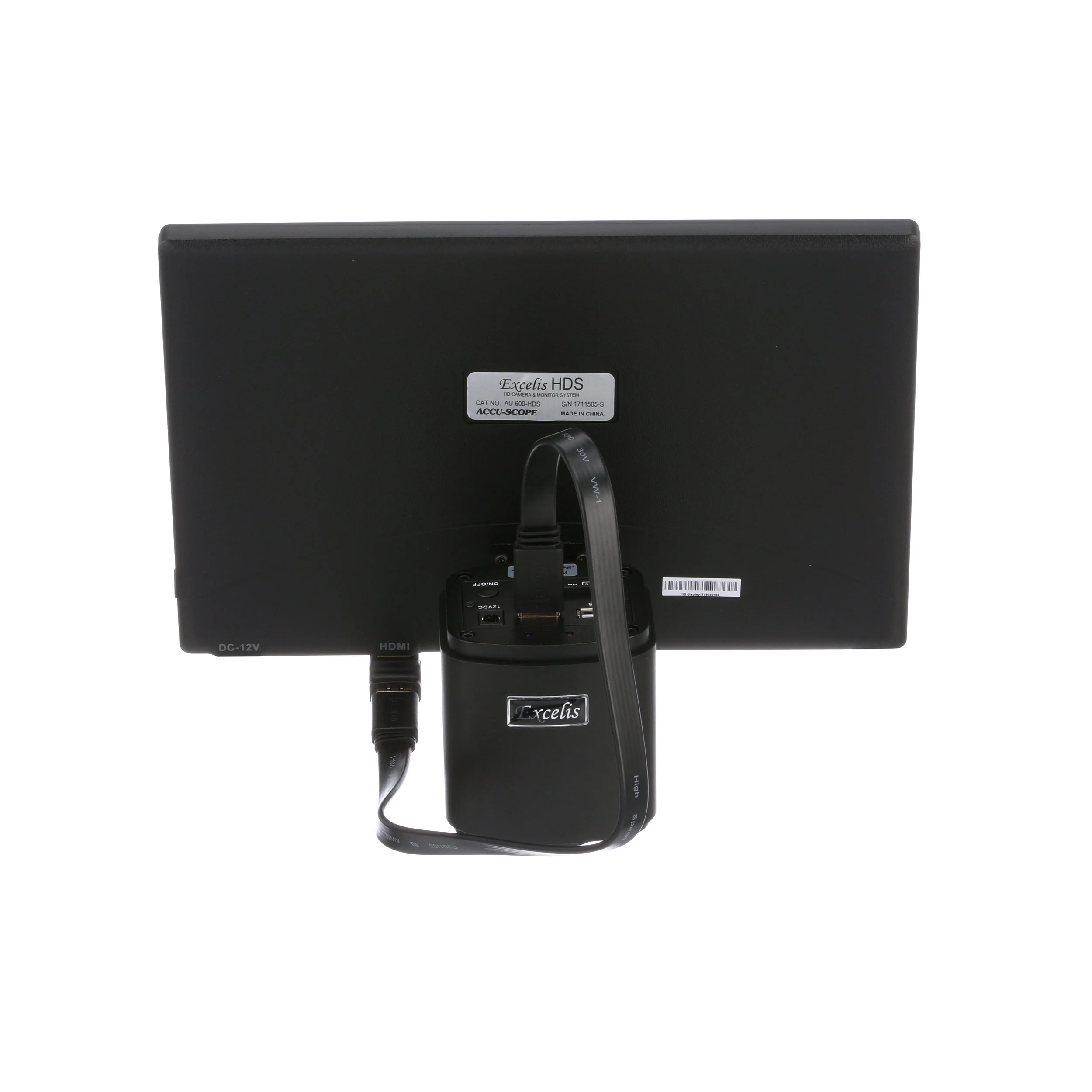

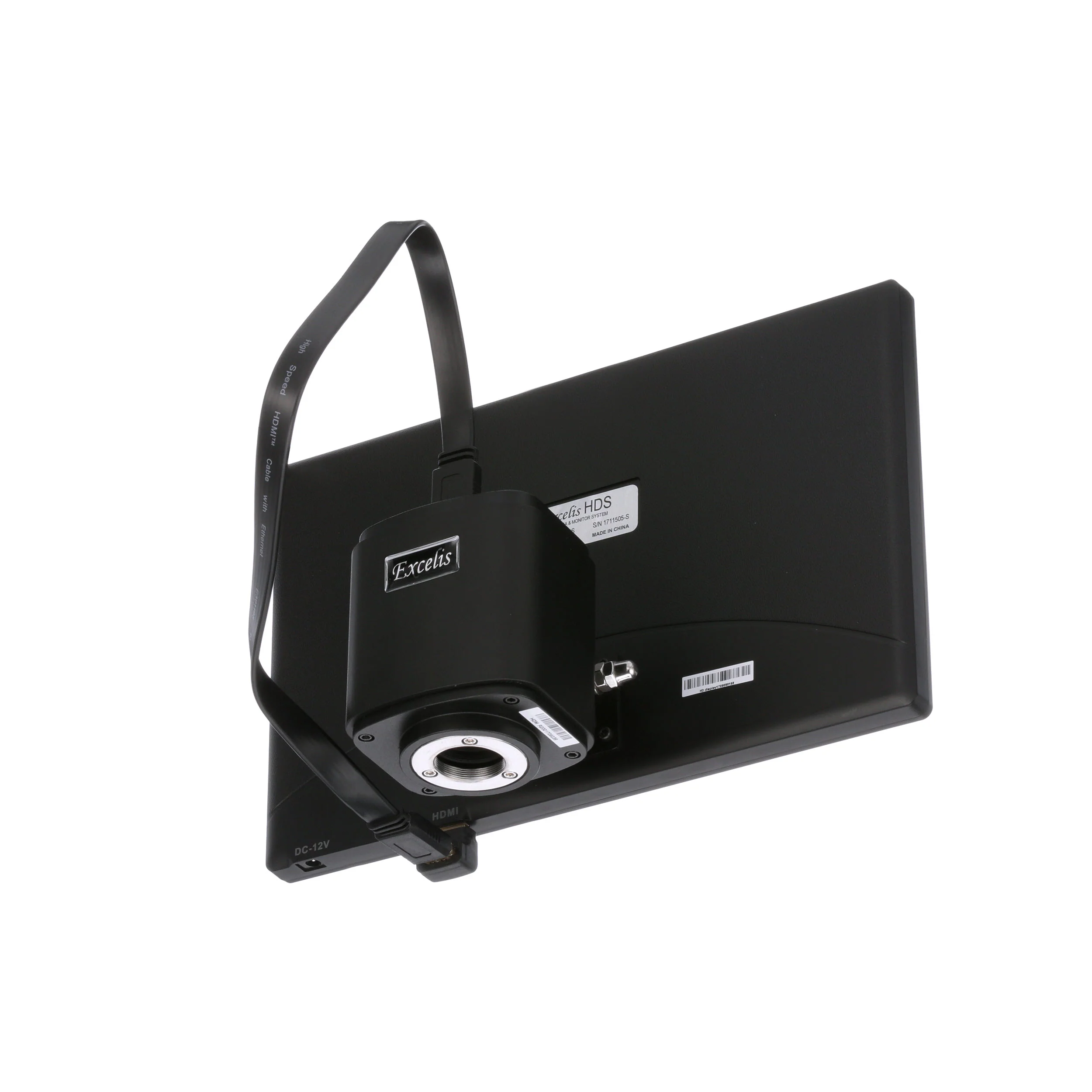

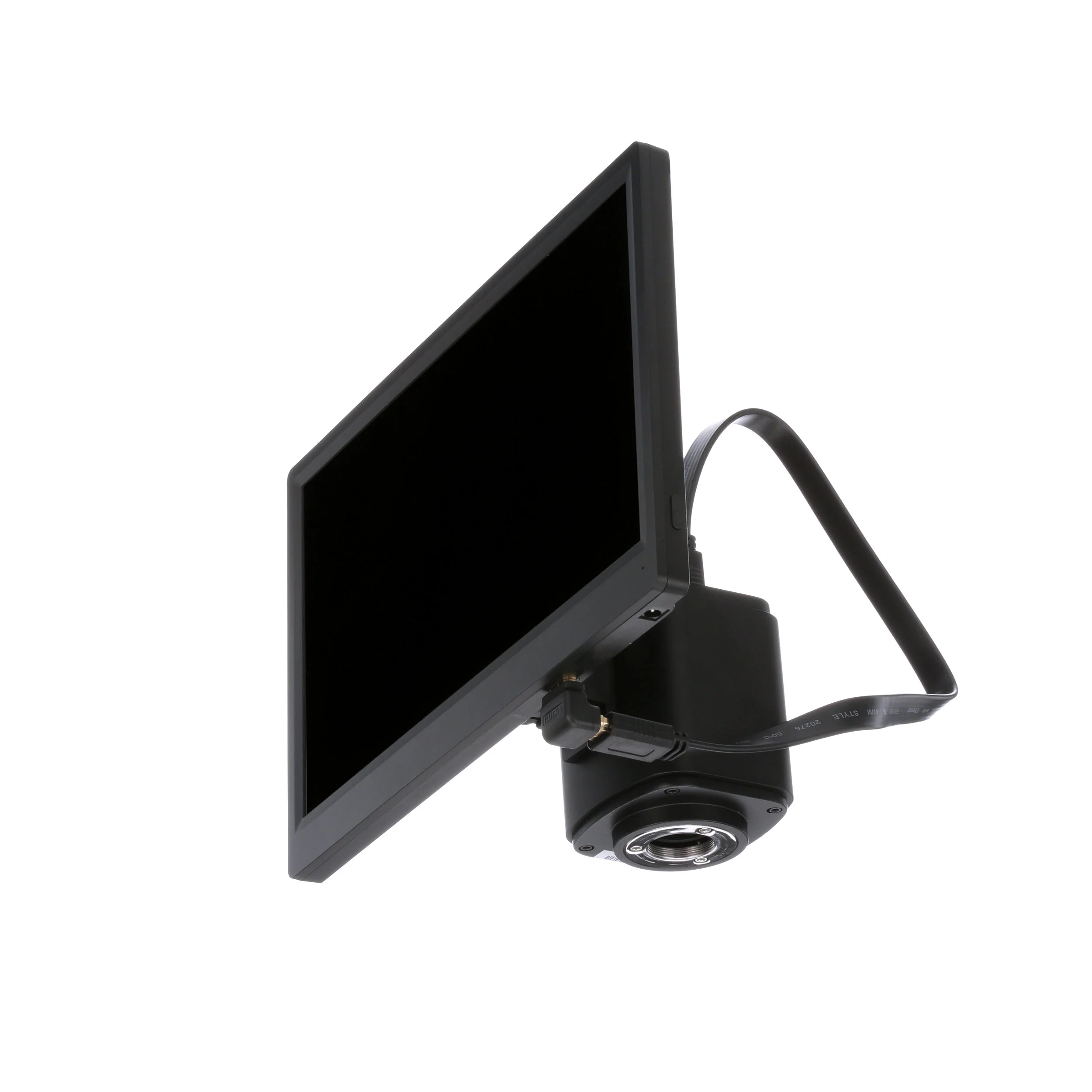

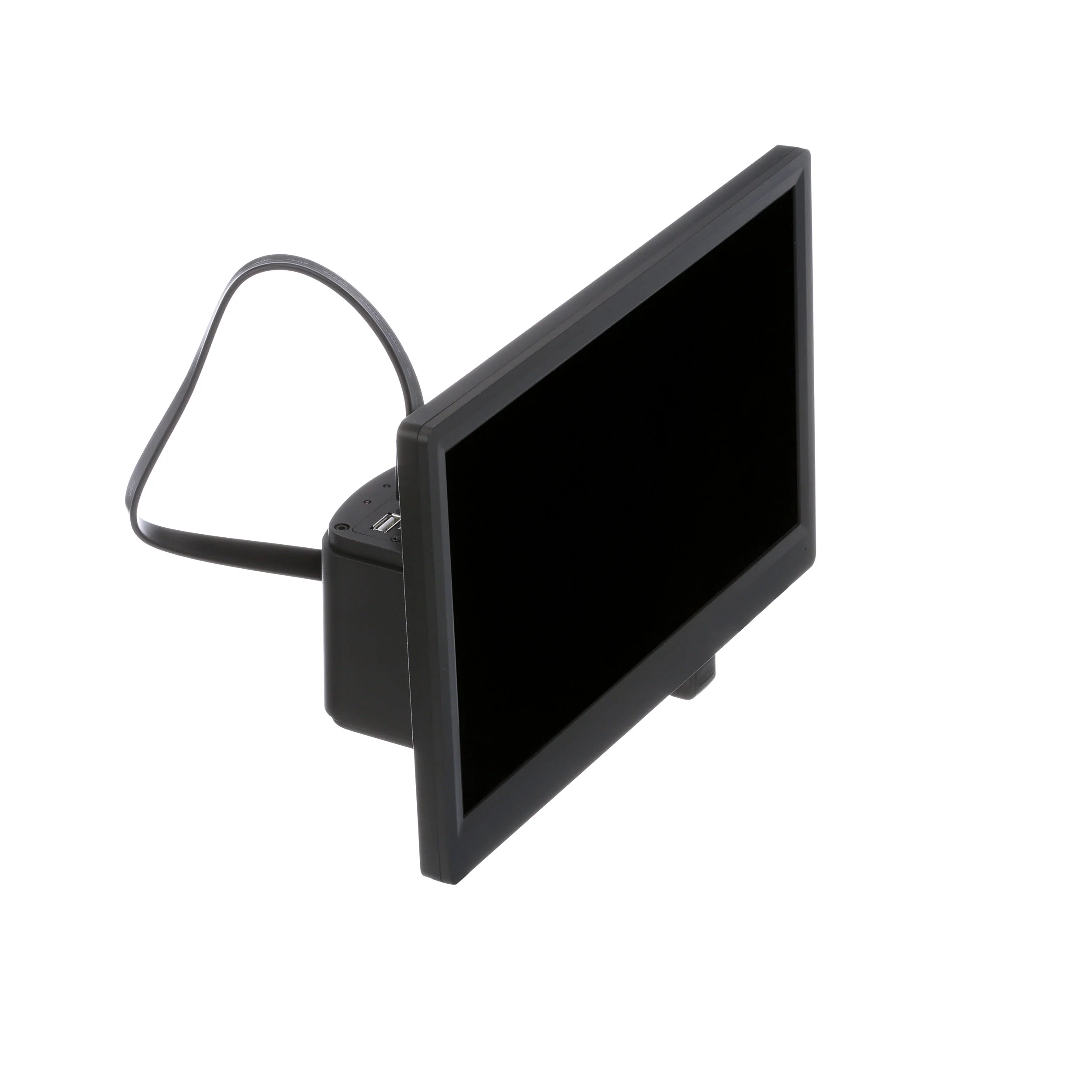

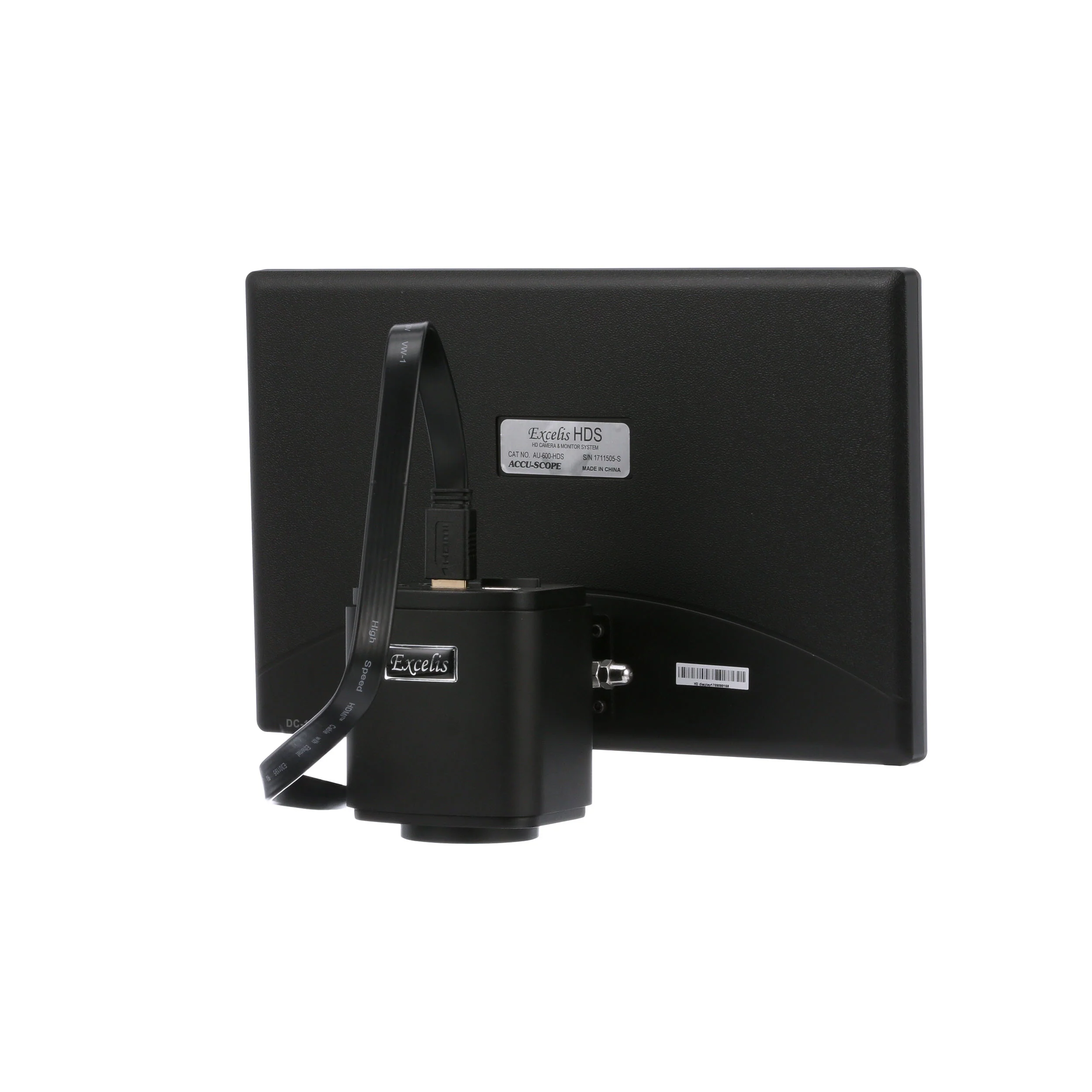

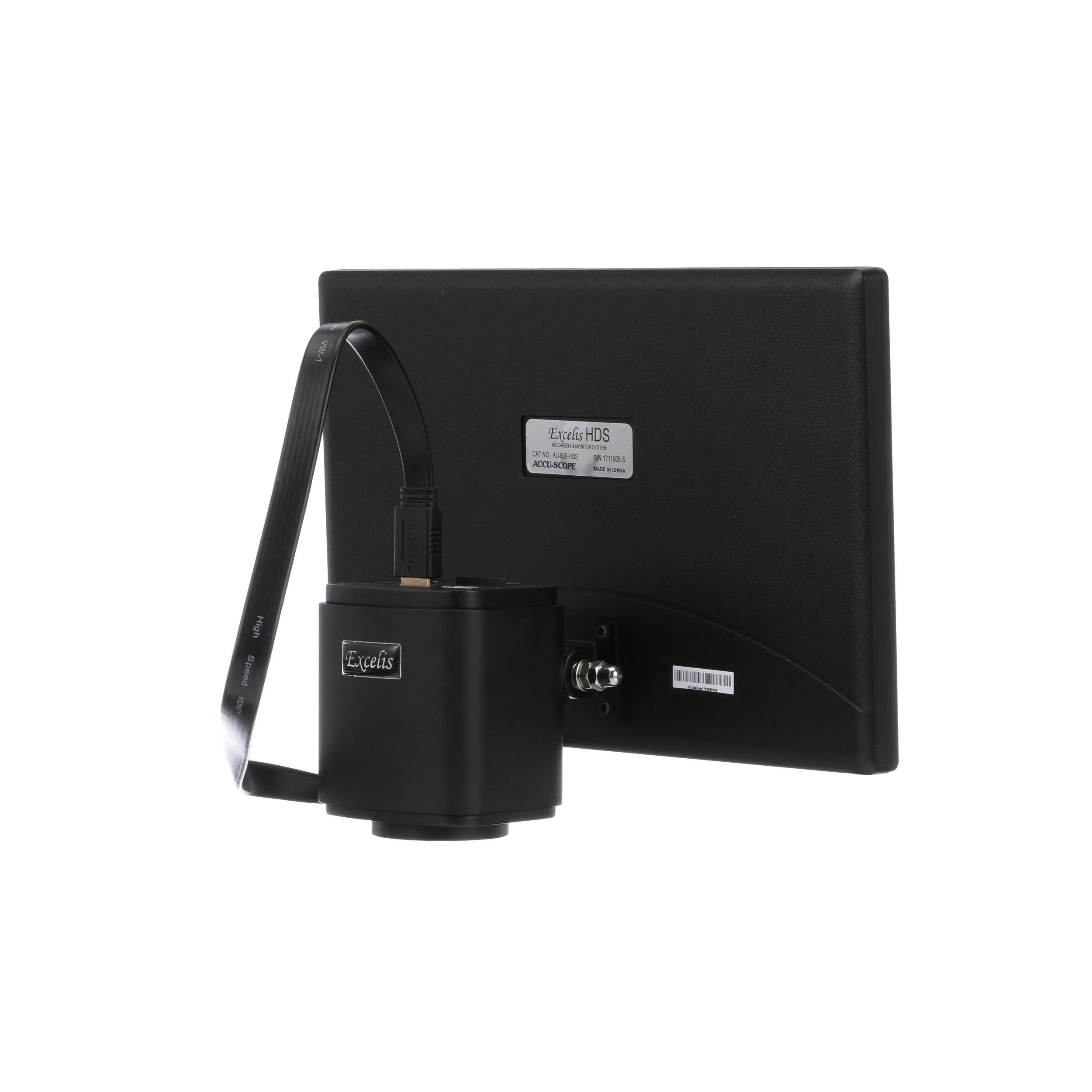

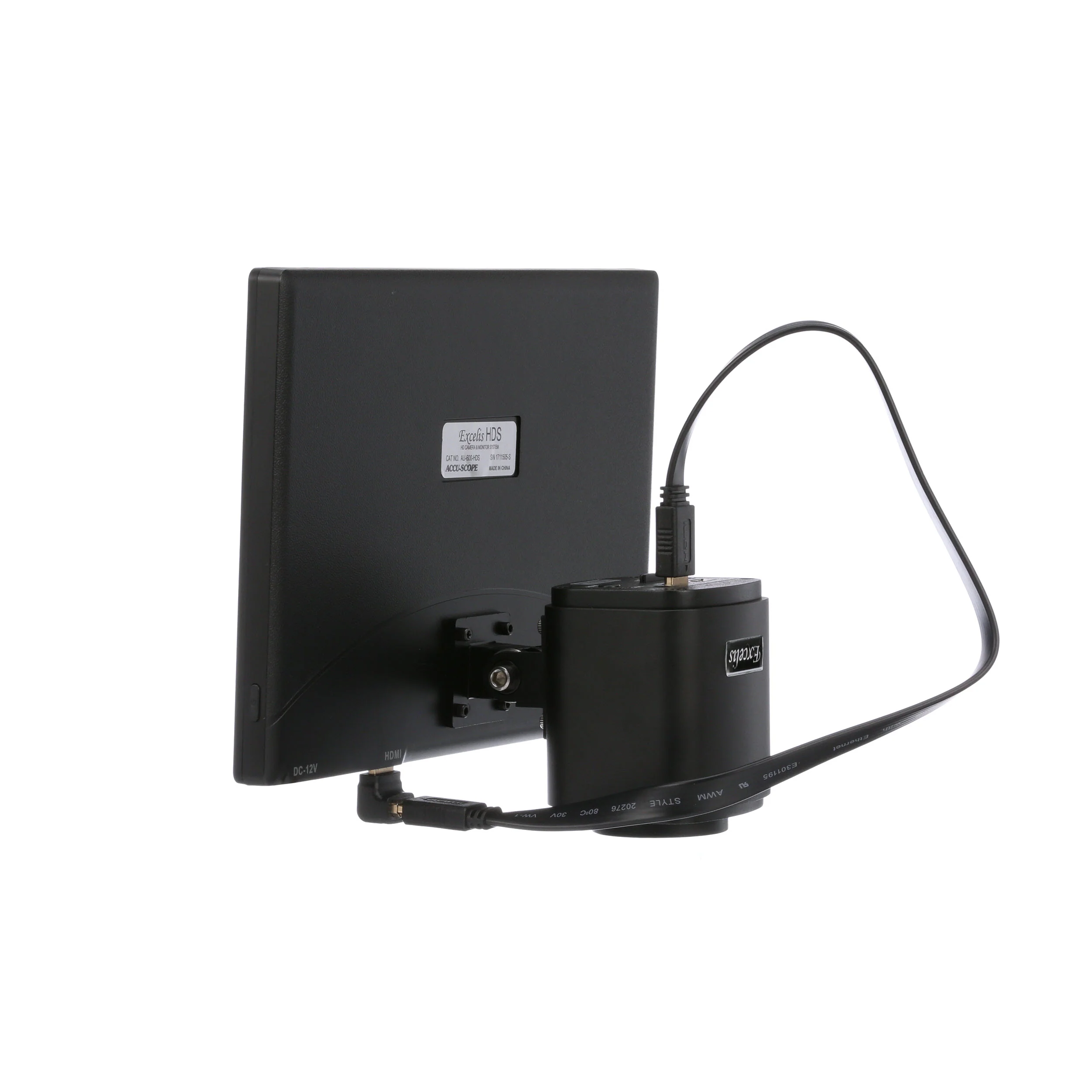

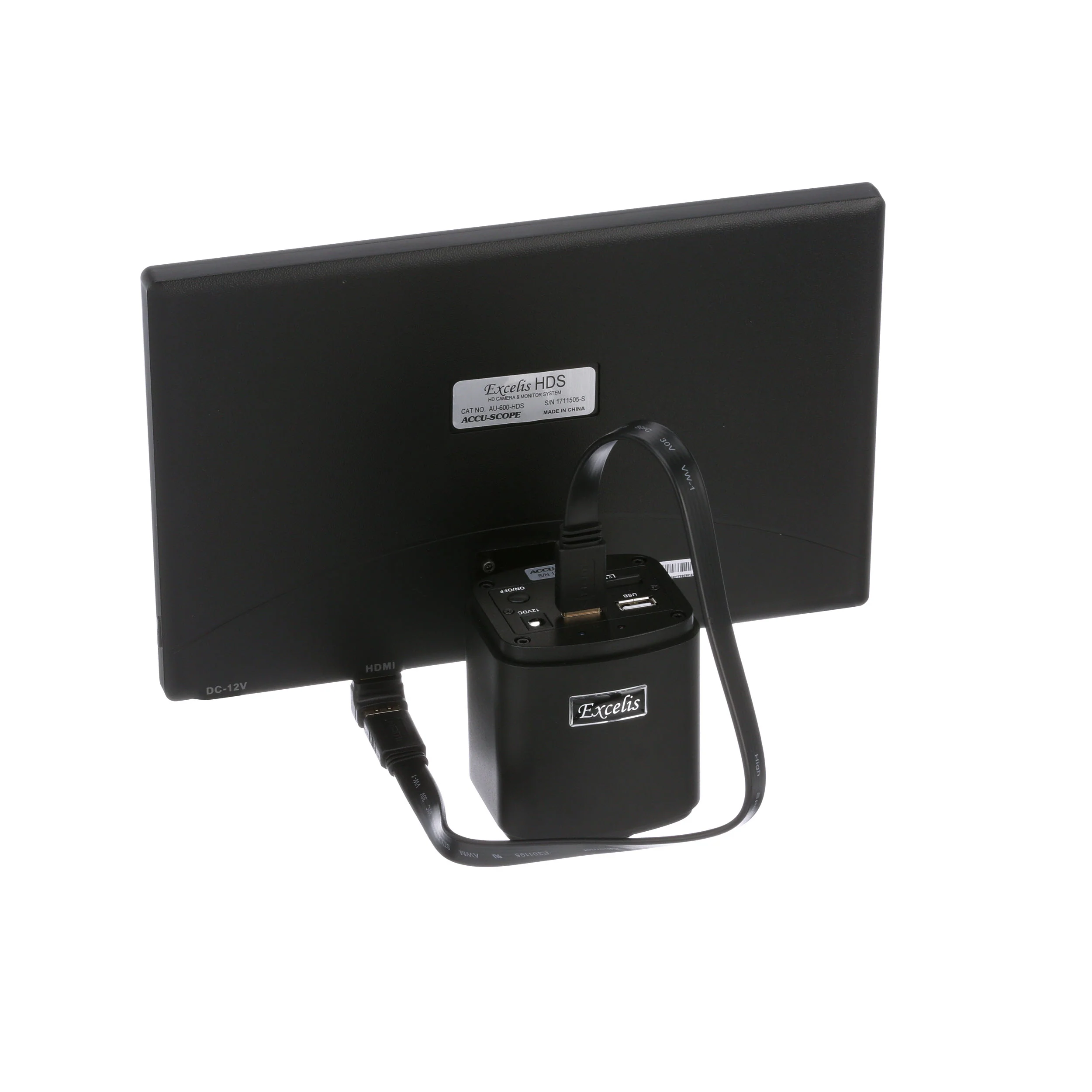

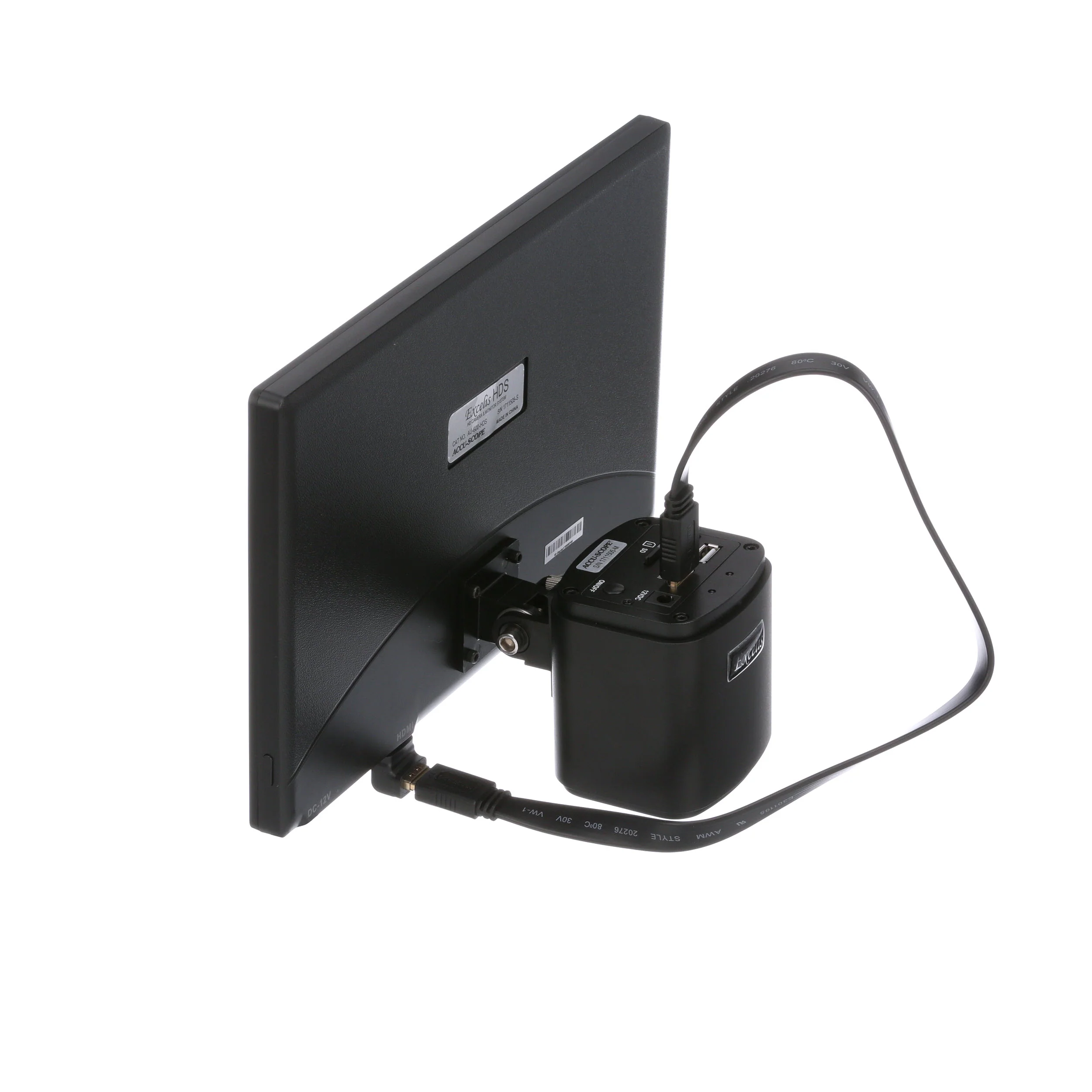

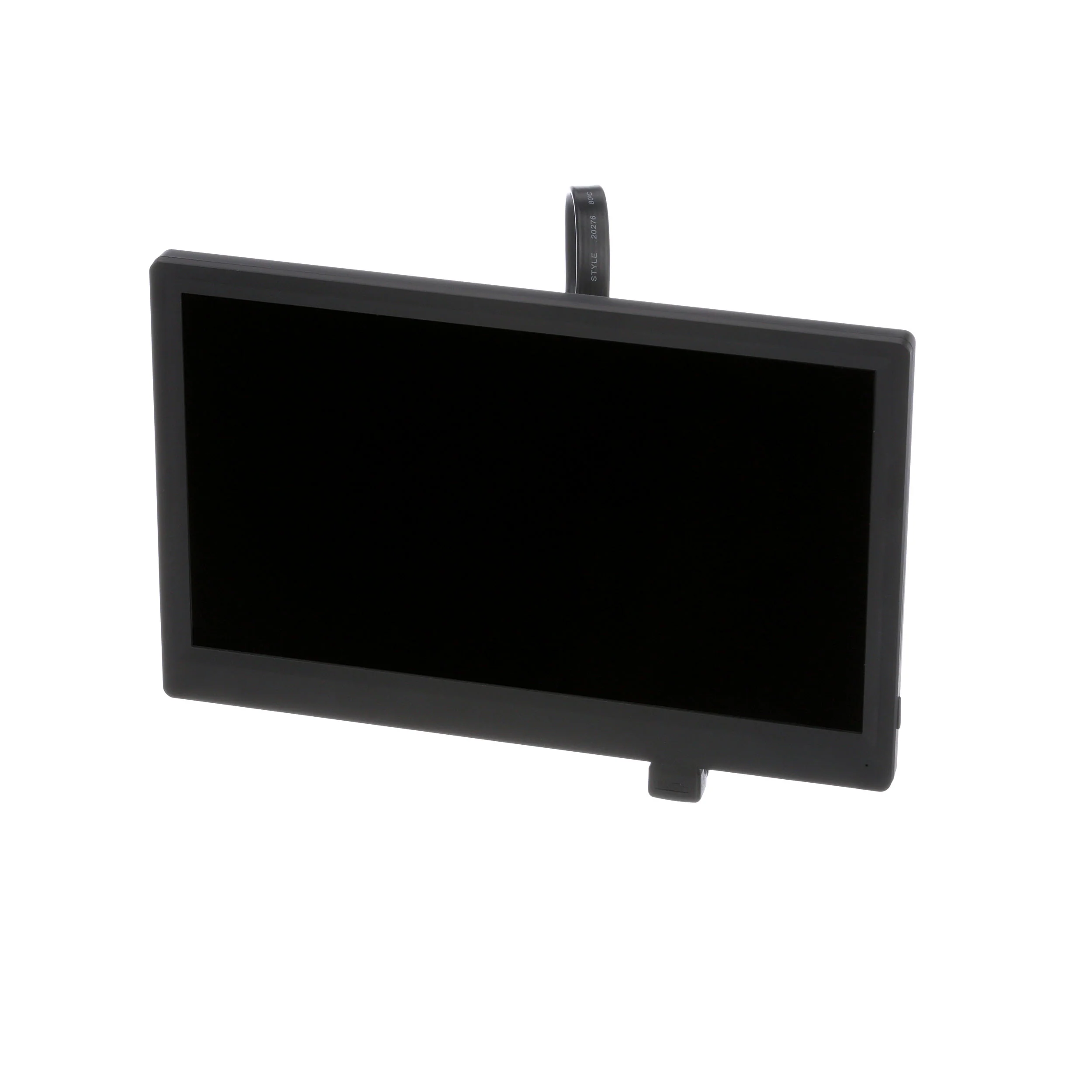

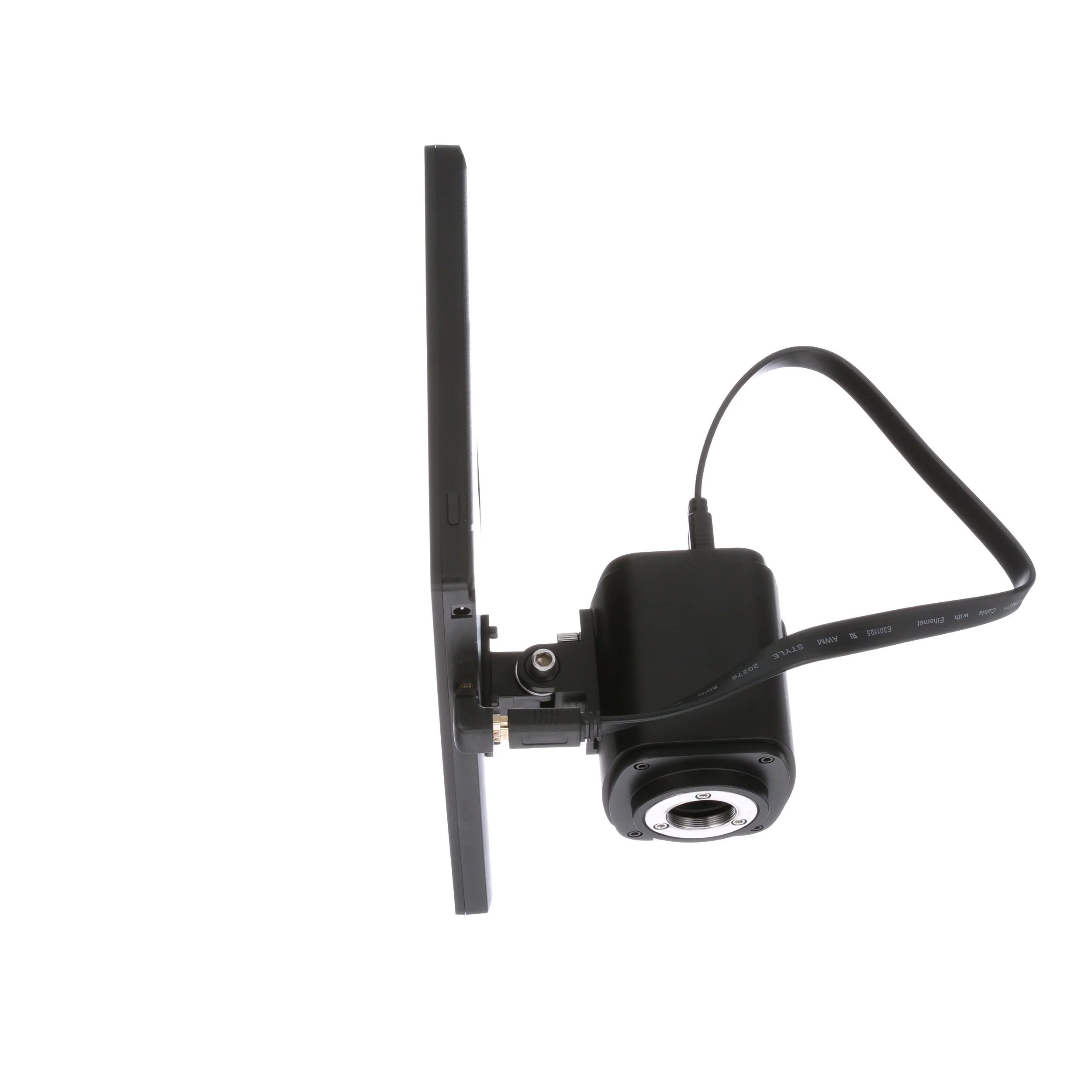

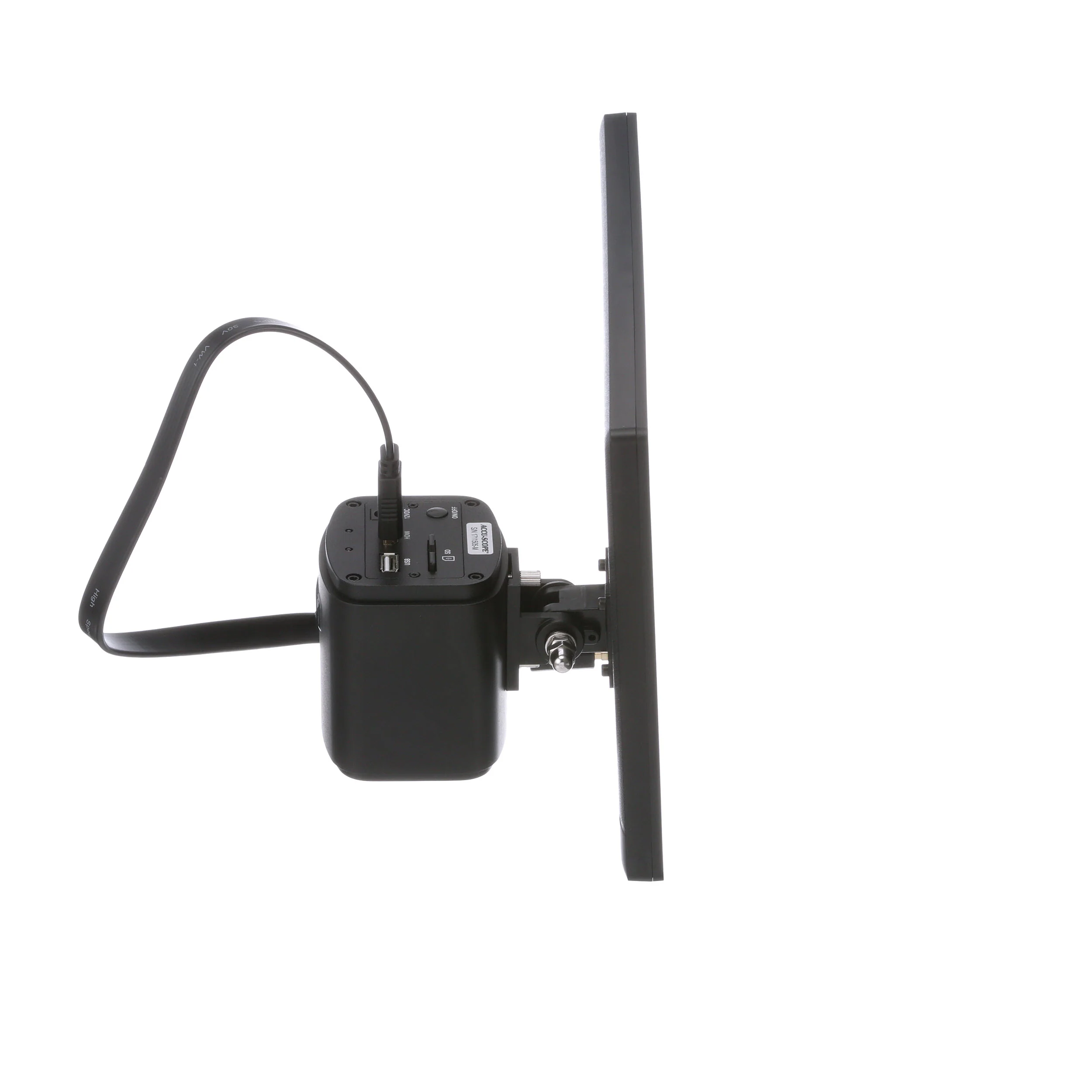

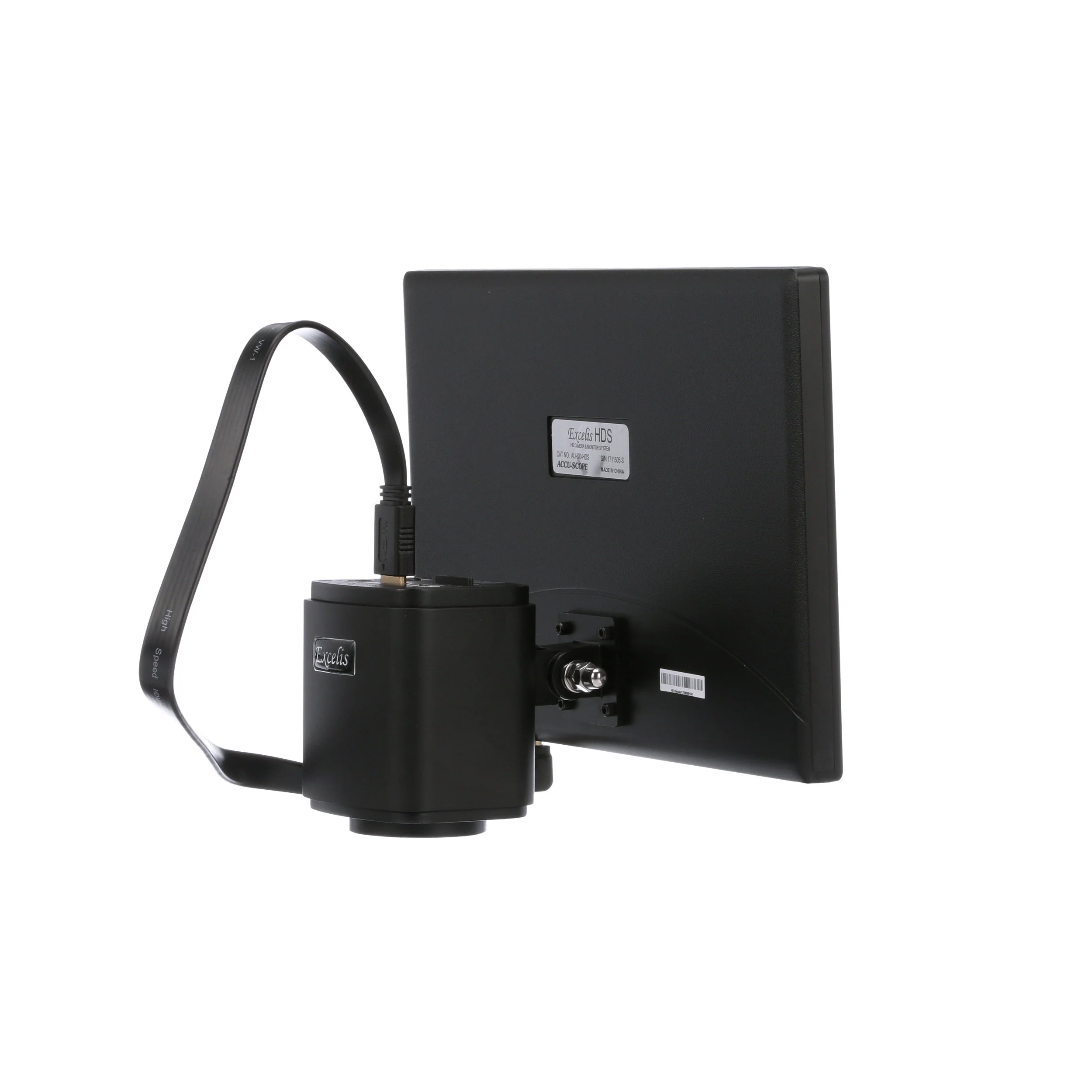

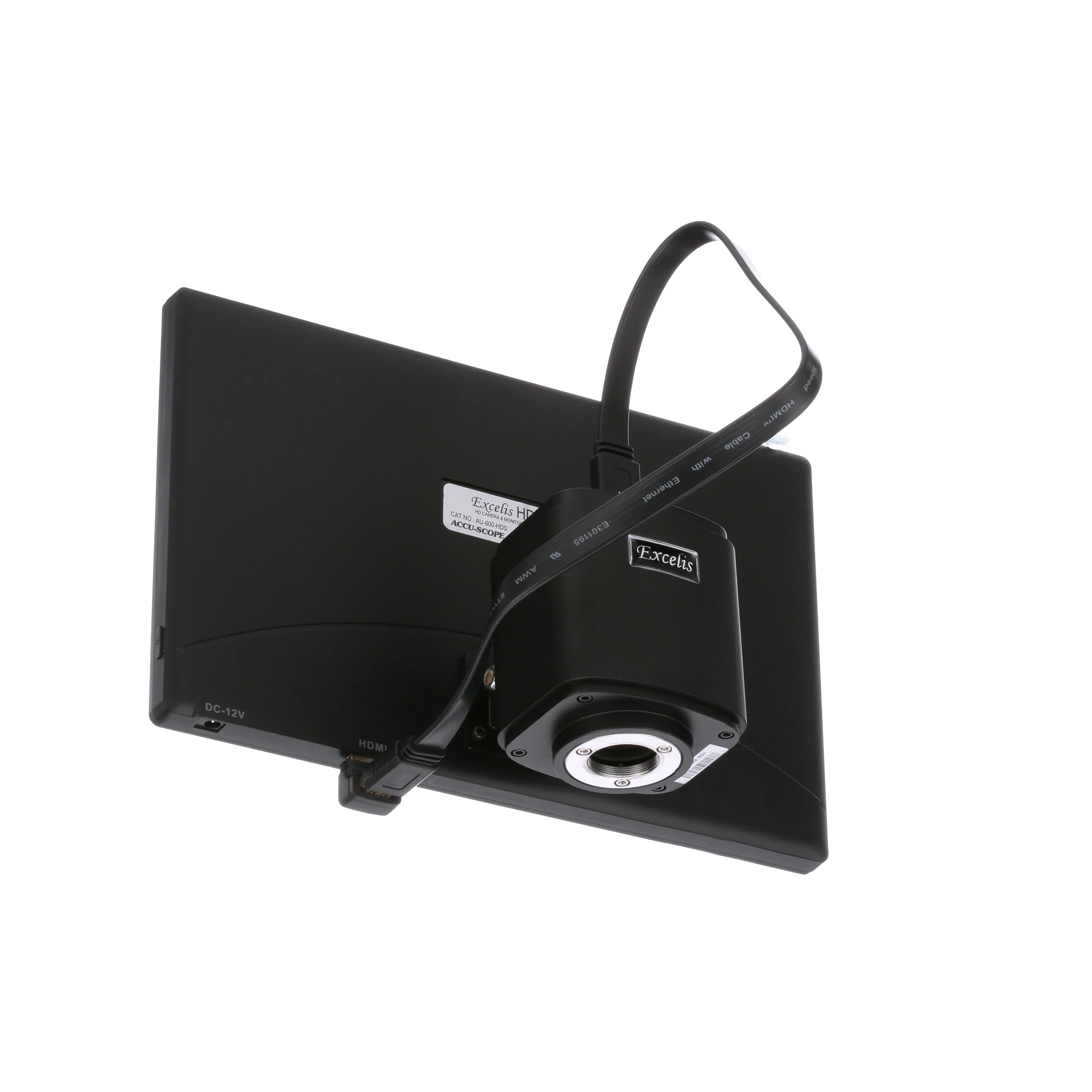

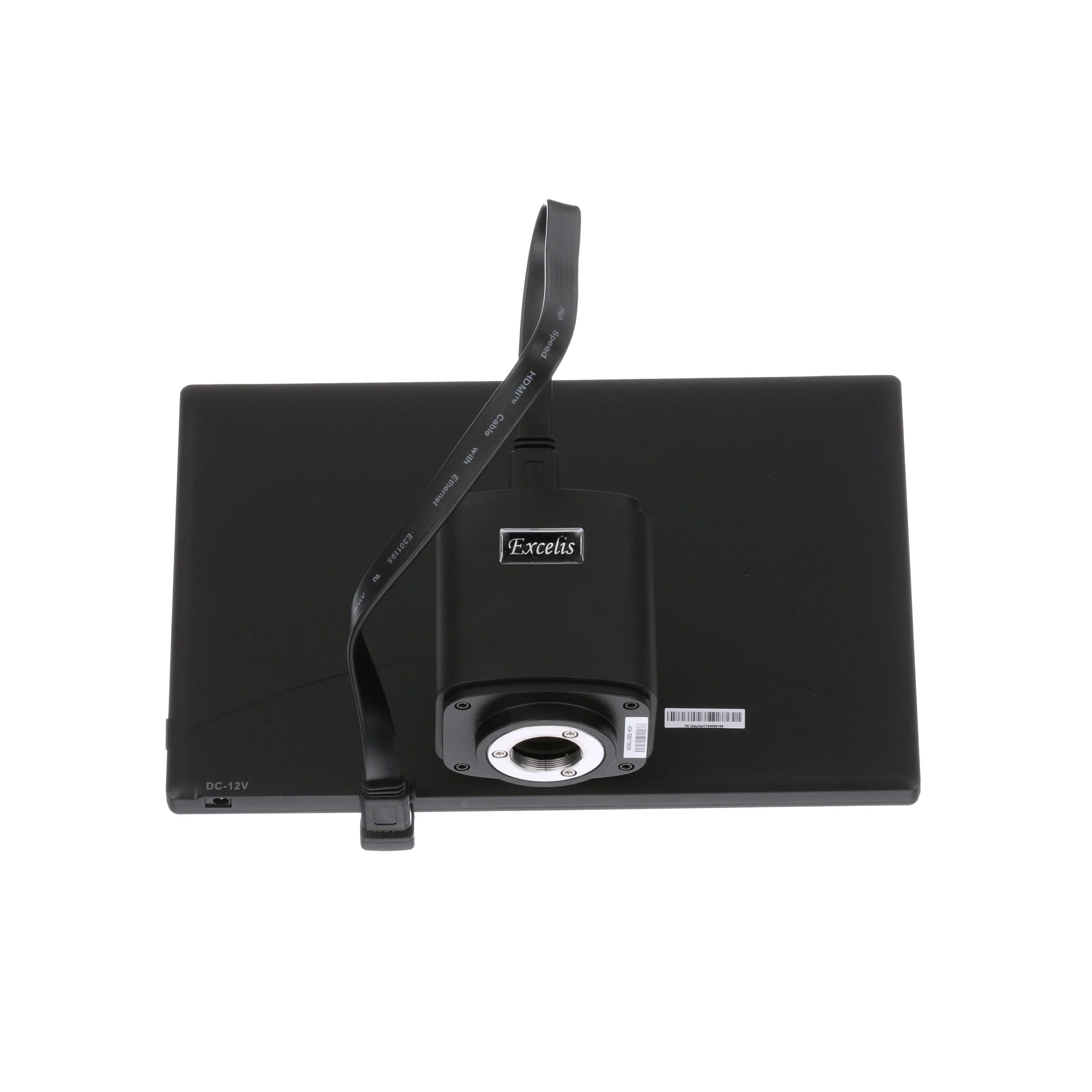

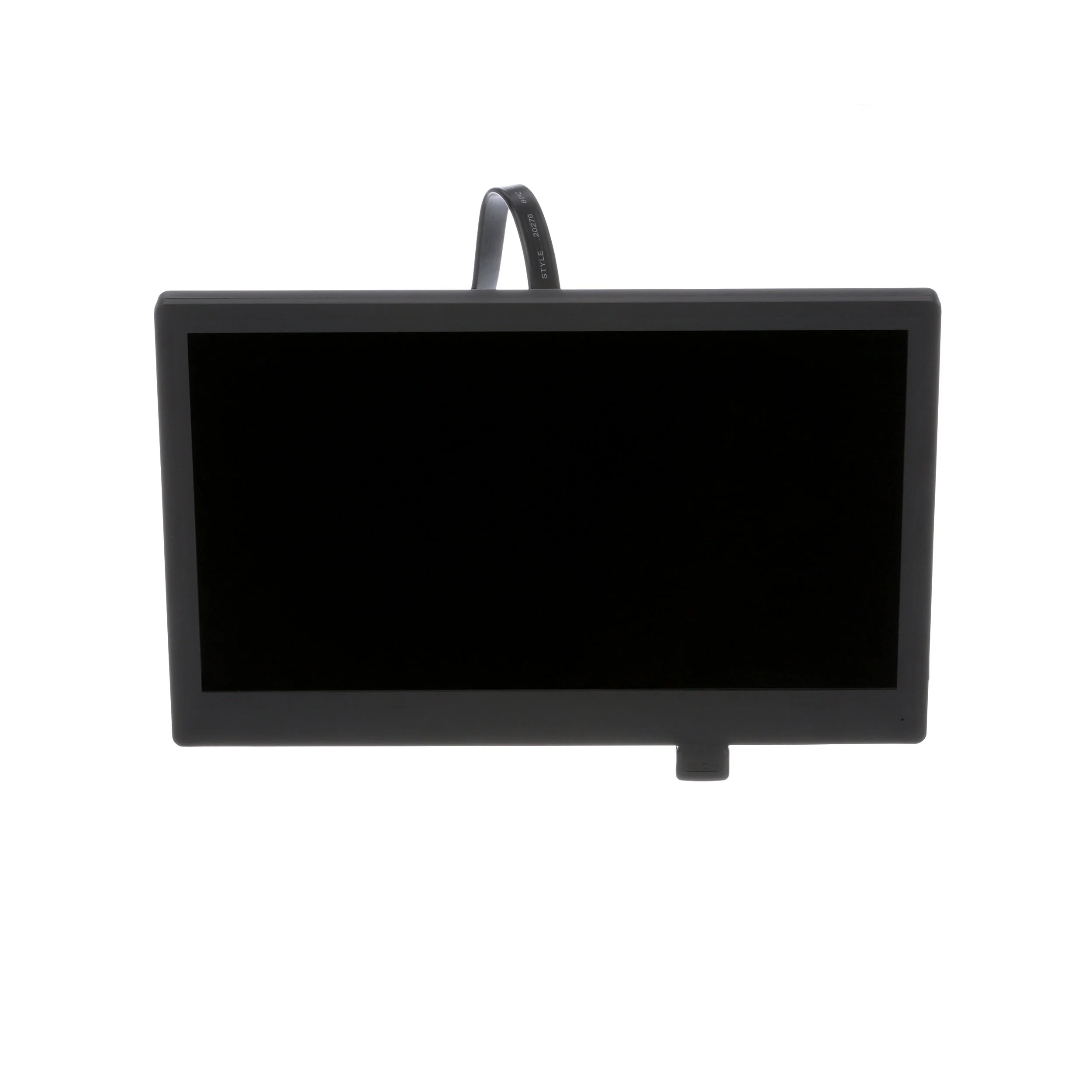

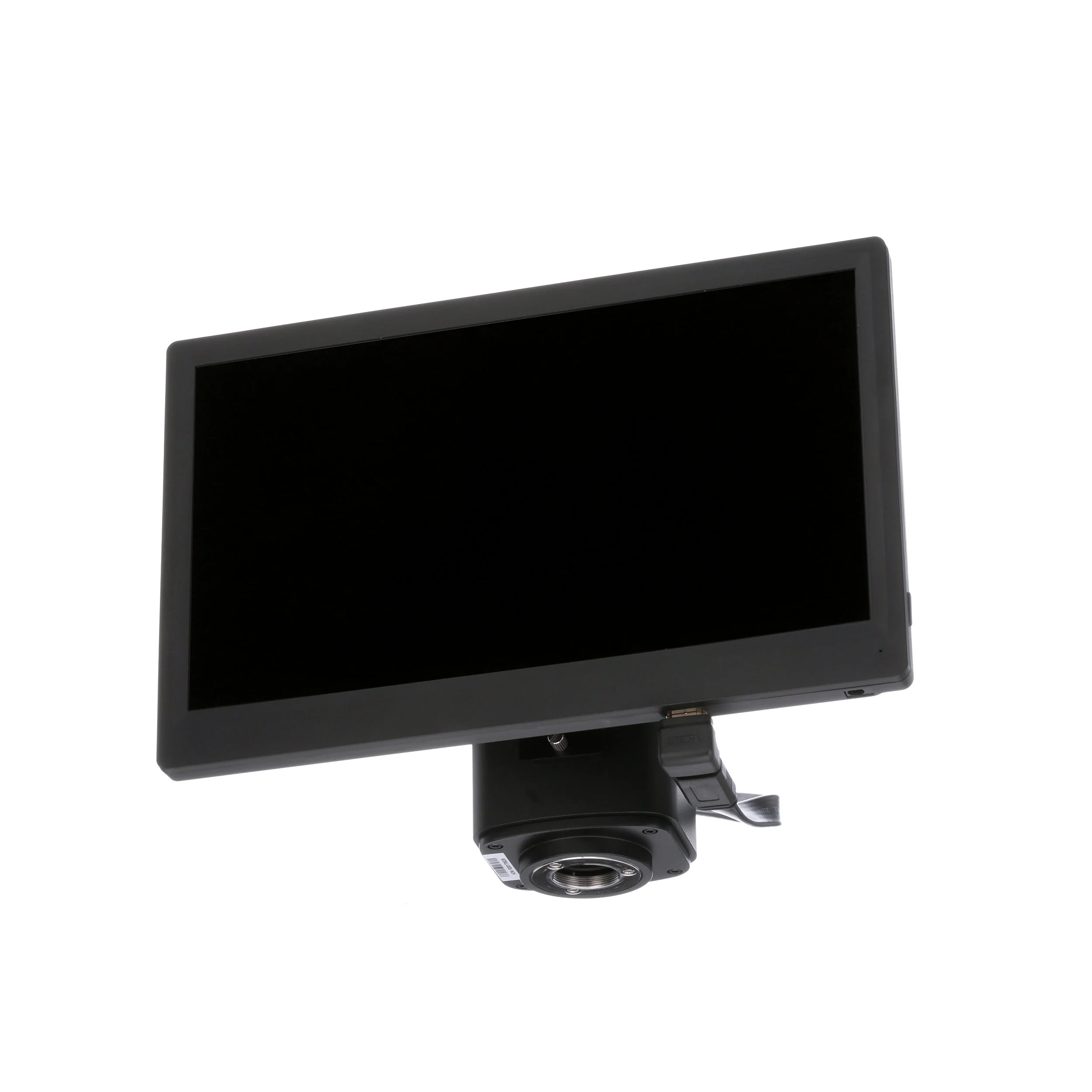

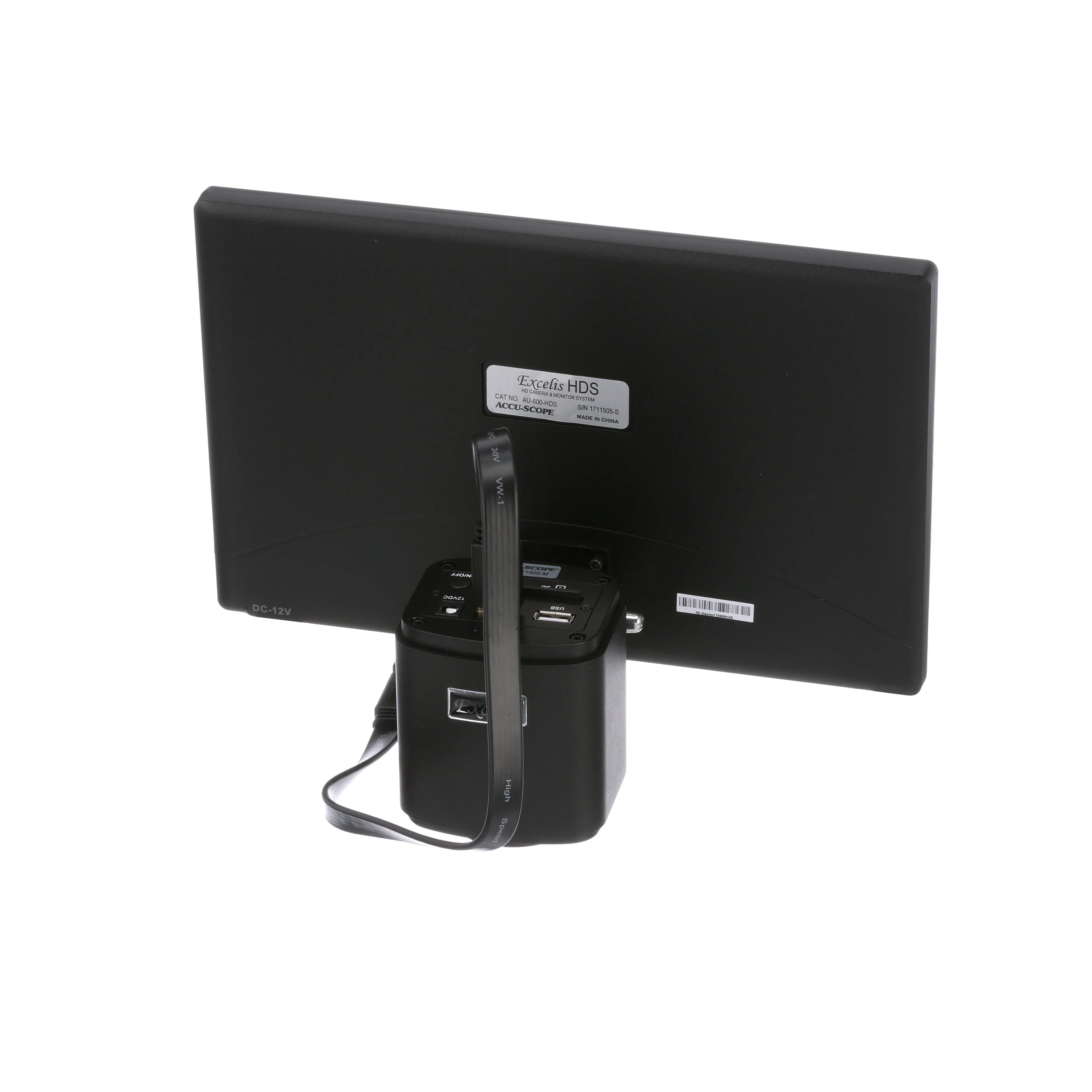

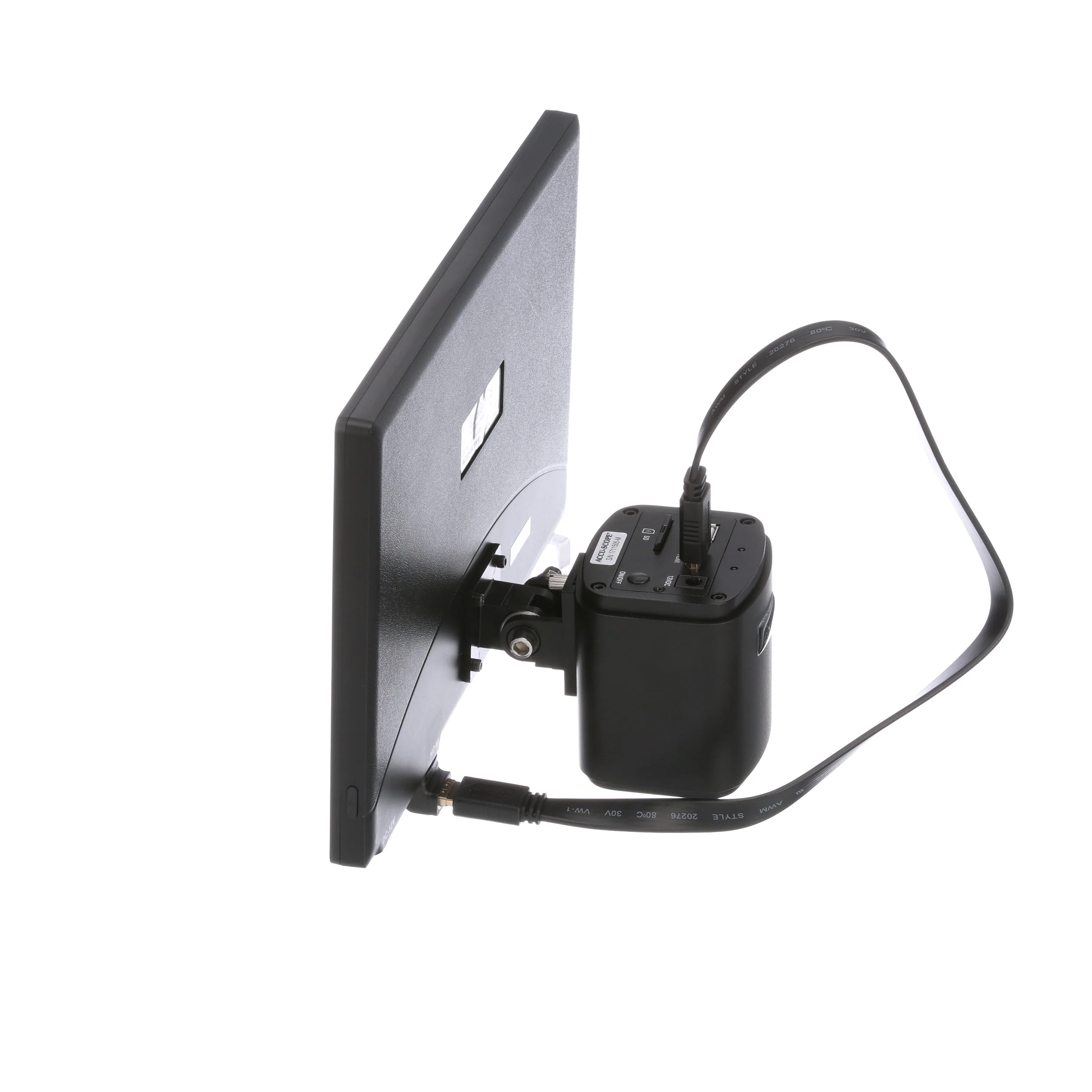

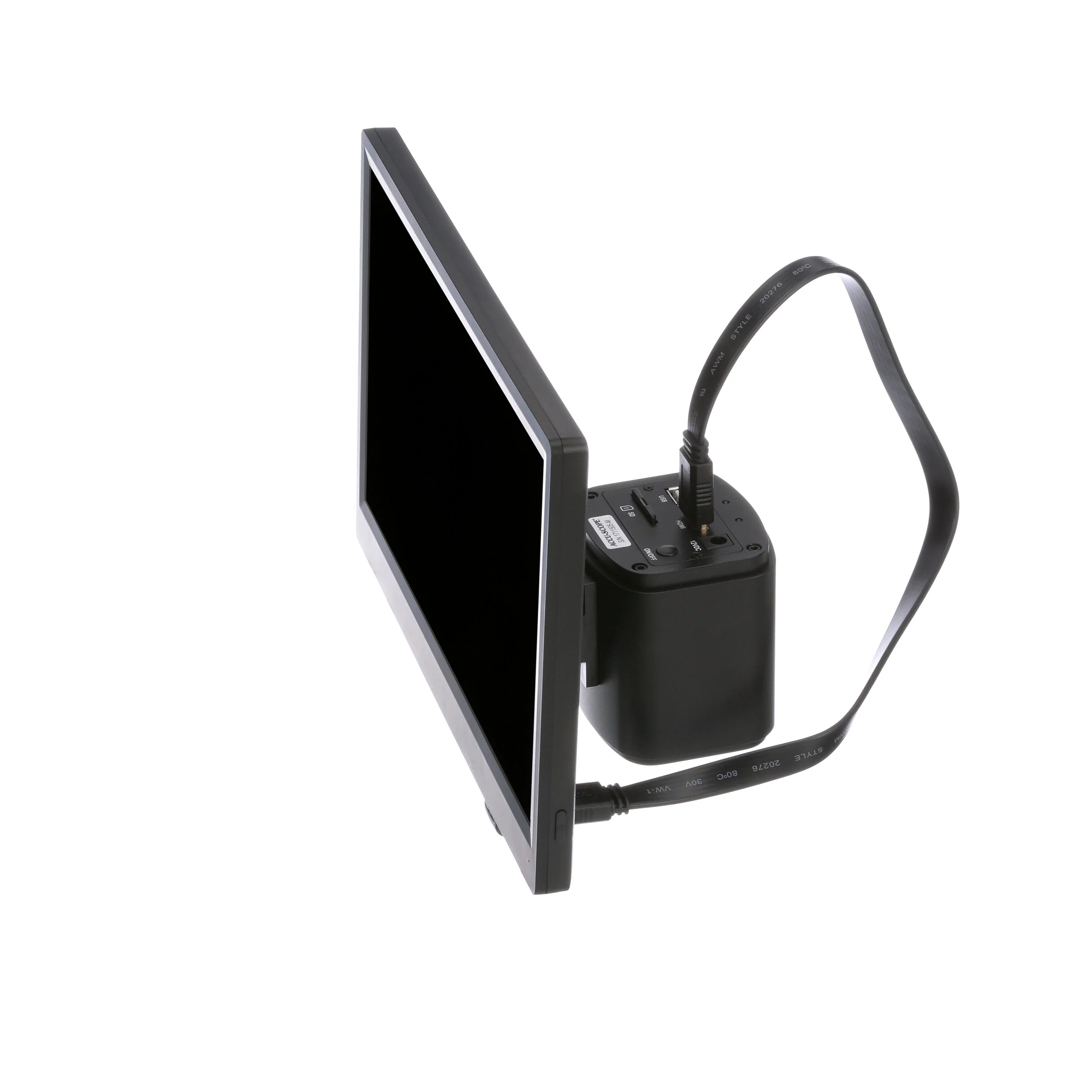

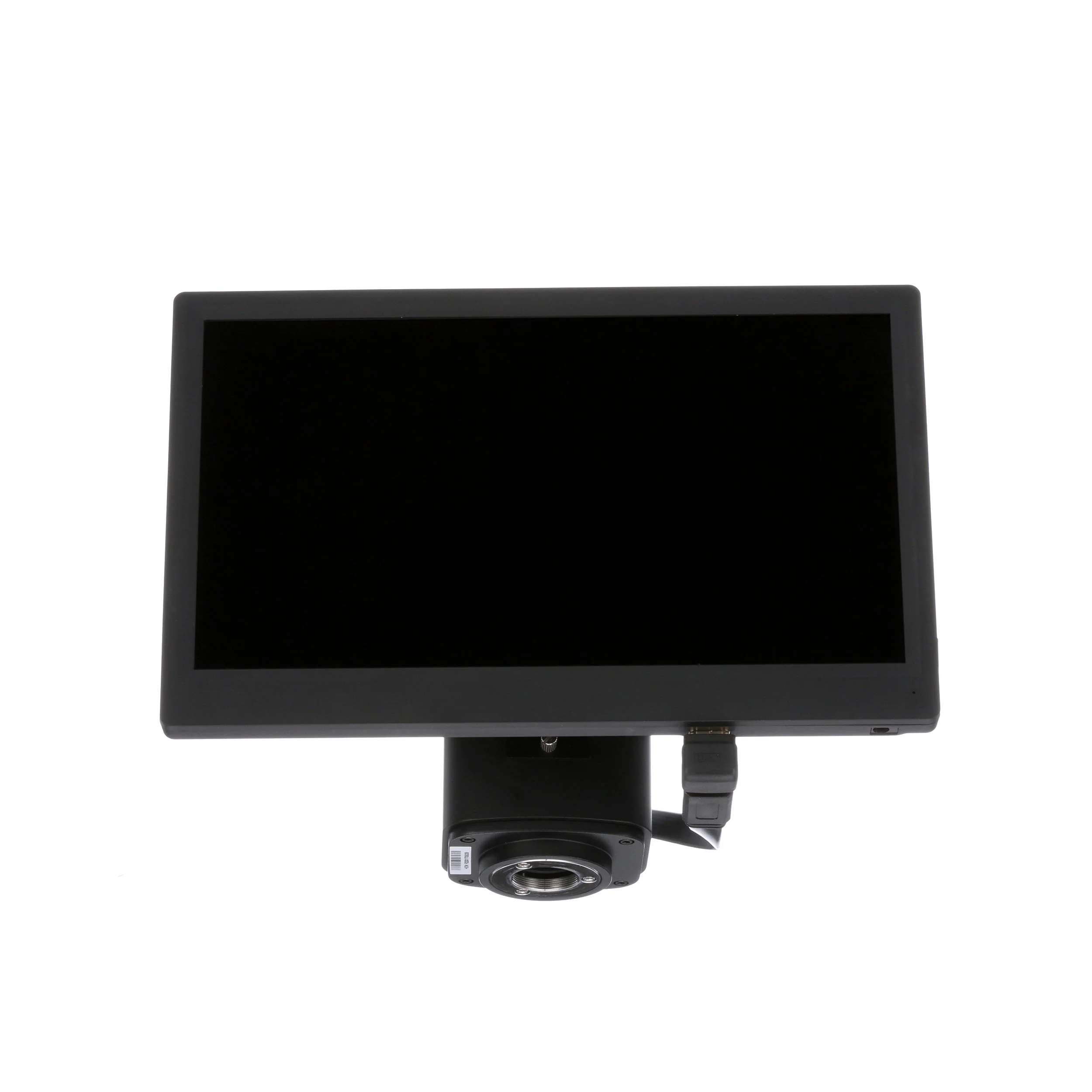

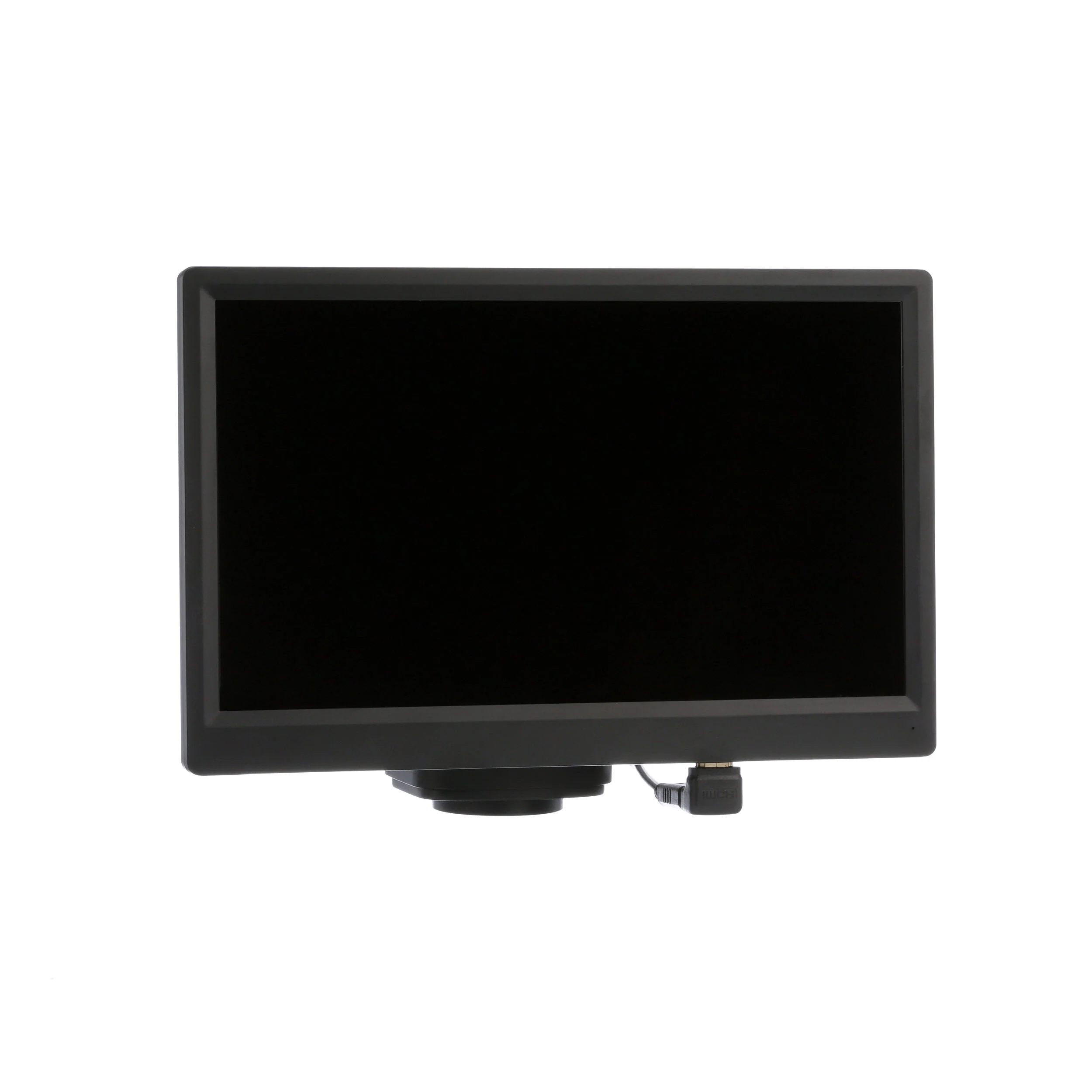

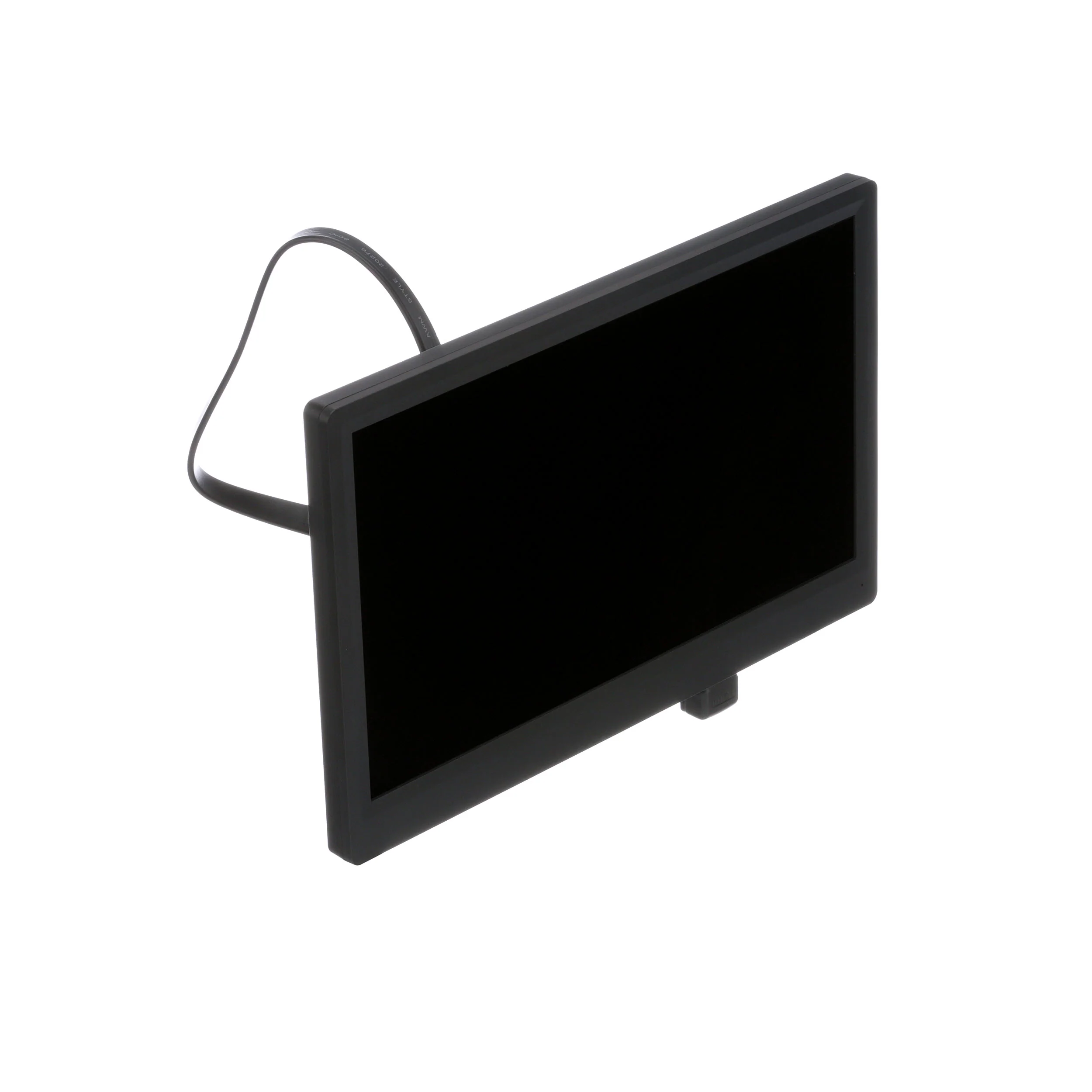

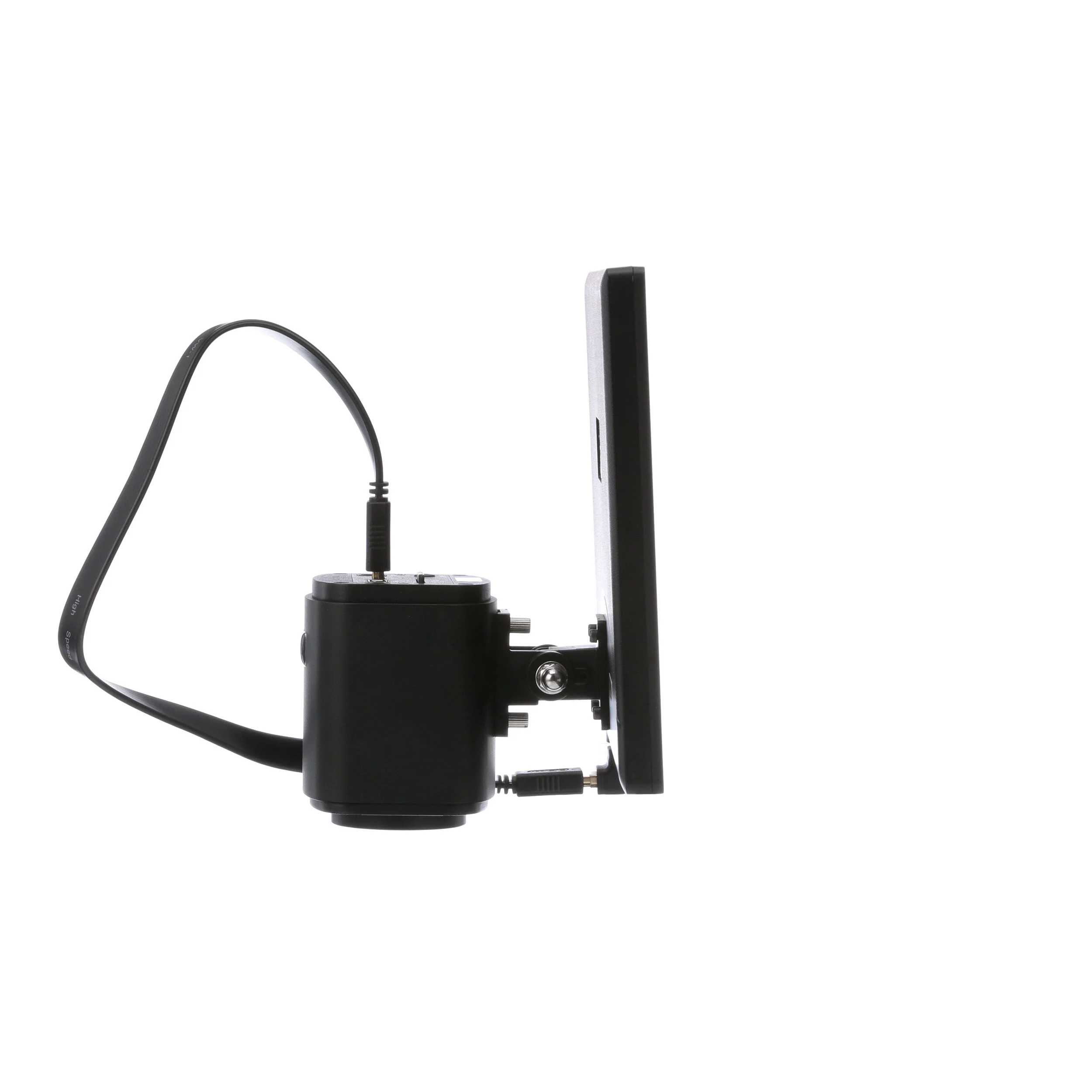

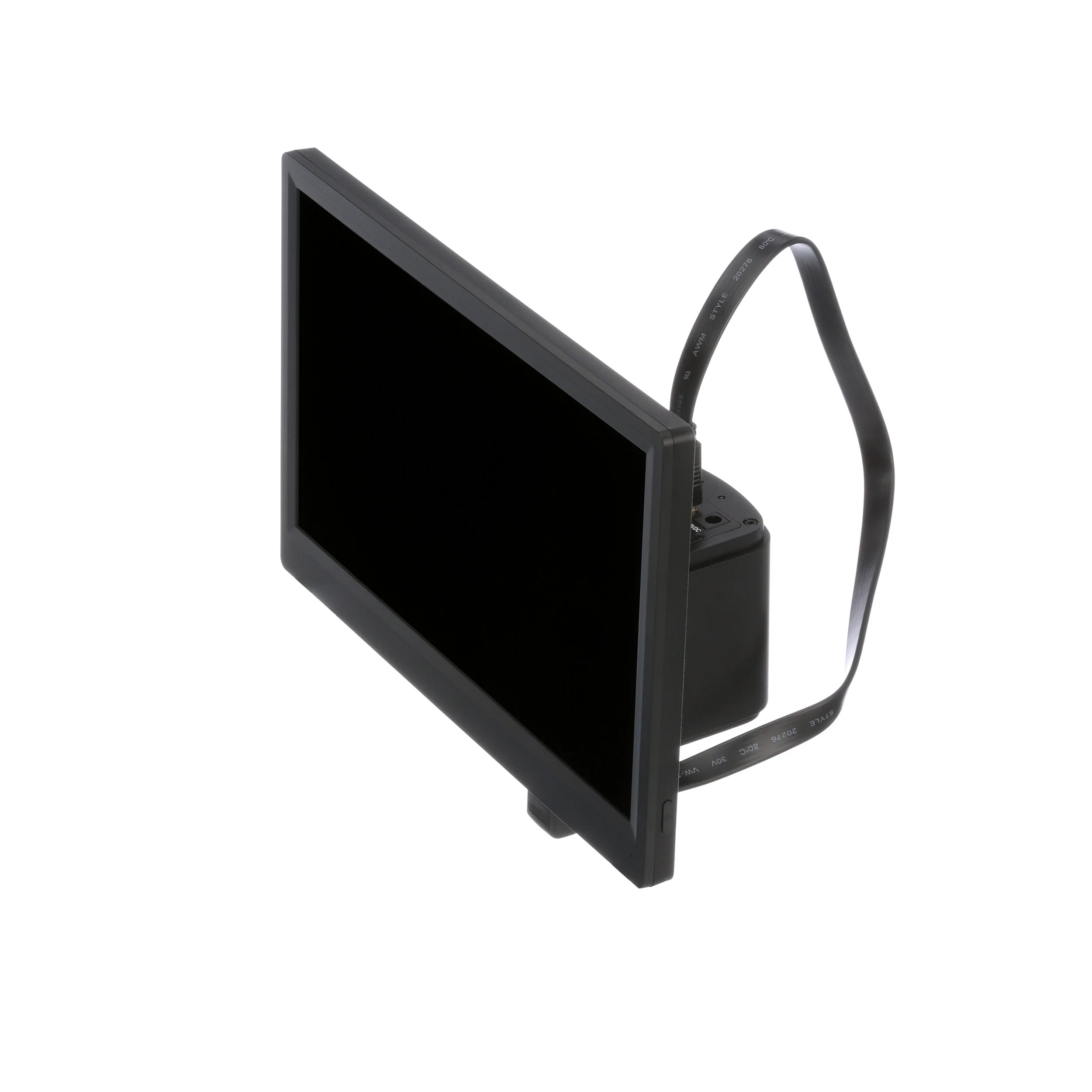

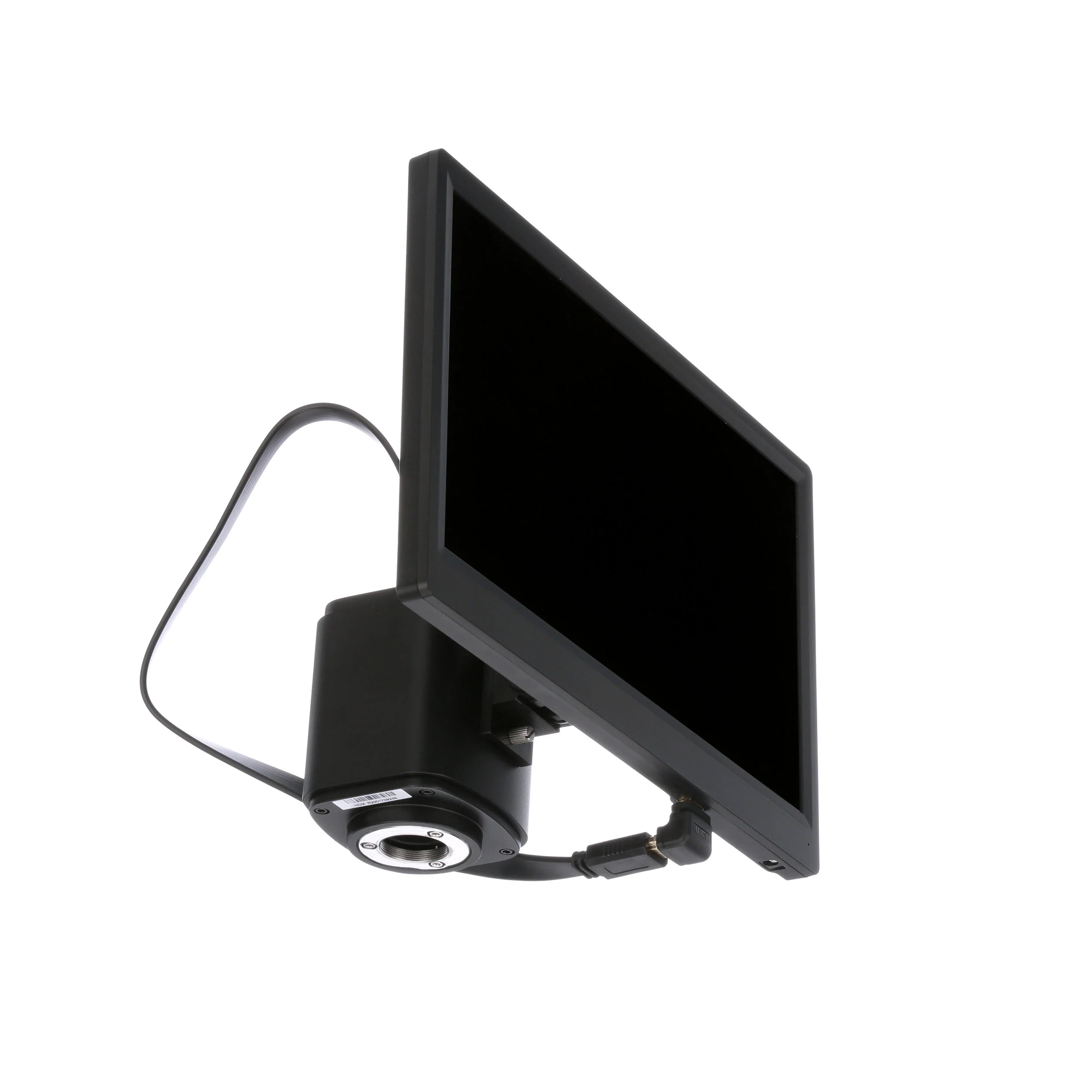

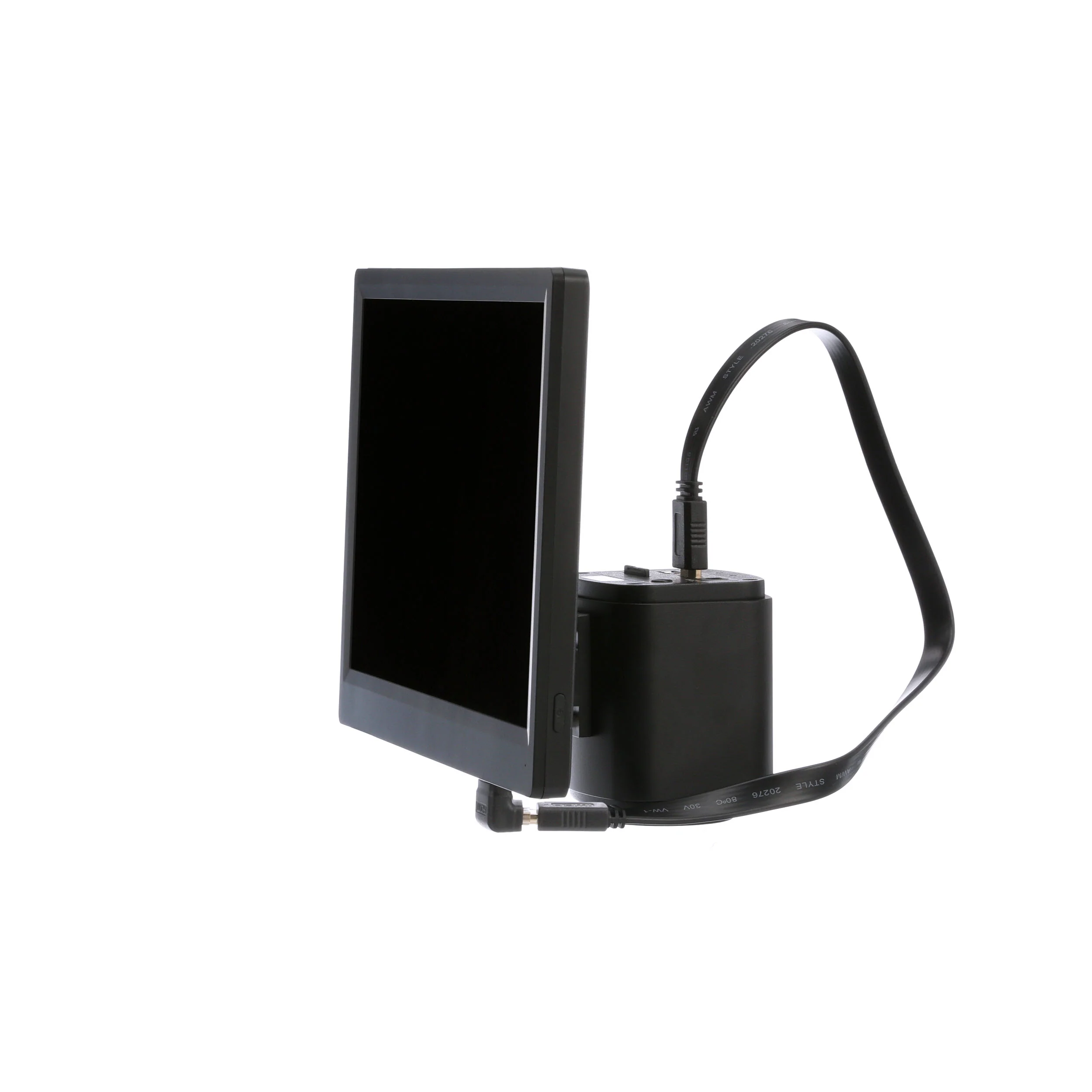

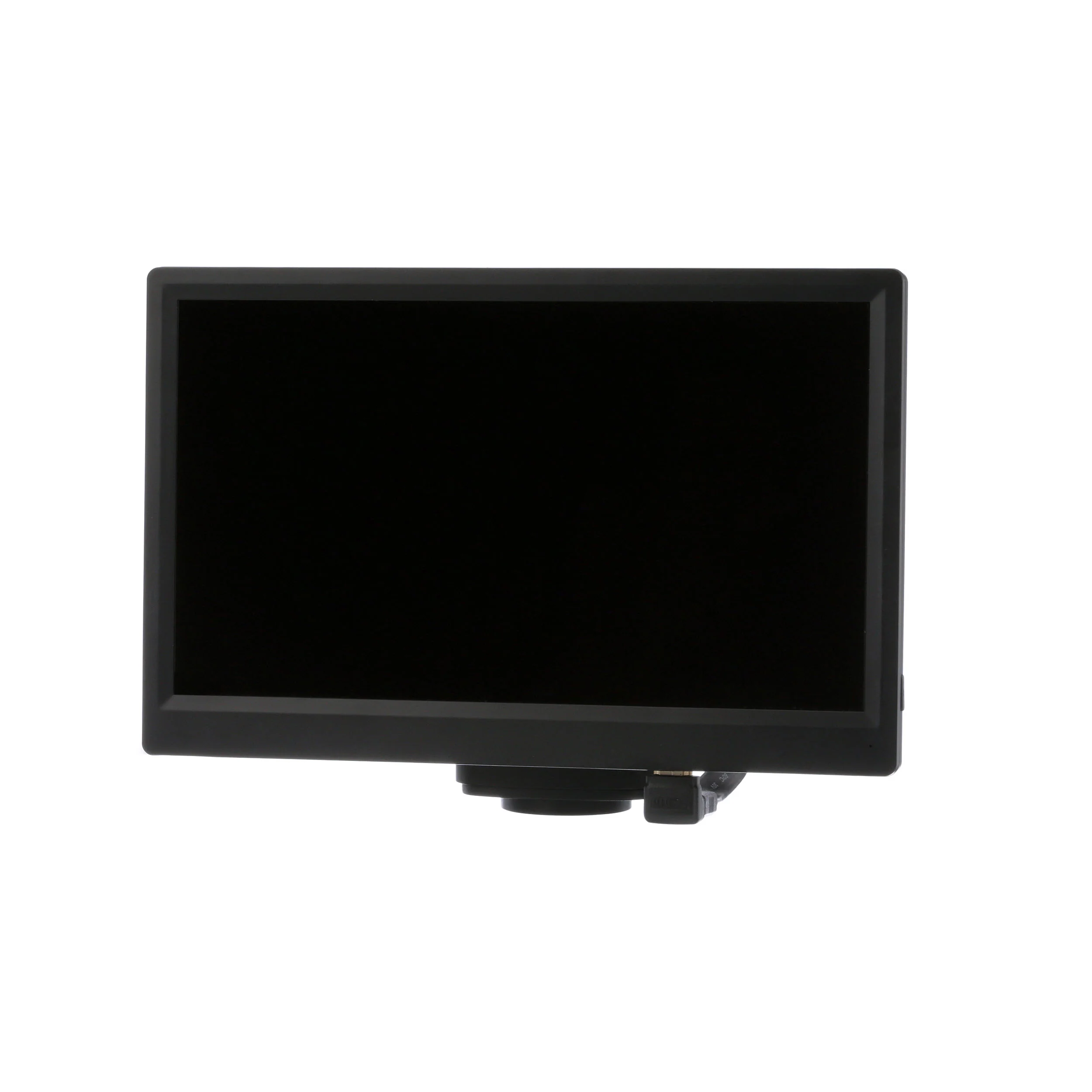

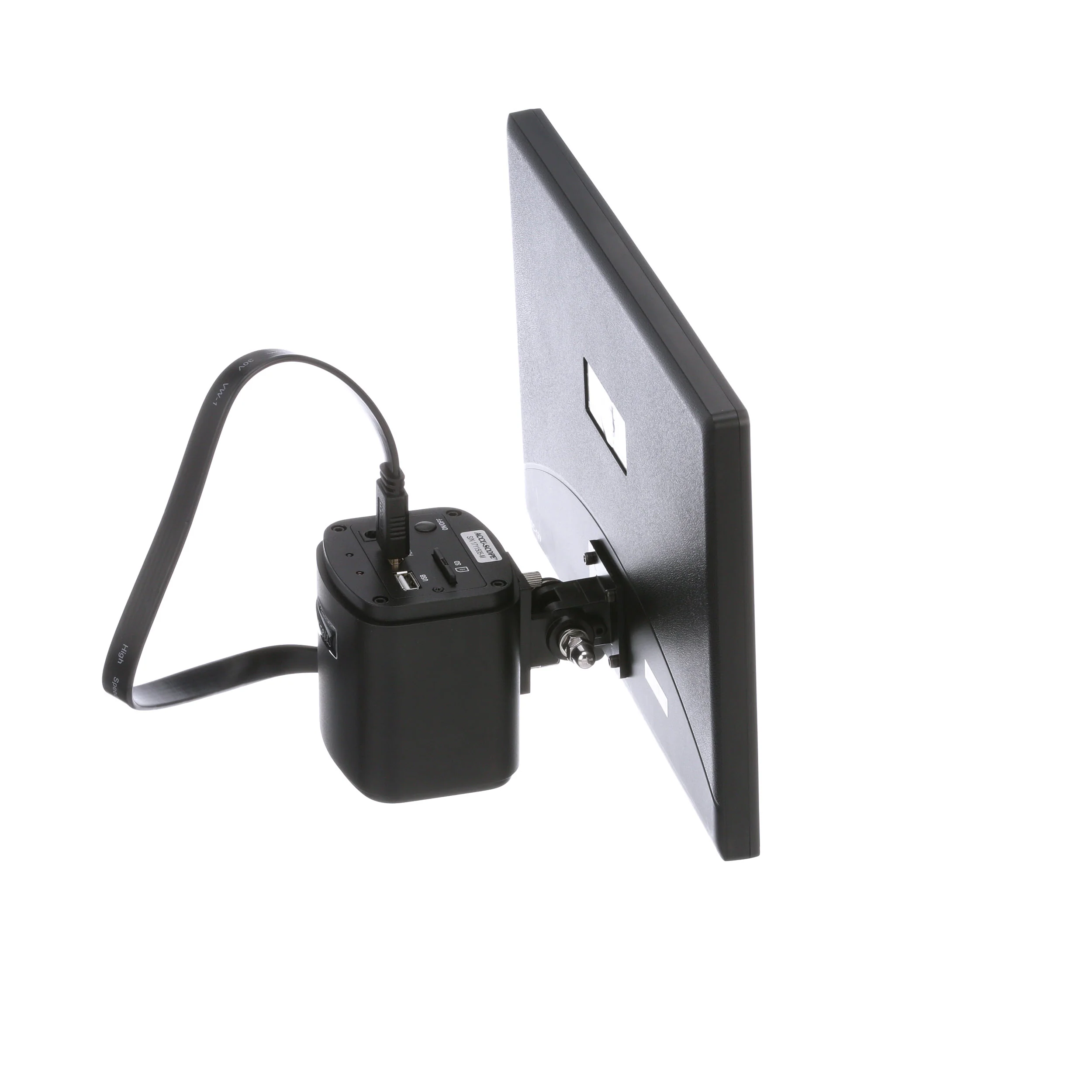

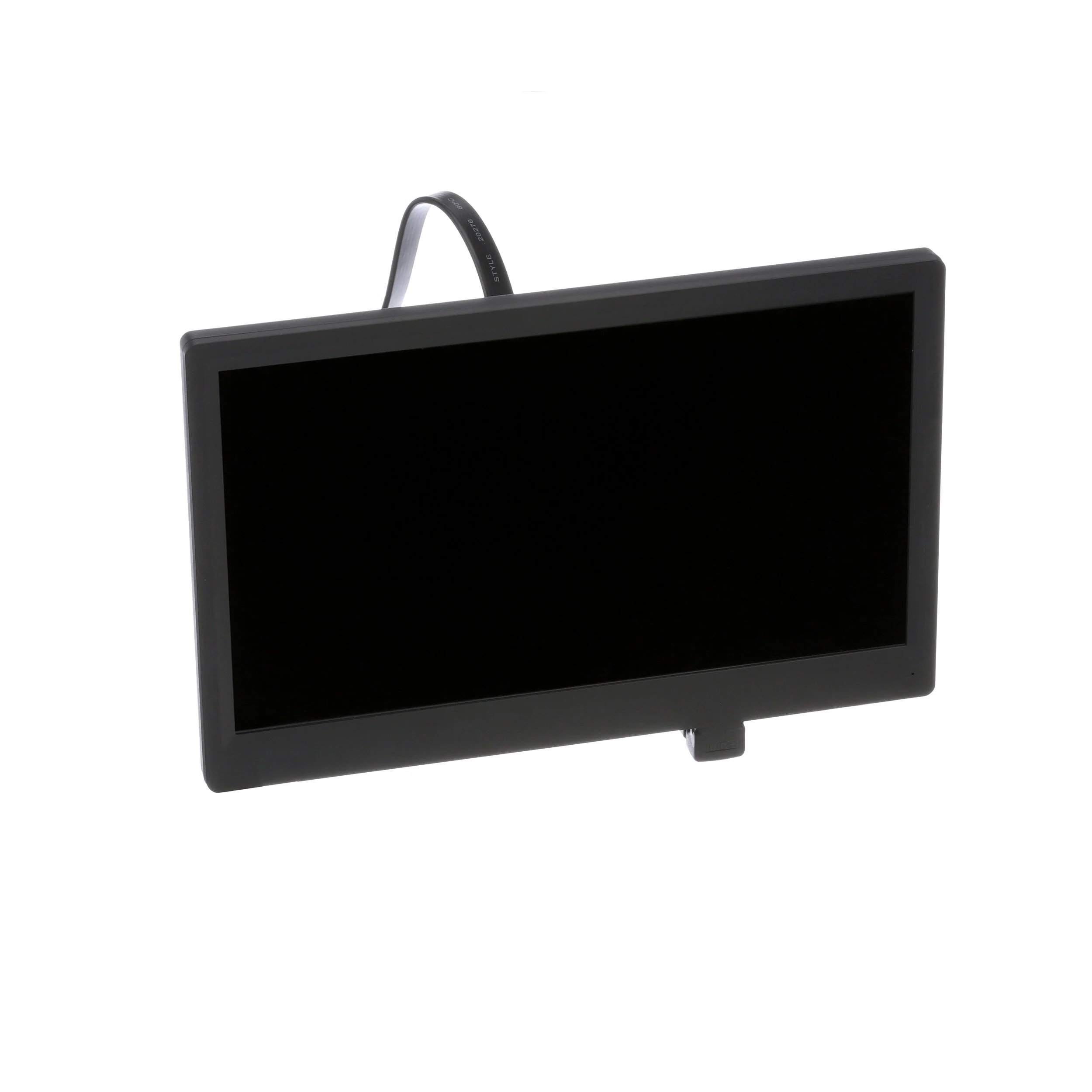

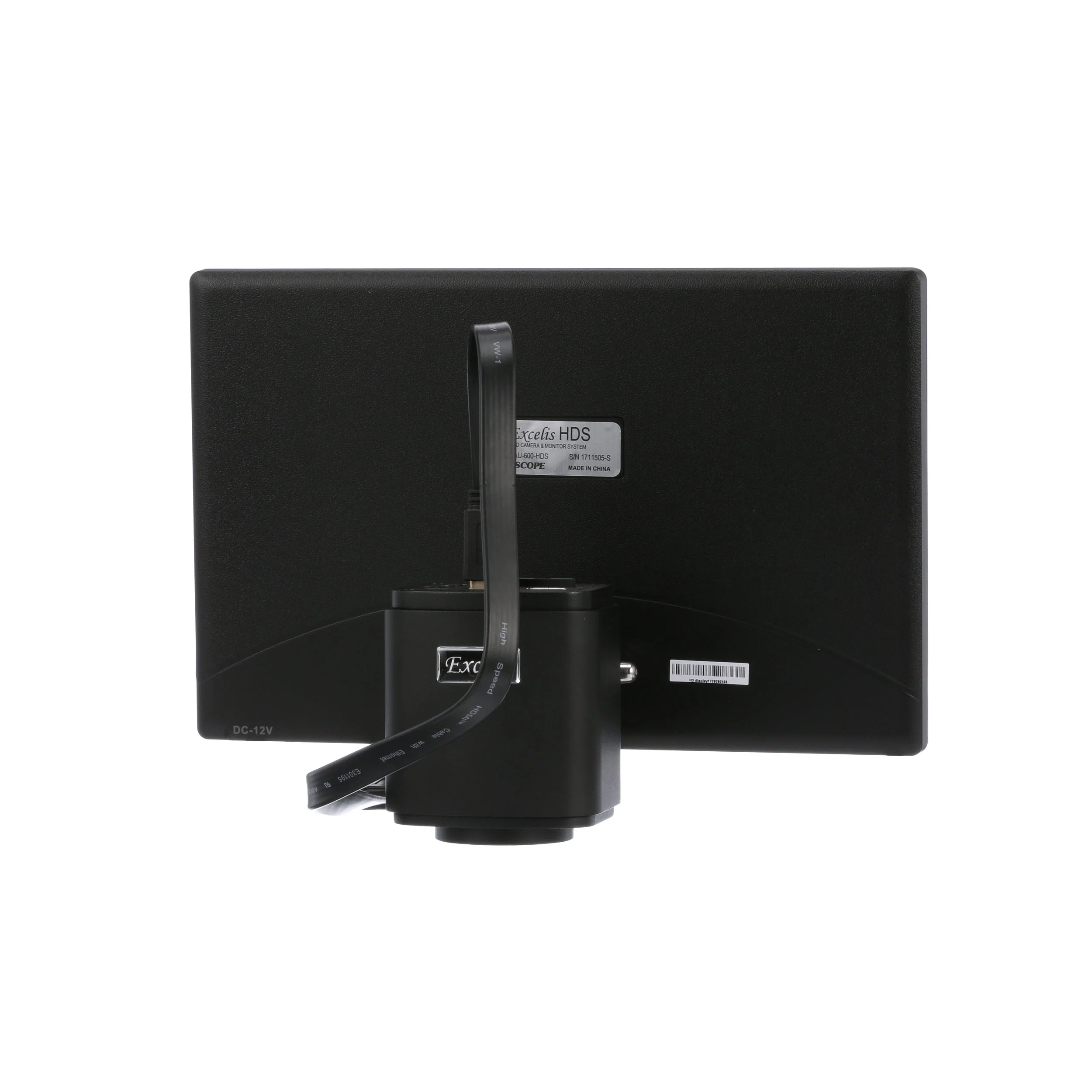

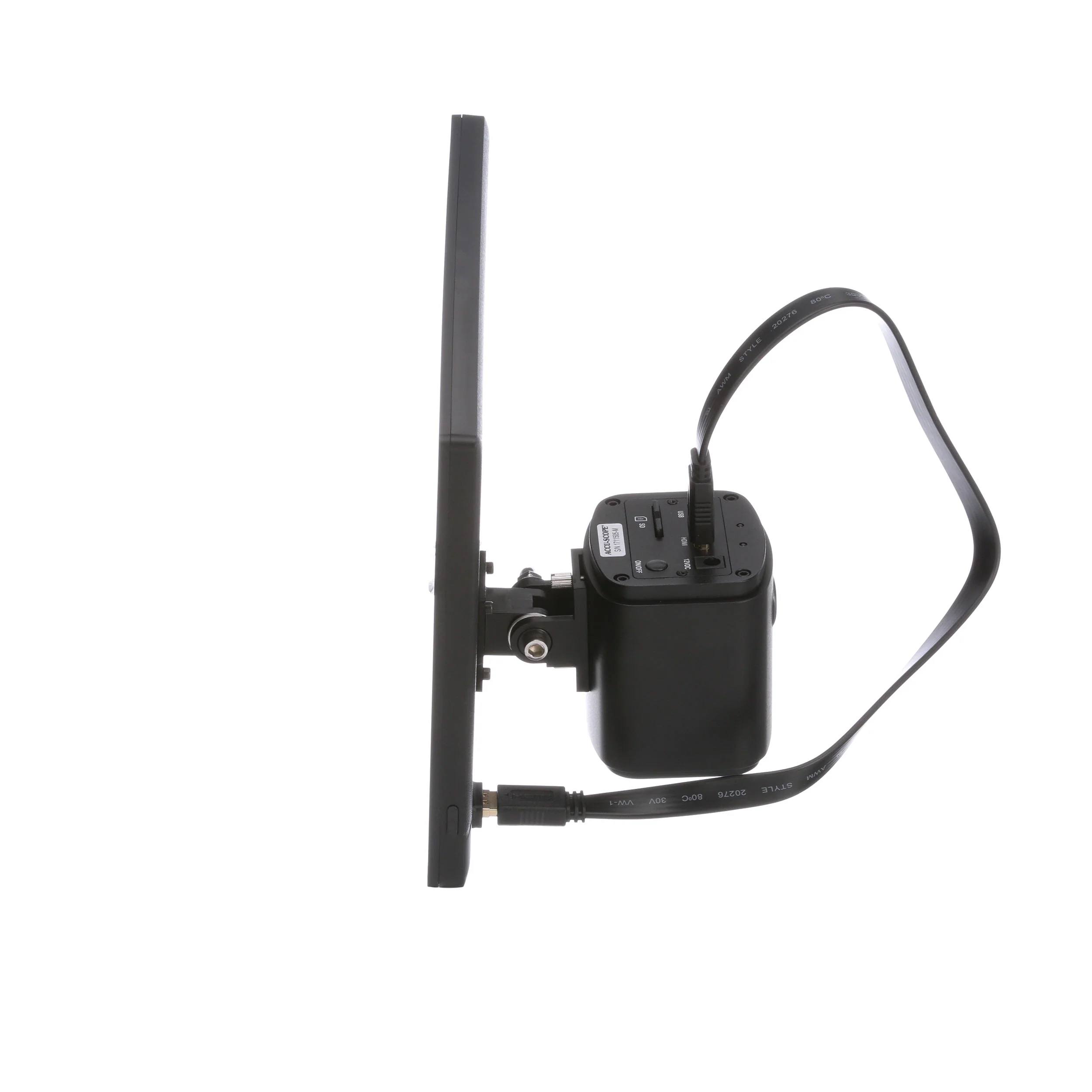

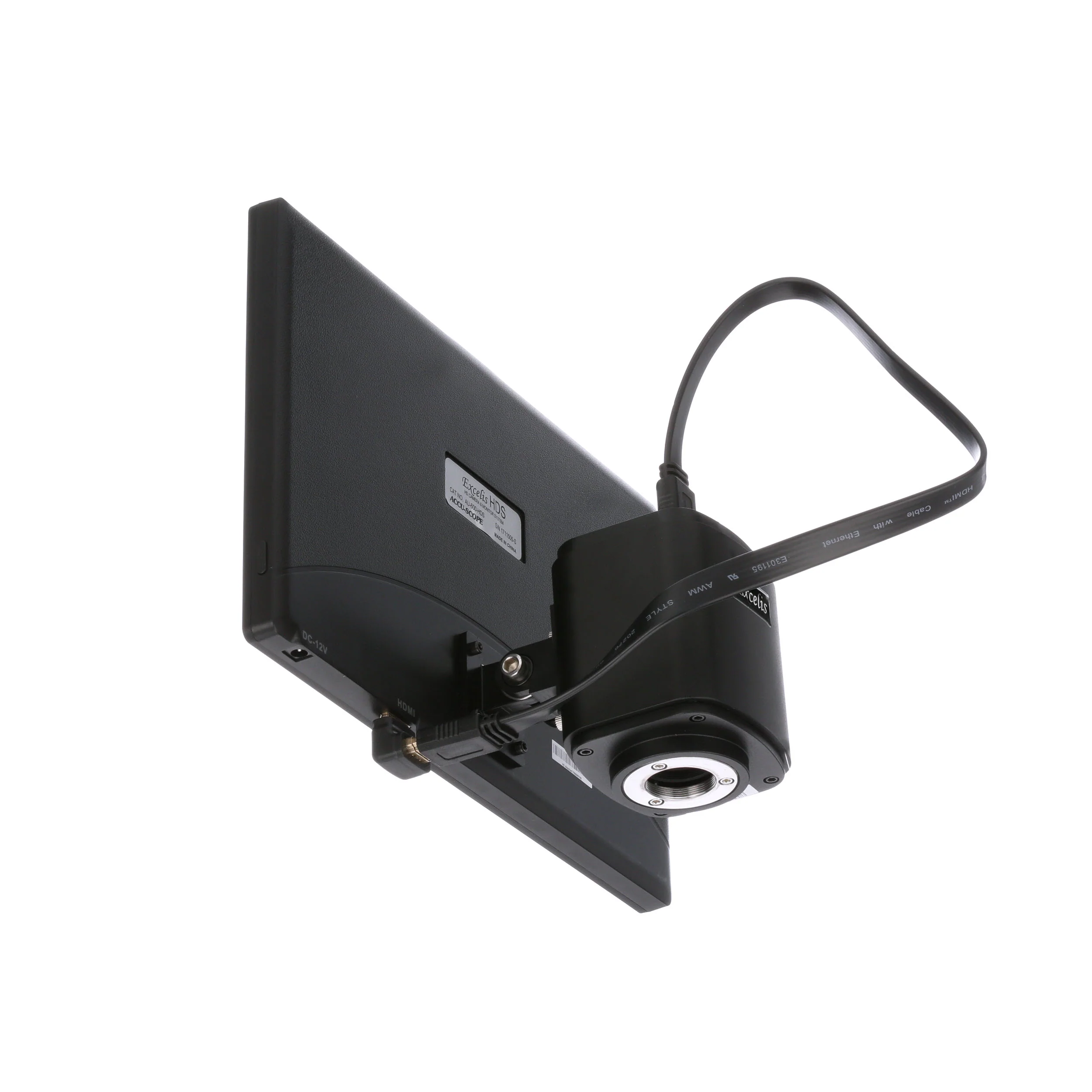

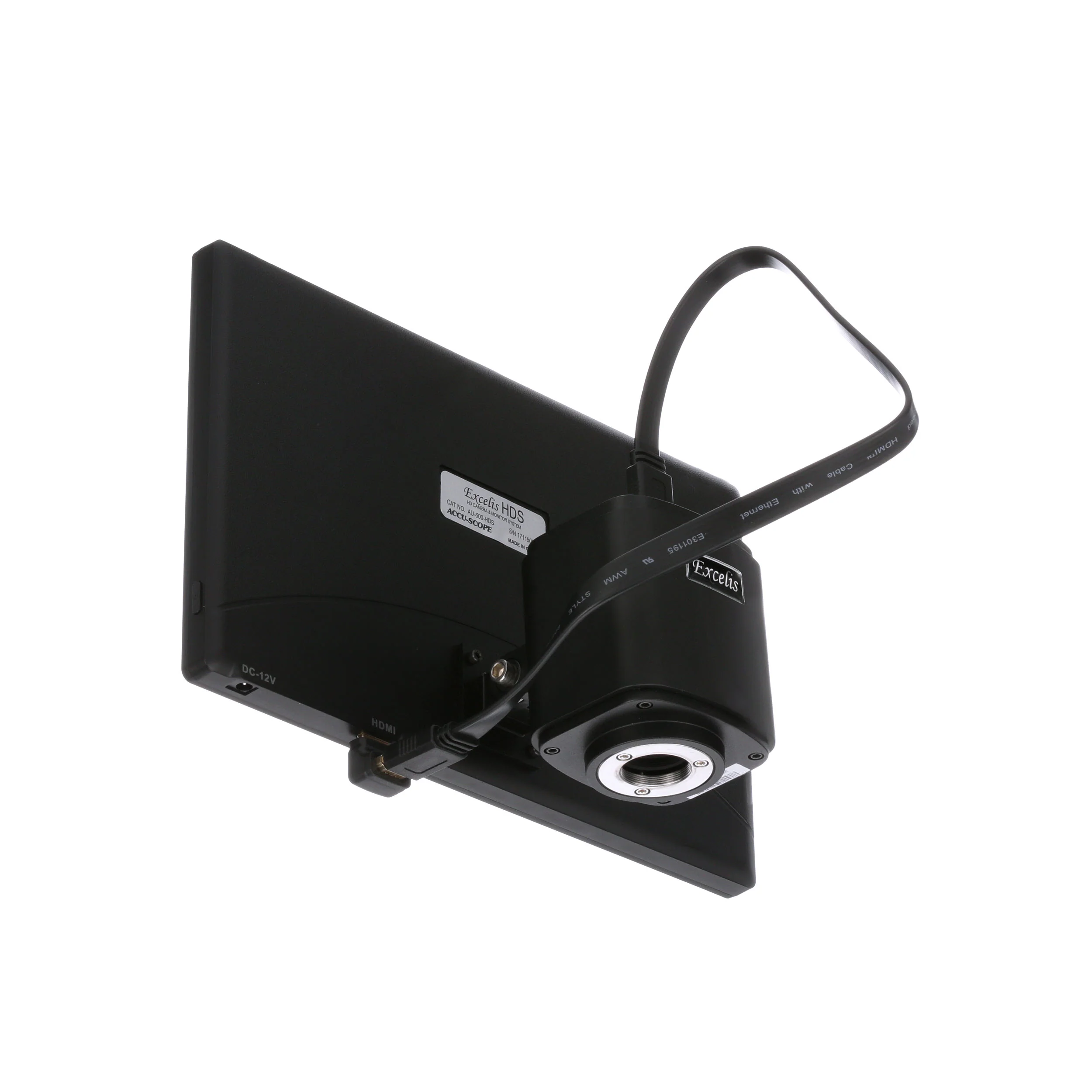

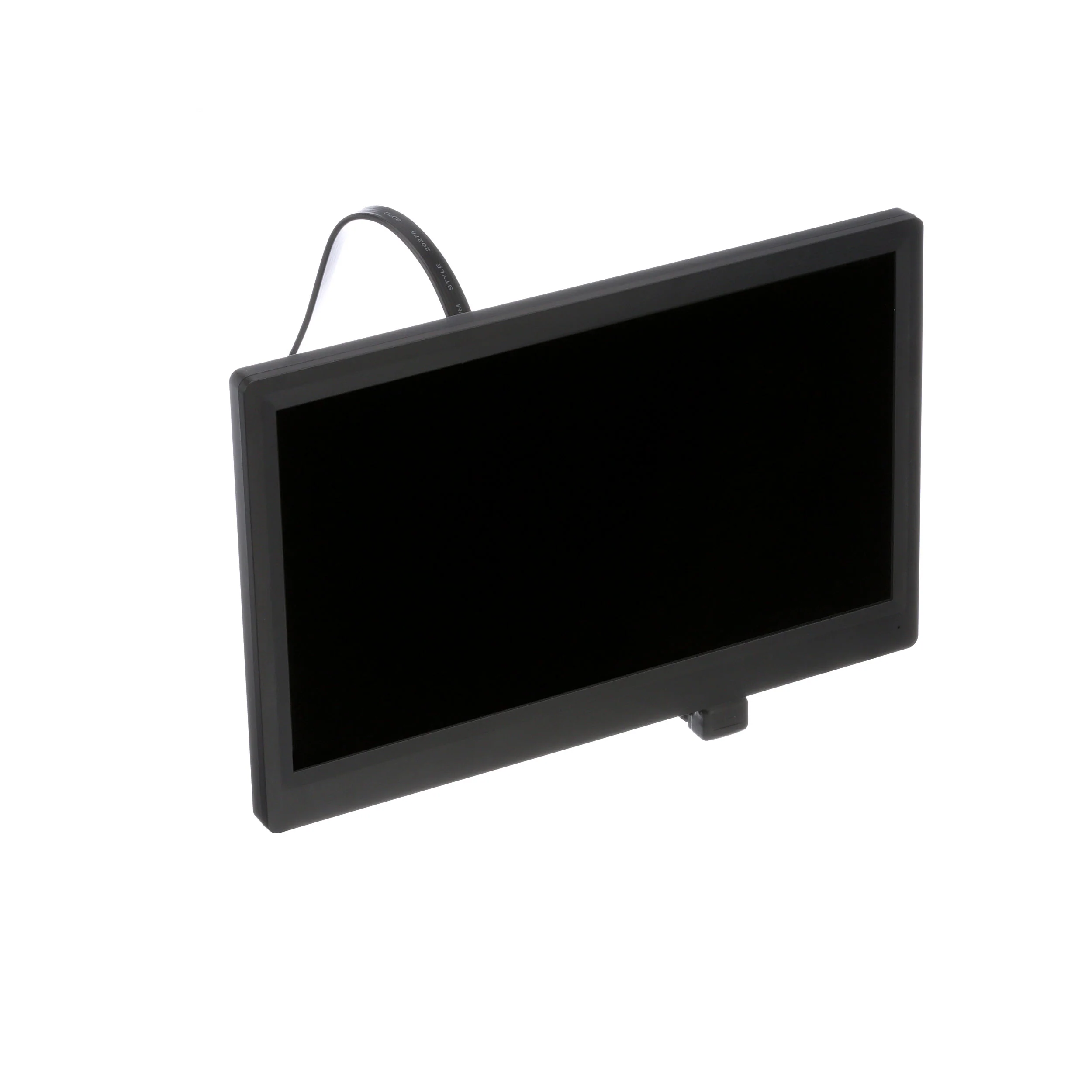

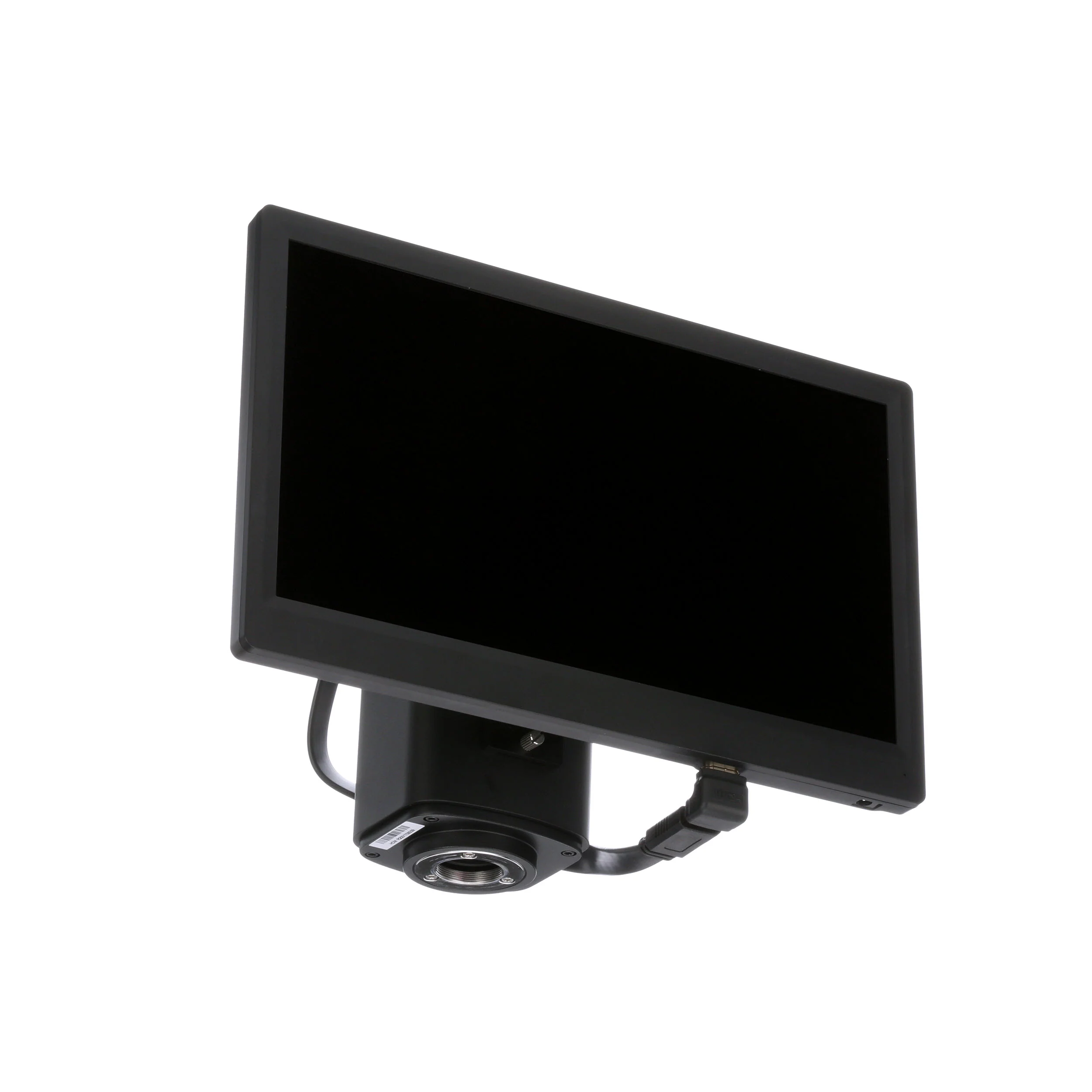

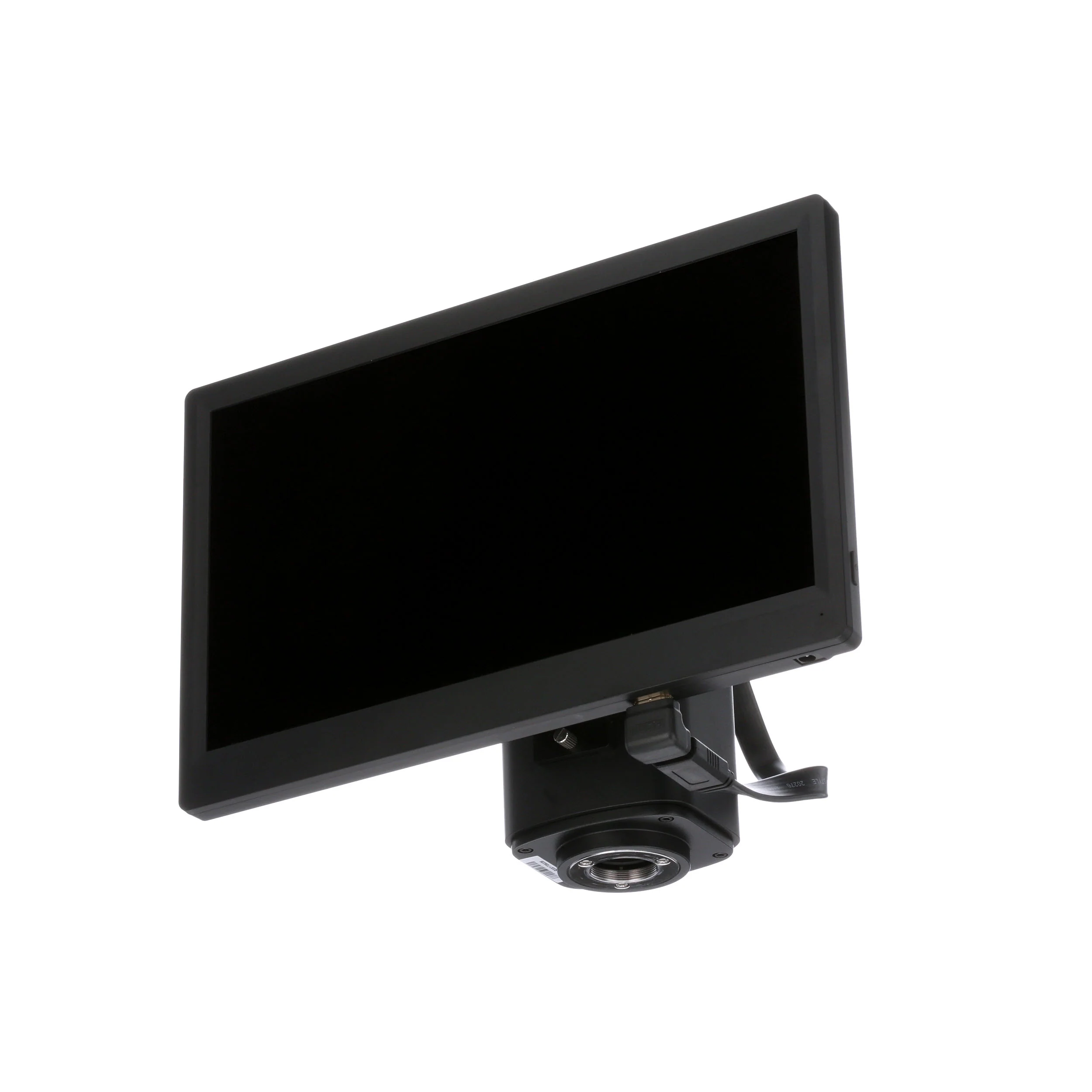

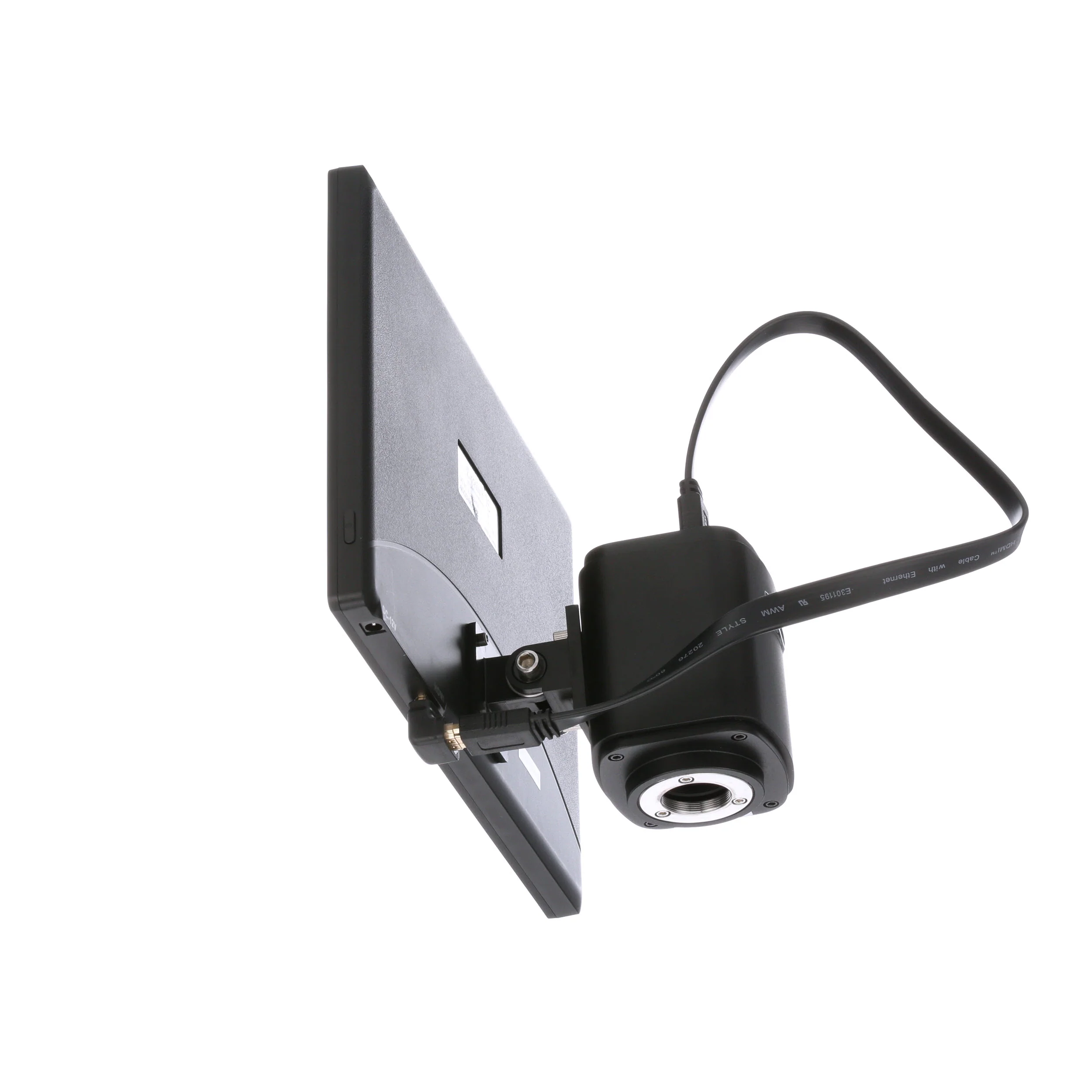

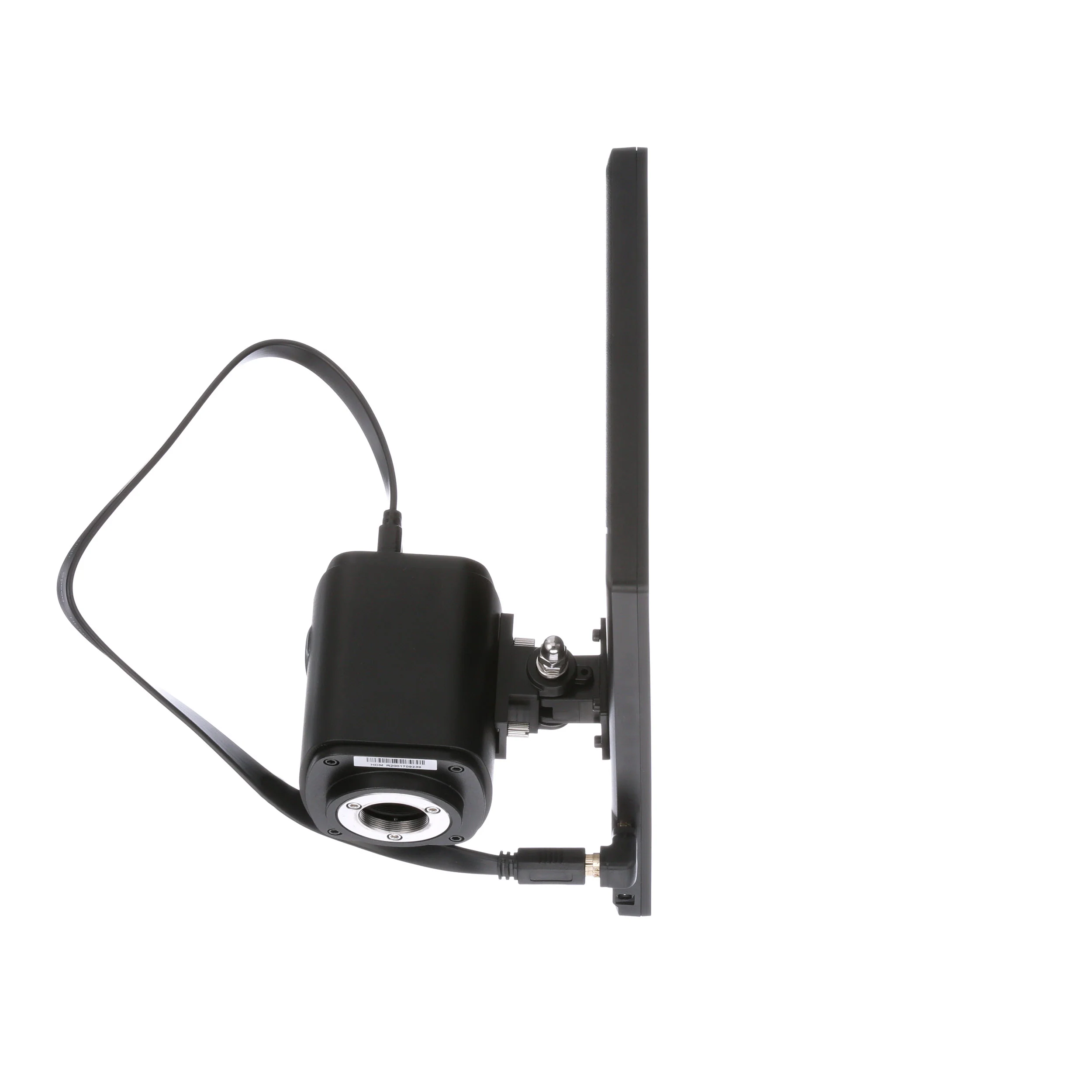

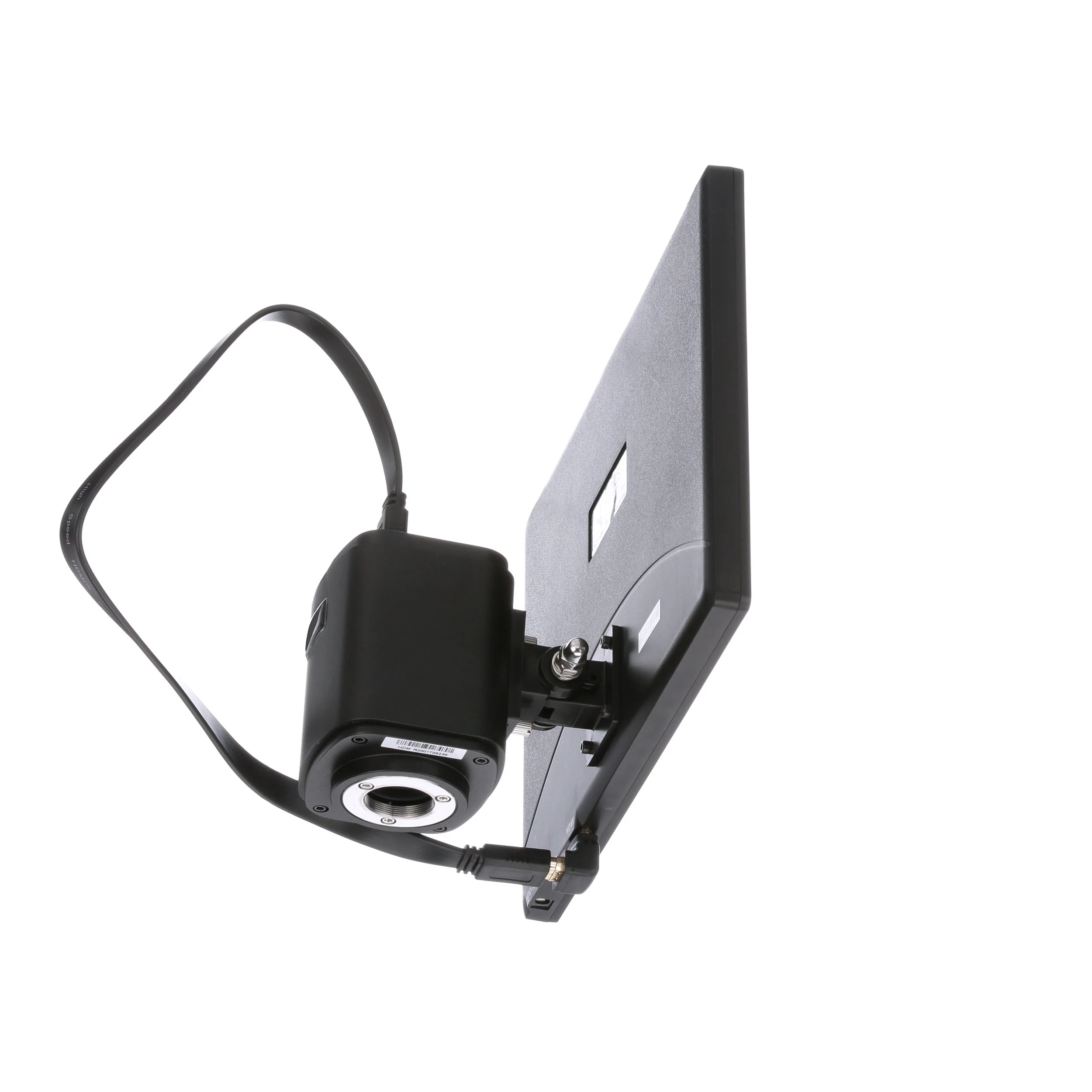

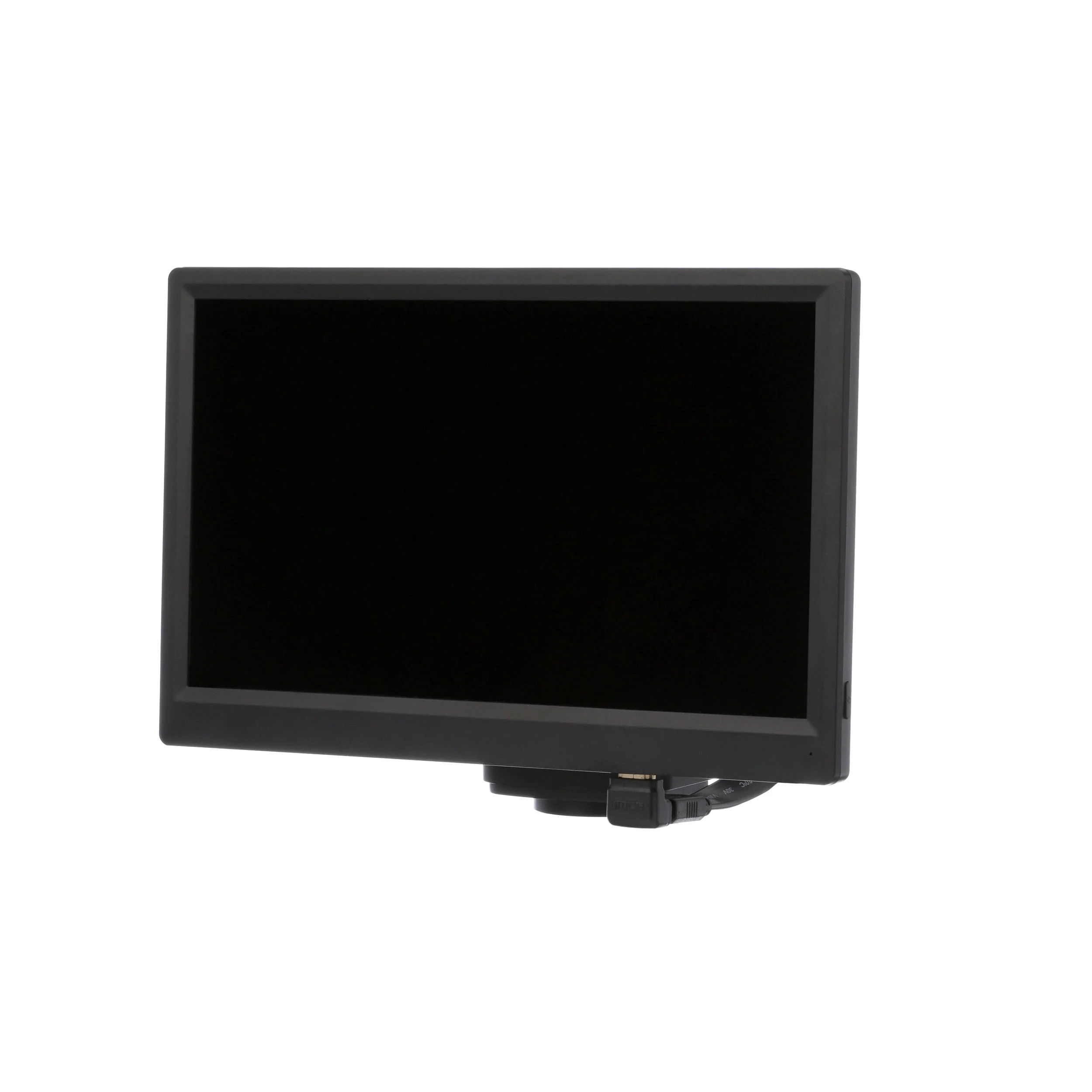

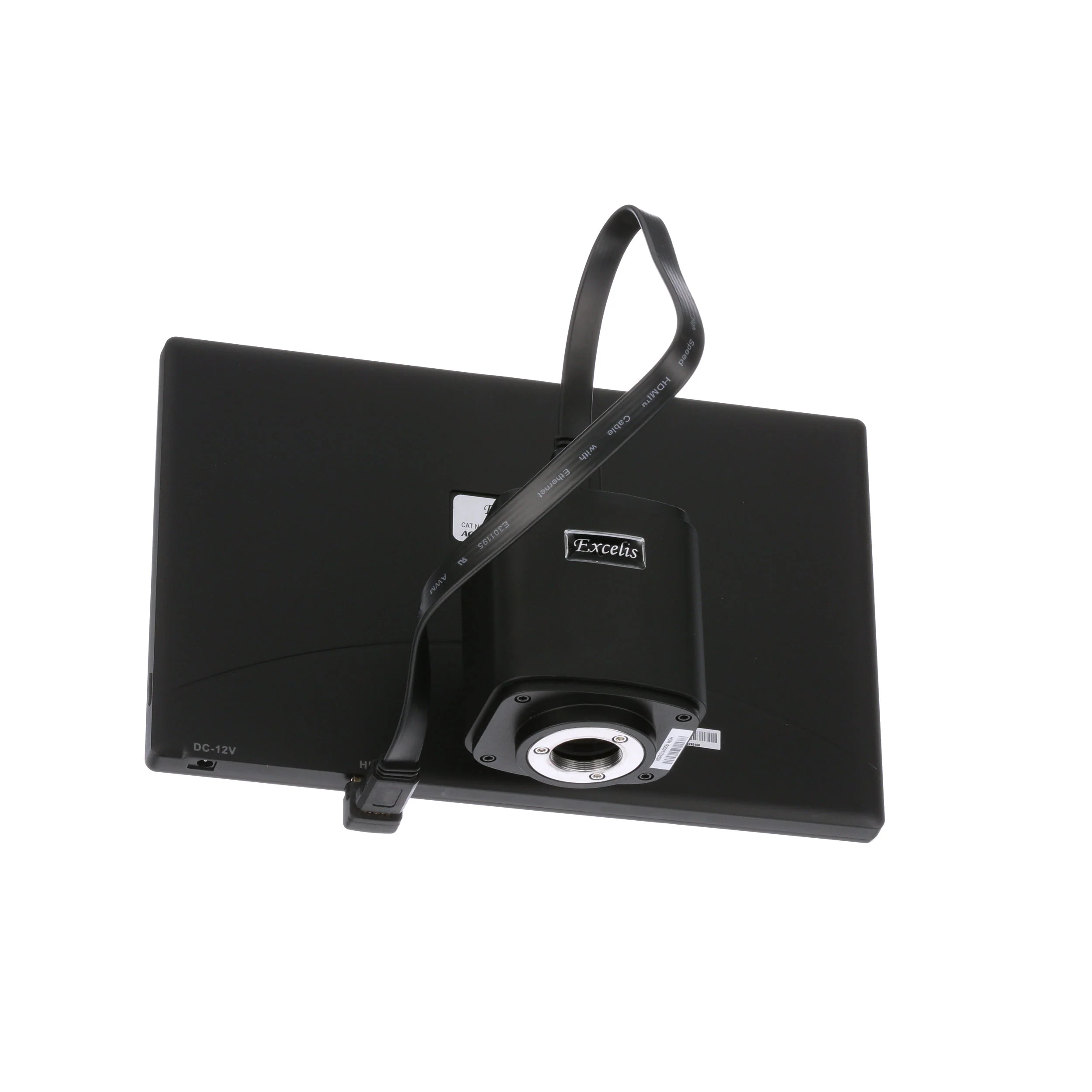

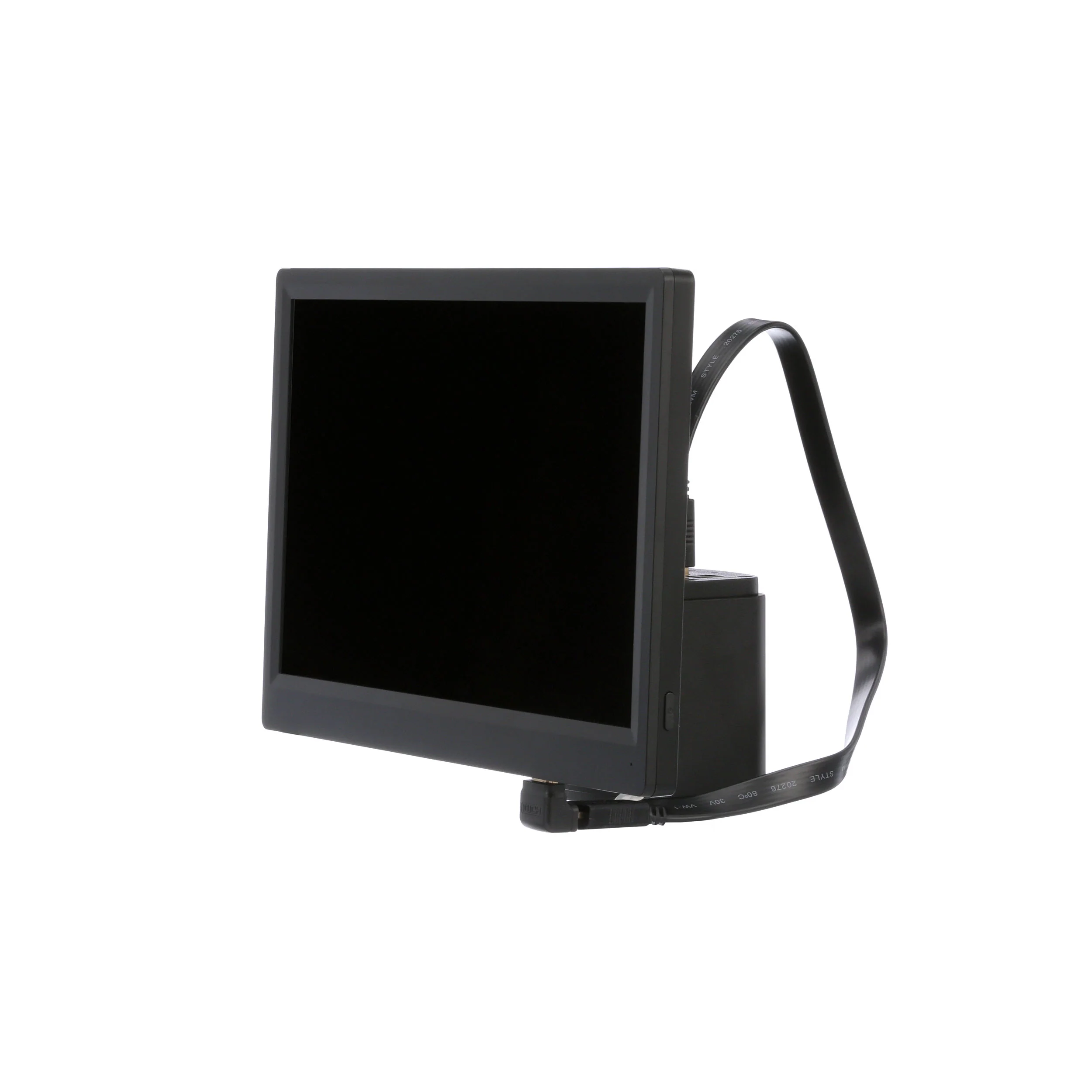

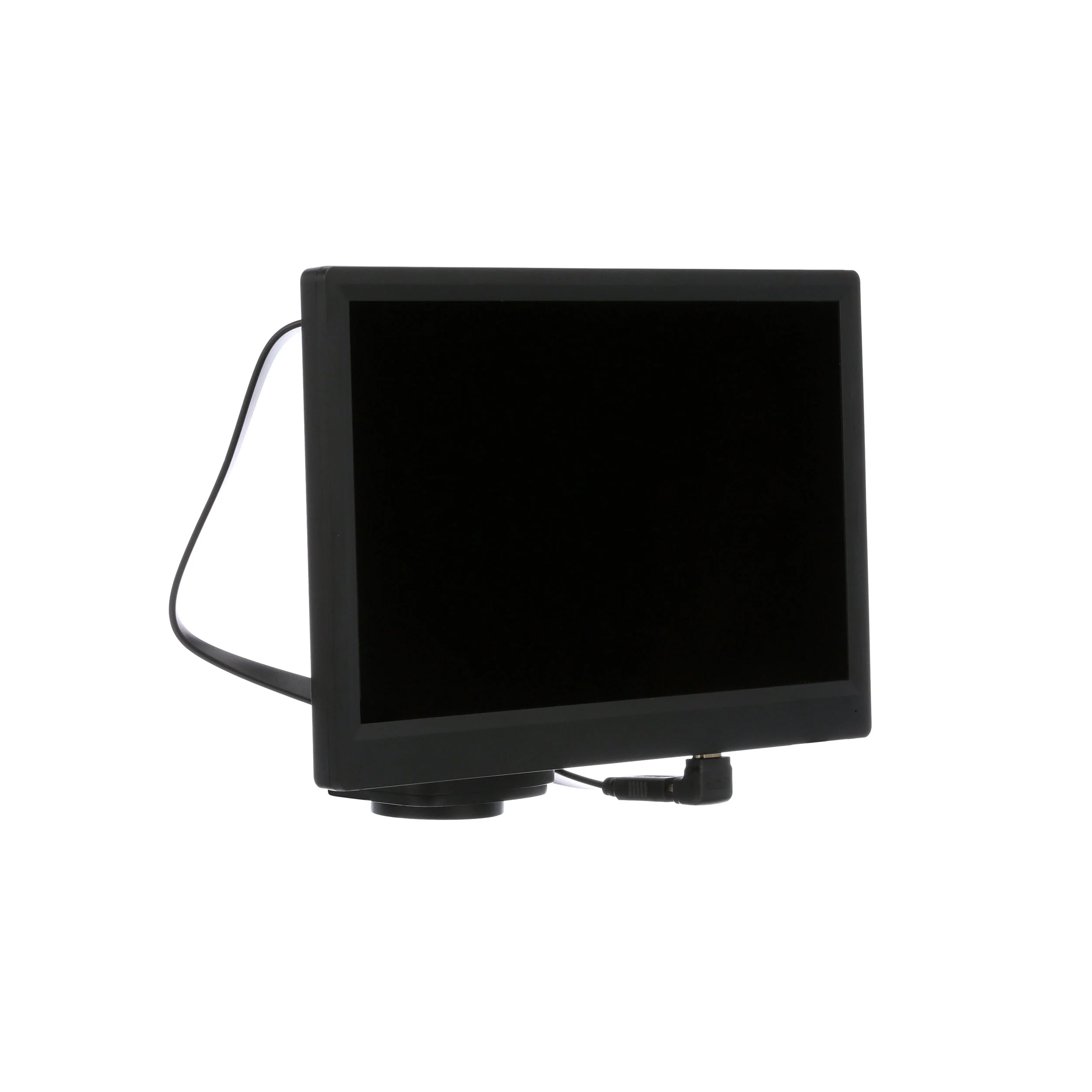

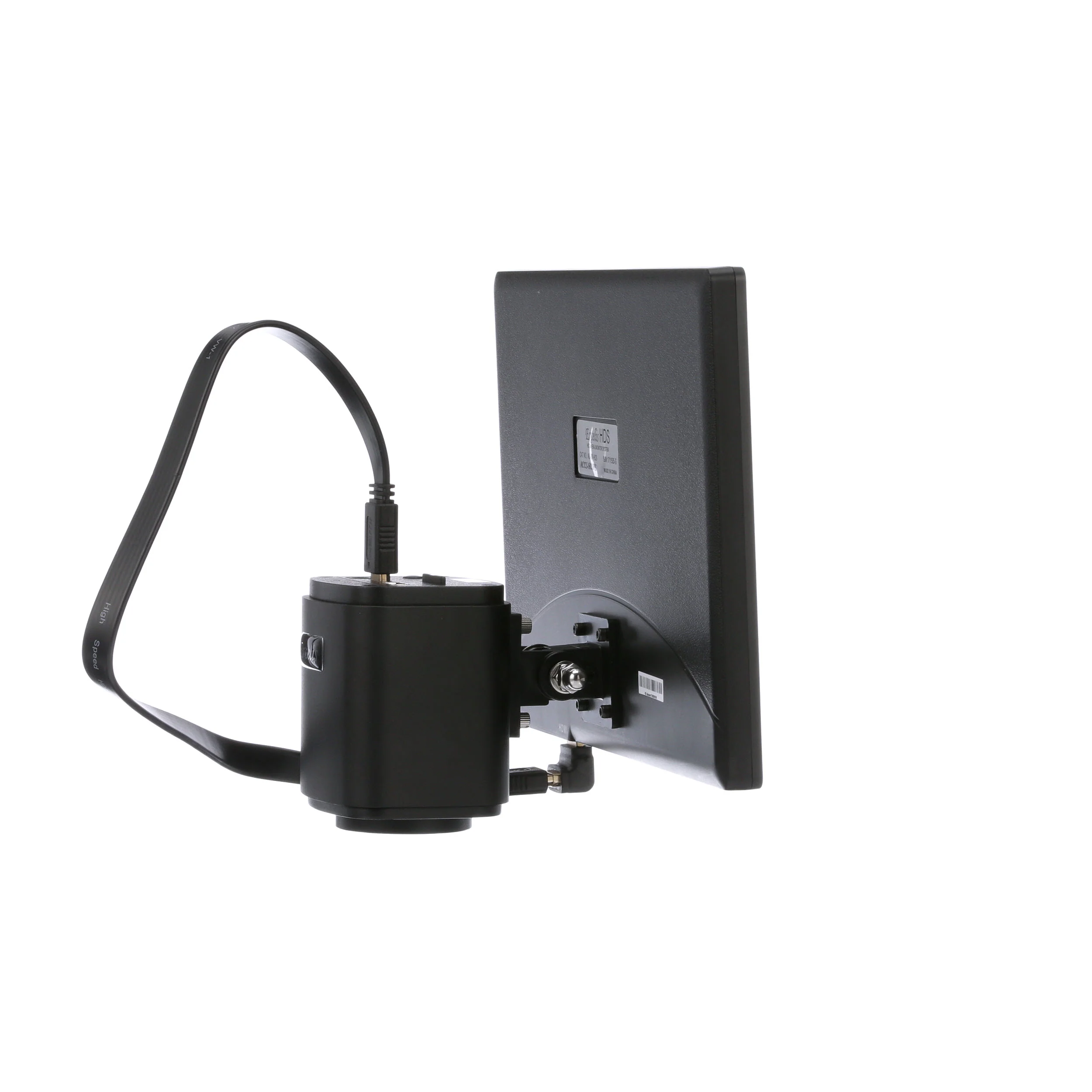

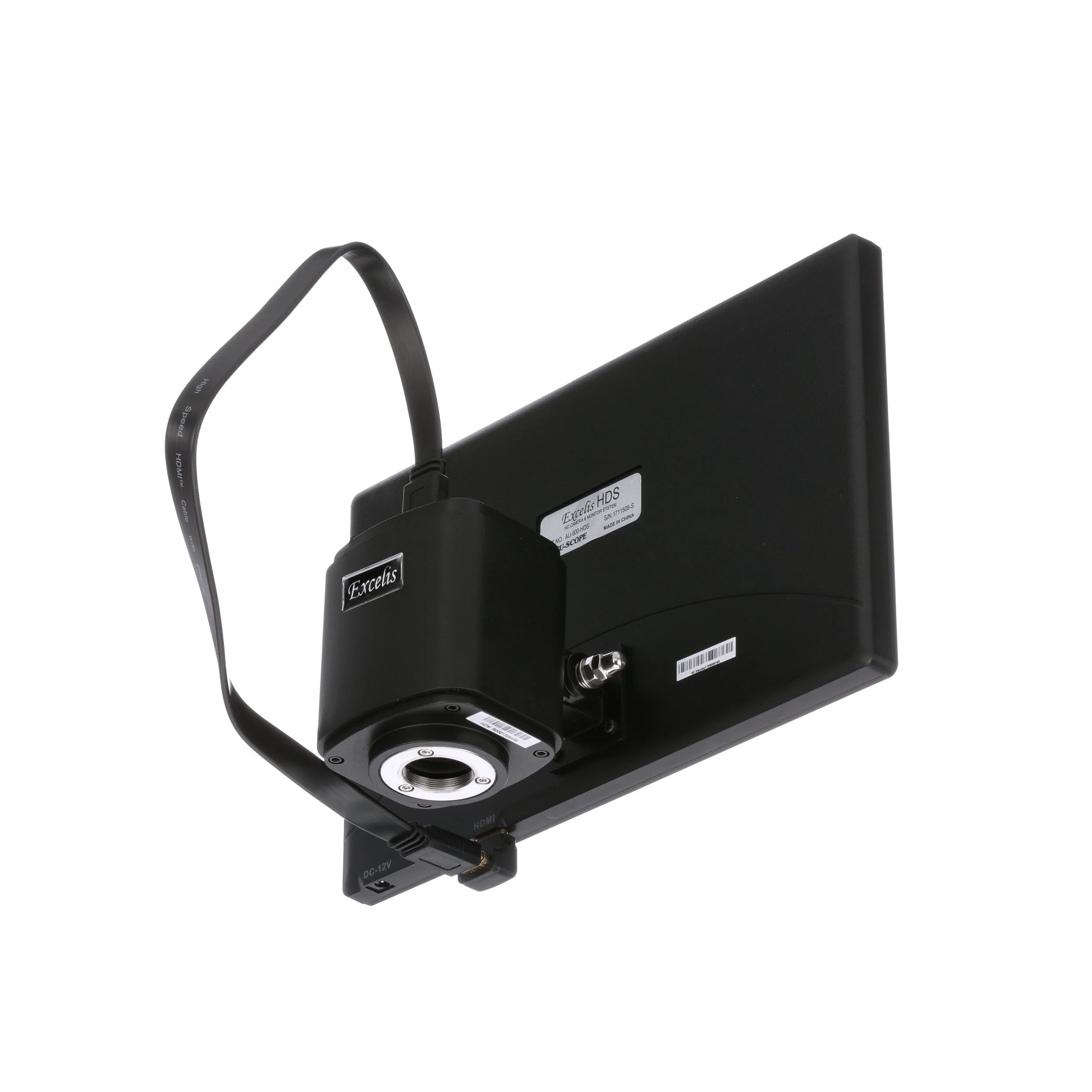

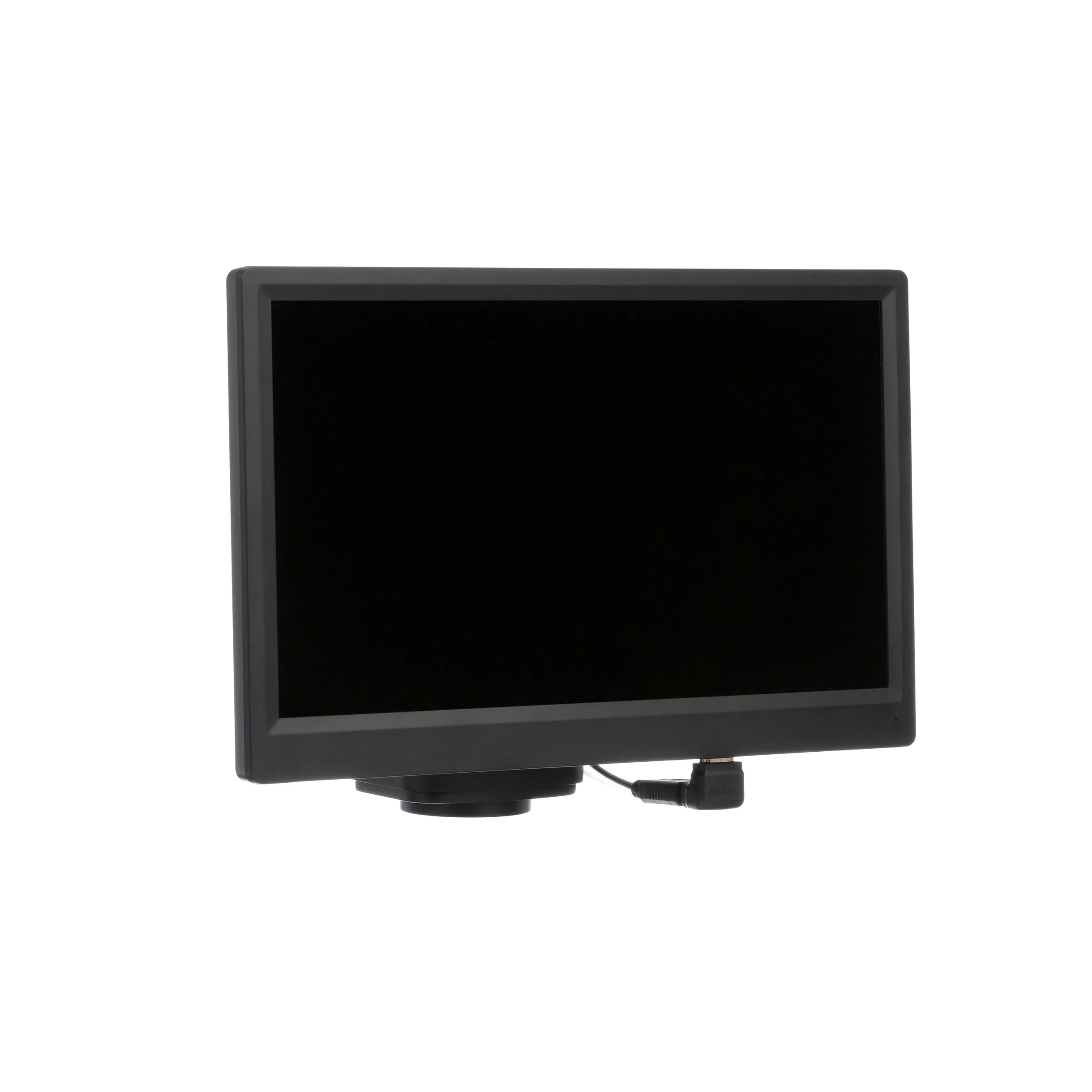

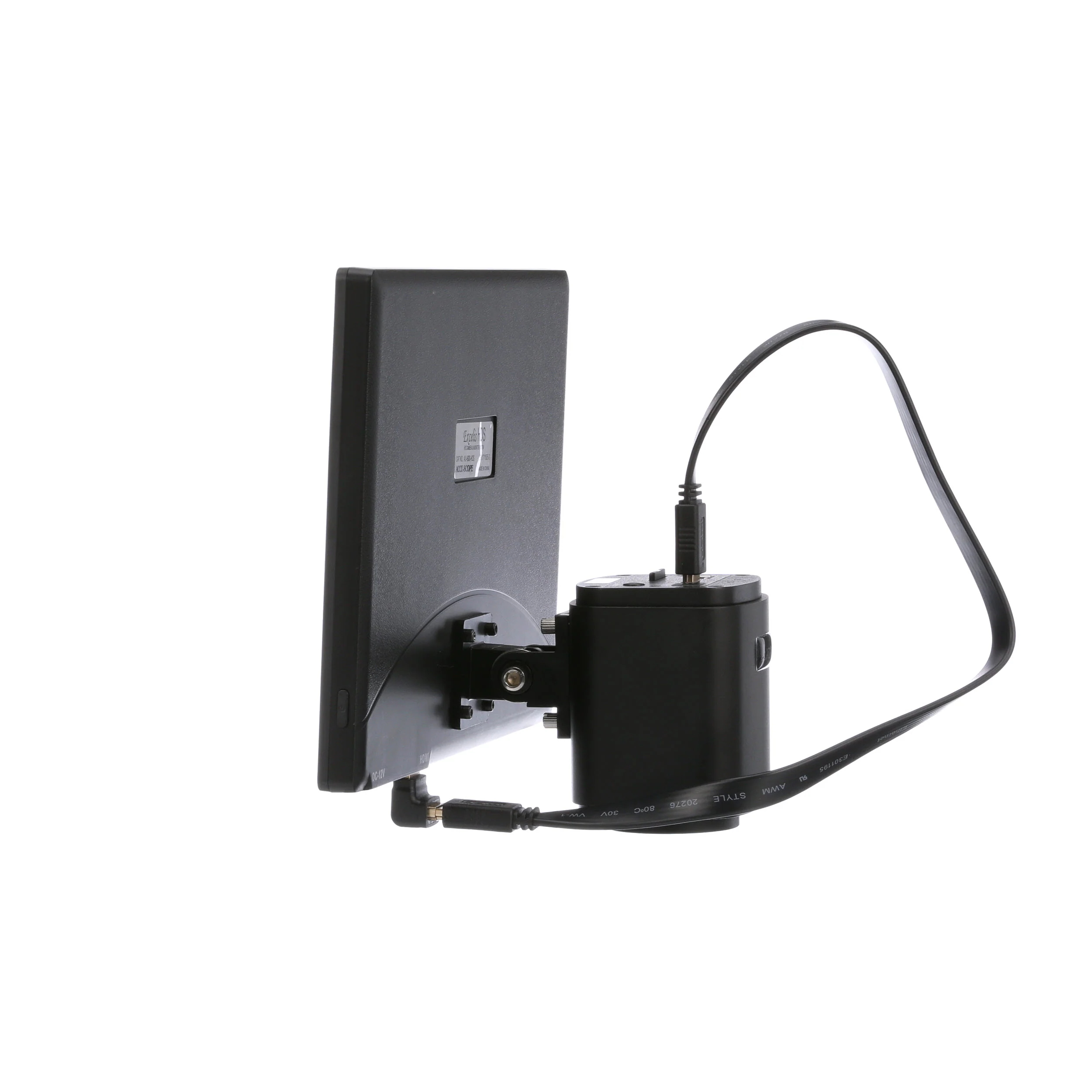

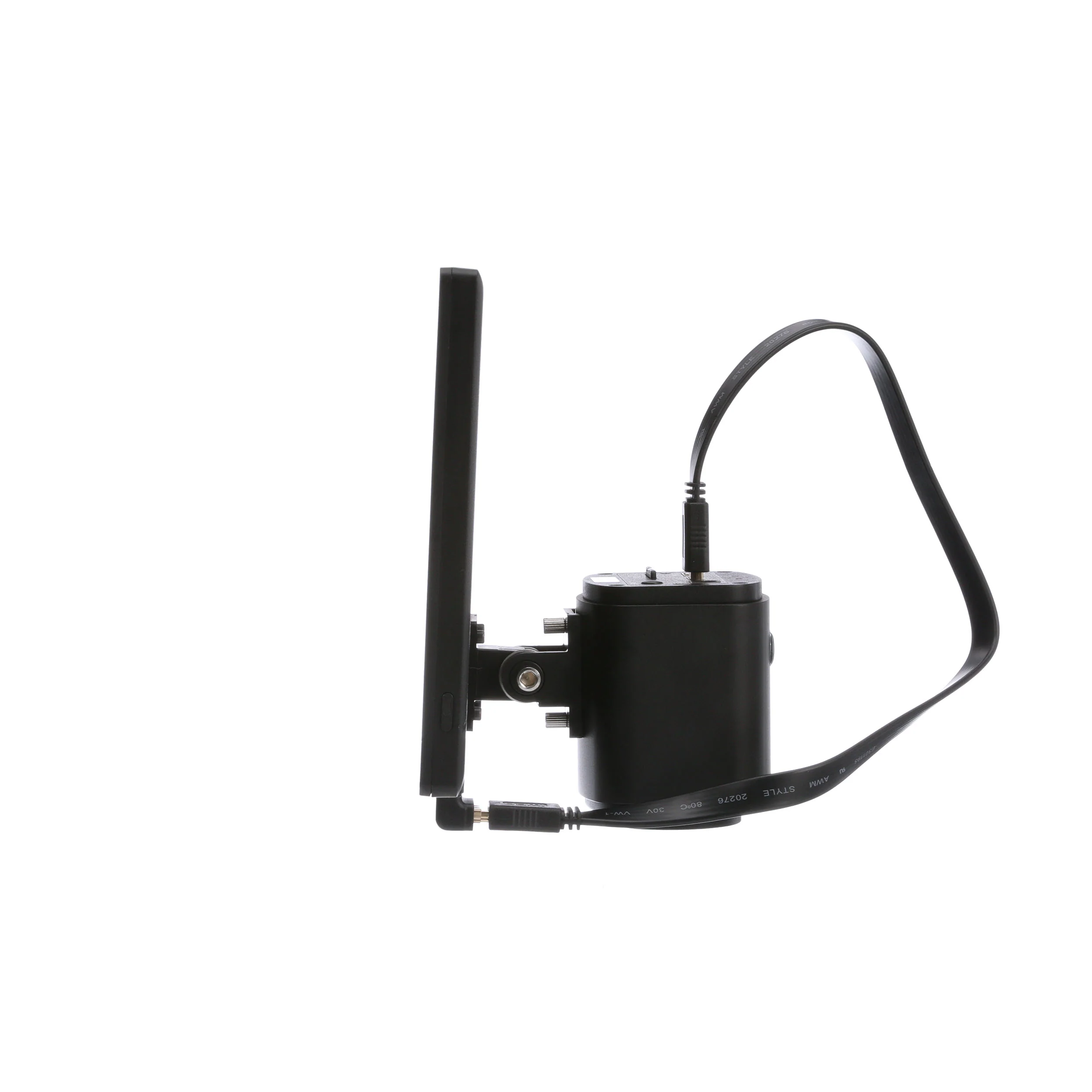

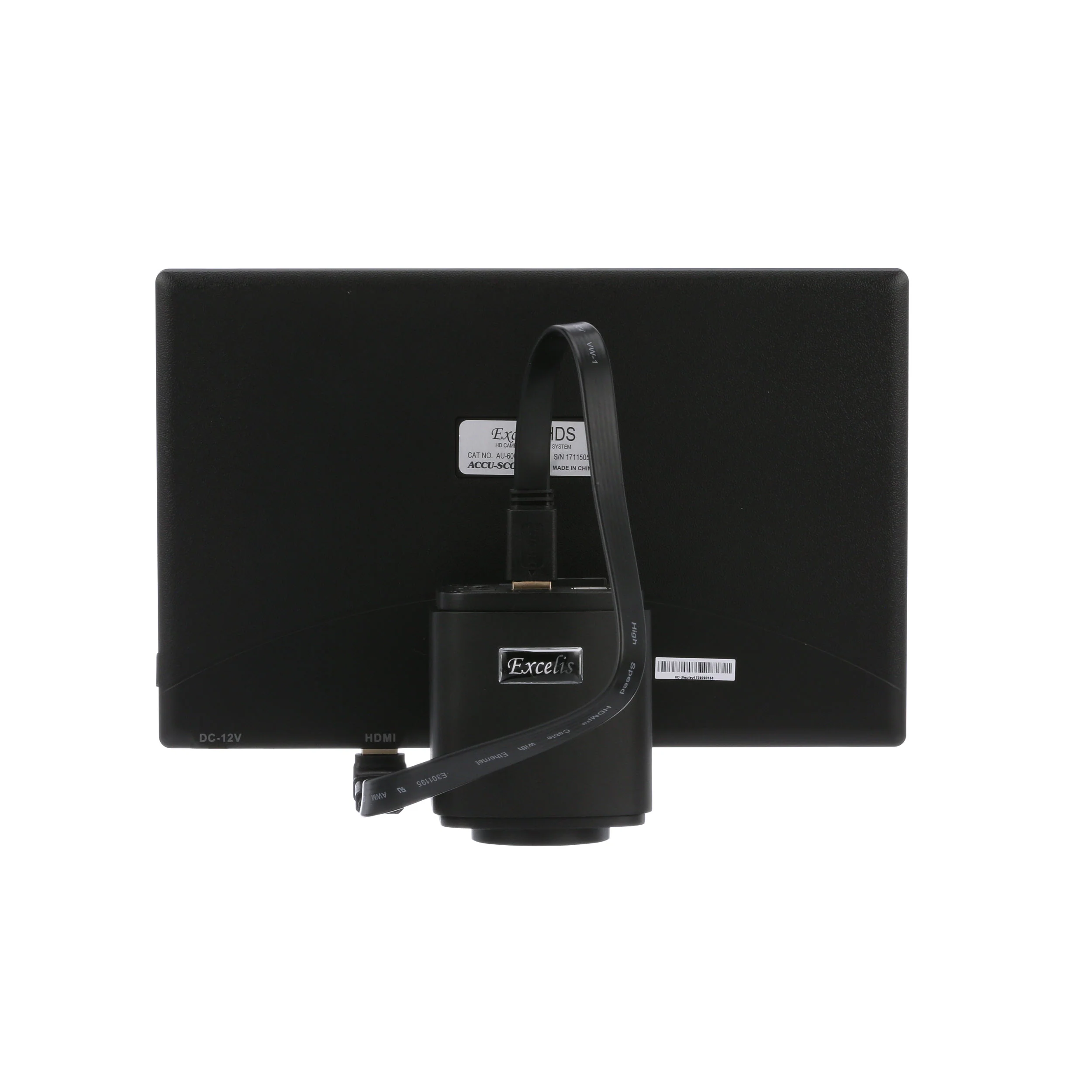

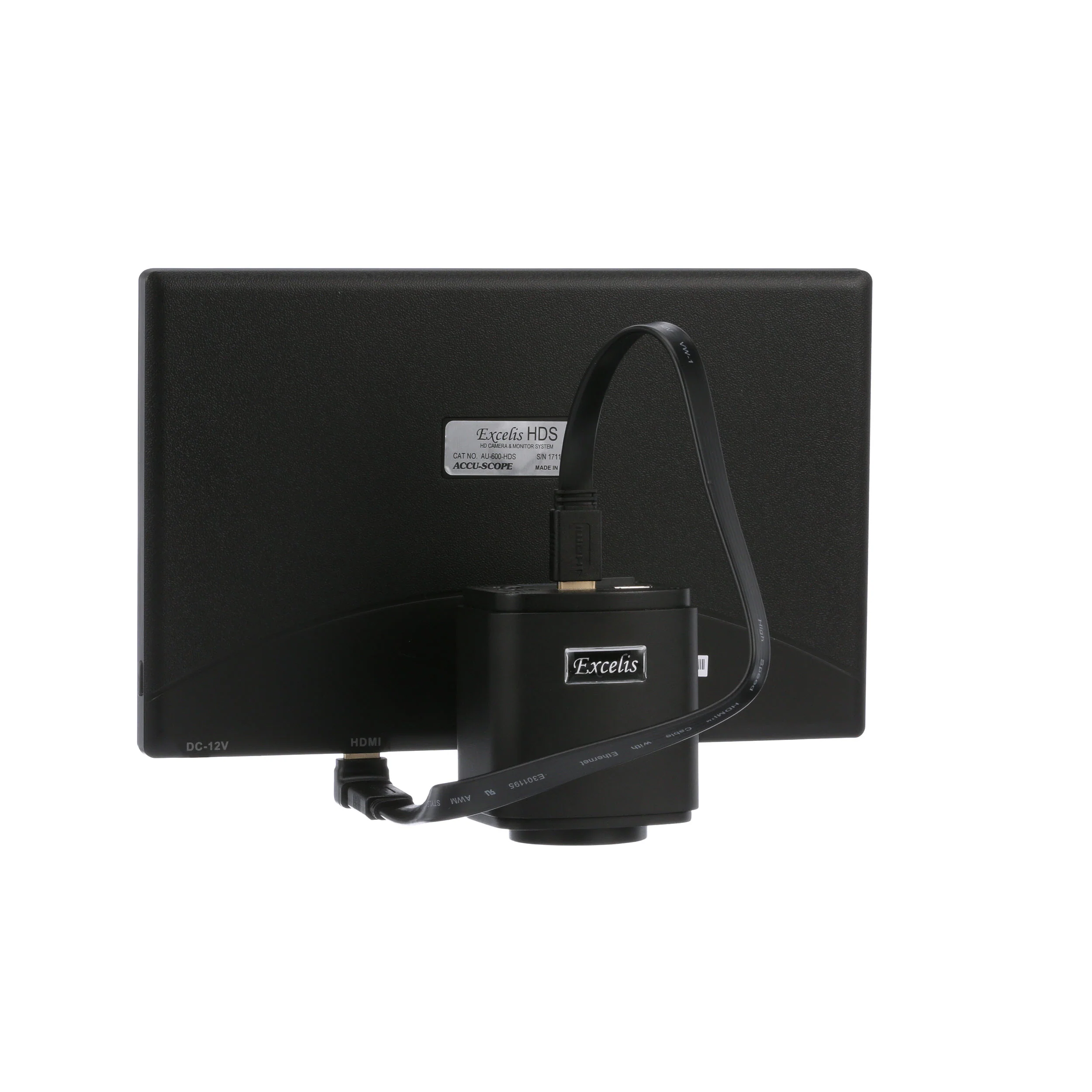

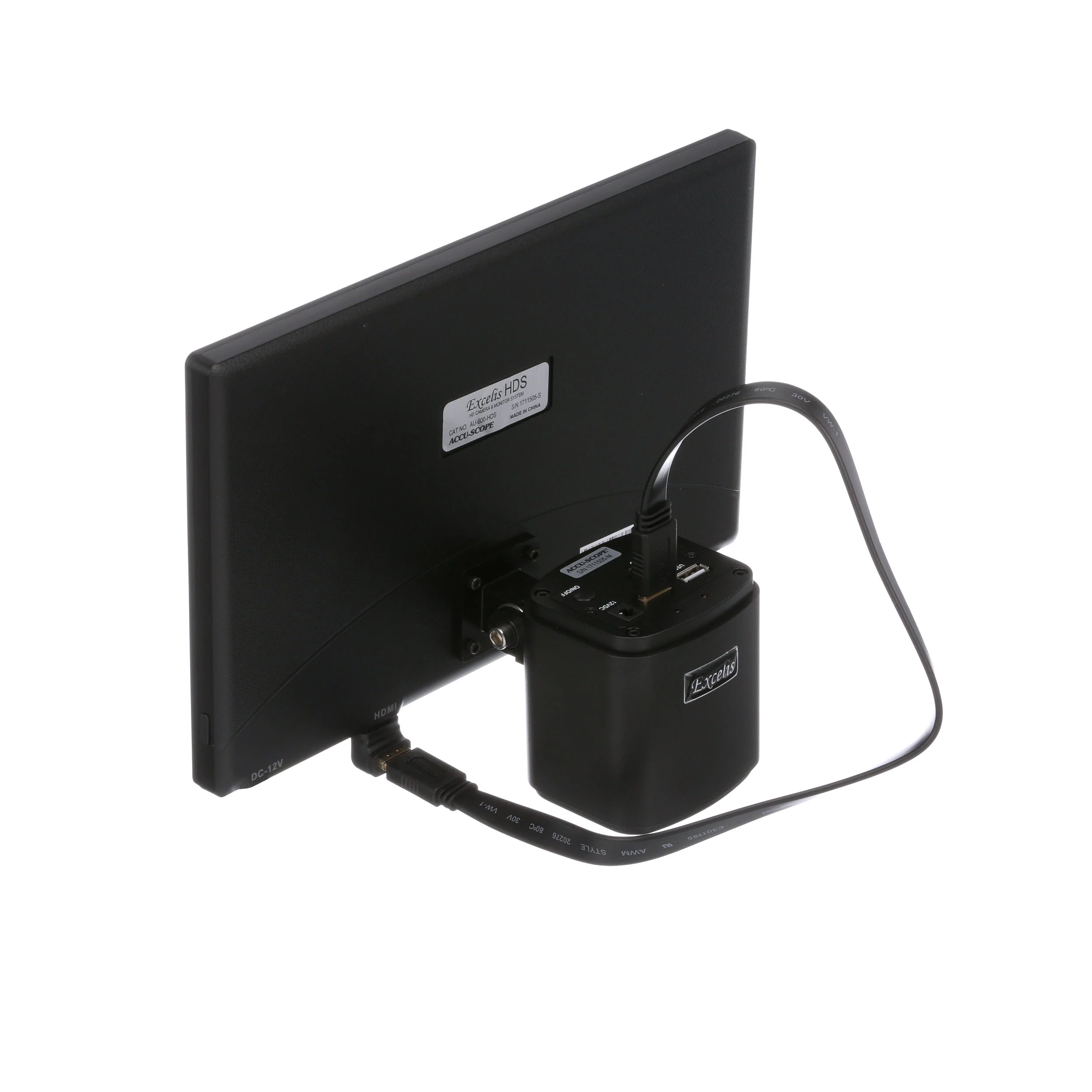

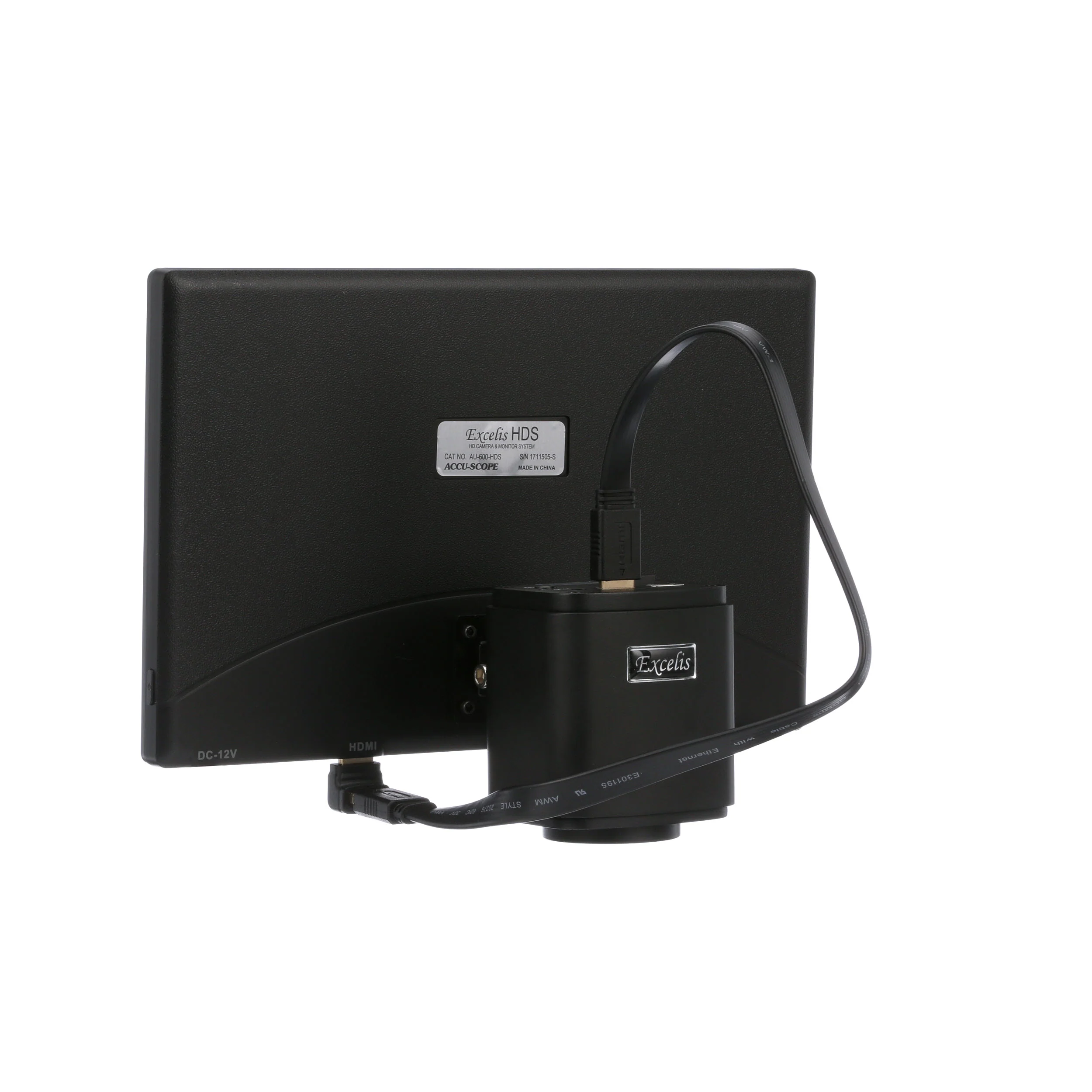

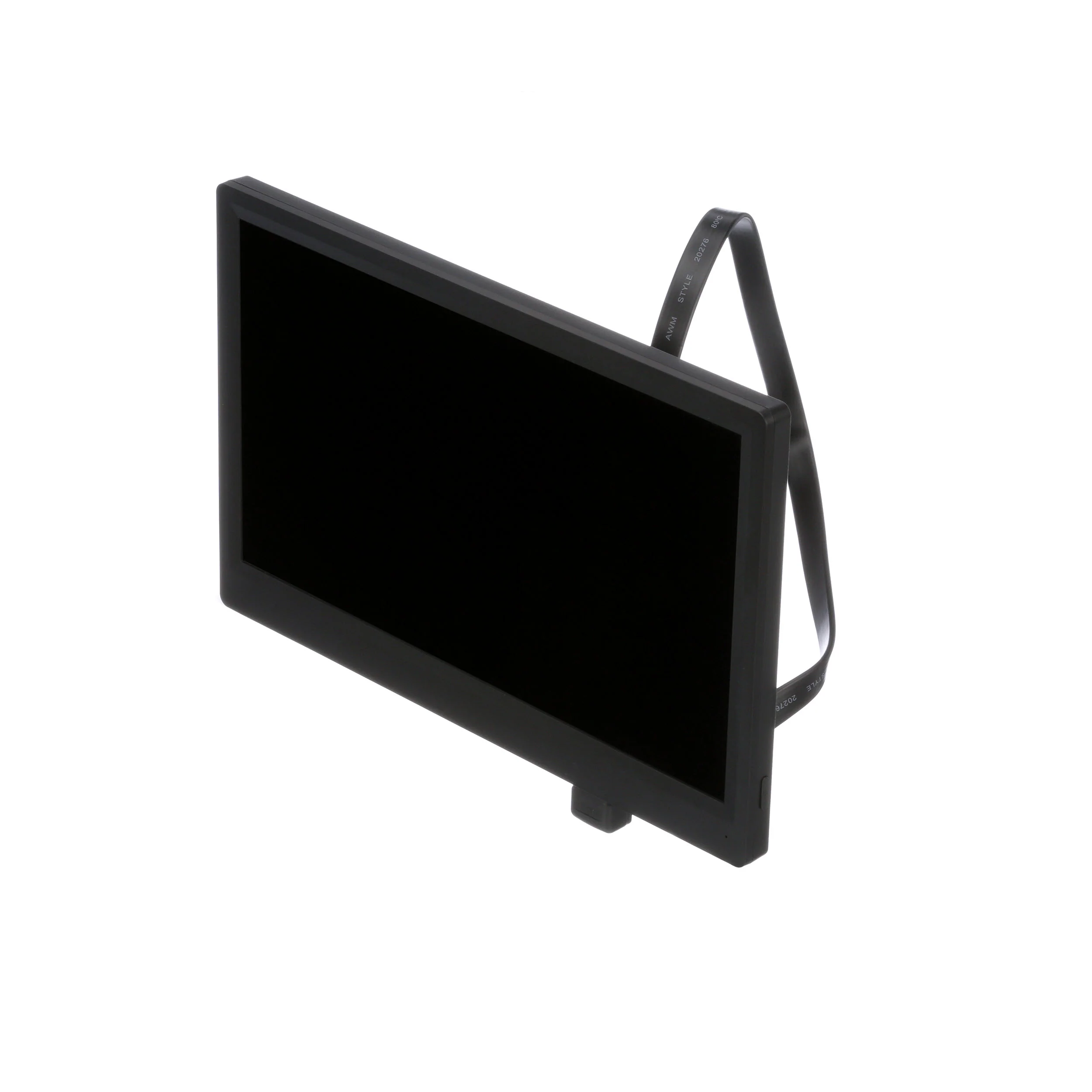

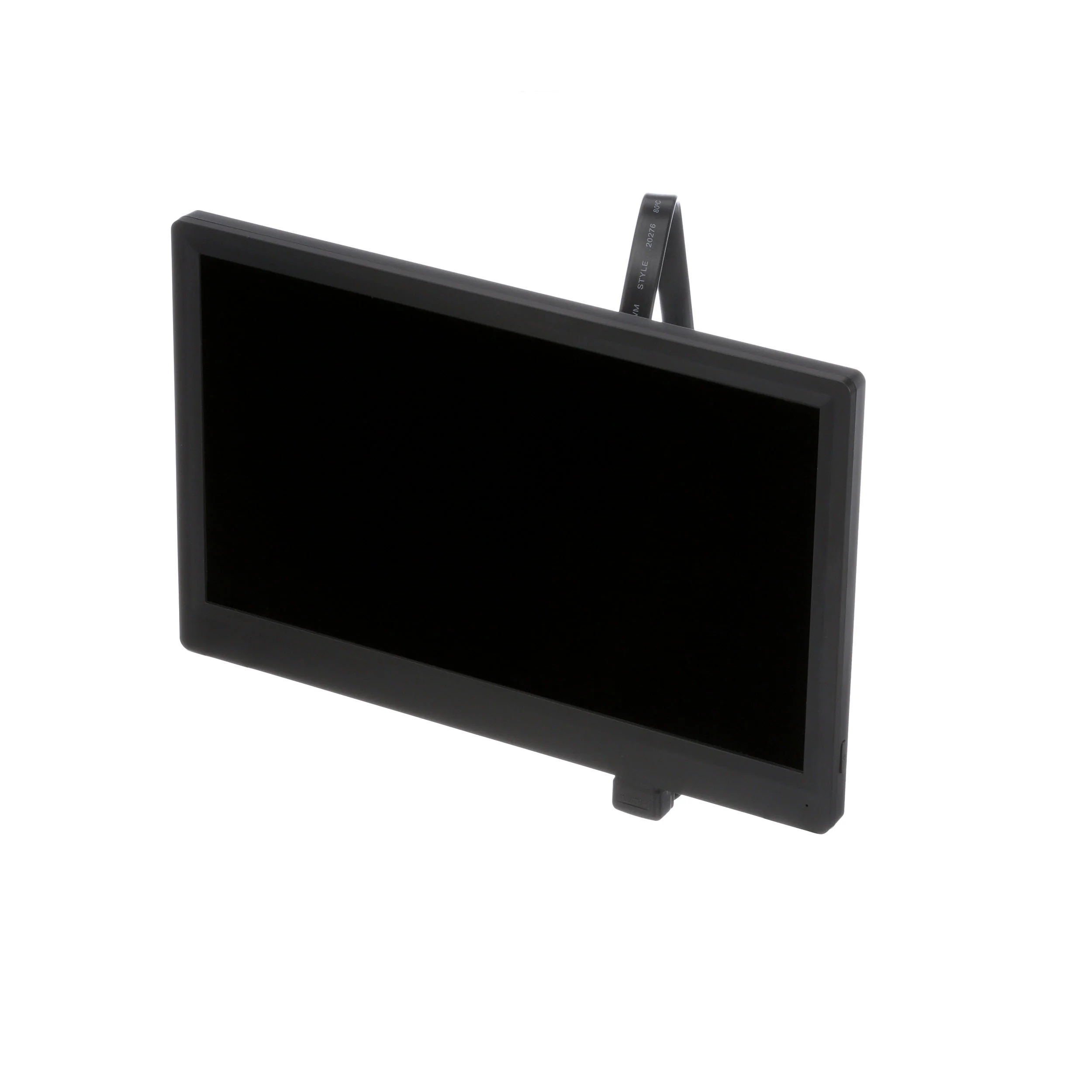

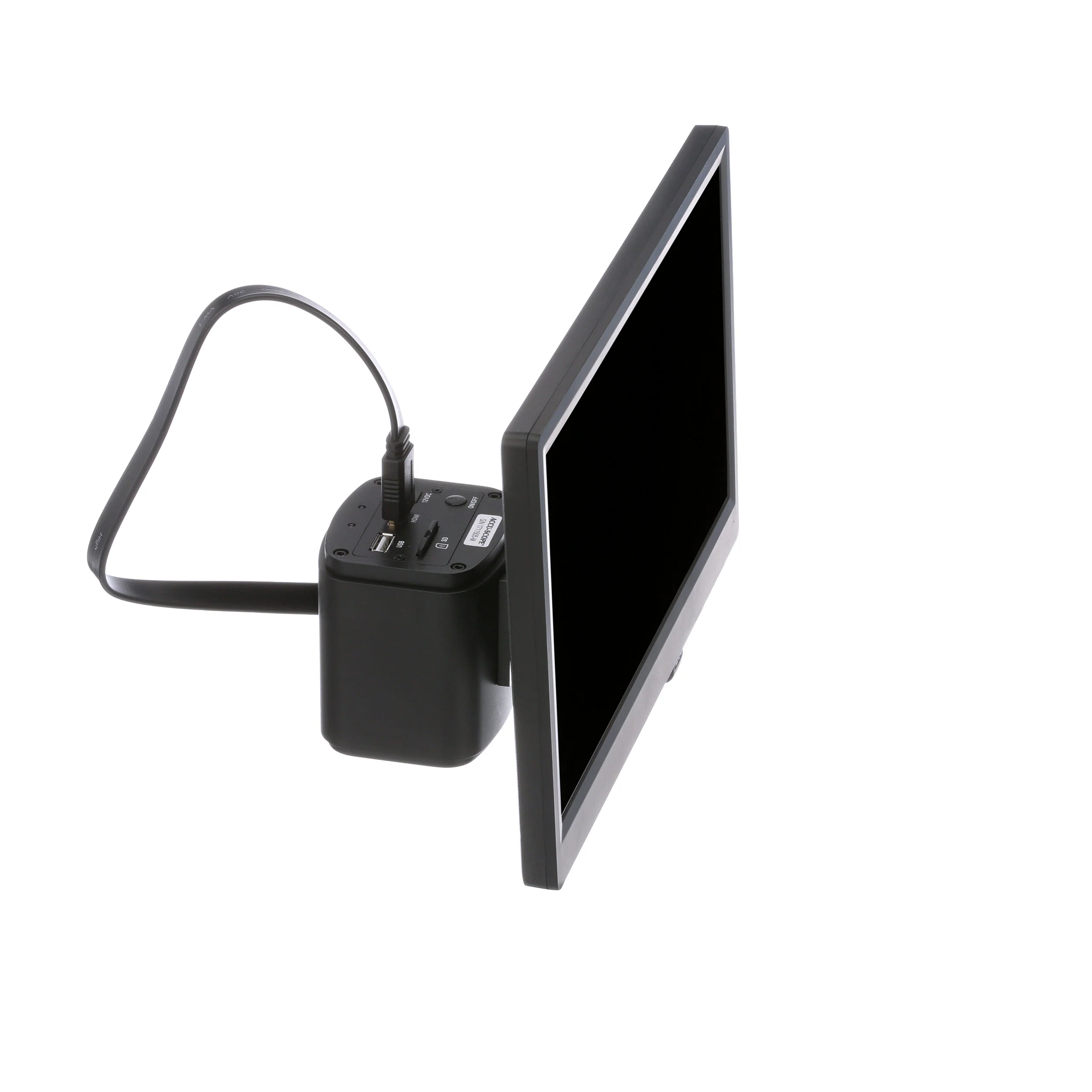

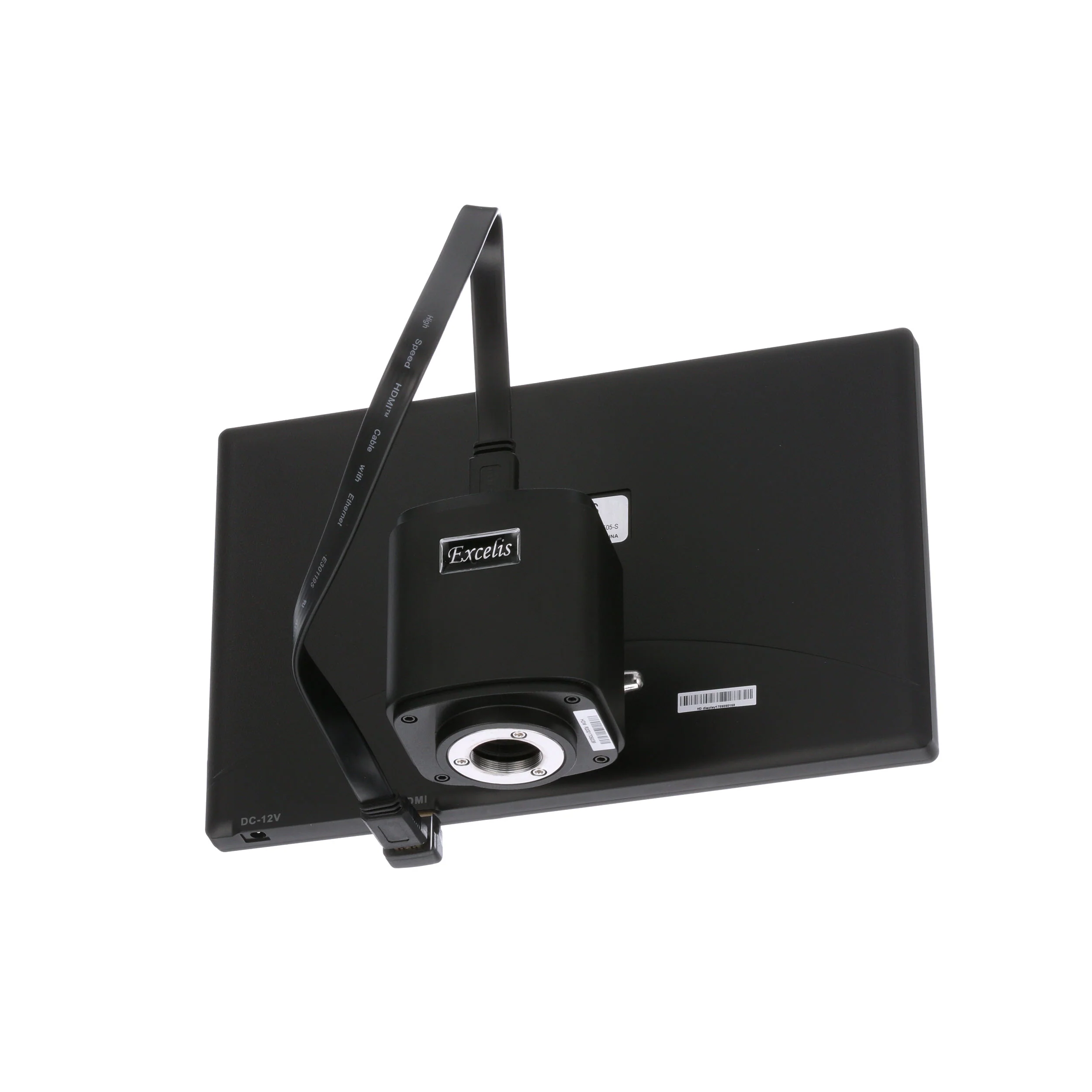

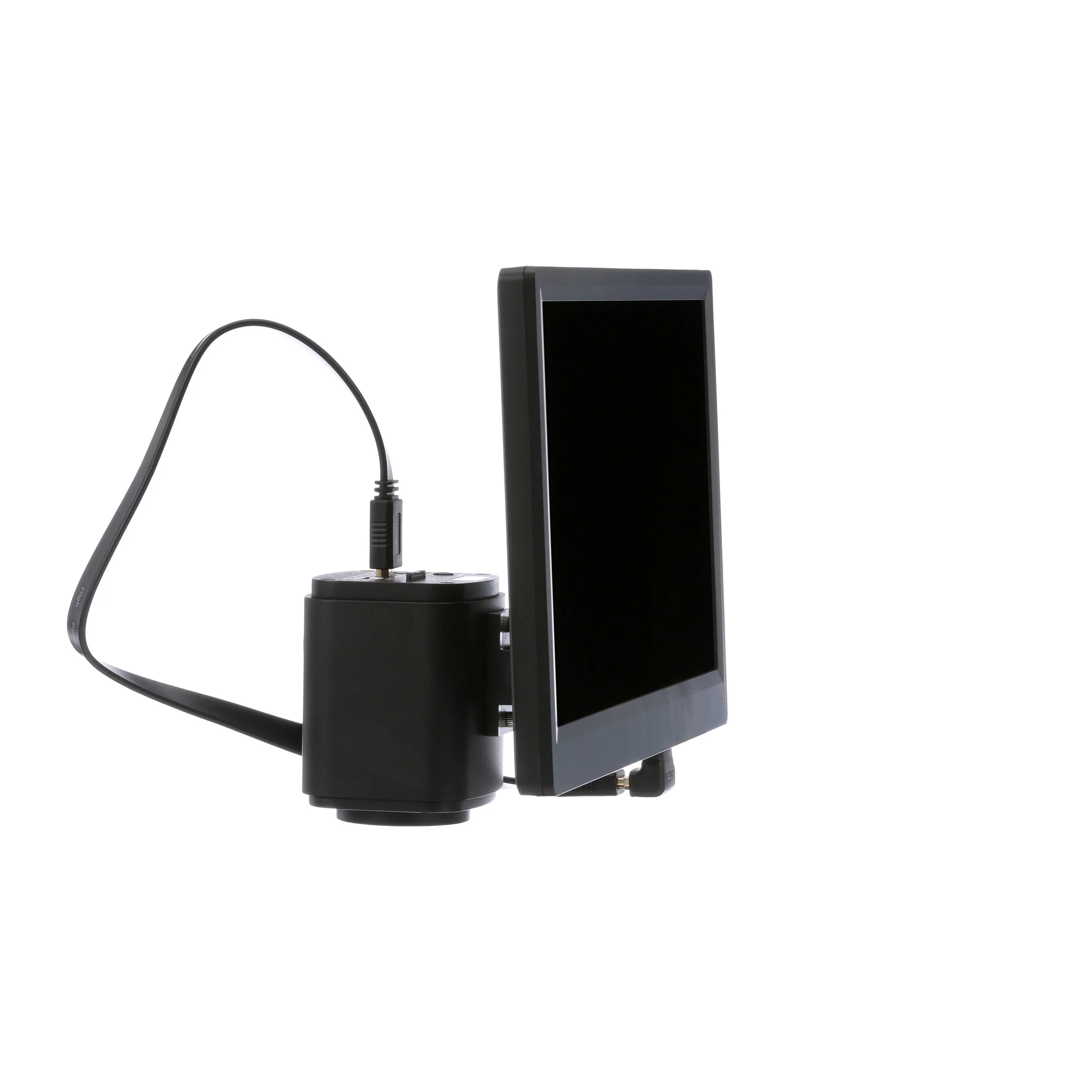

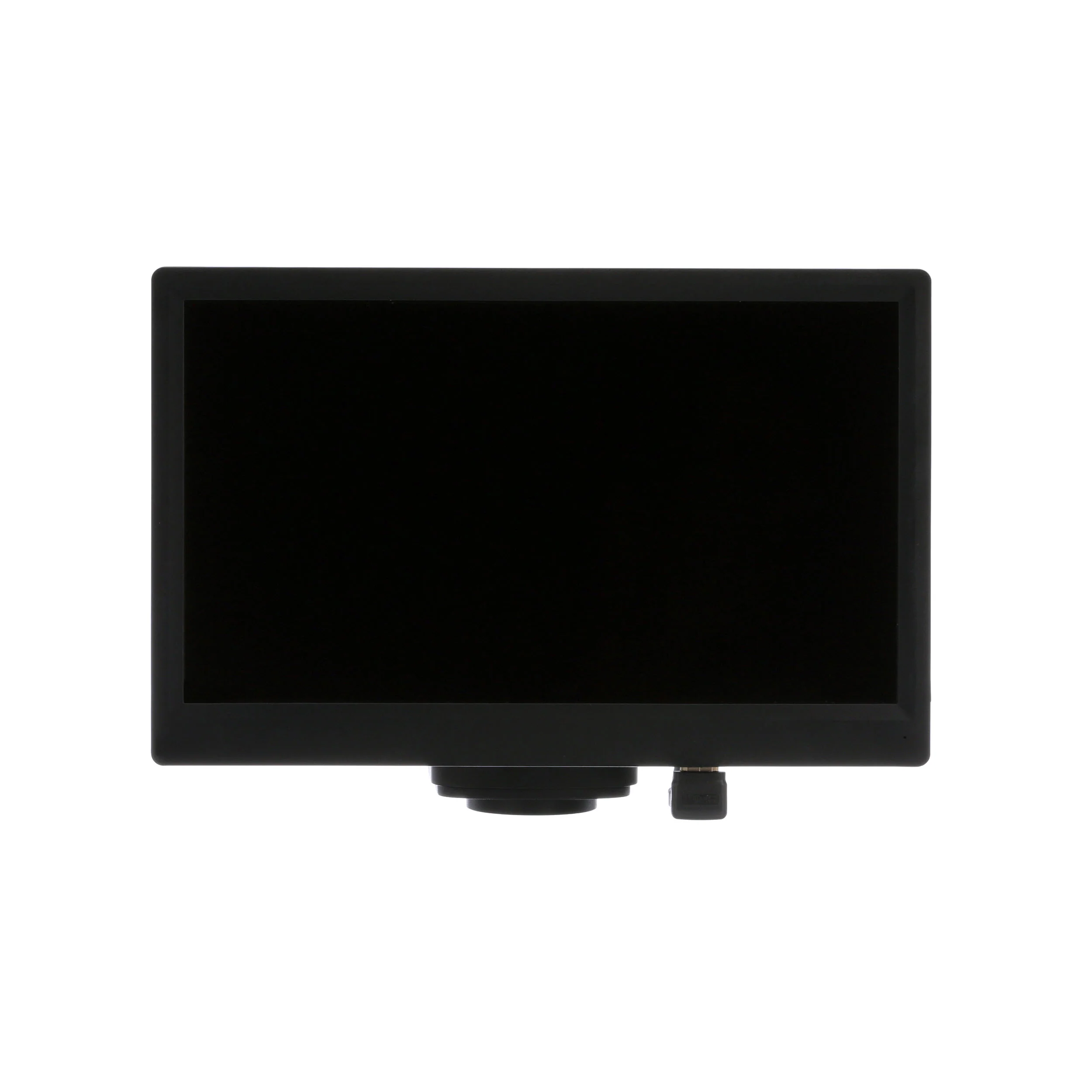

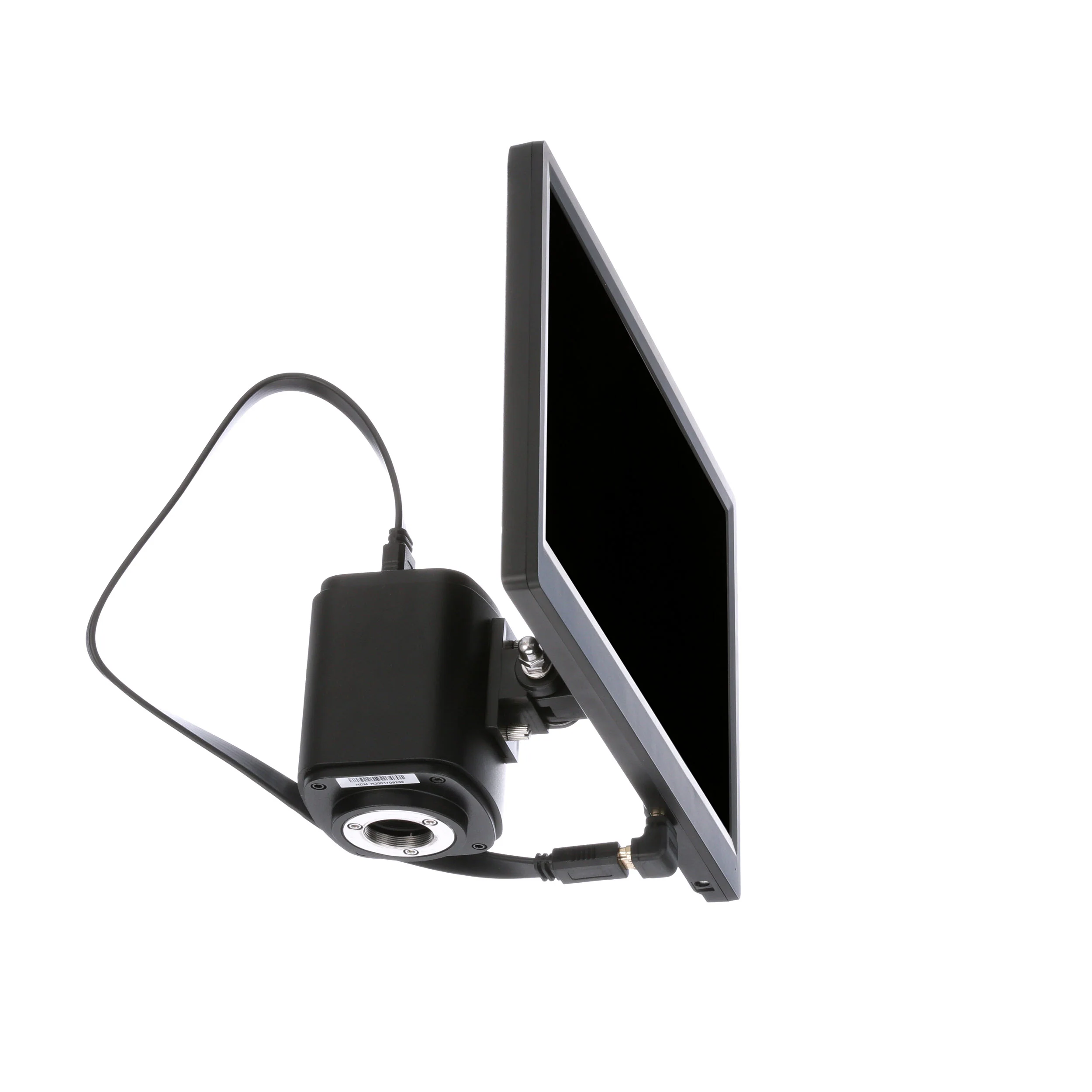

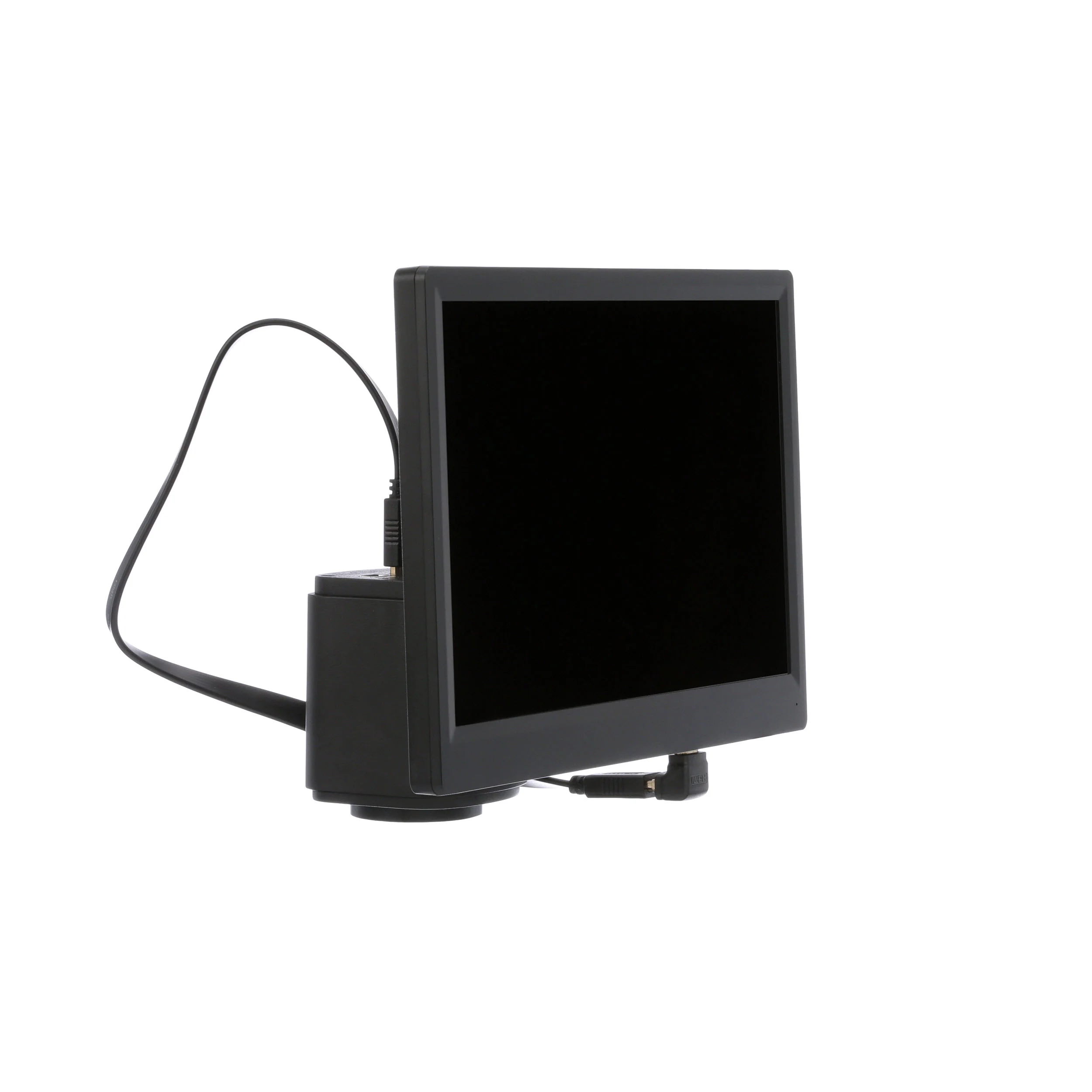

The Excelis™ HD camera delivers true, live 1080P HD images at 25fps, captures 6MP photos and records live video in full HD. On-board software provides measurement, annotation, comparison and control over exposure, gain and other camera settings without a computer. The AU-600-HDS version includes a 13.3” HD monitor that can be mounted directly to the camera, for easy viewing and a space saving design.

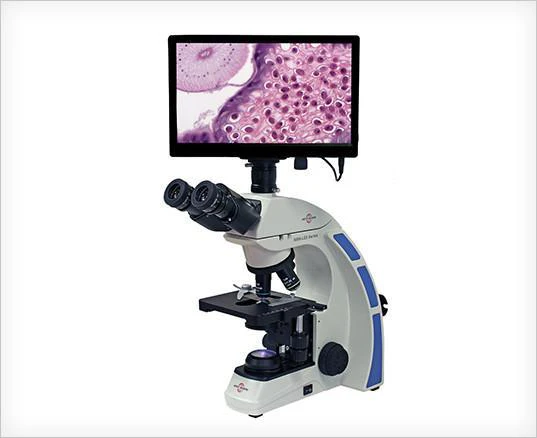

For use with any trinocular microscope!
Watch our demo video under the demo video tab to see the camera capabilities with the 13.3 inch HD microscope screen!
HDMI Microscope Camera Features:
- 1080p color camera with live video preview without any lag time or compression
- 6 M.P.
- HDMI & 2.0 USB microscope camera output for video and images
- Built-in mouse control software for HDMI viewing/recording without a computer
- Simultaneous live image output to an HD monitor to a computer via USB 2.0
- On-board camera software with basic image controls: auto/manual exposure time, 3D noise reduction, 1080p video recording, magnify (ROI), rotate, flip images, side by side comparison, browse images/video playback from SD card (PC & Mac compatible)
- CaptaVisio+ PC imaging software for more advanced image control, annotation & analysis
- PC & MAC Software
- Exposure time of 0.001 seconds to 10 seconds, 20 scales of Gain value and incredibly efficient 3D noise reduction for fluorescence applications
- SONY IMX236 sensor, dual FPGA processors and unique algorithms produce perfect color reproduction
| AU-600-HD Specifications | |
|---|---|
| Resolution (Live): | 3264 x 1836 6 M.P. |
| Sensor: | 1/2.8 (0.35x C-mount recommended); SONY IMX236 |
| Frame Rate: | HDMI (25ps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) Accepts Class 10 SD Card, 35 GB Max |
| Video Capture: | HDMI: 1080p, 25fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Exposure, Gain, Gamma, Saturation, Brightness, Noise Reduction, Whate Balance |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision+ Imaging Software (for PC/Windows and Mac OS) Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing; fluorescence image settings; fluorescence multi-color channel mixer merge; Image Types: JPG, PNG, TIF and DICOM (available for Mac OS with CaptaVision+ v3.0) |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Requirements: |
Intel Core i5 processor (Quad Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
