Euromex iScope Phase Contrast Microscope Series

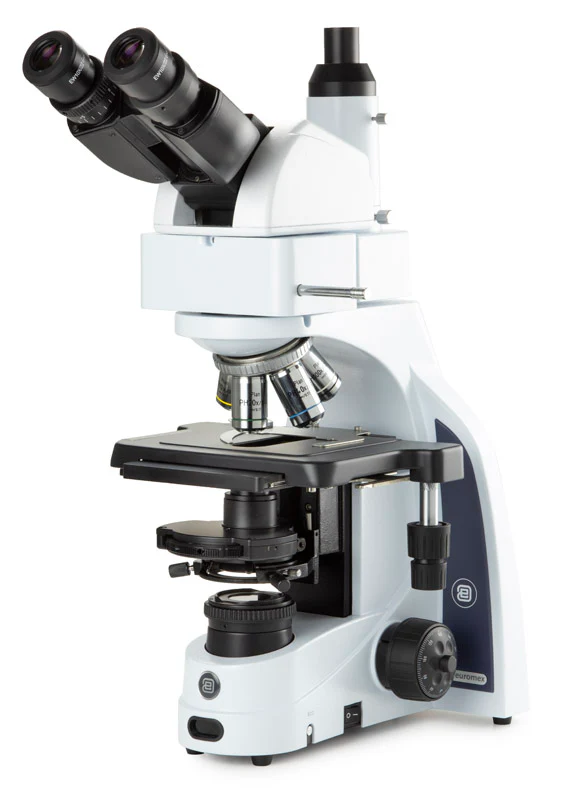

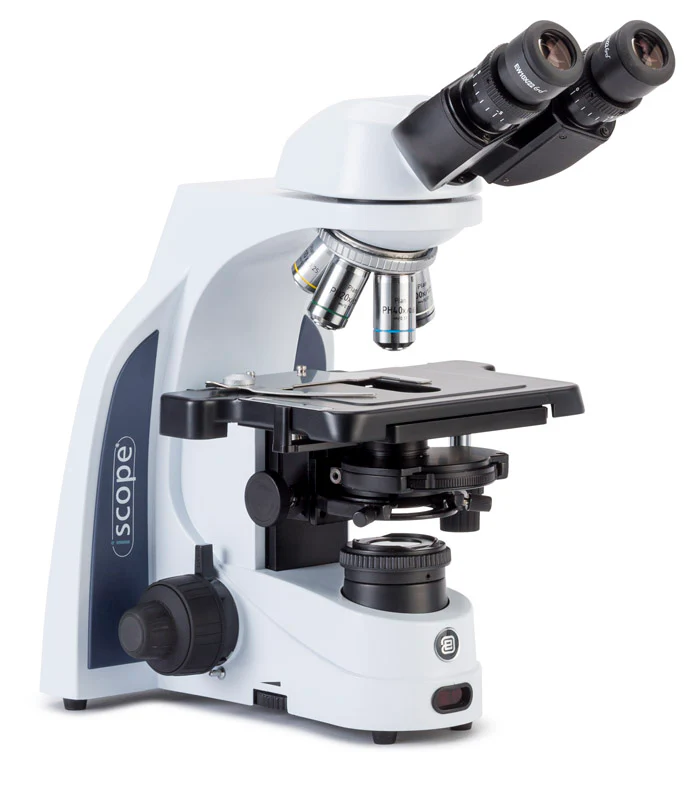

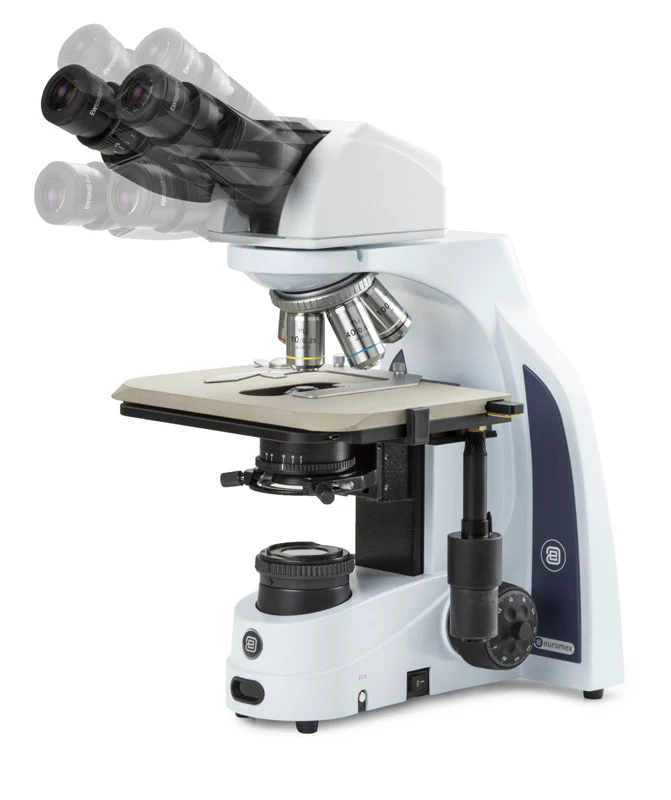

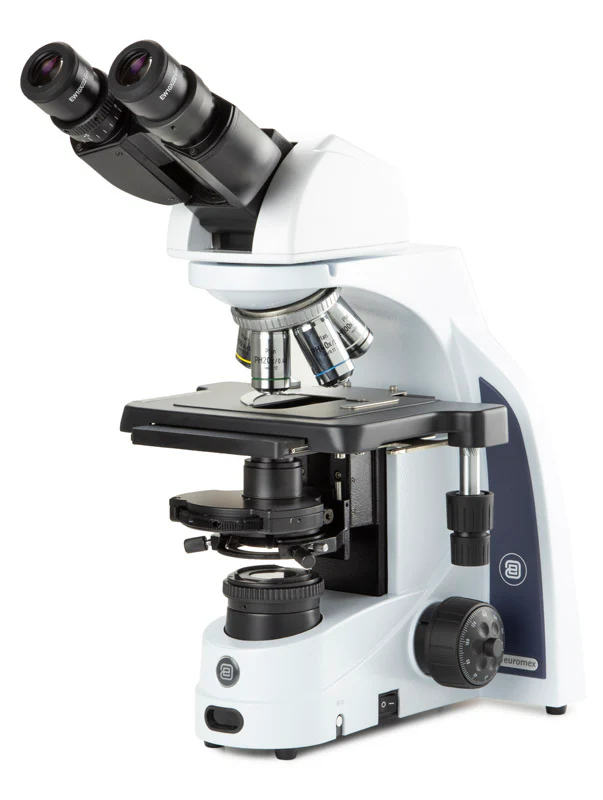

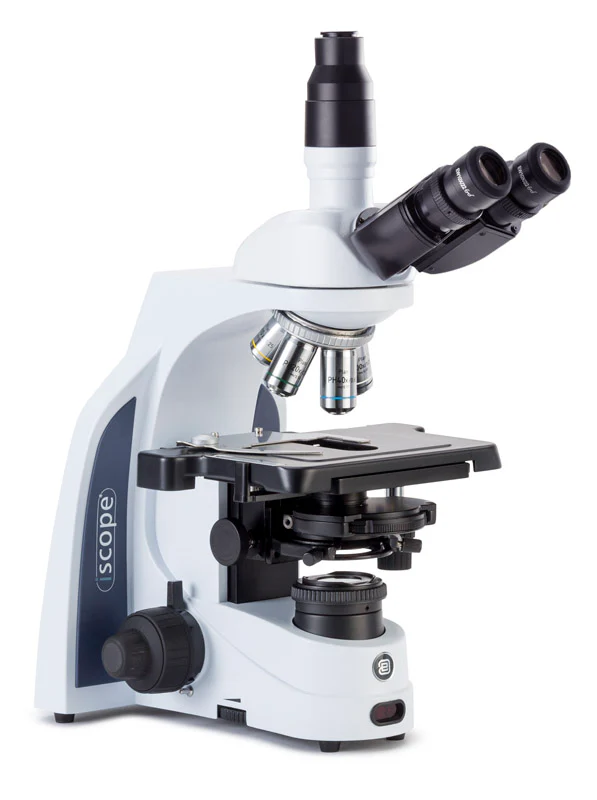

The Euromex iScope for phase contrast is available in multiple configurations. You can select from a standard binocular head, trinocular head, ergonomic binocular head, or ergonomic binocular head with photo port. You can also choose from Plan Phase objectives or Plan Phase Infinity Corrected objectives. 10x eyepieces with a 20mm FOV come with the plan phase package, while 10x eyepieces with a 22mm FOV come with the Plan Phase Infinity objective package. Either of these packages comes with 10x, 20x, 40x, and 100x oil objectives along with a phase contrast turret condenser with brightfield, darkfield, and phase settings. All packages come with a rackless mechanical XY stage. The NeoLED illumination system provides high resolution images and the iCare sensor will turn the microscope off if left on unattended.
| Specifications | |
|---|---|
| Head: | Binocular, Trinocular, Ergonomic Binocular, or Ergo w/ Photo Port |
| Eyepieces: |
EWF 10x/20mm - With Plan Phase or EWF 10x/22mm - With Plan Phase Hi |
| Nosepiece: | Reversed quintuple |
| Objectives: |
Plan Phase 10x, 20x, 40x, 100x Oil or Plan Phase Infinity Corrected 10x, 20x, 40x, 100x Oil |
| Condenser: | Phase Contrast Turret Condenser - B.F., D.F., Phase |
| Stage: | Rackless Mechanical XY |
| Focusing: | Coaxial coarse / fine focus |
| Illumination: | NeoLed variable w/ iCare Sensor |
| Accessories: | Dust cover, power cord, oil |
| Warranty: | 10 Years |
Brochure
Product Video
Description
The Euromex iScope for phase contrast is available in multiple configurations. You can select from a standard binocular head, trinocular head, ergonomic binocular head, or ergonomic binocular head with photo port. You can also choose from Plan Phase objectives or Plan Phase Infinity Corrected objectives. 10x eyepieces with a 20mm FOV come with the plan phase package, while 10x eyepieces with a 22mm FOV come with the Plan Phase Infinity objective package. Either of these packages comes with 10x, 20x, 40x, and 100x oil objectives along with a phase contrast turret condenser with brightfield, darkfield, and phase settings. All packages come with a rackless mechanical XY stage. The NeoLED illumination system provides high resolution images and the iCare sensor will turn the microscope off if left on unattended.
| Specifications | |
|---|---|
| Head: | Binocular, Trinocular, Ergonomic Binocular, or Ergo w/ Photo Port |
| Eyepieces: |
EWF 10x/20mm - With Plan Phase or EWF 10x/22mm - With Plan Phase Hi |
| Nosepiece: | Reversed quintuple |
| Objectives: |
Plan Phase 10x, 20x, 40x, 100x Oil or Plan Phase Infinity Corrected 10x, 20x, 40x, 100x Oil |
| Condenser: | Phase Contrast Turret Condenser - B.F., D.F., Phase |
| Stage: | Rackless Mechanical XY |
| Focusing: | Coaxial coarse / fine focus |
| Illumination: | NeoLed variable w/ iCare Sensor |
| Accessories: | Dust cover, power cord, oil |
| Warranty: | 10 Years |
