Euromex bScope Infinity Plan Achromat Microscope Series

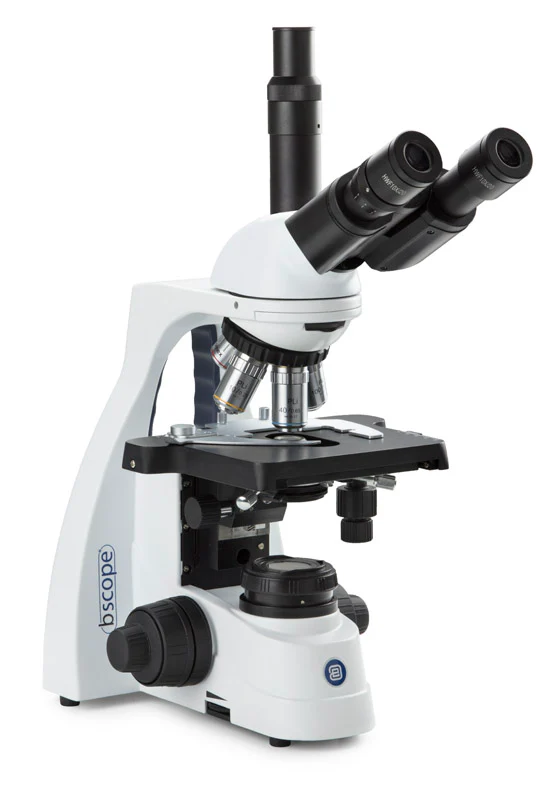

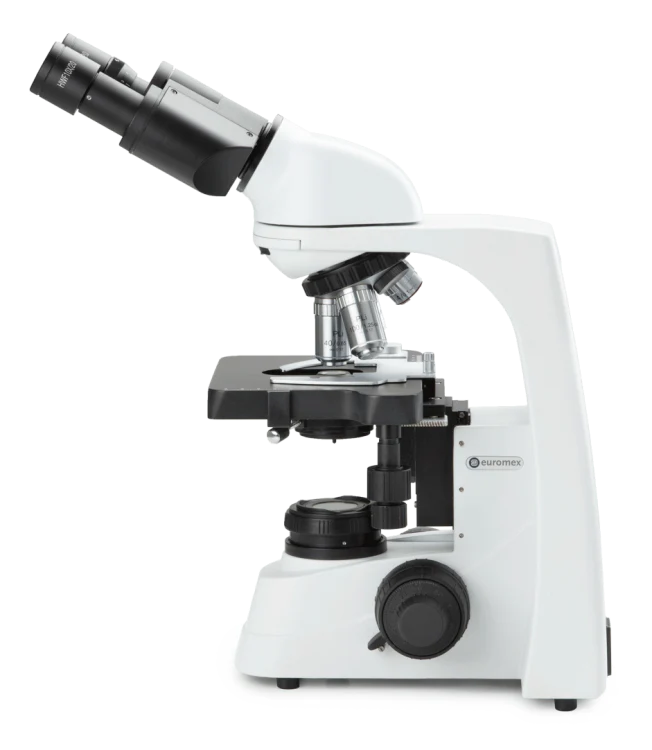

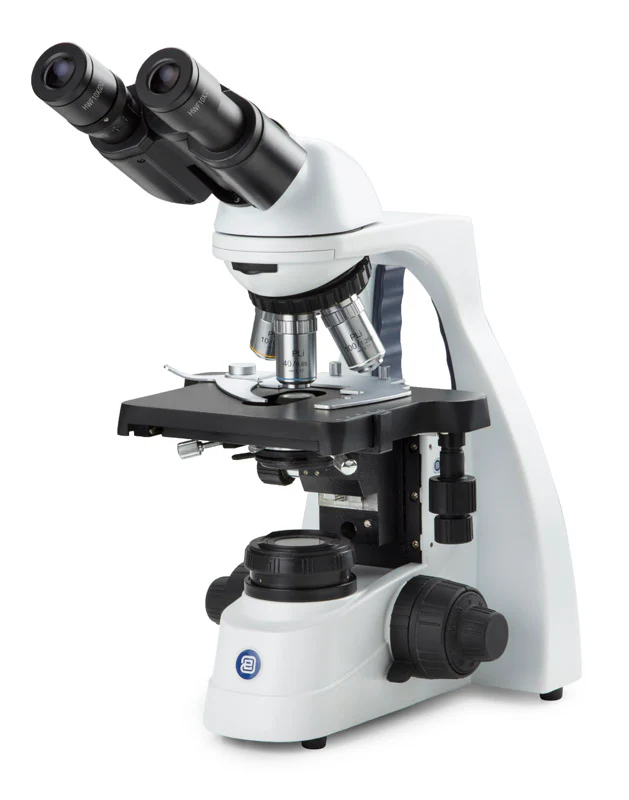

The Euromex bScope microscope with infinity plan achromat objectives is available in both binouclar or trinocular versions. This high quality microscope is made in Holland and is backed with a 10 year warranty. It's an excellent option for education, small / mid-sided laboratories, and veterinary applications. The microscope comes standard with 10x eyepieces offering a wide 20mm field of view. The quintuple nosepiece houses plan achromat infinity corrected PLi4x, 10x, 40x, and 100x oil objectives. The XY mechanical stage is rackless so no parts of the stage stick out. The height adjustable 1.25 N.A. condenser comes with an iris diaphragm and filter holder. The built in carry handle allows for proper and safe transportation of the microscope. The microscope features a kohler 3 watt NEOLED illumination system. The NeoLED provides larger apertures allowing for higher resolution images with low energy consumption. The NeoLED system is rechargeable, so you can use the microscope without plugging it in! The CSS cable strage system provides a built in cord wrap for easy storage.
| Specifications | |
|---|---|
| Head: |
Binocular or Trinocular 30 degree inclined, 360 degree rotatable |
| Eyepieces: | HWF 10x/20mm |
| Nosepiece | Reversed quintuple. Slot for polarizer |
| Objectives: | Infinity Corrected Plan Achromat IOS 4x, 10x, 40x, 100x Oil |
| Stage: | Rackless XY Mechanical Stage |
| Condenser: | 1.25 N.A. Height Adjustable |
| Focusing: | Coaxial coarse / fine |
| Illumination | Kohler 3 Watt NeoLED - Rechargeable with AA batteries (not included) |
| Accessories: | Dust cover, power cord, oil |
| Warranty: | 10 Year |
