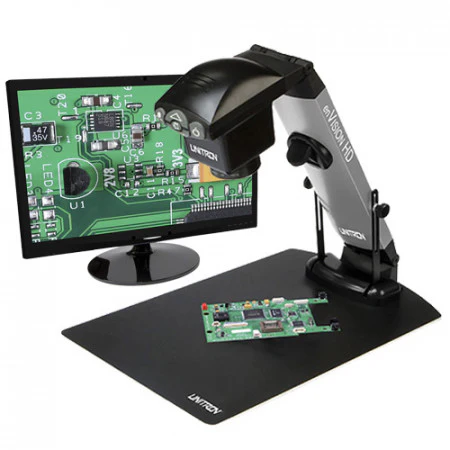

Ash Vision Inspex HD 1080p Digital Imaging System on Table Stand

The Ash Vision Inspex HD is a digital video inspection system offering 1080p images at 60 frames per second. This system provides a live real time image output via HDMI cable to an external monitor. The on-screen menu allows you to control the camera features. An optional external keypad allows for three memory pre-sets, infrared mode, real time dimensional grids, exposure, and focus control. Built in LED illumination comes with this system and is fully adjustable. This system offers 2.0x - 85x zoom magnification based on using a 24" monitor. The table stand allows for placement of your sample directly on the base of the scope.

Features:

• 1080p Digital Microscope and Inspection station with 4D lens system
• Magnification range 2.0x - 85x (on 24” monitor)
• Camera resolution - 1080p, 1980 x 1080, 60fps
• 250mm working distance (with 4D lens, included)
• HDMI and DVI output modes, USB 2.0 port for image capture
• Table Stand: 16″ (d) x 9.5″ (w) x 16.5″ (h)
• Auto and manual focus
• Adjustable LED illumination
• Monitor Not Included

Specifications
Camera Resolution:	Full HD 1080p - 1920 x 1080
Output:	HDMI out, USB for image capture
Focus:	Auto / Manual
Magnification range:	2.0x – 85x - while output to 24" monitor
Illumination:	Variable LED illumination
Dimensions:	Table Stand
Response Time:	5ms
Standard Functions:	Auto / Manual Focus, Image Capture, Brightness Adjustment, Magnification Adjustment, Snapshot, Overview, High Contrast Mode, Height Adjustable
Warranty:	Five Year warranty.
