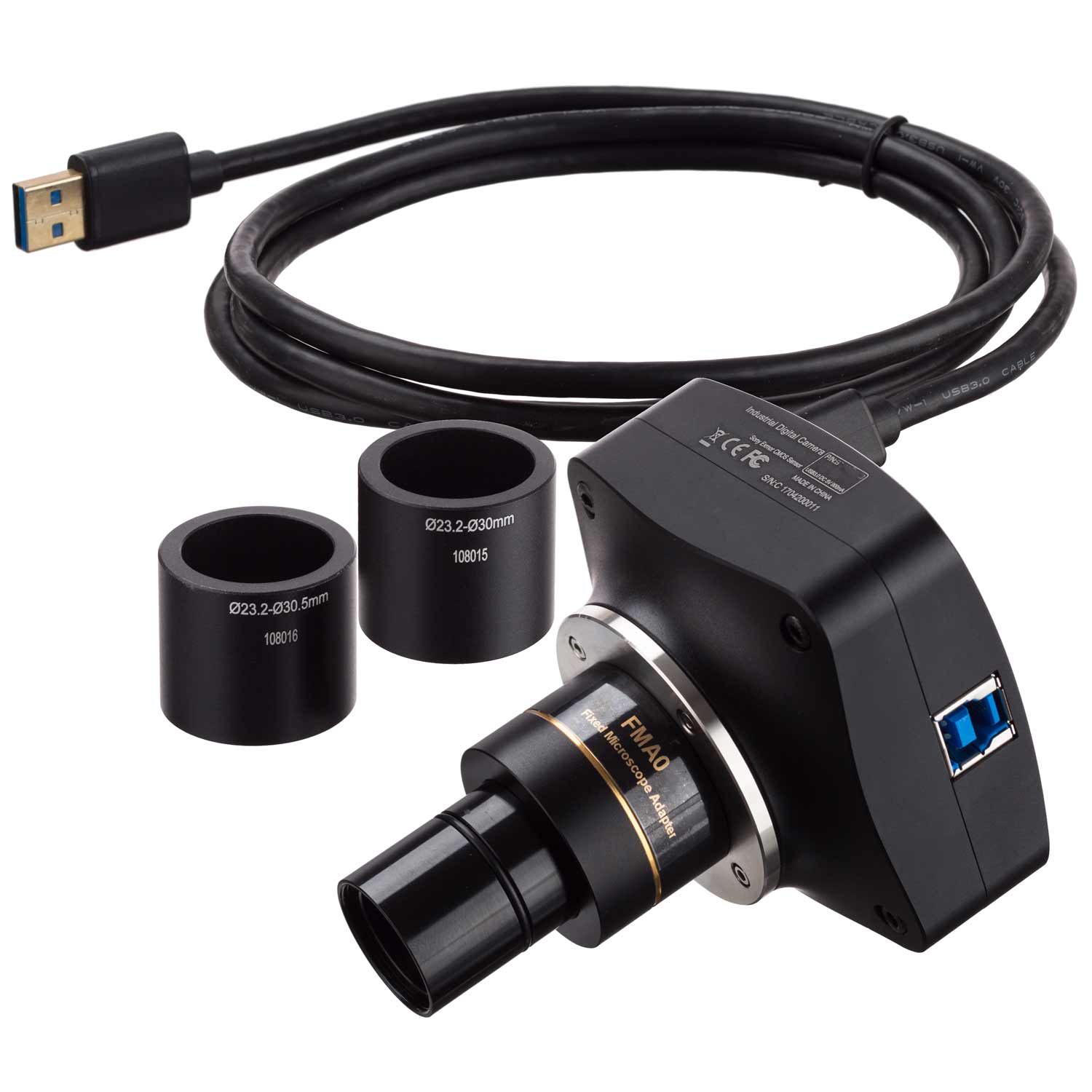

AmScope MU Series 3.1MP USB 3.0 Back-illuminated Color CMOS C-Mount Microscope Camera with Reduction Lens and Calibration Slide

The 3.1MP MU313-BI is part of our back-illuminated CMOS camera series. Back-illuminated CMOS sensors provide higher quantum-efficiency by moving the photo-diode layer in front of the electronic components, increasing photon-absorption. This translates to less image-noise and dark-current while maintaining high speeds. The C-mount connection provides flexibility in usage, including C-mount interfaces, reduction lenses, and adapters for most microscope brands.

The included software for Windows, Mac, and Linux provides an imaging solution for photography and videography. The Windows (8.1/10/11) version provides an extensive toolset for image-processing and measurements. A lite version of the application is provided for Mac and Linux.

Camera Specifications:

• Sensor: Sony IMX123 (color)
• Sensor Type: BSI CMOS
• Sensor Size: 1/2.8" (6.46mm diagonal)
• Pixel Size: 2.5µm x 2.5µm
• Sensor Pixels: 3.1MP (2048x1536)
• Sensitivity: 600mv
• Max Framerates: 50fps @ 2048x1536
• Binning: 1x1
• Exposure Time: 0.244ms - 15s
• Connectivity: USB 3.0
• Compatibility: Windows (32/64 bit) 8.1/10/11, Mac OSX, Linux
• Reduction Lens: 0.5X C-mount to 23mm
