AmScope 5X-80X Jewelry Gem Trinocular Stereo Microscope with Three Lights - SH-2TZ-SL-DK

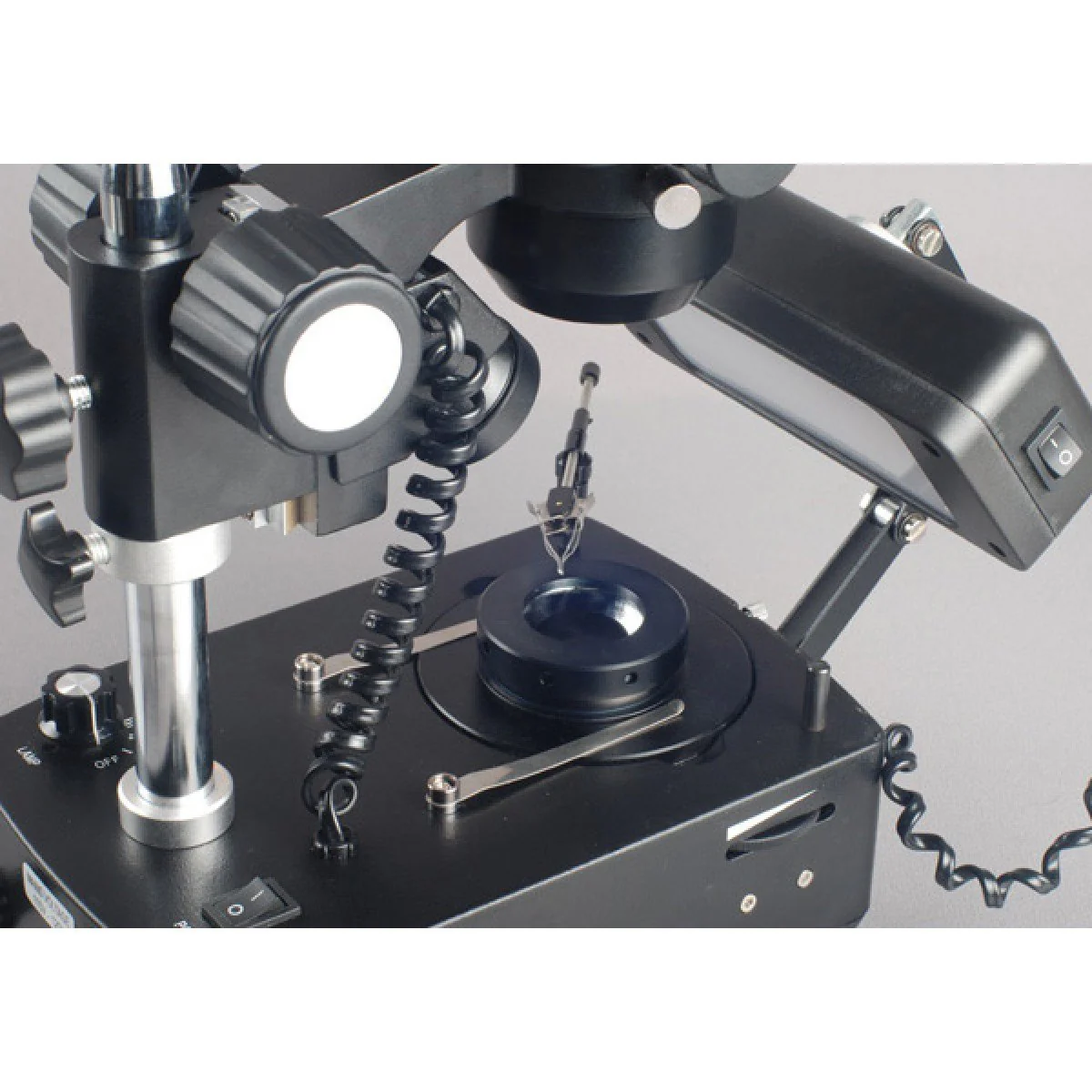

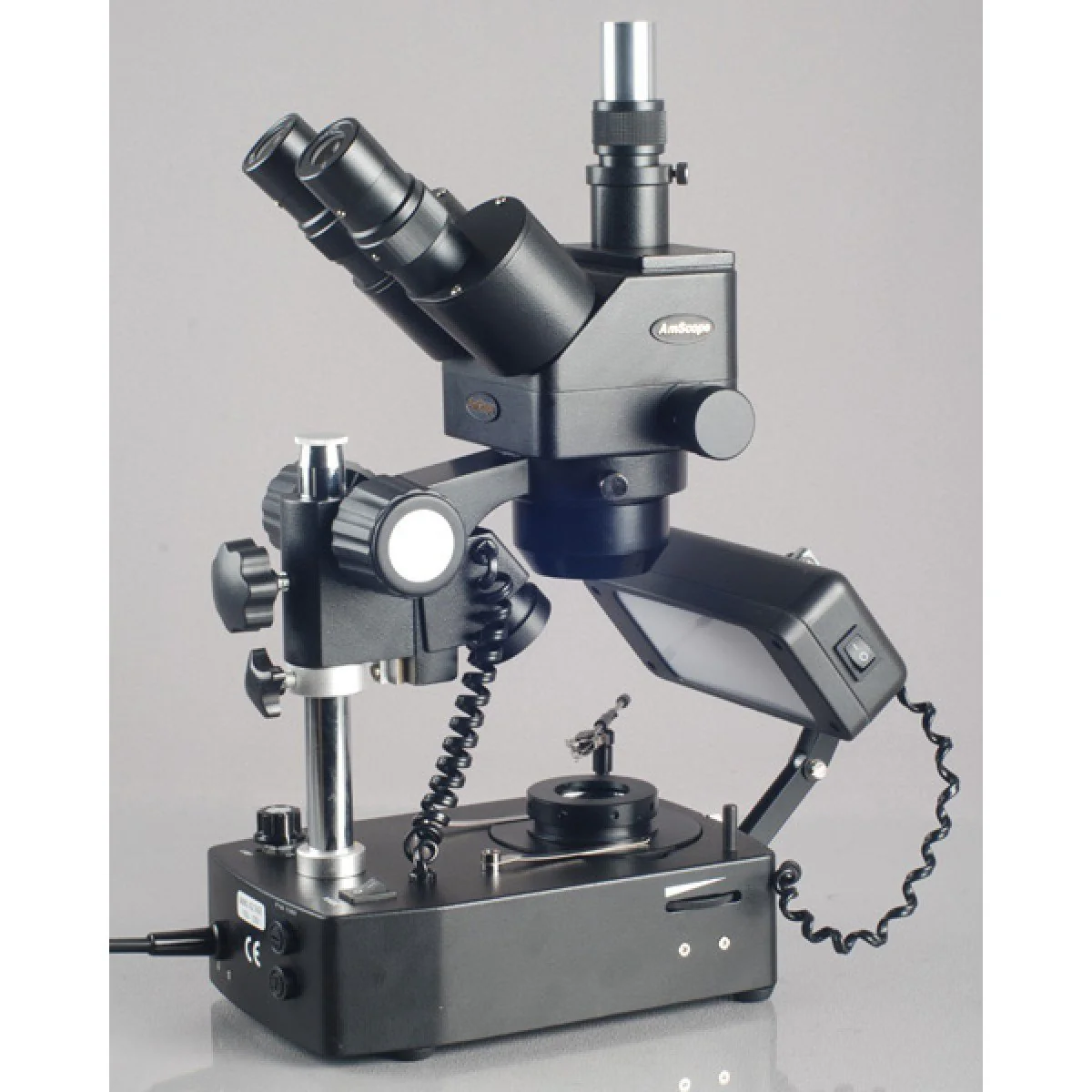

This 10X-60X trinocular jewelry/gem stereo zoom microscope comes with a trinocular zoom head with a photo port, a darkfield condenser, a jewelry/gem clamp, a gooseneck fluorescent rectangular side lighting box, and a both incident (top) & transmitted (bottom) halogen illumination system. The trinocular port enables to add photographic or video capability. The lighting box shining down onto objects is used for the observation of surface details and fine structures of jewels or gemstones. The transmitted illumination through the condenser is for the examination of inside quality of diamonds. The 45 degree inclined trinocular ensures an comfortable observation. This microscope gives crystal clear images. It provides large zoom magnification range (6:1) and large working distance. It is an ideal instrument for gemologists, jewelry dealers and collectors.

Features :

A brightfield and darkfield trinocular microscopy system for jewelry/gem applications

Three light illumination: incident (top) light, darkfield transmitted bottom light and gooseneck fluorescent rectangular side lighting box

Trinocular port for adding photographic or video capability

Large zoom magnification range (10X-60X)

Darkfield condenser included

Jewelry/gem clamp included

45 degree inclined 360 degree rotatable trinocular head

High resolution optics with great flatness and contrast

Sharp stereo erect images over a wide field view

Crystal clear original true color images

Eye tube with adjustable diopter

Metal pillar stand finished with stain resistant enamel

Accurate alignment ensuring a fatigue-free long time view

Full optical glass elements

Precise ground glass lenses

All metal mechanical components

Adjustable interpupillary distance

Rubber eye-guards included

Dual halogen illumination system

Built-in top and bottom halogen lights

Manufactured under restrict ISO 9001 quality control system

Five (5) year manufacturer warranty for microscope

Lowest price for the same guaranteed or the difference back!

Satisfaction guaranteed or your money back!



Specifications :

Head: 45 degree inclined 360 degree swiveling trinocular

Eyepiece: 30.5mm widefield WF10X and WF15X

Objective: 1.0-4.0X

Zoom Range: 6:1

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 3-3/8"

Frosted Glass Plate: 3-3/4" (95mm) in diameter

White/Black Plastic Plate: 3-3/4" (95mm) in diameter

Illumination: 12V/10W halogen lamps

Power Supply: 110V (220V adapter available)

Accessories: dust cover, eye-guards and clips



Packing List :

One Trinocular Stereo Zoom Microscope Head

One Pair of Widefield WF10X Eyepieces

One Pair of Widefield WF15X Eyepieces

One Pillar Stand with Incident and Darkfield Illumination System

One Rectangular Fluorescent Lighting Box

One 3D Gem Clamp (tweezers)

One Dust Cover

User's Manual

Shipping Weight: 20 lbs

AmScope SH-2TY-SL-DK Microscope

Additional Information

Microscope Type	Stereo
Specialized	Darkfield
Application	Gemology/Jewelry
Field View	Widefield
Head Type	Trinocular
Objective Power	1.0-4.0X
Eyepiece Power	10X, 15X
Eyepiece Size	30.5mm
Stage	Single-layer Stage with Clips
Microscope Stand	Table Stand: pillar
Light Type	Halogen, Fluorescent
Light Power	10W
Light Shape	Built-in, Other
Number of Light Bulbs	2
Iris	Without Iris
Power Supply	110V, 220V
Education	College, Teaching/Training
Manufacturer	AmScope
Color	Black
