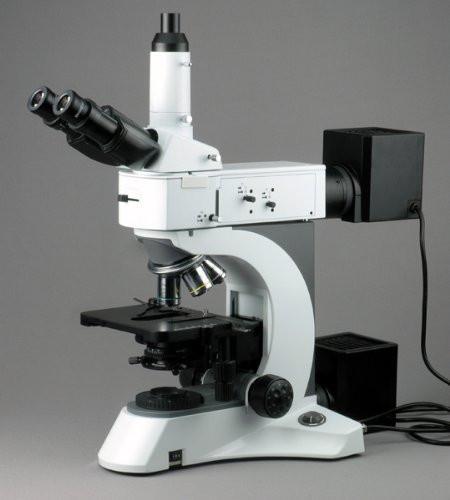

AmScope 50X-1000X Darkfield Polarizing Metallurgical Microscope + 9MP Camera

Viewing Head

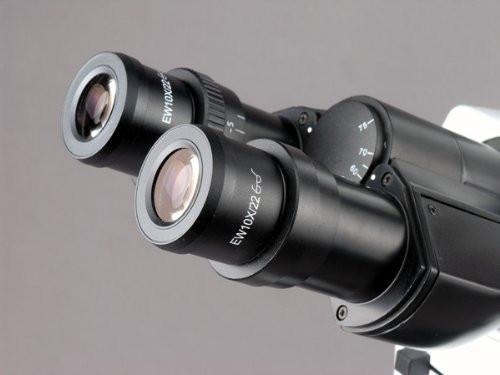

The microscope's head is designed for precision and comfort. The super-widefield optics provide a larger field-of-view so you can see more specimen at any magnification. Compensation-free Siedentopf interpupillary adjustment allows any user to properly align the oculars without readjusting focus. For users with astigmatism or asymmetrical vision, the left ocular can be adjusted to fine-tune focus. The photo port is equipped with a 23mm tube for attaching cameras with compensating lenses, and is height-adjustable to match focus with the eyepieces. The port is compatible with our YX series C-mount adapters which can attach directly to C-mount cameras without a compensating lens – ideal for 1” format sensors. The head is set to a 30° incline which is ideal for viewing from a standing position, and it can be rotated 360°.

Optics

The Stage

The 3-layer mechanical stage provides smooth and precise movement for examination of specimen slides, with a large translation range for viewing larger samples. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimens is intuitive and precise for users at any skill level. Symmetrical focus controls are coaxially mounted for fast, intuitive focusing. A height limit can be set to prevent contact damage, as well as presetting optimal focus distance.

Koehler Episcopic Illumination

The microscope is equipped with 10X and 20X BD (brightfield/darkfield) objective lenses which double as darkfield condensers when using reflected lighting. A slider on the front of the illuminator lets you quickly switch between brightfield and darkfield modes, allowing you to highlight different details.

The illuminator is also equipped with a polarizer and analyzer for even more flexibility. Reflected polarized-lighting will pronounce details in a range of materials and microelectronics, particularly those with birefringent components.

The episcopic illuminator provides 100W of incandescent light, with field and aperture diaphragms for precise control of contrast. Proper adjustment will produce even illumination across the field with improved collimation. The optimized brightness and centering will result in consistent lighting for brightfield applications, and critical improvements in darkfield applications.

Koehler Transmitted Illumination

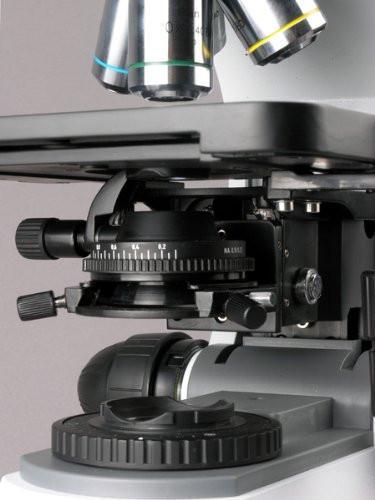

Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The rear-mounted 30W halogen light-source provides 100 CRI illumination with ample brightness for contrast-enhancement methods like darkfield. The lower color temperature of the halogen light-source causes less eyestrain compared to high-Kelvin LED. The light condenser uses a swing mechanism for optimized lighting at both high and low magnifications, with a NA0.25 setting for full coverage at extremely low magnifications. An iris diaphragm allows you to adjust the aperture to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The condenser is top-mounted for easier replacement when working with additional condensers. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features.

Digital Imaging

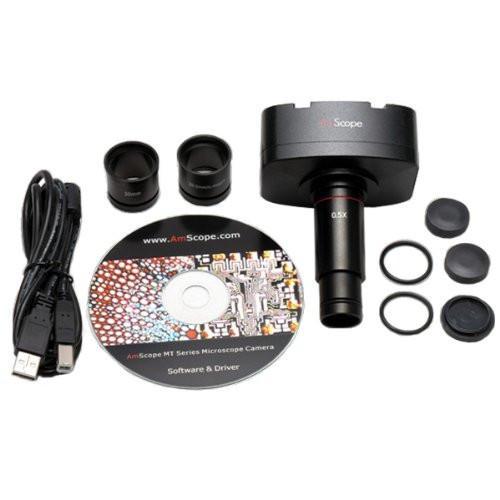

Monitor and capture photos and videos with the included 9MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.5X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope's field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.
