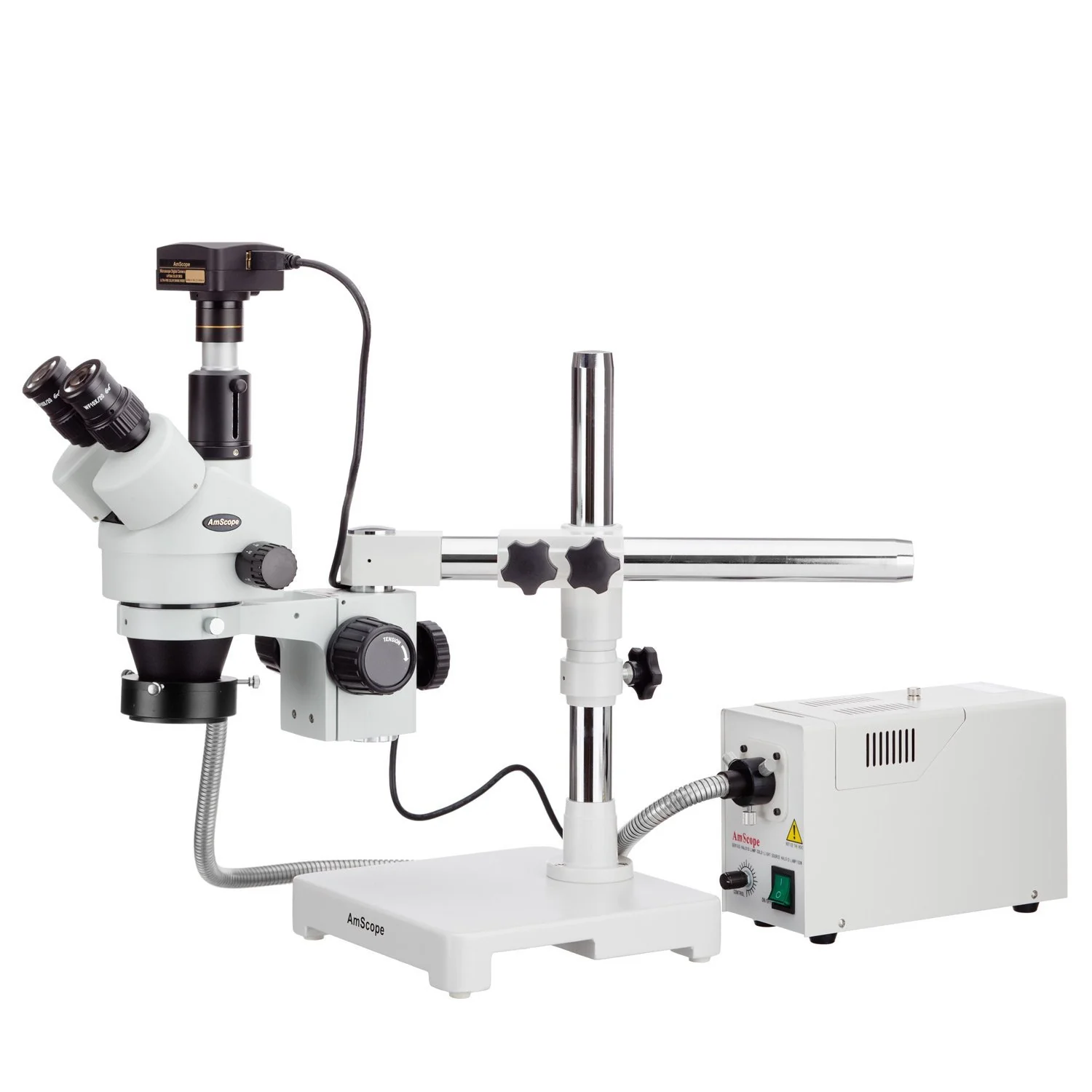

AmScope 3.5X-180X Boom Stand Trinocular Zoom Stereo Microscope with Fiber Optic Ring Illuminator and 18MP USB3 Camera

This trinocualr digital stereo microscope from AmScope allows you to view simultaneously through the microscope while displaying an image out to the camera. The microscope package comes complete and ready to use offering components to allow for 3.5x-180x magnification. The included ring light offers bright 150w fiber optic illumination with variable intensity control.

The 18MP USB3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features :

Simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port
   + Have well-focused, clear images on your computer/video screen and through the eyepieces at the same time.
   + No need to switch between the trinocular port and the eyepieces
   + No need to re-focus the microscope after each "switch"

30mm Super Widefield 10X and 20X Eyepieces
   + Sharp stereo images over a super widefield view
   + High resolution with great flatness and contrast
   + Crystal clear original true-color images

Versatile Single-Arm Boom Stand
   + Covers large working area
   + Rugged solid cast steel base finished with stain resistant enamel

3.5X-180X Continuous Zoom Magnification Range

150 watt strong, even, cool halogen illumination.

45-Degree Inclined Microscope Head

8" (200mm) Large Working Distance

Upright Trinocular Tube for Attaching Digital Cameras, Video Camcorders or CCD Videos

Accurate Alignment Ensuring Fatigue-Free Comfortable Observation

Both Ocular Tubes with Adjustable Diopters

Adjustable Interpupillary Distance

Full Optical Glass Elements

Precise Ground Glass Lenses

All Metal Mechanical Components

Rubber Eye-guards Included

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty

Specifications :

Head: 45 degree inclined 360 degree swiveling trinocular

Eyepiece: 30mm Super widefield high-eyepoint WF10X/20 and WF20/10

Objective: 0.7-4.5X

Barlow Lens: 0.5X and 2.0X

Zoom Range: 26:1

Diopter Adjustment: +/-5dp

Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)

Working Distance: up to 8" (200mm) with Barlow lens

Widefield of View (Maximum): 2-1/2" (65mm) in diameter, super widefield

Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base

Illumination: 150 watt halogen bulb.

Power Supply: 110V/60Hz (220V/50Hz version available).

Accessories: eye-guards

Camera Specifications:

Sensor: Aptina (color)

Sensor Type: CMOS

Sensor Size: 6.14x4.61mm

Pixel Size: 1.25

Resolution: 18.0MP

Frame Rate: 32.2fps @ 1228x922, 18.1fps @ 2456x1842, 5.6fps @ 4912x3684

Sensitivity: 0.62 V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux



Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed

Packing List:

Trinocular Simul-Focal Stereo Zoom Head

Pair of SUPER Widefield 10X Eyepieces

Pair of SUPER Widefield 20X Eyepieces

SUPER Widefield 0.5X Barlow Lens

SUPER Widefield 2.0X Barlow Lens

Single-Arm Boom Stand with Focus Rack

150W Fiber Optic Ring Illuminator

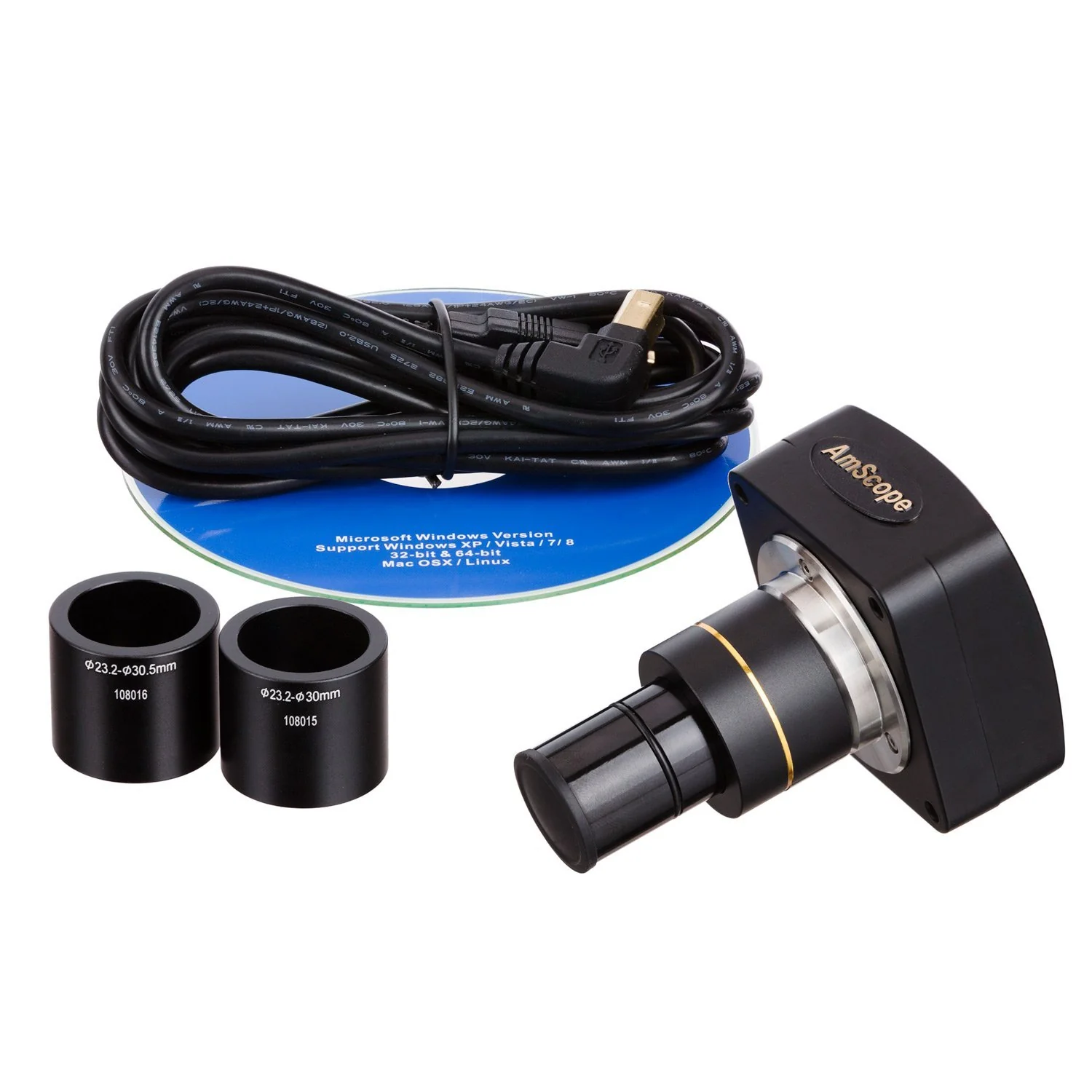

18MP USB3.0 Digital Camera with Reduction Lens

 Pair of Eye-Guards

User's Manual

AmScope SM-3TPZZ-FOR-18M3
