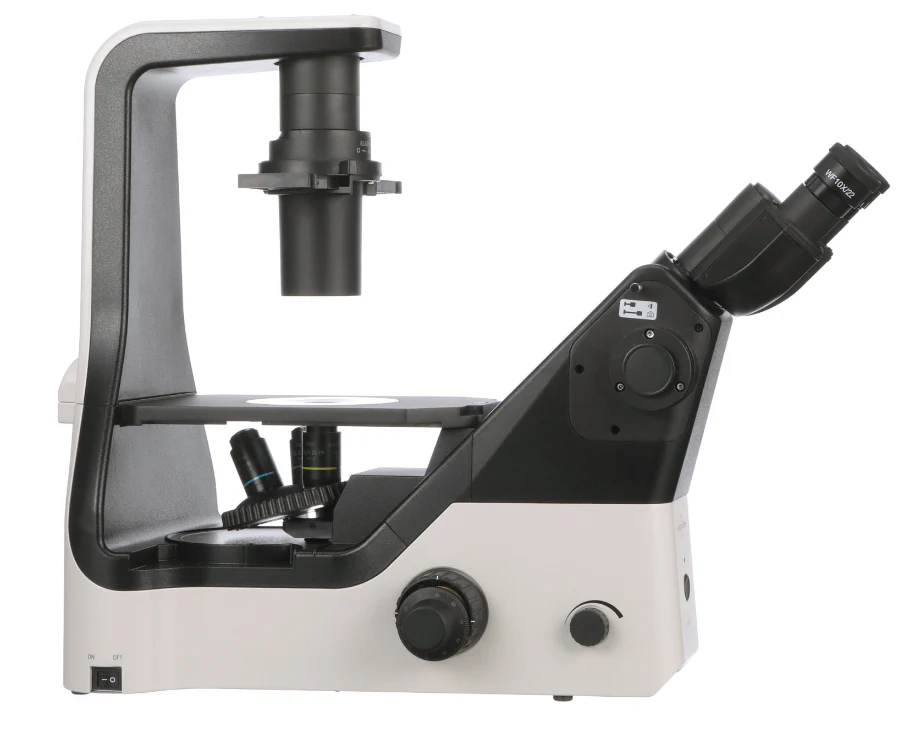

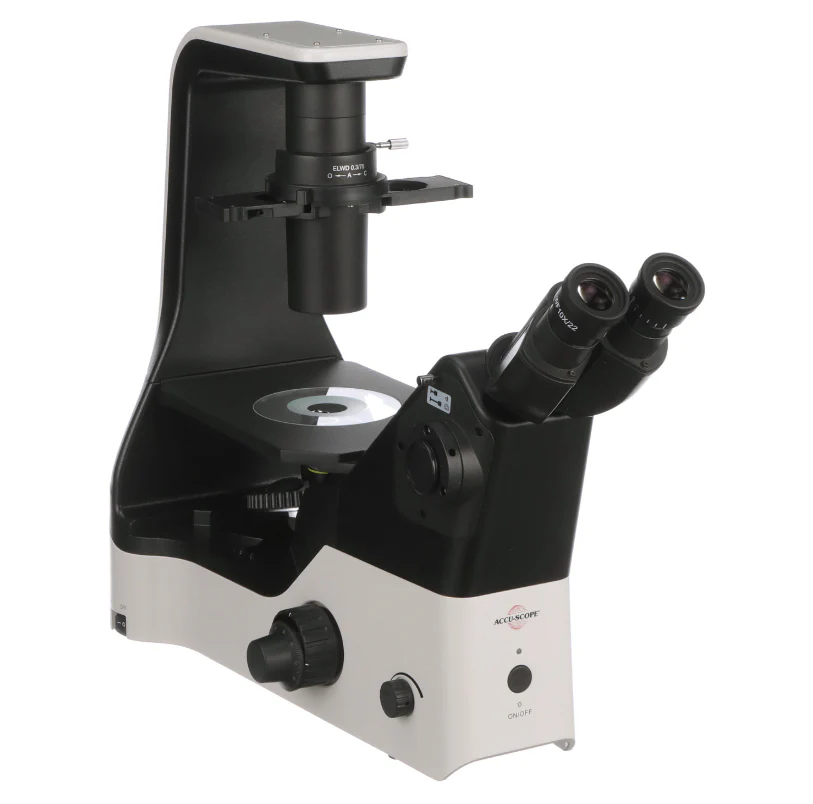

Accu-Scope EXI-410 Hoffman Modulation Contrast Microscope
The Accu-Scope EXI-410 research grade microscope is equipped with hoffman modulation contrast making it easy to detect transparent specimens. Designed to meet the demands of laboratory use, this microscope is easy to use while providing high quality images. Incorporating the latest in LED illumination, and NIS60 Infinity corrected long working distance objectives provides brighter, and sharper images than its competitors. The binocular viewing head is fully rotatable, providing a 35mm increase / decrease in viewing height to accommodate a multi user environment. A side photo port allows you to add a camera without blocking the stage/specimen line of sight. A pair of 10x eyepieces provide you with a 22mm field of view, and come with roll down eyeguards for added comfort. The quintuple nosepiece comes with a 4x brightfield objective, and hoffman modulation contrast 10x, & 20x objectives with the option to add a 40x hoffman objective. The hoffman modulation condenser with positions for each objective is provided. A plain stage comes standard on the EXI-410, and a XY mechanical stage with various specimen holders for petri dishes, slides, and multiwell plates can be added. The 3 watt S-LED variable intensity illumination provides over 20,000 hours of constant use. The Accu-Scope EXI-410 microscope can be fully customized to meet the demands of your laboratory.
| Specifications | |
|---|---|
| Head: | Seidentopf Viewing Head, Inclined at 45°, Interpupillary 48-75mm; binocular head rotates to raise/lower viewing position by 35mm |
| Photo Port: | Left side camera port with light split - 100/0 or 0/100 |
| Eyepieces: | WF10x/22mm eyepieces with eyeguards |
| Nosepiece: | Side facing quintuple |
| Objectives: | LWD Infinity Plan 4x, LWD Infinity Hoffman Modulation Contrast 10x, 20x - Optional 40x. |
| Stage: | Fixed plain stage 170mm(X) × 250mm(Y); 300mm wide with auxiliary stages installed; Optional mechanical stage and specimen holders |
| Condenser: | Hoffman Modulation Contrast Condenser |
| Focus: | Coaxial Coarse & fine focus |
| Illumination: | Variable 3 watt S-LED illumination |
| Accessories: | Dust Cover, Power Cord, Manual |
| Warranty: | 5 Year Electrical & Mechanical |
Accessories
LWD Infinity Plan Achromat Phase Contrast Objectives
LWD Infinity S-APO Phase Objectives
Hoffman Modulation Contrast Objectives
Hoffman Modulation Condenser & Sliders
Mechanical Stage & Specimen Holders
Brochure
Accu-Scope EXI-410 BrochureOriginal: $7,983.00
-70%$7,983.00
$2,394.90
Description
The Accu-Scope EXI-410 research grade microscope is equipped with hoffman modulation contrast making it easy to detect transparent specimens. Designed to meet the demands of laboratory use, this microscope is easy to use while providing high quality images. Incorporating the latest in LED illumination, and NIS60 Infinity corrected long working distance objectives provides brighter, and sharper images than its competitors. The binocular viewing head is fully rotatable, providing a 35mm increase / decrease in viewing height to accommodate a multi user environment. A side photo port allows you to add a camera without blocking the stage/specimen line of sight. A pair of 10x eyepieces provide you with a 22mm field of view, and come with roll down eyeguards for added comfort. The quintuple nosepiece comes with a 4x brightfield objective, and hoffman modulation contrast 10x, & 20x objectives with the option to add a 40x hoffman objective. The hoffman modulation condenser with positions for each objective is provided. A plain stage comes standard on the EXI-410, and a XY mechanical stage with various specimen holders for petri dishes, slides, and multiwell plates can be added. The 3 watt S-LED variable intensity illumination provides over 20,000 hours of constant use. The Accu-Scope EXI-410 microscope can be fully customized to meet the demands of your laboratory.
| Specifications | |
|---|---|
| Head: | Seidentopf Viewing Head, Inclined at 45°, Interpupillary 48-75mm; binocular head rotates to raise/lower viewing position by 35mm |
| Photo Port: | Left side camera port with light split - 100/0 or 0/100 |
| Eyepieces: | WF10x/22mm eyepieces with eyeguards |
| Nosepiece: | Side facing quintuple |
| Objectives: | LWD Infinity Plan 4x, LWD Infinity Hoffman Modulation Contrast 10x, 20x - Optional 40x. |
| Stage: | Fixed plain stage 170mm(X) × 250mm(Y); 300mm wide with auxiliary stages installed; Optional mechanical stage and specimen holders |
| Condenser: | Hoffman Modulation Contrast Condenser |
| Focus: | Coaxial Coarse & fine focus |
| Illumination: | Variable 3 watt S-LED illumination |
| Accessories: | Dust Cover, Power Cord, Manual |
| Warranty: | 5 Year Electrical & Mechanical |
Accessories
LWD Infinity Plan Achromat Phase Contrast Objectives
LWD Infinity S-APO Phase Objectives
Hoffman Modulation Contrast Objectives
Hoffman Modulation Condenser & Sliders
Mechanical Stage & Specimen Holders
