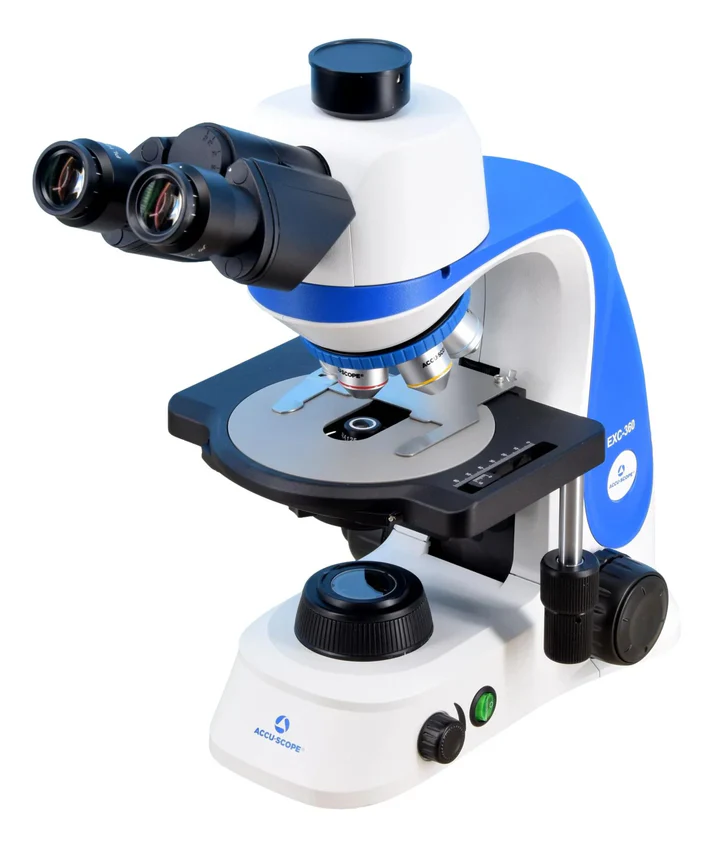

Accu-Scope EXC-360 Phase Contrast Microscope

Experience the exceptional design of the new Accu-Scope EXC-360 phase contrast microscope. With a sturdy and eye-catching build, this microscope is sure to stand out in your lab. The microscope comes standard with a trinocualr viewing head making it easy to add a camera at anytime. The 10x eyepieces offer a large 22mm field of view. A 5-position nosepiece comes standard.

There are a few options for this microscope which will determine which objectives come with the scope, and condenser.



• EXC-360-PH wll come with Infinity Plan Achromat Phase 10x, 20x, 40x, and 100x Oil Objectives. It will come with a phase turret condenser which has BF and phase settings.



• EXC-360-PHDF will come with Infinity Plan Achromat Phase 10x, 40x, and 100x Oil Objectives It will come with a phase turret condenser which has BF, DF, and phase settings.



• EXC-360-SPH will come with Infinity Plan Achromat Phase 10x, and 40x Objectives. It will come wiht a phase slider which has BF and phase settings.

 The large stage is coated with ceramic to prevent wear and tear in high-demand environments, and the quick-load slide holder allows for seamless slide changes. The ultra bright 3-watt LED illumination system assists the objectives in providing high-resolution images.



Specifications
Head:	Trinocular, Siedentopf-type viewing head, inclined 30°, rotatable 360°
Eyepieces:	WF10x/22mm focusing eyepieces with eyeguards - Accepts 26.5mm Reticle
Nosepiece:	Reversed quintuple nosepiece
Objectives:	EXC-360-PH: Infinity Plan Achromat Phase 10x, 20x, 40x, 100x Oil EXC-360-PHDF: Infinity Plan Achromat Phase 10x, 40x, 100x Oil EXC-360-SPH: Infinity Plan Achromat Phase 10x, 40x
Stage:	Double-layer mechanical stage with ceramic coating; 0.1mm precision (X-axis); 78mm x 51mm movement range; quick load single slide holder
Condenser:	EXC-360-PH: Phase Turret w/ BF and Phase Settings EXC-360-PHDF: Phase Turret w/ BF, DF, and Phase Settings EXC-360-SPH: Phse Slider w/ BF and Phase Settings
Focusing:	Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass for fine focus
Illumination:	3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240v
Accessories:	Dust cover, power cord, manual
Warranty:	5 Year Mechanical & Electrical

Accessories

• Heads

• Eyepieces

• C-Mounts

• Brightfield Objectives

• Phase Contrast Objectives

• S-Plan APO Objectives

• Phase Turret Condenser

• Phase Centering Telescope

• Polarizer & Analyzer

• Color Filters

• 6 Position Fluorescence Attachment

• X-Cite Mini+ Fluorescence LED Illuminator

• Fluorescence Filter Cubes

• Replacement LED Bulb

• Stage Micrometer

• Carry Case

Brochure

Accu-Scope EXC-360 Microscope Brochure
