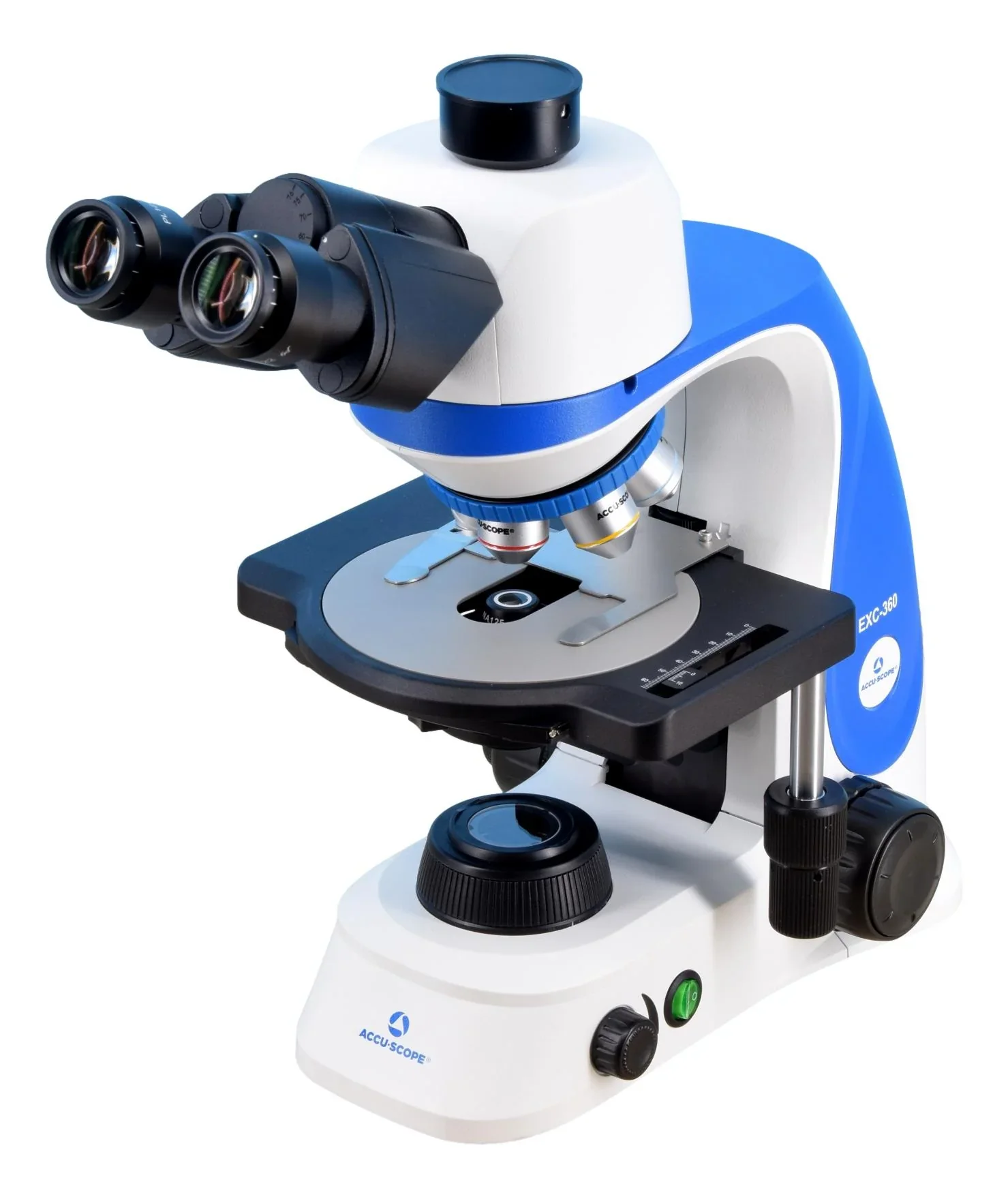

Accu-Scope EXC-360 MOHS Microscope
Experience the exceptional design of the new Accu-Scope EXC-360 clinical microscope configured for dermatology / MOHS applicatoins. With a sturdy and eye-catching build, this microscope is sure to stand out in your lab. You can choose from a trinocular, or ergo tilting binocular viewing head. The 10x eyepieces offer a large 22mm field of view. A 5-position nosepiece comes standard with Infinity Plan Achromat 2,x 4x, 10x, and 20x objectives, and you can add an optional 40x objective. The large stage is coated with ceramic to prevent wear and tear in high-demand environments, and the quick-load slide holder allows for seamless slide changes. The abbe 1.25 N.A. condenser comes with a diffusion slider for use with the 2x objective. The ultra bright 3-watt LED illumination system assists the objectives in providing high-resolution images.
| Specifications | |
|---|---|
| Head: |
Trinocular, Siedentopf-type viewing head, inclined 30°, rotatable 360° Or Ergo Tilting Binocular 5°-35° |
| Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards - Accepts 26.5mm Reticle |
| Nosepiece: | Reversed quintuple nosepiece |
| Objectives: | Infinity Plan Achromat 2x, 4x, 10x, 20x |
| Stage: | Double-layer mechanical stage with ceramic coating; 0.1mm precision (X-axis); 78mm x 51mm movement range; quick load single slide holder |
| Condenser: | N.A. 1.25 condenser with aperture diaphragm; with diffusion slider |
| Focusing: | Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass for fine focus |
| Illumination: | 3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240v |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
Accessories
Brochure
Original: $2,131.00
-70%$2,131.00
$639.30
Description
Experience the exceptional design of the new Accu-Scope EXC-360 clinical microscope configured for dermatology / MOHS applicatoins. With a sturdy and eye-catching build, this microscope is sure to stand out in your lab. You can choose from a trinocular, or ergo tilting binocular viewing head. The 10x eyepieces offer a large 22mm field of view. A 5-position nosepiece comes standard with Infinity Plan Achromat 2,x 4x, 10x, and 20x objectives, and you can add an optional 40x objective. The large stage is coated with ceramic to prevent wear and tear in high-demand environments, and the quick-load slide holder allows for seamless slide changes. The abbe 1.25 N.A. condenser comes with a diffusion slider for use with the 2x objective. The ultra bright 3-watt LED illumination system assists the objectives in providing high-resolution images.
| Specifications | |
|---|---|
| Head: |
Trinocular, Siedentopf-type viewing head, inclined 30°, rotatable 360° Or Ergo Tilting Binocular 5°-35° |
| Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards - Accepts 26.5mm Reticle |
| Nosepiece: | Reversed quintuple nosepiece |
| Objectives: | Infinity Plan Achromat 2x, 4x, 10x, 20x |
| Stage: | Double-layer mechanical stage with ceramic coating; 0.1mm precision (X-axis); 78mm x 51mm movement range; quick load single slide holder |
| Condenser: | N.A. 1.25 condenser with aperture diaphragm; with diffusion slider |
| Focusing: | Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass for fine focus |
| Illumination: | 3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240v |
| Accessories: | Dust cover, power cord, manual |
| Warranty: | 5 Year Mechanical & Electrical |
