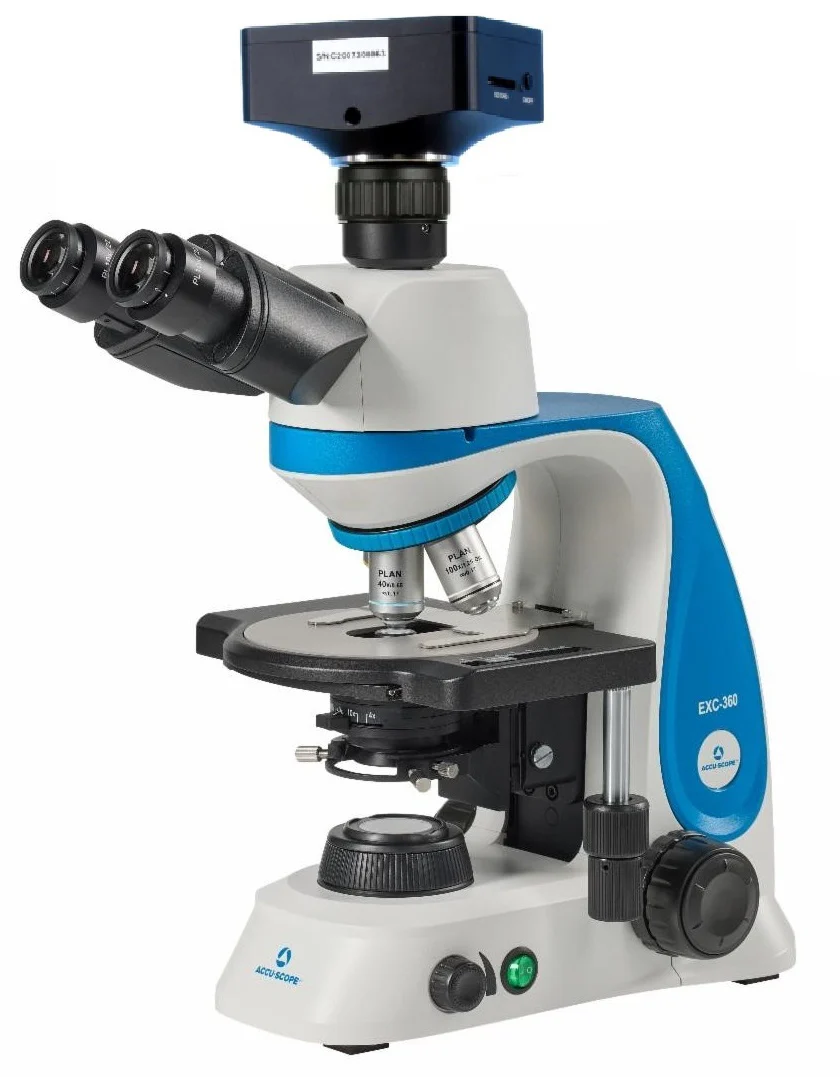

Accu-Scope EXC-360 4K Digital Microscope - HDMI, WiFi, USB
This Accu-Scope EXC-360 4K digital microscope package is a complete digital solution for your lab. Experience the exceptional design of the new Accu-Scope EXC-360 clinical microscope. With a sturdy and eye-catching build, this microscope is sure to stand out in your lab. The microscope comes with a trinocualr viewing head, and includes the c-mount camera adapter. The 10x eyepieces offer a large 22mm field of view. A 5-position nosepiece comes standard with Infinity Plan Achromat 4x, 10x, 40x, and 100x objectives, with a full line of objectives to add to meet your magnification requirements. The large stage is coated with ceramic to prevent wear and tear in high-demand environments, and the quick-load slide holder allows for seamless slide changes. The abbe 1.25 N.A. condenser has a slot which can accept phase or darkfield sliders. The ultra bright 3-watt LED illumination system assists the objectives in providing high-resolution images.

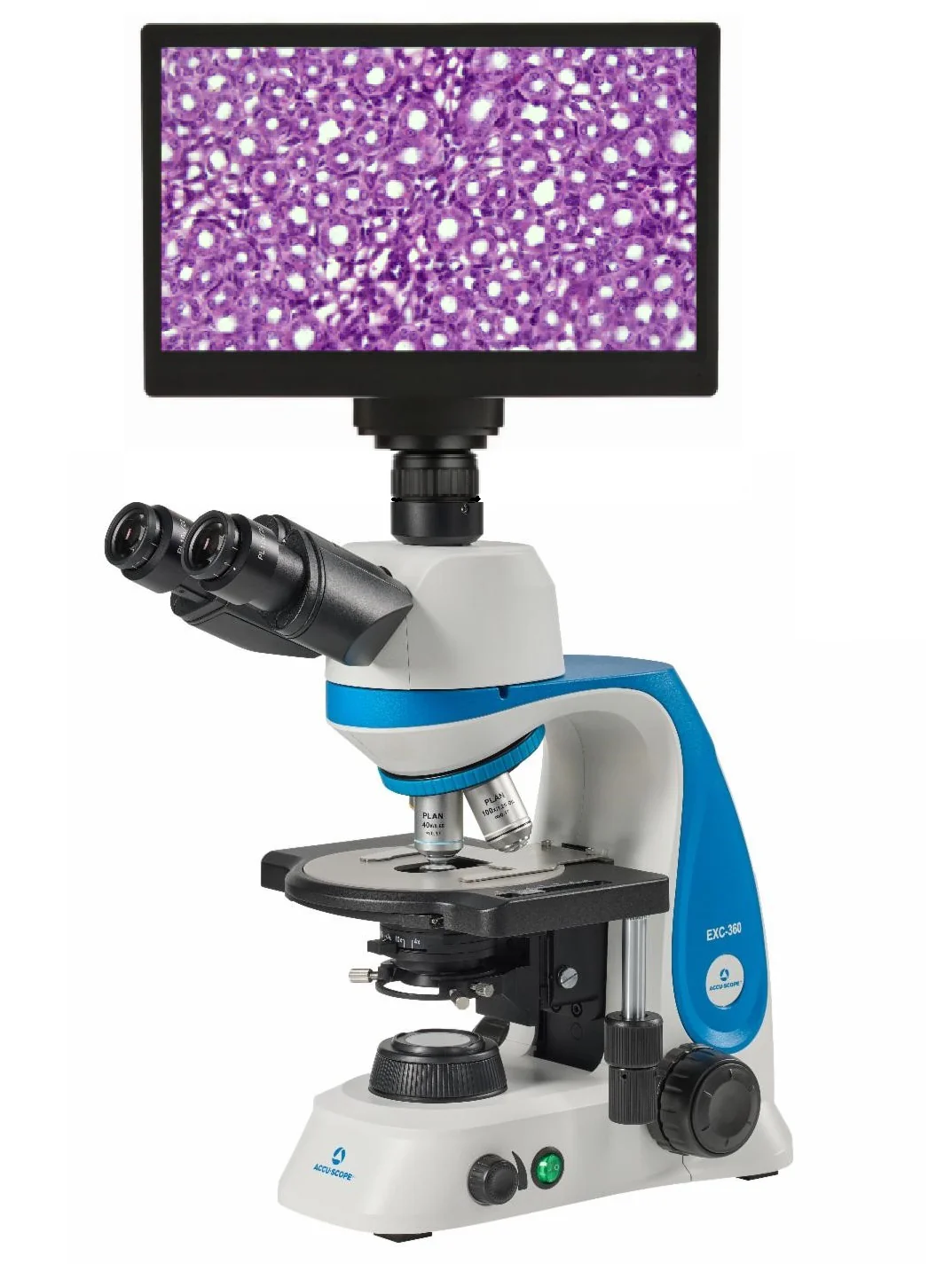

The View4K is a powerful new smart microscope camera that produces high-definition images of amazing clarity, and can output HDMI (4K Monitor NOT required), USB, or WiFi, or Network. You can choose the option to have an 13.3" HD screen that mounts directly to the front of the camera for an all-in-one streamlined digital solution, and or use any of the other output methods listed below.
HDMI Mode: On-board software allows you to fully control the camera's settings / built-in features with the included wireless mouse. Adjust the exposure, brightness, and more. The software also allows for on-screen measurement, picture in picture, image comparison, video / image replay, and more. In HDMI mode you can capture images / videos to either USB stick to transfer to your computer. Added features include custom DXF overlays, and record audio with your videos with a microphone. Standing out from other HDMI cameras the View4K allows you more control such as giving you the option to name your image / video as its saved - rather than just saving them in number order.
USB Mode: Connect to your computer via USB 3.0 cable and use the free advanced software to view, capture, and process. The feature rich software includes measurements, time-lapse, stitching, extended depth of focus, and more.
WiFi Mode: Wireless connection to an android, iOS device, or computer. A FREE app can be downloaded for android or iOS device use. Output WiFi to use the included computer software.
LAN / Network Mode: Connect to your network with the LAN port to view images on a PC through the InFocus software, Media player, or device via the app.
| Microscope Specifications | |
|---|---|
| Head: | Trinocular Viewing Head, inclined 30°, 50:50 Light Split |
| Eyepieces: | WF10x/22mm focusing eyepieces with eyeguards, accepts 26.5mm reticle |
| Nosepiece: | Reversed quintuple |
| Objectives: | Inifinity Corrected Plan Achromat 4x, 10x, 40x, 100x Oil |
| Stage: | Double-layer mechanical stage with ceramic coating; 0.1mm precision (X-axis); 78mm x 51mm movement range; quick load single slide holder |
| Condenser: | N.A. 1.25 condenser with aperture diaphragm; slot for phase contrast or darkfield sliders |
| Focusing: | Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass for fine focus |
| Illumination: | 3W LED with variable intensity control; LED bulb is rated for over 25,000 hours of continuous use; internal universal power supply 110-240v |
| Accessories: | Dust cover, immersion oil & instruction manual included |
| Warranty: | 5 Year Mechanical & Electrical |
| Camera Specifications: | |
|---|---|
| Screen: | Optional 13.3" HD Screen |
| Resolution (Live): | 4K (3840 x 2160) |
| Mega Pixels: | 8.0 M.P. |
| Sensor: | 1/1.8" Sony IMX678 - CMOS |
| Pixel Size: | 2.0 x 2.0μ |
| Sensitivity: | 1364mv with 1/30s |
| Shutter: | Rolling |
| Frame Rate: |
HDMI 60 FPS @ (3840 x 2160) HDMI 60 FPS @ (1920 x 1080) WiFi, GE 30 FPS @ (3840 x 2160) |
| Image & Video Capture: |
HDMI - Capture to USB Stick PC - Capture w/ software WiFi - Capture w/ APP |
| Exposure Time: | 0.019 - 1000ms |
| Output Modes: | HDMI, WiFi, USB, LAN (Network) |
| HDMI Compatibility: | Any HDMI input monitor, projector, TV (4K Not Required) |
|
Computer Compatibility: |
Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maxim transfer speed |
| PC Software: |
Windows: Live video preview Mac: Live video preview |
| Warranty: | 1 year |
